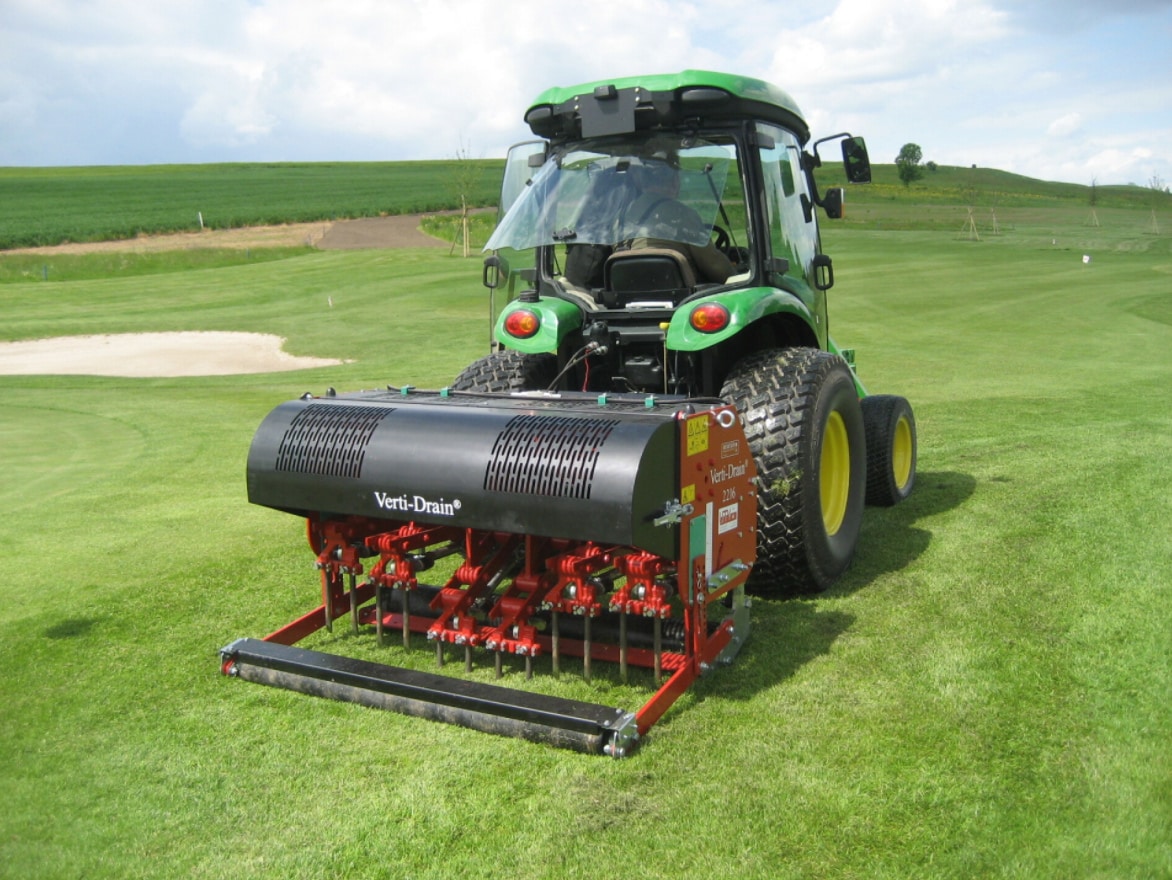

VERTI-DRAIN® 2216
The robust Verti-Drain 2216 is a high-speed unit, capable of handling a 24mm / 1” diameter tine and working to depths of 22cm / 9”. Thanks to its heavy-duty construction, the 2216 is ideal for a range of creation applications where durability and speed is key
- Heavy-duty
- High-speed aerator
- Multiple the options
- Consider the Verti-Drain 2220 for larger areas
Specifications
VERTI-DRAIN® 2216
SKU 111.122.016 WORKING WIDTH (M) 1.6 WORKING WIDTH (INCH) 63 MAX. WORKING DEPTH (MM) 225 MAX. WORKING DEPTH (INCH) 9 WORKING SPEED AT HOLE SPACING 65 MM 1.79 WORKING SPEED AT HOLE SPACING 2-1 2 INCH (MPH) 1.1 WEIGHT (KG) 952 WEIGHT (LBS) 2094 HOLE DISTANCE WITH 12 MM TINES (MM) 65 HOLE DISTANCE WITH 1 2 X 6 INCH TINES (INCH) 2.5 HOLE DISTANCE WITH 18 MM TINES (MM) 130 HOLE DISTANCE WITH 3 4 X 9 INCH TINES (INCH) 5.11 HOLE SPACING DISTANCE DRIVING DIRECTION (MM) 25 - 195 HOLE SPACING DISTANCE DRIVING DIRECTION (INCH) 1 - 7.5 MAX DIAMETER SOLID TINE (MM) 24 x 225 MAX DIAMETER SOLID TINE (INCH) 1 x 9 MAX DIAMETER HOLLOW TINE (MM) 25 x 225 MAX DIAMETER HOLLOW TINE (INCH) 1 x 9 MIN. TRACTOR HP REQUIRED 45 MIN. LIFTING CAPACITY (KG) 1050 MIN. LIFTING CAPACITY (LBS) 2314 MAX. CAPACITY WITH SPACING 65 MM (M² HR) 2796 MAX. CAPACITY WITH SPACING 2-1 2 INCH (FT² HR) 30096 THREE-POINT HITCH 3-Point CAT 1/2 RPM MAX. 540 GEARBOX OIL 80W90 5.5 Liter LUBRICANT EP 2 DIMENSIONS (WIDTH MM) 1700 DIMENSIONS (HEIGHT MM) 900 DIMENSIONS (LENGTH MM) 1210 DIMENSIONS (WIDTH INCH) 66.9 DIMENSIONS (HEIGHT INCH) 35.4 DIMENSIONS (LENGTH INCH) 47.6 SLIP CLUTCH SETTING 550 NM (4868 lbf-in)
