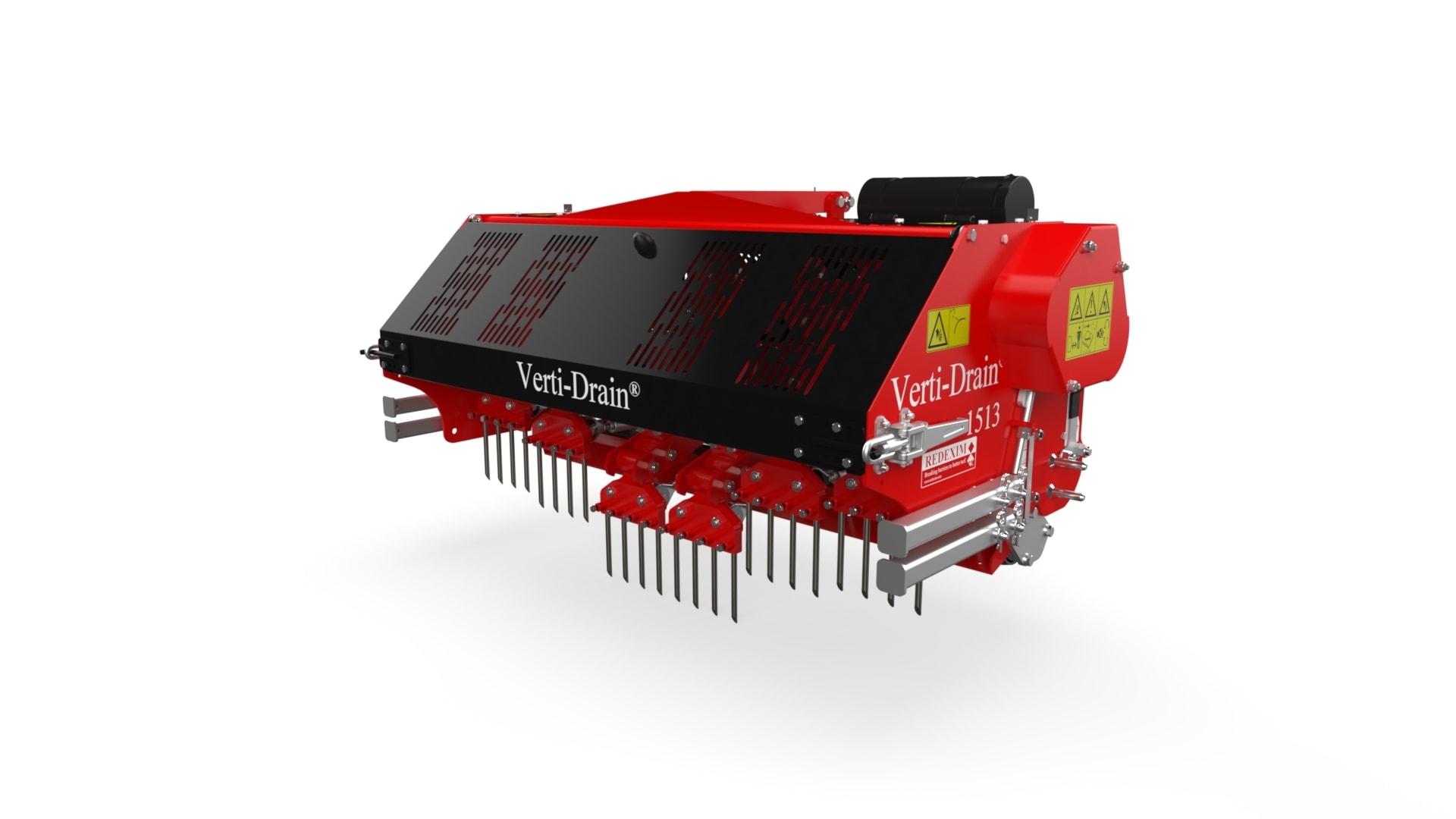

VERTI-DRAIN® 1513

OverviewSpecifications

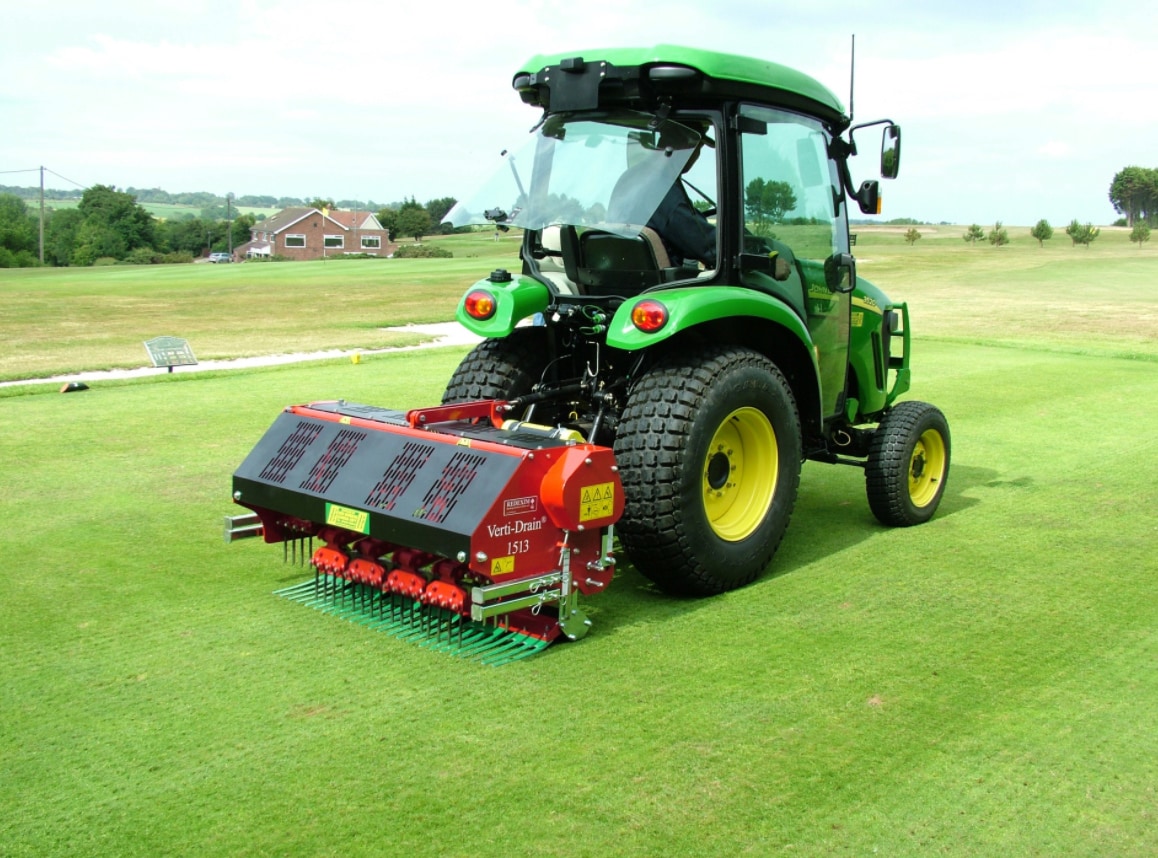

The lightweight Verti-Drain 1513 can work to a depth of 6” / 150mm and is well suited to sensitive turf surfaces. The belt driven machine operates a high speed while giving a neat and consistent hole pattern. An optional rear roller can be added to aid preening

  • High-speed machine
  • Lightweight machine with low HP requirements
  • Integrated parking stands for ease of operation
  • If additional working depth is required, consider the 22 Series Verti-Drain

Specifications

  • VERTI-DRAIN® 1513

    SKU111.215.013
    WORKING WIDTH (M)1.32
    WORKING WIDTH (INCH)52
    MAX. WORKING DEPTH (MM)150
    MAX. WORKING DEPTH (INCH)6
    WORKING SPEED AT HOLE SPACING 65 MM2.12
    WORKING SPEED AT HOLE SPACING 2-1 2 INCH (MPH)1.3
    WEIGHT (KG)448
    WEIGHT (LBS)985
    HOLE DISTANCE WITH 12 MM TINES (MM)55
    HOLE DISTANCE WITH 1 2 X 6 INCH TINES (INCH)2.17
    HOLE SPACING DISTANCE DRIVING DIRECTION (MM)25 - 125
    HOLE SPACING DISTANCE DRIVING DIRECTION (INCH)1-7.5
    MAX DIAMETER SOLID TINE (MM)12 x 150
    MAX DIAMETER SOLID TINE (INCH)1/2 x 6
    MAX DIAMETER HOLLOW TINE (MM)19 x 150
    MAX DIAMETER HOLLOW TINE (INCH)3/4 x 6
    MIN. TRACTOR HP REQUIRED25
    MIN. LIFTING CAPACITY (KG)650
    MIN. LIFTING CAPACITY (LBS)1450
    MAX. CAPACITY WITH SPACING 65 MM (M² HR)2822
    MAX. CAPACITY WITH SPACING 2-1 2 INCH (FT² HR)30374
    THREE-POINT HITCH3-point CAT 1
    RPM MAX.540
    GEARBOX OIL80W90 - 0.9L
    LUBRICANTEP 2
    DIMENSIONS (WIDTH MM)970
    DIMENSIONS (HEIGHT MM)780
    DIMENSIONS (LENGTH MM)1610
    DIMENSIONS (WIDTH INCH)38.2
    DIMENSIONS (HEIGHT INCH)30.7
    DIMENSIONS (LENGTH INCH)63.4
