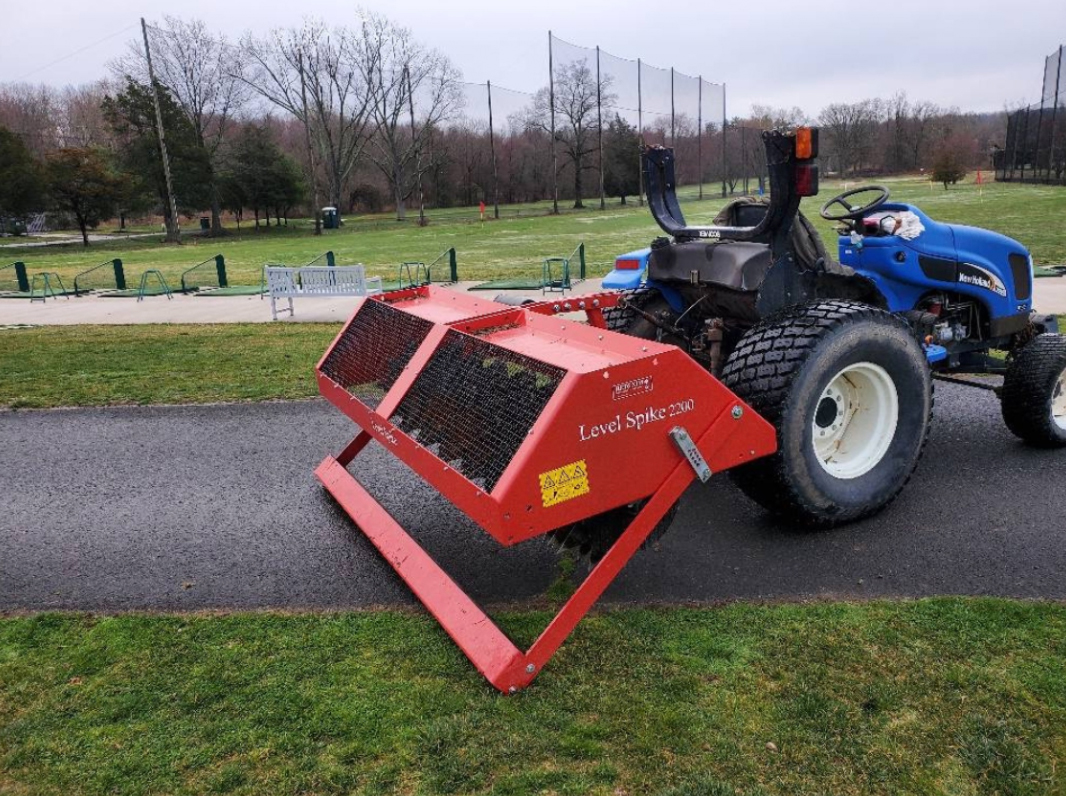

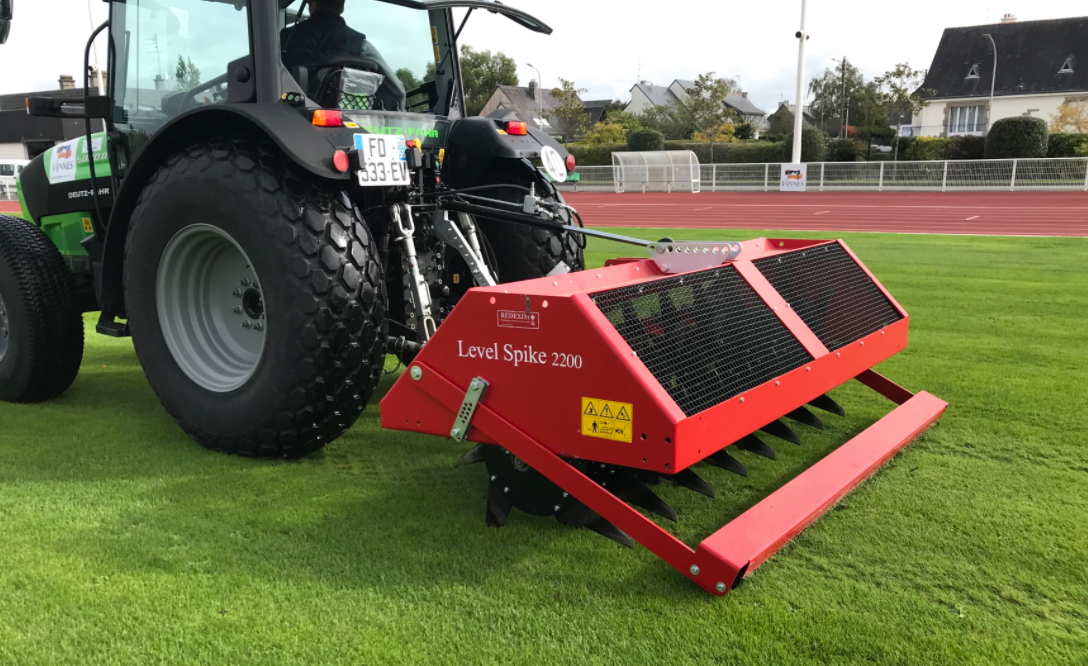

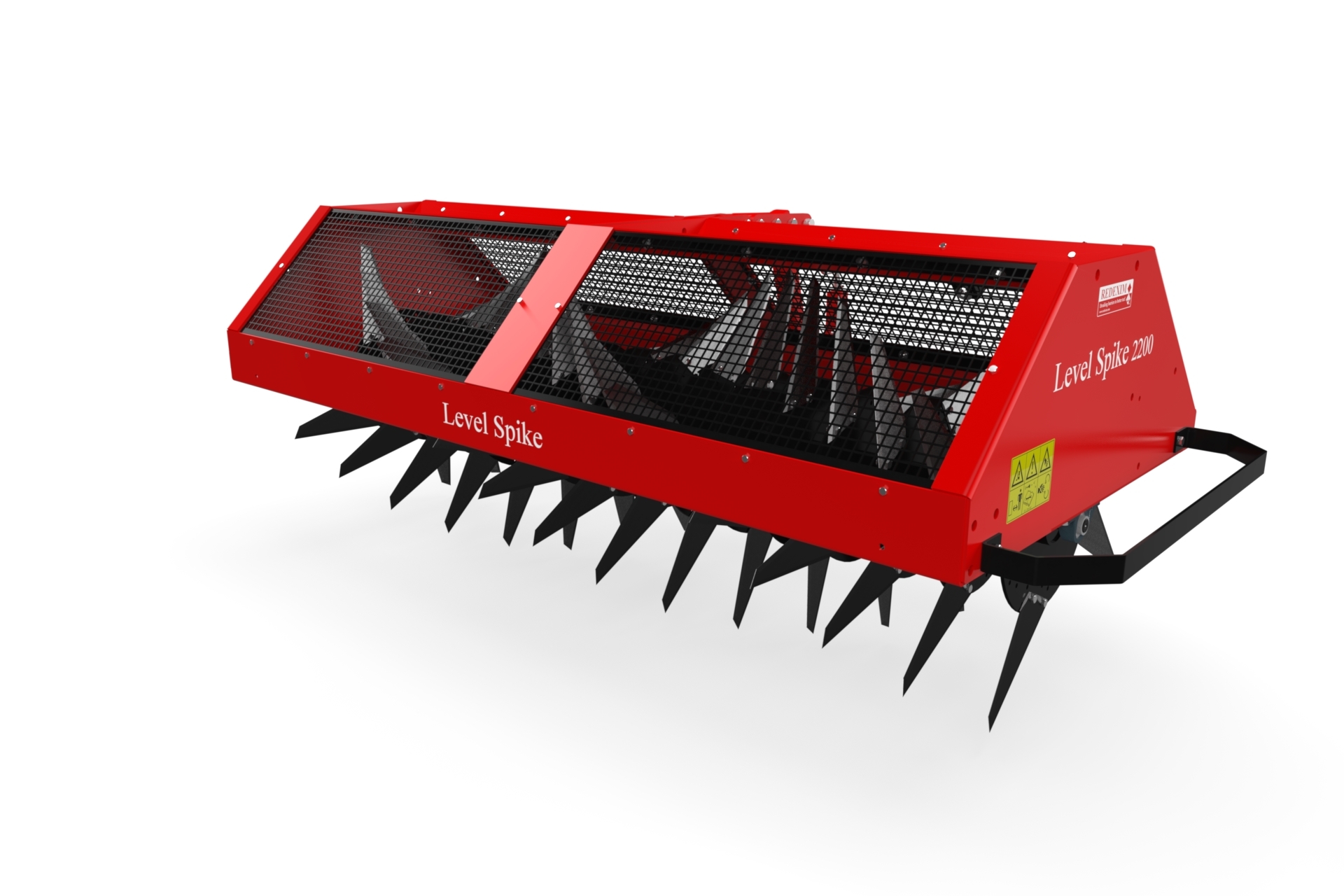

The Level-Spike is a fast and proven machine for the creation of aeration slits to aid drainage and allow air into turf surfaces. The Level-Spike can achieve a maximum depth of 25cm / 10” and as a range of optional knives to alter the slit pattern including hallow tines to pull cores
- Simple and effective
- Optional weight transfer kit for tough conditions

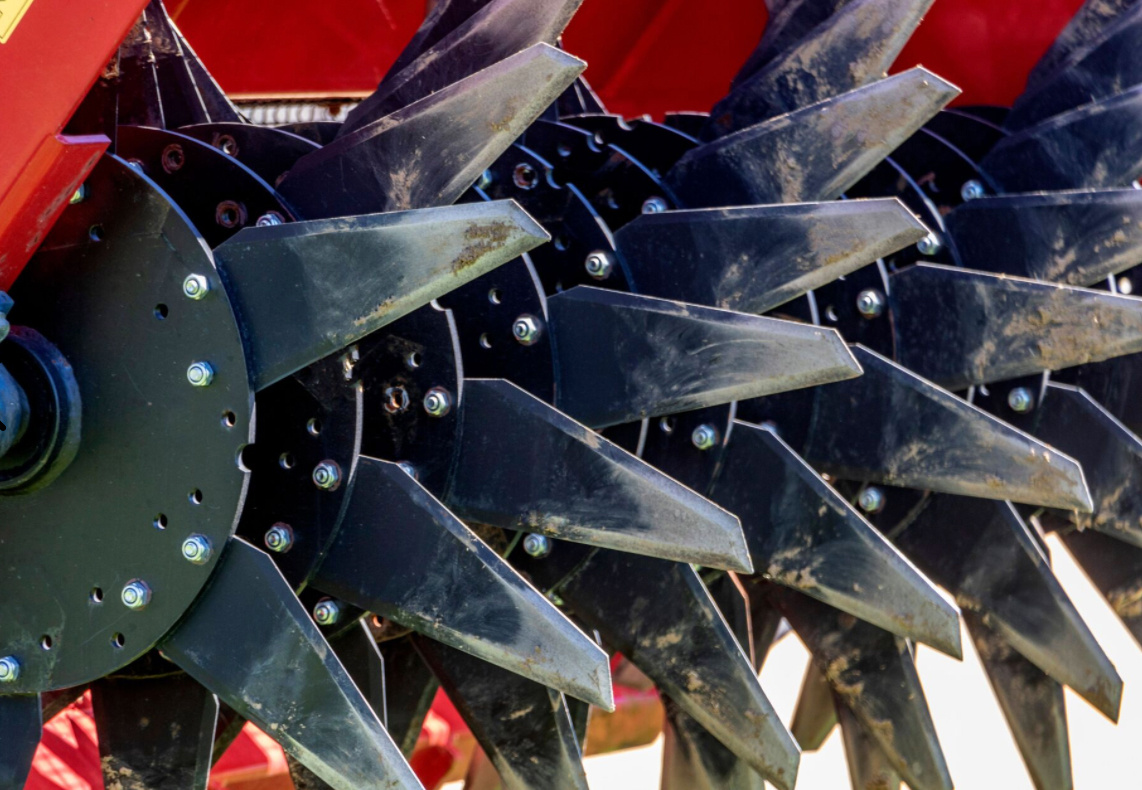

- Many blade options
- Consider the Level-Spike 1700 for a smaller areas
Specifications
LEVEL – SPIKE 2200
SKU 113.220.000 WORKING WIDTH (M) 2.4 WORKING WIDTH (INCH) 96 MAX. WORKING DEPTH (MM) 250 MAX. WORKING DEPTH (INCH) 10 WEIGHT (KG) 405 WEIGHT (LBS) 1090 SLIT DISTANCE BETWEEN THE KNIVES (MM) 150 SLIT DISTANCE BETWEEN THE KNIVES (INCH) 6 HOLE SPACING DISTANCE DRIVING DIRECTION (MM) 330 HOLE SPACING DISTANCE DRIVING DIRECTION (INCH) 13 MIN. TRACTOR HP REQUIRED 45 MIN. LIFTING CAPACITY (KG) 600 MIN. LIFTING CAPACITY (LBS) 1300 MAX. CAPACITY ( M² HR) 12000 MAX. CAPACITY (FT² HR) 108000 THREE-POINT HITCH 3-point CAT 1-2 LUBRICANT EP 2
