Connect

Cushman

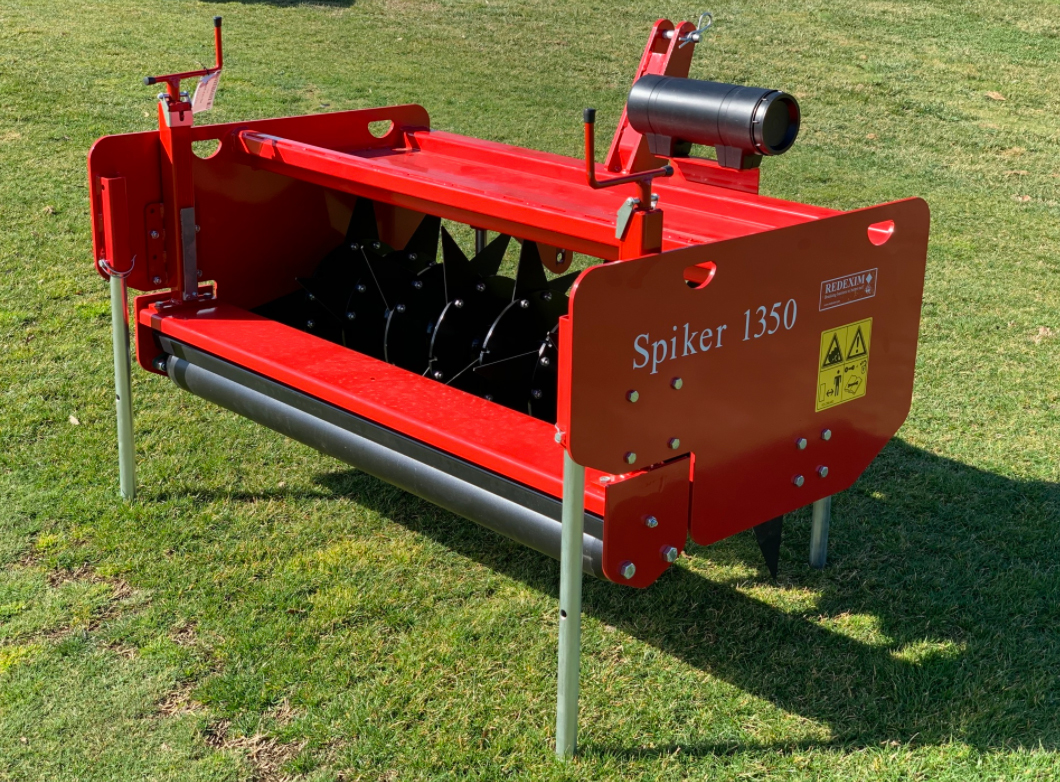

Spiker 1350

Designed to work in conjunction with the popular Carrier unit, the Spiker 1350 slits turf surfaces to aid drainage and create aeration channels; it can also be mounted on a standard tractor. The integrated roller controls the working depth while allowing the unit to follow surface undulations.

  • Compatible with a range of prime movers
  • Intergrated roller as standard
  • See also the Multi-Spike and Level-Spike for other Slitter options

Specifications

  • LEVEL – SPIKE 2200

    SKU113.120.002
    WORKING WIDTH (M)1.35
    WORKING WIDTH (INCH)53.1
    MAX. WORKING DEPTH (MM)150
    MAX. WORKING DEPTH (INCH)5.9
    MAX. WORKING SPEED (KM H)15
    WORKING SPEED (MPH)9.4
    WEIGHT (KG)250
    WEIGHT (LBS)550
    SLIT DISTANCE BETWEEN THE KNIVES (MM)150
    SLIT DISTANCE BETWEEN THE KNIVES (INCH)6
    HOLE SPACING DISTANCE DRIVING DIRECTION (MM)245
    HOLE SPACING DISTANCE DRIVING DIRECTION (INCH)9.6
    MIN. TRACTOR HP REQUIRED30
    MIN. LIFTING CAPACITY (KG)350
    MIN. LIFTING CAPACITY (LBS)770
    THREE-POINT HITCH3-point CAT 1
    LUBRICANTEP2
