IMANTS – ROTOSWEEP & RHEA SCARIFIER
Efficient removal of surface debris from sports turf< including cores, grass clippings, leaves and general litter collection

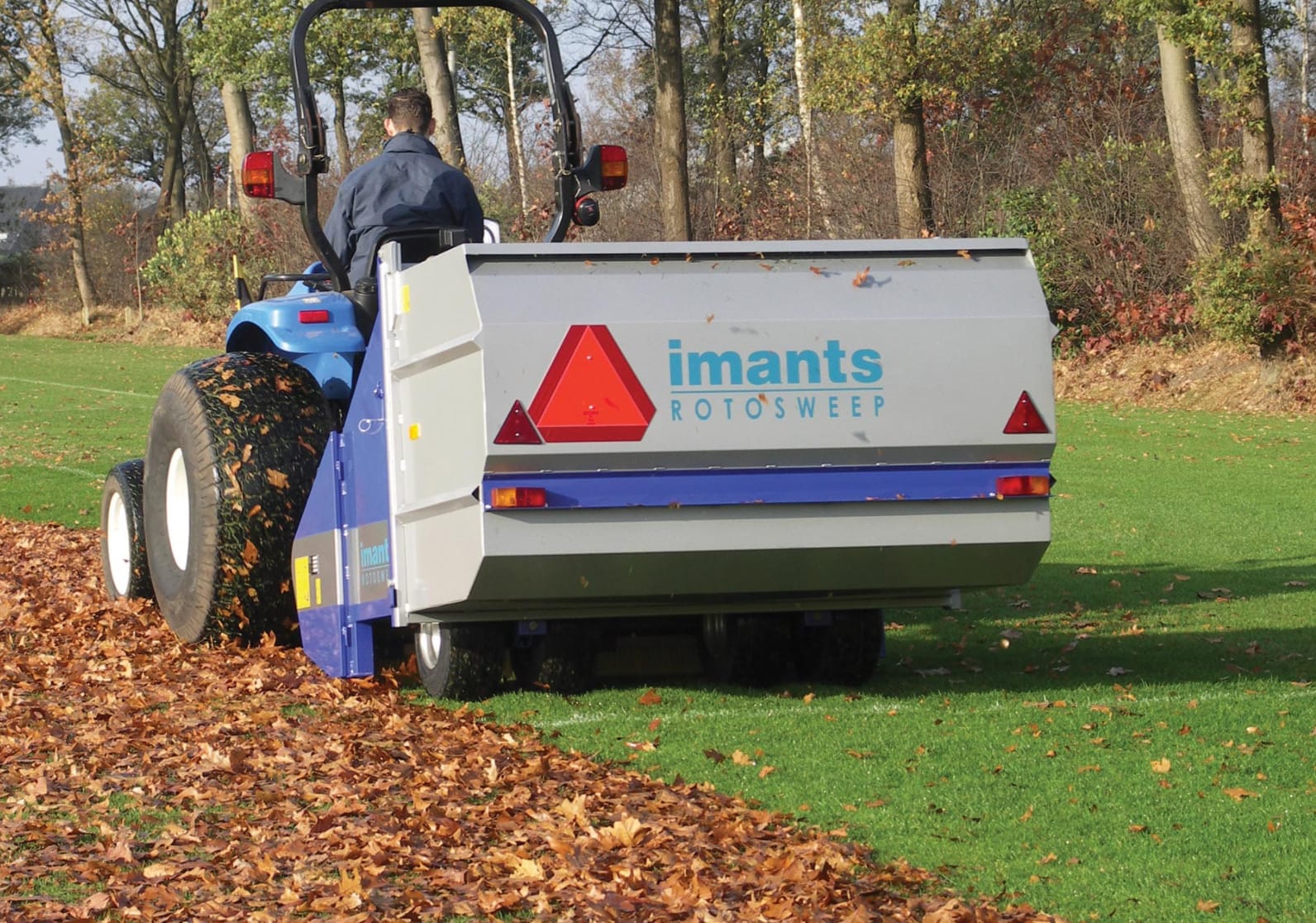

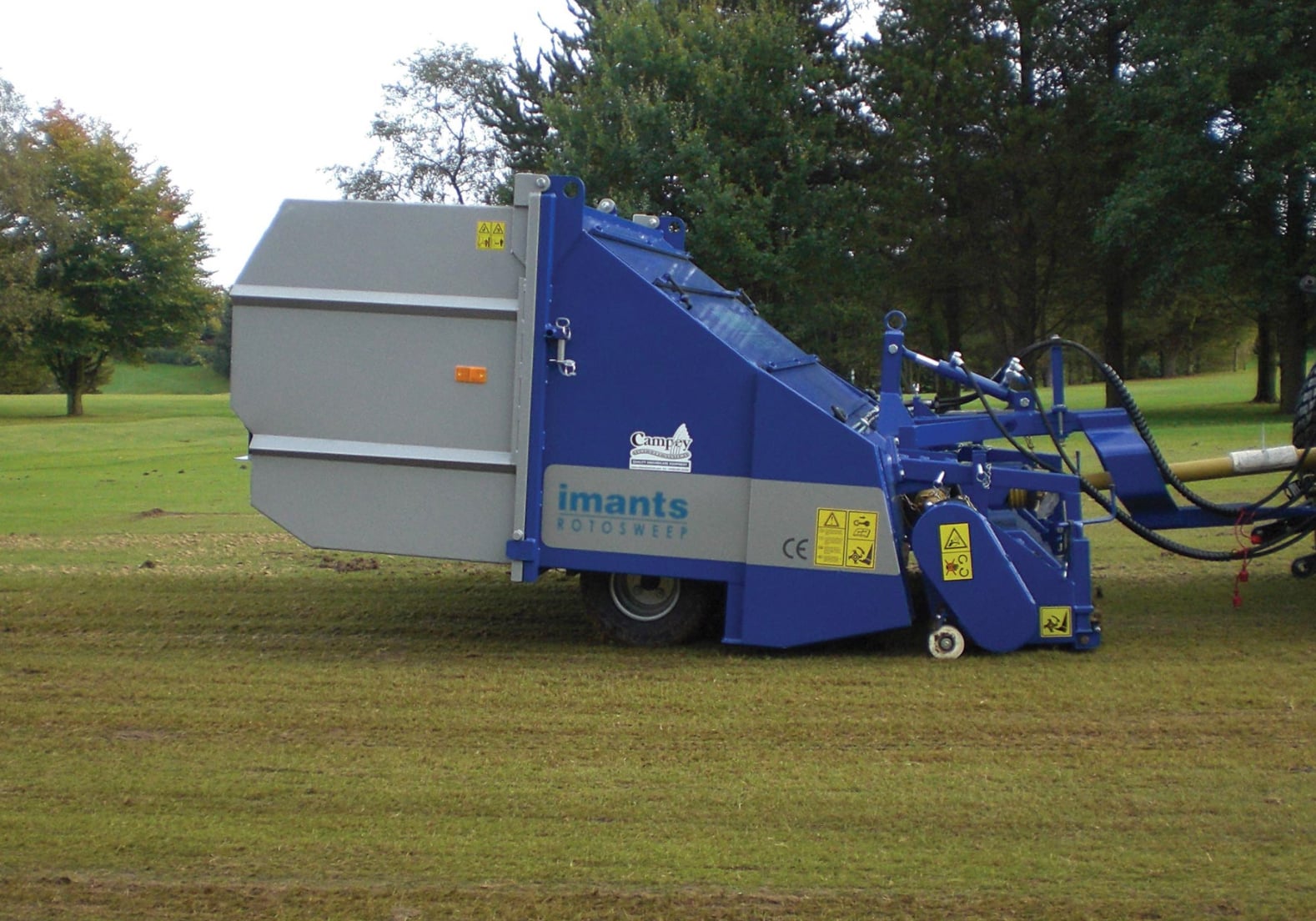

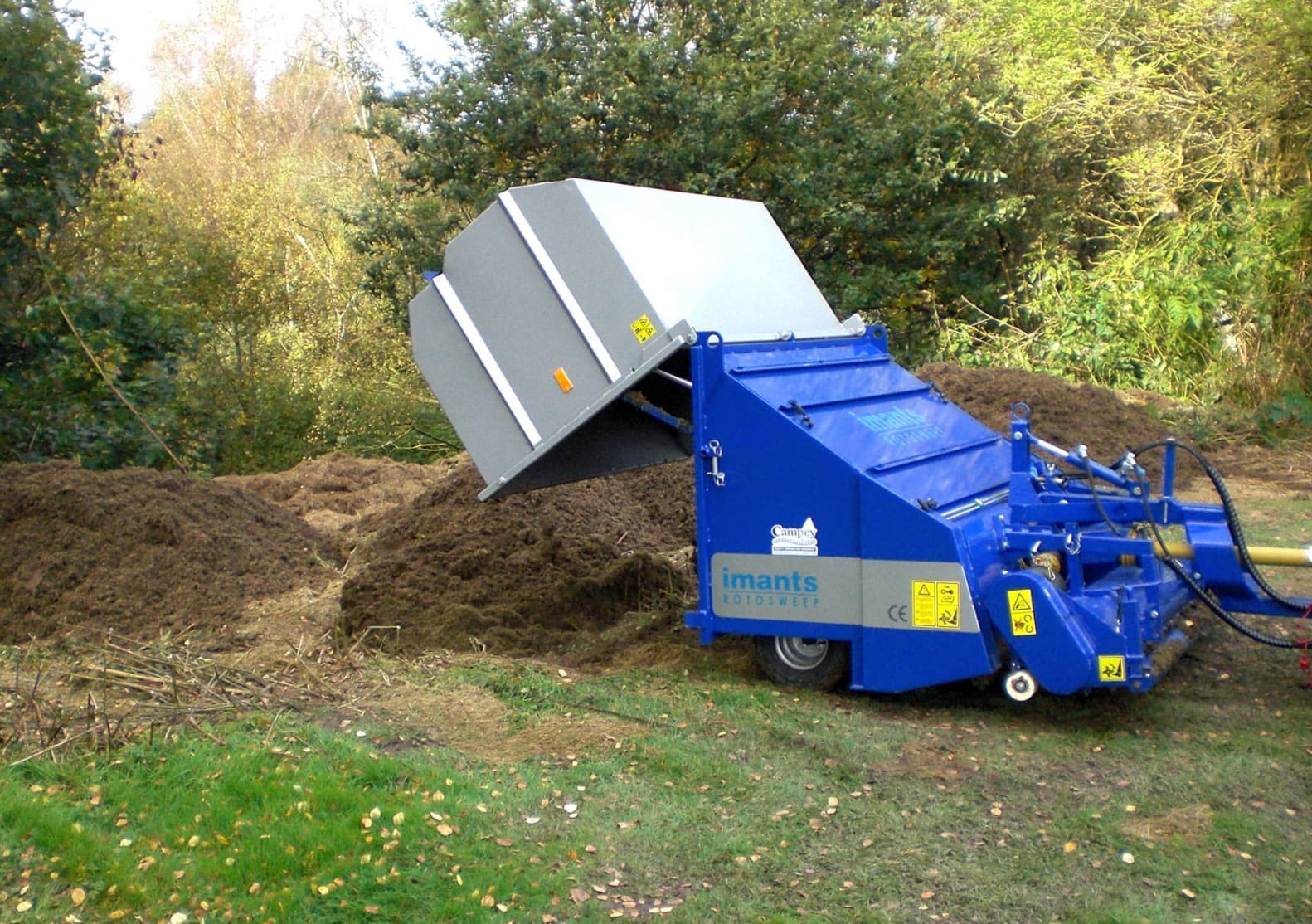

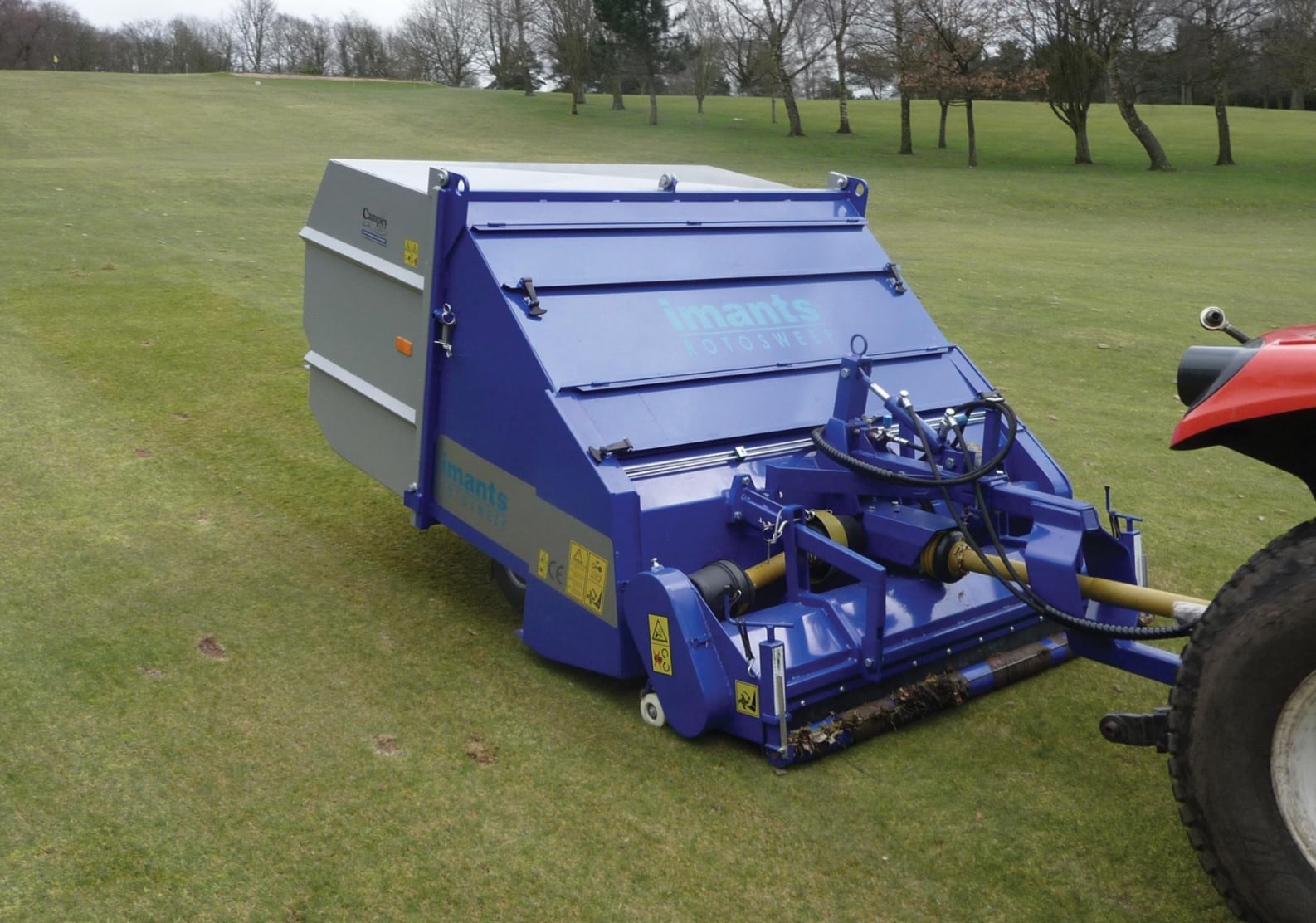

The RotoSweep offers efficient removal of surface debris from sports turf, including cores, grass clippings, leaves and general litter collection. Featuring a dual powered brush system, even heavy debris can be collected without any damage to the grass. The RotoSweep is tractor towed, powered from the PTO and tipped hydraulically, with the centrally positioned axels allowing tight contours to be followed. An independent floating scarifier attachment, the RHEA, can be attached in front of the RotoSweep.
Specifications
ROTOSWEEP
WORKING WIDTH 1.70m TRANSPORT WIDTH 1.90m LENGTH (INCL. DRAWBAR) 3.20m HEIGHT 1.45m TIPPING HEIGHT approx 1m (depending on length of link arms) HOPPER CAPACITY 2.5m³ NUMBER OF BRUSHES / BLADES 8 brush stripsWEIGHT (APPROX) 650kg (empty) POWER REQUIREMENT 30 – 50hp TRACTOR REQUIREMENTS 540 PTO. Double acting spool OPERATING SPEED 0 – 10mph (0 – 18kph) RHEA MKII SCARIFIER
WORKING WIDTH 1.70m TRANSPORT WIDTH 1.92m LENGTH (INCL. DRAWBAR) 0.50m HEIGHT 0.50m TIPPING HEIGHT approx 1m (depending on length of link arms) HOPPER CAPACITY 2.5m³ WEIGHT (APPROX) 210kg NUMBER OF BRUSHES / BLADES 72 or 144 (2 or 3mm thick) POWER REQUIREMENT 30 – 50hp TRACTOR REQUIREMENTS 540 PTO. Double acting spool OPERATING SPEED 0 – 4mph (0 – 6kph)
