IMANTS – SANDCAT

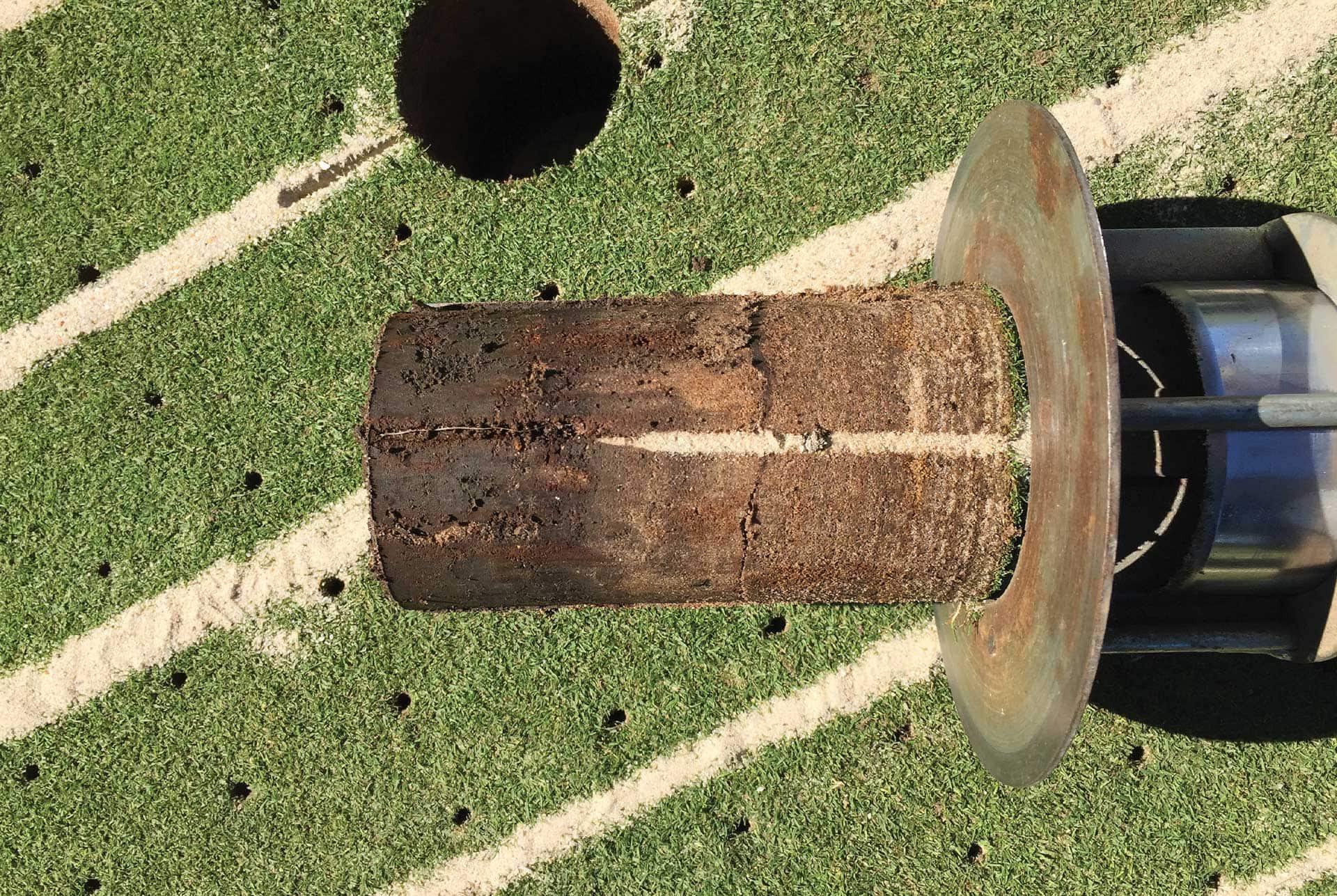

Slitting the surface and introducing sand to improve drainage and enhance the properties of the rootzone

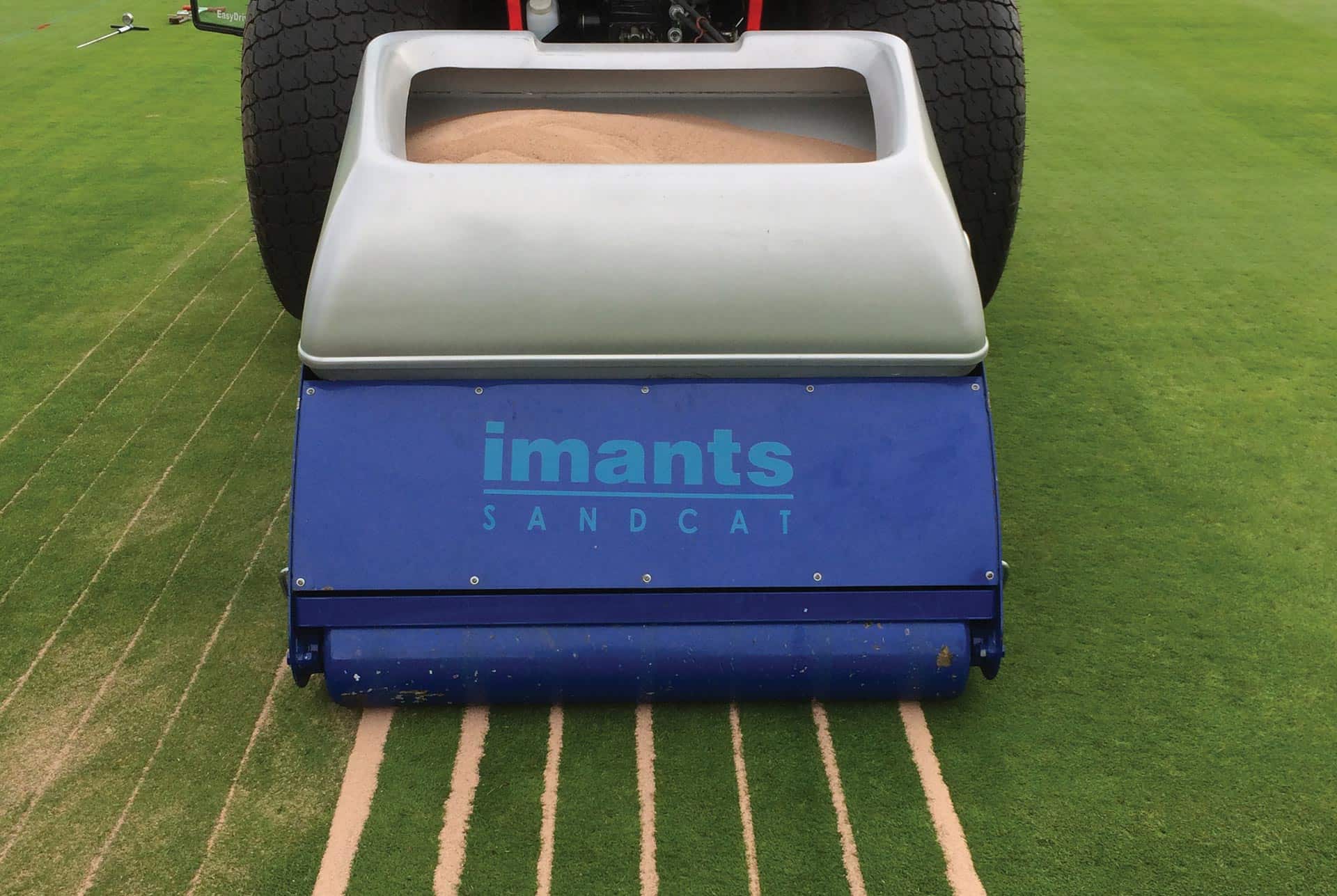

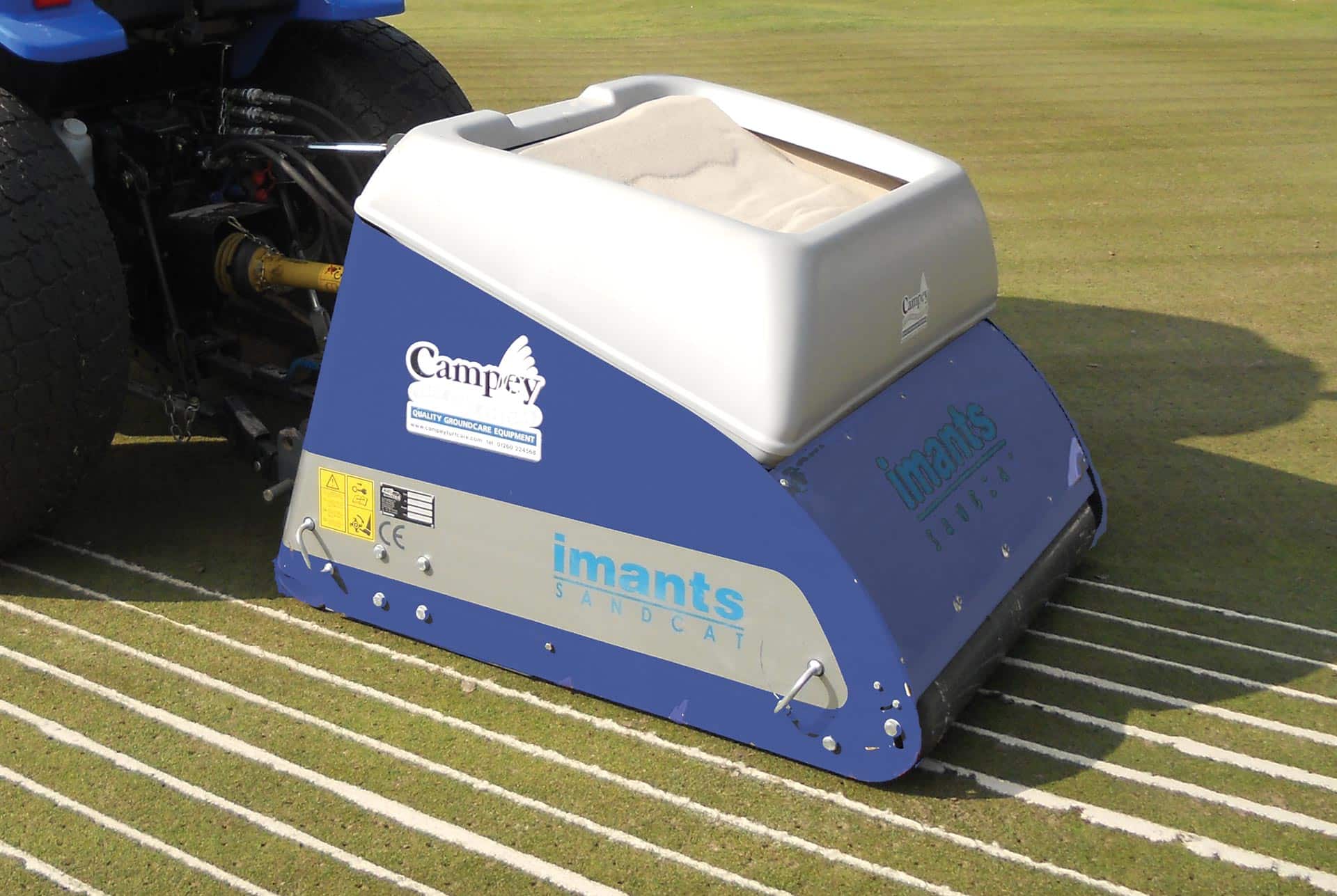

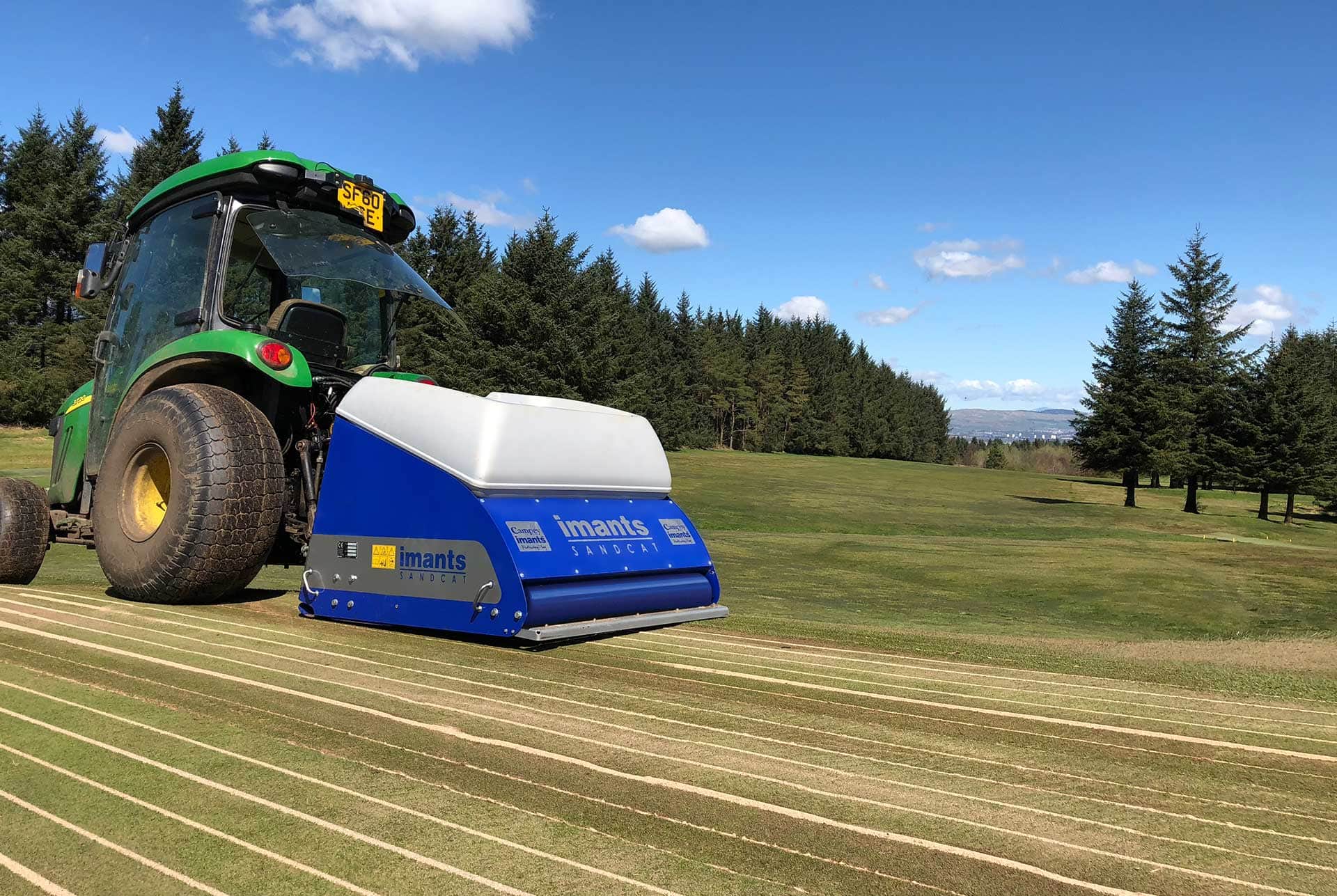

The Imants SandCat moves lightly over the turf, slitting the surface and introducing sand to improve drainage and enhance the properties of the rootzone, with the compact size of the machine making it ideal for greens and tees. Used empty, it has similar features to the Imants ShockWave and can be used to aerate hard, compacted areas of fine turf. The SandCat features overload protection by a torque limiter PTO shaft.

Testimonials

We had to find an additional way of carrying the water from the surface down into the main drainage system and we looked at gravel banding, solids and everything but the method that impressed us most of all was the Sandcat.

Ronnie Miles

Head Greenkeeper, Buchanan Castle Golf Club

Specifications

IMANTS – SANDCAT

WORKING WIDTH	1.20m
TRANSPORT WIDTH	1.60m
WORKING DEPTH	Cutting blades 150mm / sand injection 120mm
WEIGHT (APPROX)	650kg (empty)
HOPPER CAPACITY	500 litres
BLADE NUMBER & THICKNESS	21 – 8mm
BLADE SPACING	150mm
POWER REQUIREMENT	30hp +
TRACTOR REQUIREMENTS	540 pto. Creep gear or hydrostatic drive required
OPTIONS:	0.3 – 1.5 mph (0.5 – 2.4kph)
