IMANTS – SHOCKWAVE
A linear decompactor, designed to revitalize heavy wear areas by relieving soil compaction

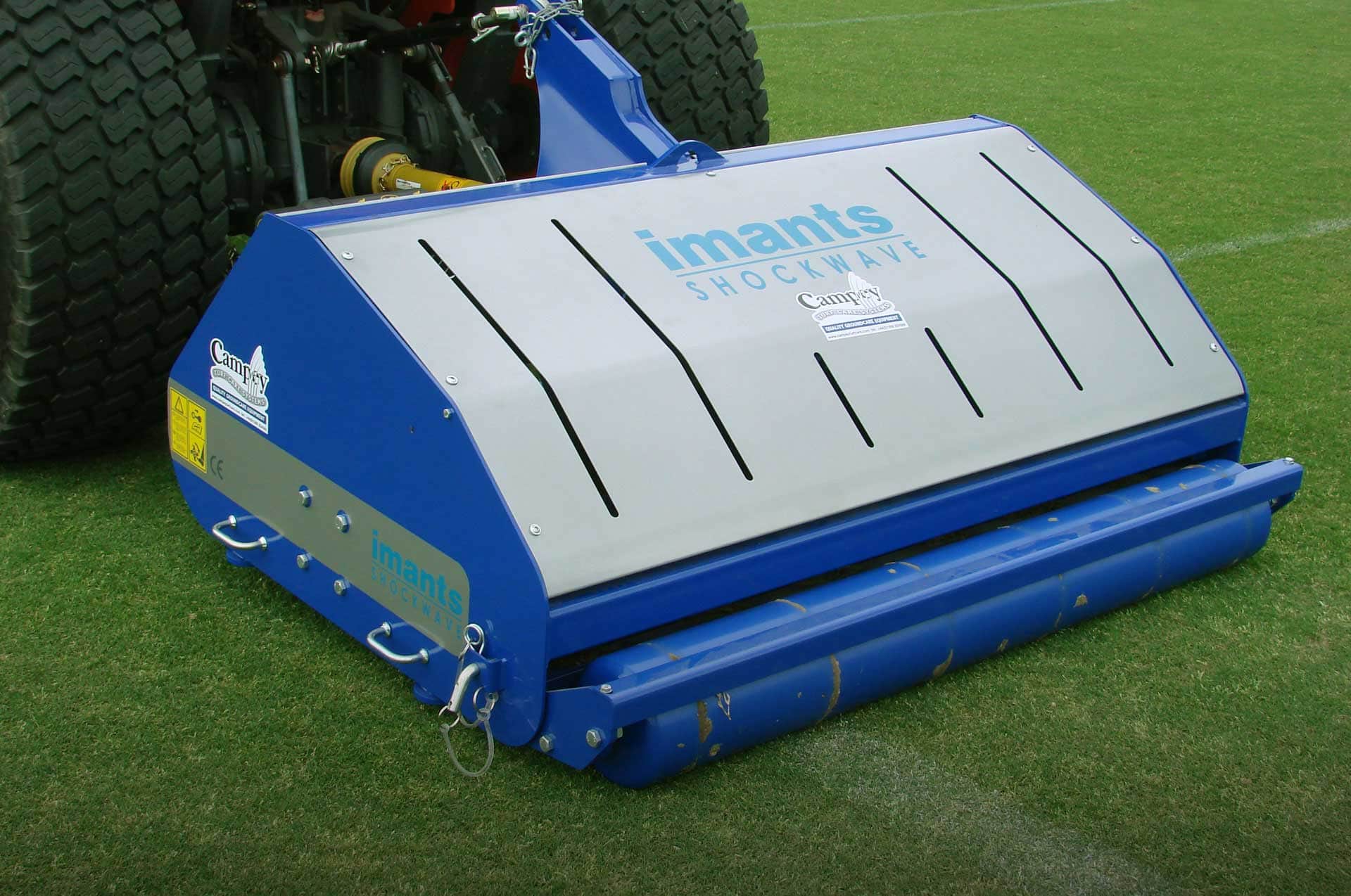

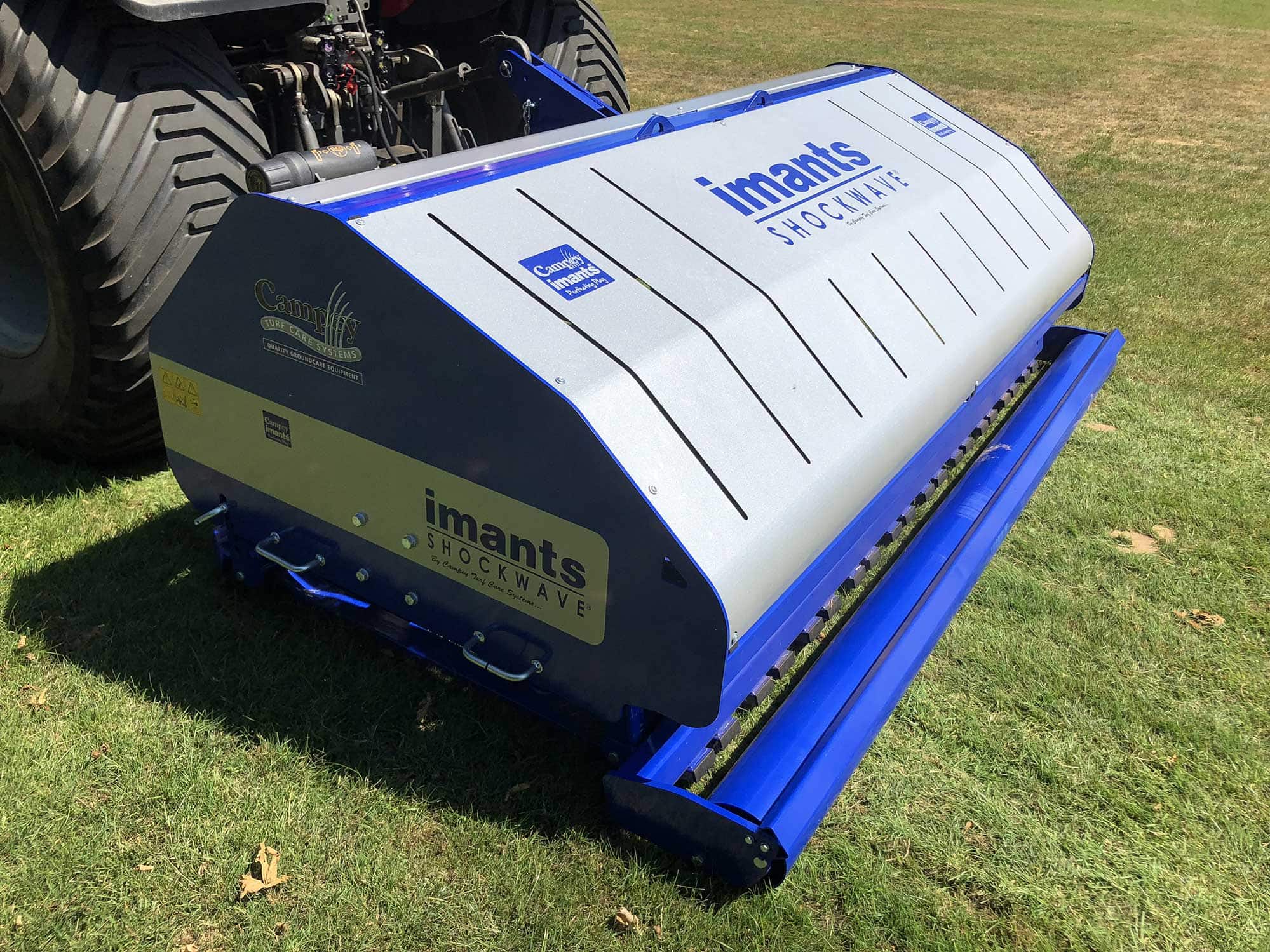

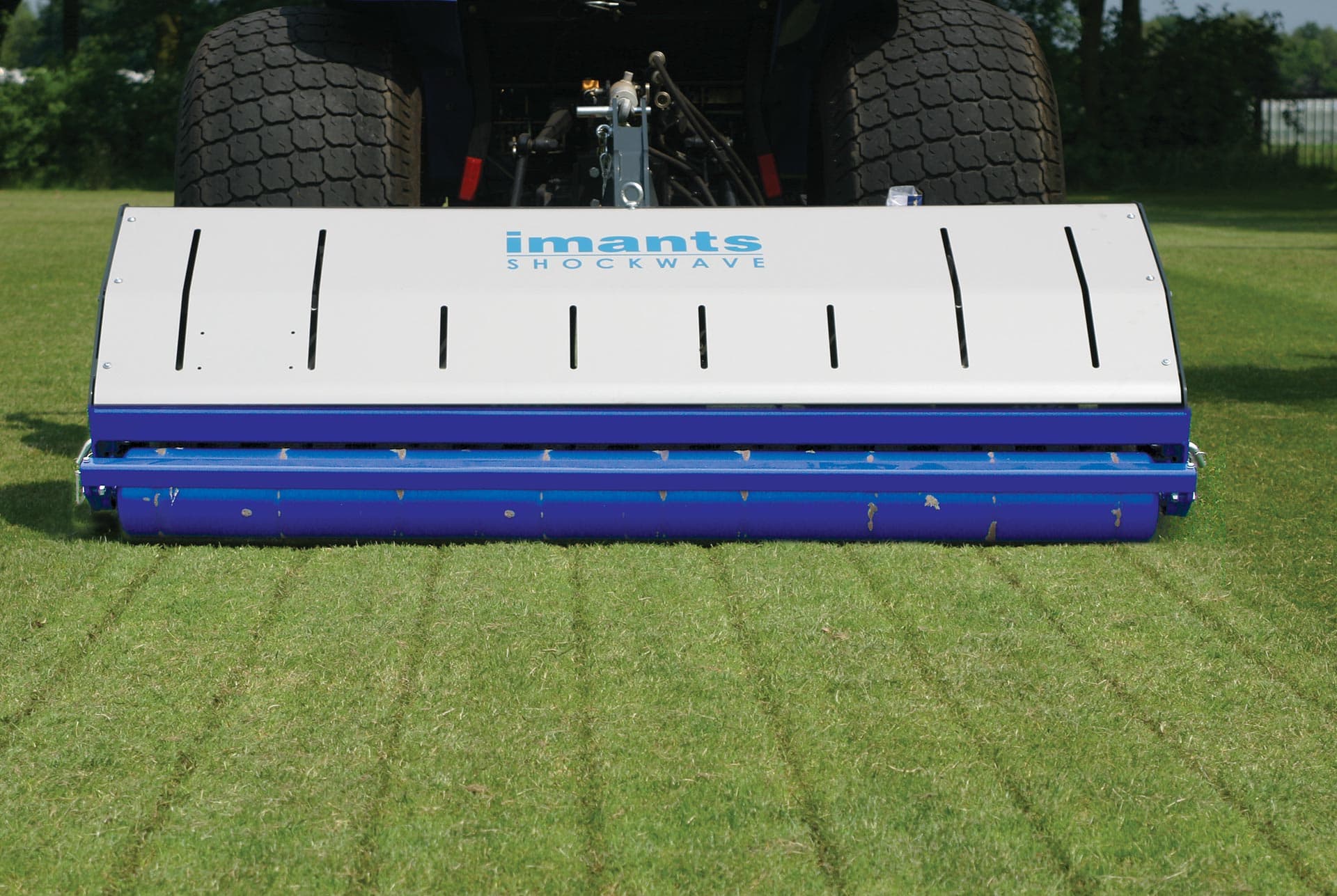

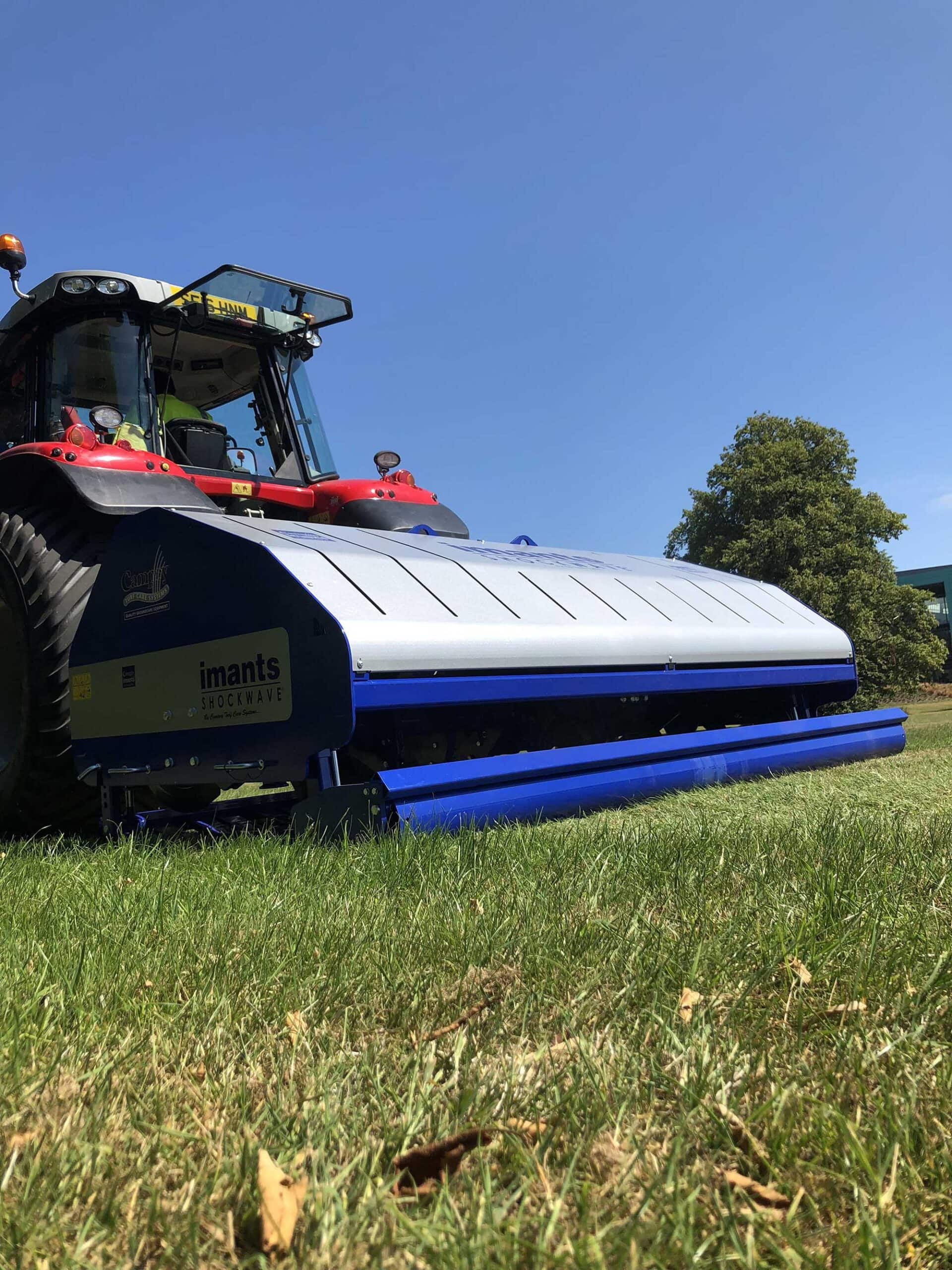

The Imants ShockWave is a linear decompactor to revitalize heavy wear areas by relieving soil compaction, improving aeration and removing surface water. The Imants ShockWave is reputed to be the world’s fastest PTO driven rotary, linear decompactor. The ShockWave is designed for use on fine turf and sports fields. As with all ShockWave models, it features a no-chains, direct drive design, maintenance free ‘sealed for life’ bearings & no shearbolts. The 220 / 275 models are heavy-duty design suitable for contractors and use thicker 15mm knives. It also features hydraulic depth adjustment from the tractor to smooth rear roller.
Testimonials
This is the fourth year I’ve used the Shockwave on the greens and I really like it. It works great on deep compaction and from a pedometer point of view the results are always where we want them to be after it’s been used.
David Behan
Course Manager, Naas Golf Club
The machine is good us for us because it does exactly what we need it to do. It gives me the ability to carry out constant decompaction throughout the year, so there won’t be a point during the season where postponements become a problem.
Richard Vaughn
Groundsman, Sandbach Rugby Club
Specifications
SHOCKWAVE 100
WORKING WIDTH 1.00m TRANSPORT WIDTH 1.20m WORKING DEPTH 120mm – 250mm WEIGHT (APPROX) 475kgs BLADE SPACING 250mm BLADE THICKNESS 12mm NUMBER OF BLADES 12 POWER REQUIREMENT 25 – 30hp TRACTOR REQUIREMENTS 540 pto. Creep gear or hydrostatic drive required OPRATING SPEED 0.3 – 1.5 mph (0.5 – 2.4kph) SHOCKWAVE 155
WORKING WIDTH 1.55m TRANSPORT WIDTH 1.75m WORKING DEPTH 120mm – 250mm WEIGHT (APPROX) 560kgs BLADE SPACING 250mm BLADE THICKNESS 12mm NUMBER OF BLADES 18 POWER REQUIREMENT 30 – 40hp TRACTOR REQUIREMENTS 540 pto. Creep gear or hydrostatic drive required OPRATING SPEED 0.3 – 1.5 mph (0.5 – 2.4kph) SHOCKWAVE 210
WORKING WIDTH 2.10m TRANSPORT WIDTH 2.30m WORKING DEPTH 120mm – 250mm WEIGHT (APPROX) 680kgs BLADE SPACING 260mm BLADE THICKNESS 12mm NUMBER OF BLADES 24 POWER REQUIREMENT 45 – 65hp TRACTOR REQUIREMENTS 540 pto. Creep gear or hydrostatic drive required OPRATING SPEED 0.3 – 1.5 mph (0.5 – 2.4kph) SHOCKWAVE 220
WORKING WIDTH 2.20m TRANSPORT WIDTH 2.50m WORKING DEPTH 120mm – 380mm WEIGHT (APPROX) 1250kgs BLADE SPACING 275mm BLADE THICKNESS 15mm NUMBER OF BLADES 24 POWER REQUIREMENT 80hp + TRACTOR REQUIREMENTS 540 pto. Creep gear or CVT drive required OPRATING SPEED 0.3 – 1.5 mph (0.5 – 2.4kph) SHOCKWAVE 275
WORKING WIDTH 2.75m TRANSPORT WIDTH 3.00m WORKING DEPTH 120mm – 380mm WEIGHT (APPROX) 1750kgs BLADE SPACING 250mm BLADE THICKNESS 15mm NUMBER OF BLADES 30 POWER REQUIREMENT 100hp + TRACTOR REQUIREMENTS 540 pto. Creep gear or CVT drive required OPTIONS: 0.3 – 1.5 mph (0.5 – 2.4kph)
