IMANTS – MINI ROTOKNIFE

Designed to relieve surface compaction, improve aeration, reduce thatch build up and remove surface water

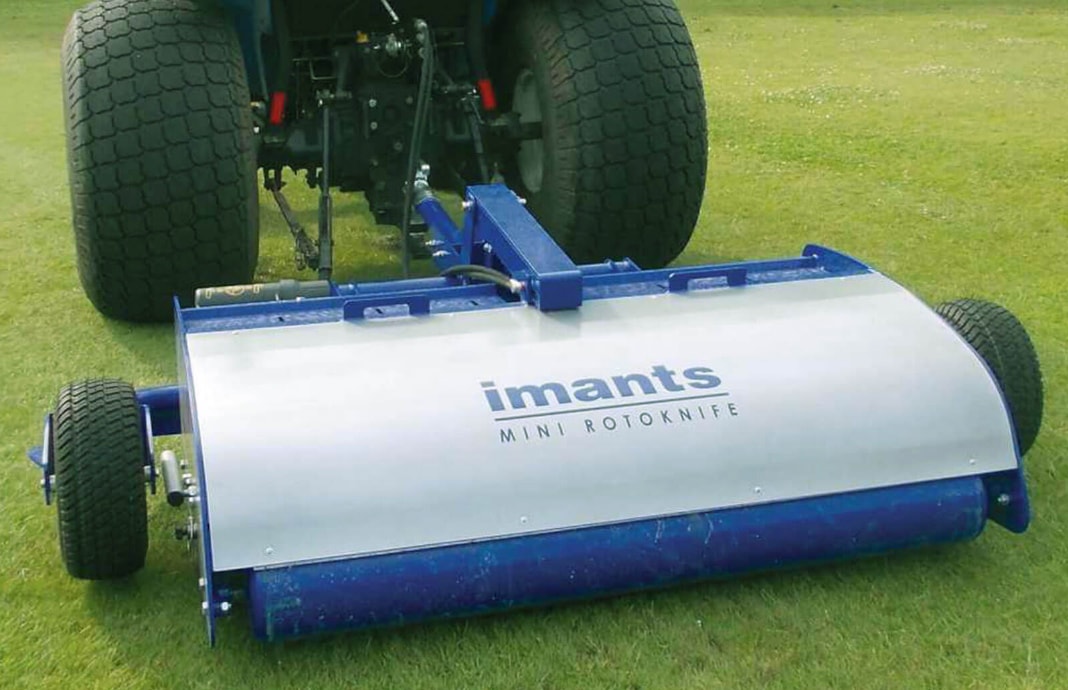

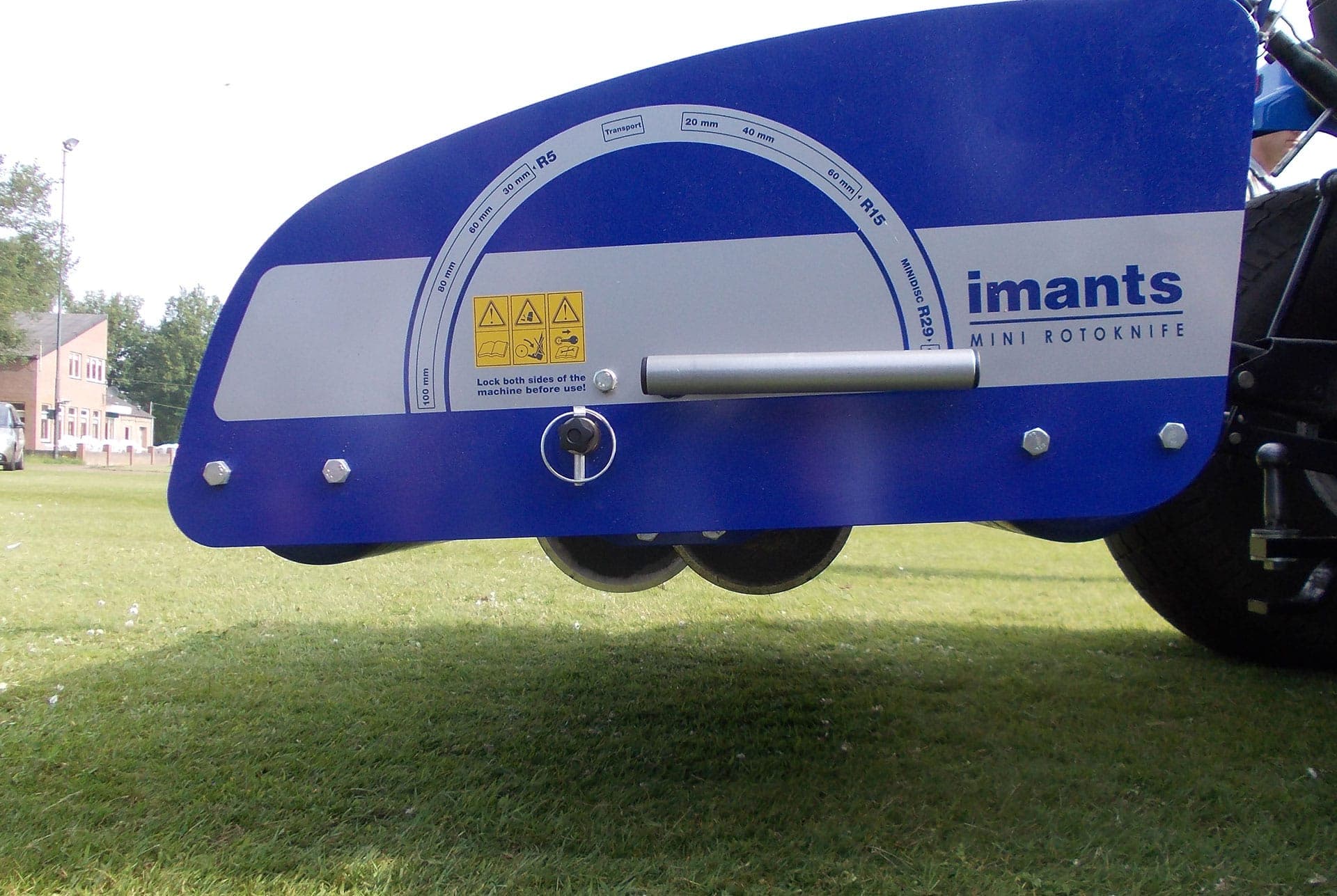

The Imants Mini RotoKnife is a linear disc-aerator, designed to relieve surface compaction, improving aeration, reducing thatch build up and removing surface water. The Mini RotoKnife is fast across the surface and is a versatile rootzone management tool. The disc rotor shaft can be set in 3 positions, giving flexibility in working depth and linear spacing, allowing slitting to a depth of 100mm, or shallow slitting at 50mm spacing. The Mini RotoKnife is available in towed or mounted format and is compatible with most turf trucksters and compact tractors. It is ideal on warm or cool season grasses.

Specifications

  • MINI ROTOKNIFE

    WORKING WIDTH1.50m – 1.60m
    TRANSPORT WIDTH1.80m 3pt mounted /2.20m towed
    WORKING DEPTH20mm – 100mm (variable settings)
    DISC SPACING50mm, 100mm, 300mm
    DISC THICKNESS3mm (200mm disc), 4mm (300mm disc)
    NUMBER OF DISCS29 x 200mm Mini Discs, 5 x 300mm Discs
    WEIGHT550kg (Towed) 470kg (Mounted)
    OPERATING SPEED0 – 12 mph (0 – 20 kph)
    TRACTOR REQUIREMENT (MOUNTED)25hp – Cat 1: 3pt linkage / hydraulic spools
    TRACTOR REQUIREMENT (TOWED)50mm ball hitch. Double acting hydraulics
    OPERATING SPEED0 – 12 mph (0 – 20 kph)
    OPTIONSElectric actuator to lift and lower when towed

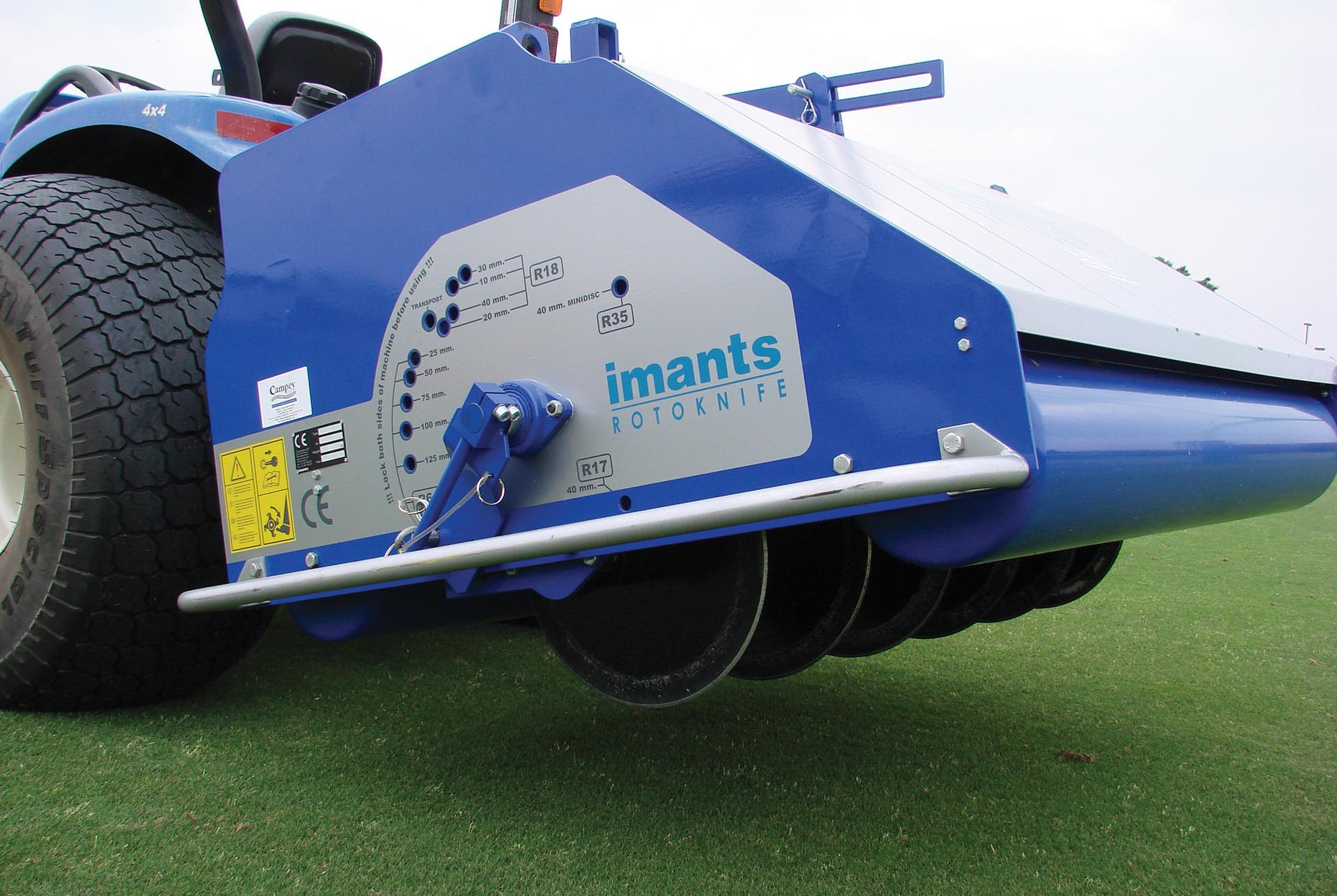

  • ROTOKNIFE 1800

    WORKING WIDTH1.80m
    TRANSPORT WIDTH2.30m
    WORKING DEPTH10mm – 150mm (variable settings)
    DISC SPACING200mm, 450mm
    DISC SPACING50mm, 100mm, & 300mm
    DISC THICKNESS3mm (200mm disc), 4mm (200mm & 450mm disc)
    NUMBER OF DISCS6, 17, 18, 35
    WEIGHT895kg
    OPERATING SPEED0 – 12mph (0-20kpm)
    POWER REQUIREMENTS45hp
