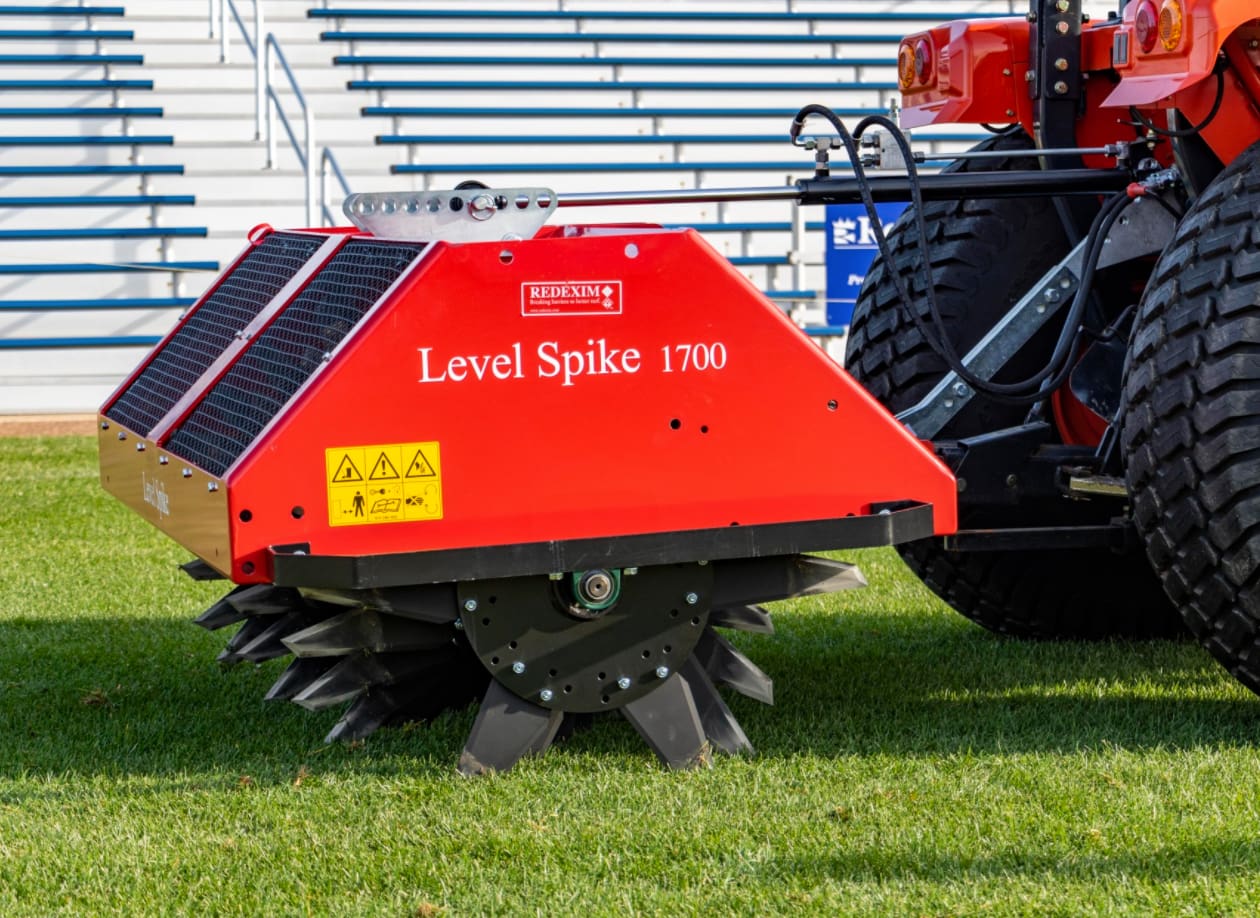

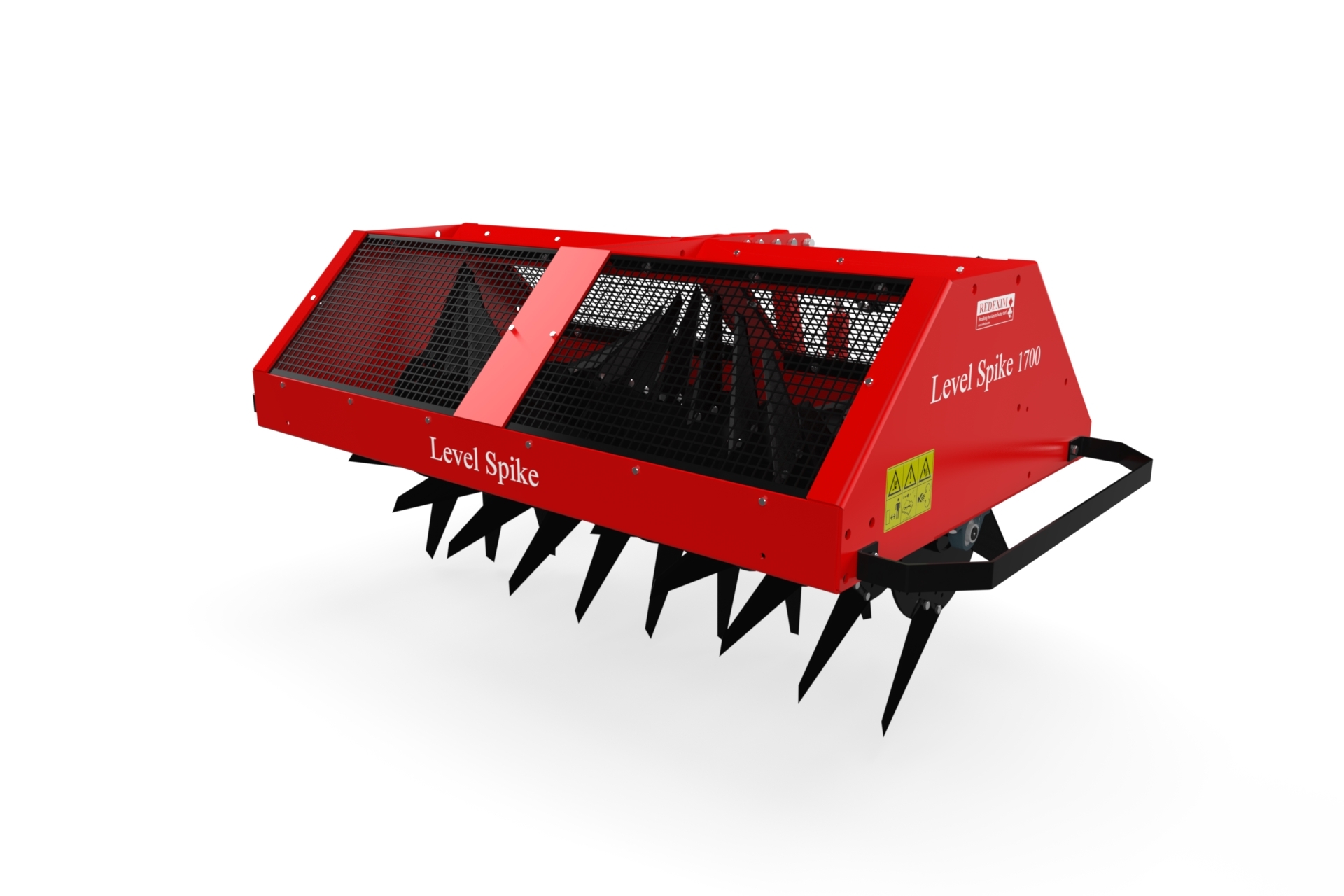

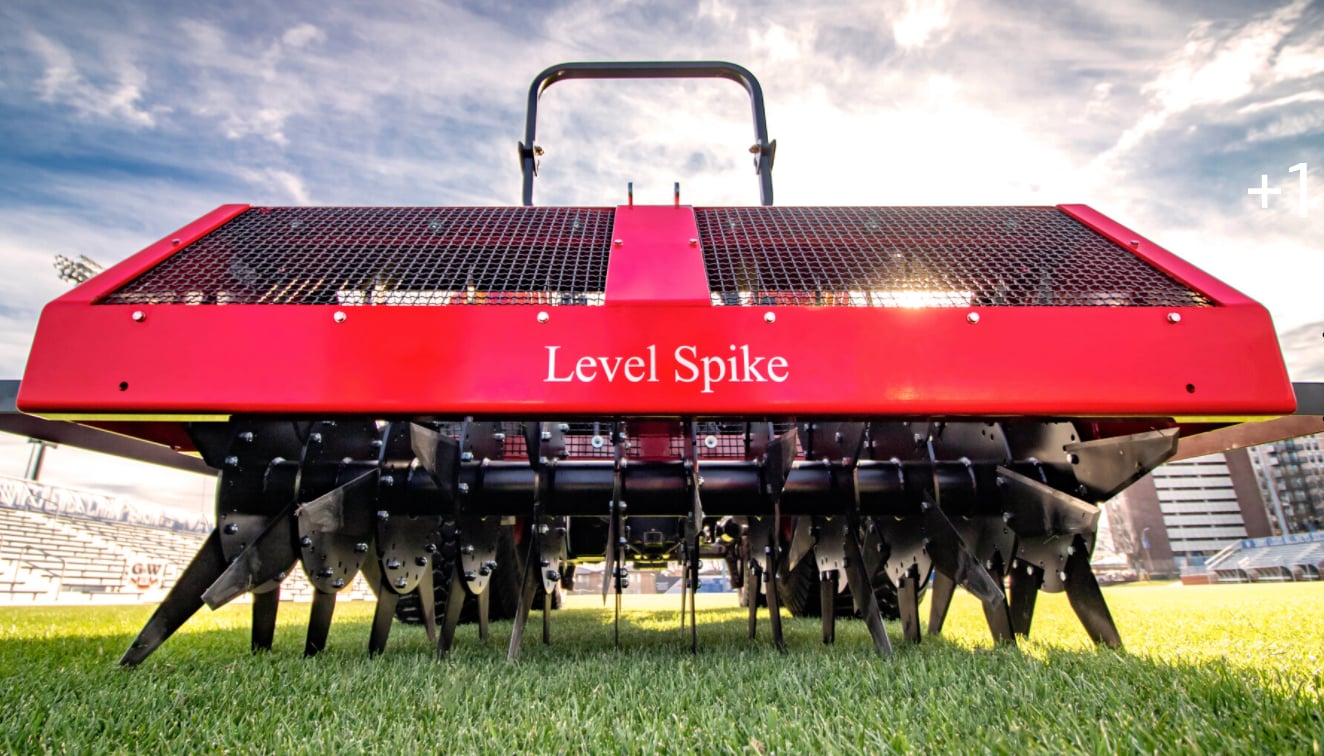

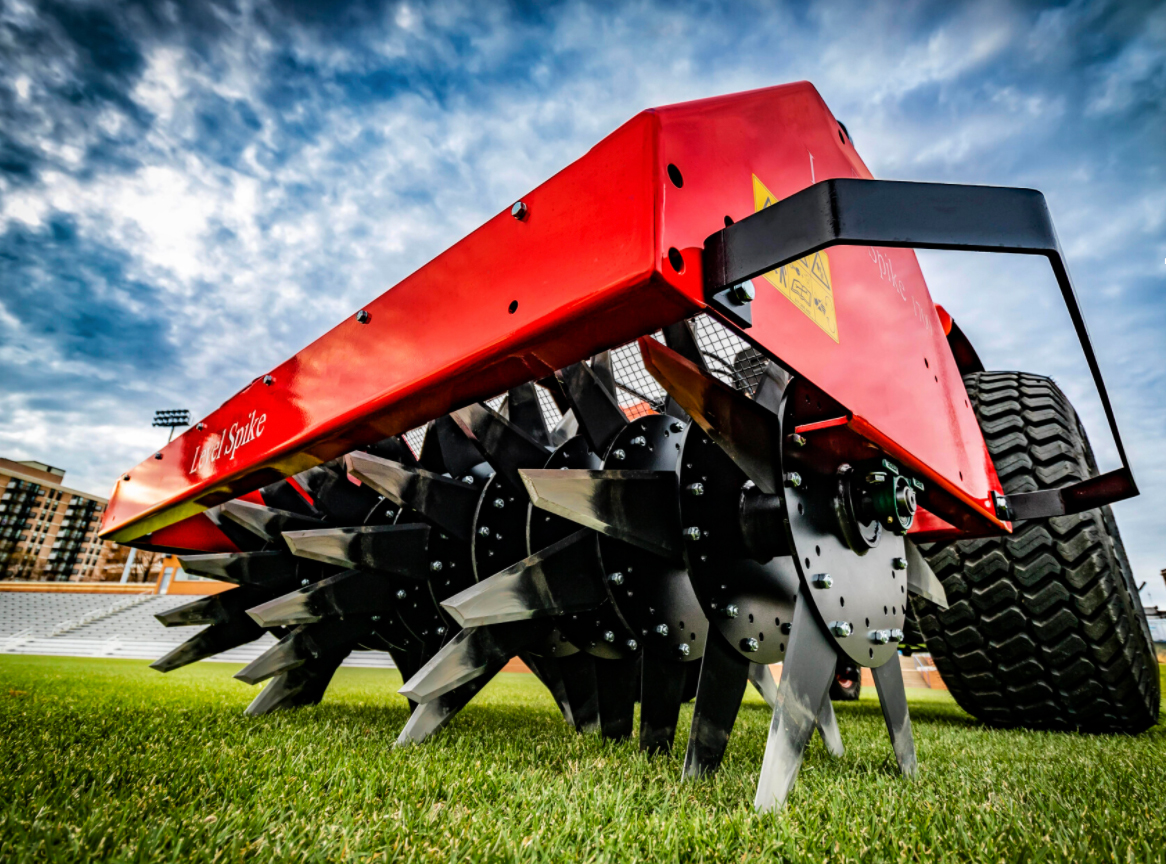

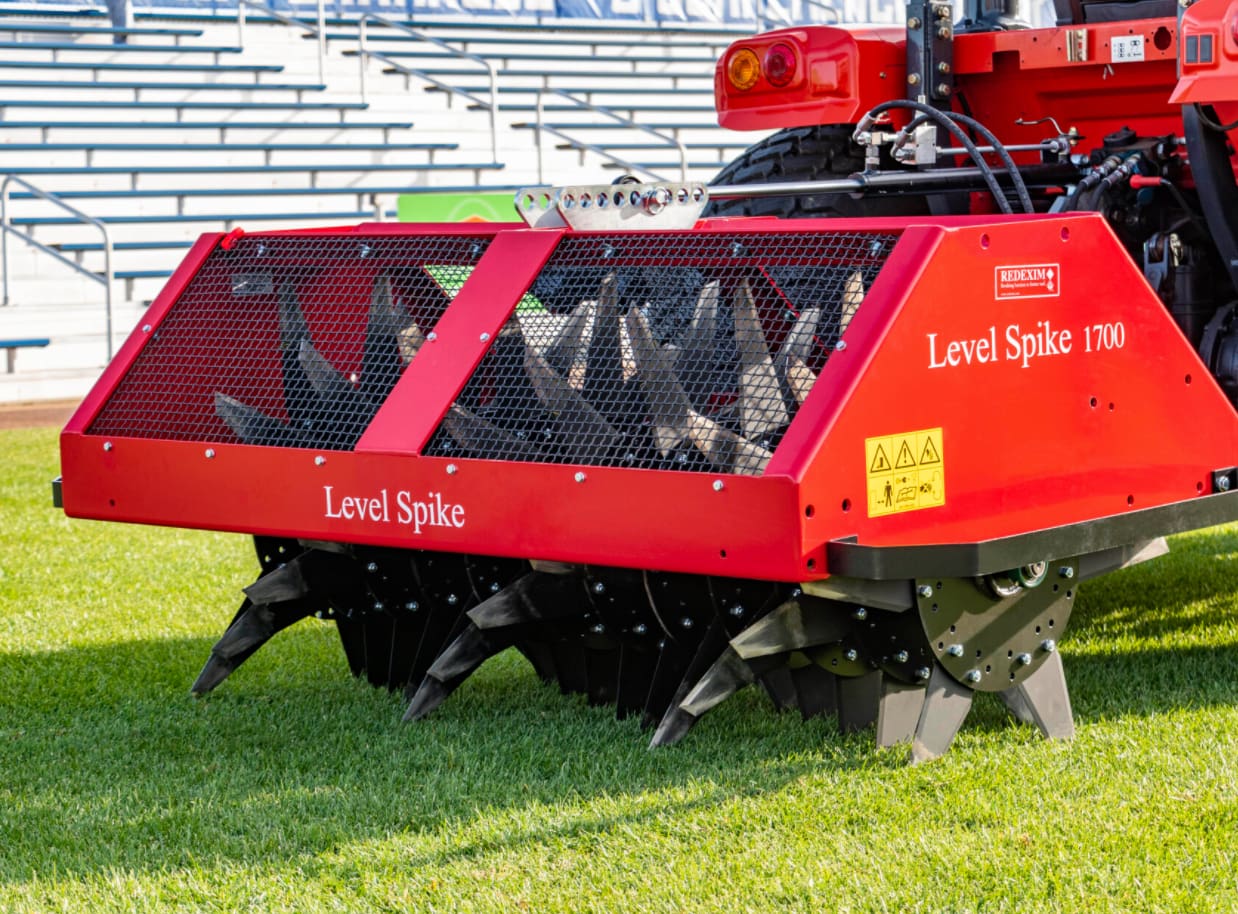

LEVEL – SPIKE 1700

The Level-Spike is a fast and proven machine for the creation of aeration slits to aid drainage and allow air into turf surfaces. The Level-Spike can achieve a maximum depth of 25 cm/10” and as a range of optional knives to alter the slit pattern including hollow tines to pull cores

  • Simple and effective
  • Optional weight transfer kit for tough conditions
  • Many blade options
  • Consider the Level-Spike 2220 for a larger areas

Specifications

  • LEVEL – SPIKE 1700

    SKU113.170.000
    WORKING WIDTH (M)1.8
    WORKING WIDTH (INCH)72
    MAX. WORKING DEPTH (MM)250
    MAX. WORKING DEPTH (INCH)10
    WEIGHT (KG)405
    WEIGHT (LBS)890
    SLIT DISTANCE BETWEEN THE KNIVES (MM)150
    SLIT DISTANCE BETWEEN THE KNIVES (INCH)6
    HOLE SPACING DISTANCE DRIVING DIRECTION (MM)330
    HOLE SPACING DISTANCE DRIVING DIRECTION (INCH)13
    MIN. TRACTOR HP REQUIRED35
    MIN. LIFTING CAPACITY (KG)500
    MIN. LIFTING CAPACITY (LBS)1100
    MAX. CAPACITY ( M² HR)9000
    MAX. CAPACITY (FT² HR)81000
    THREE-POINT HITCH3-point CAT 1-2
    LUBRICANTEP 2
