EASY-CORE 108

OverviewSpecifications

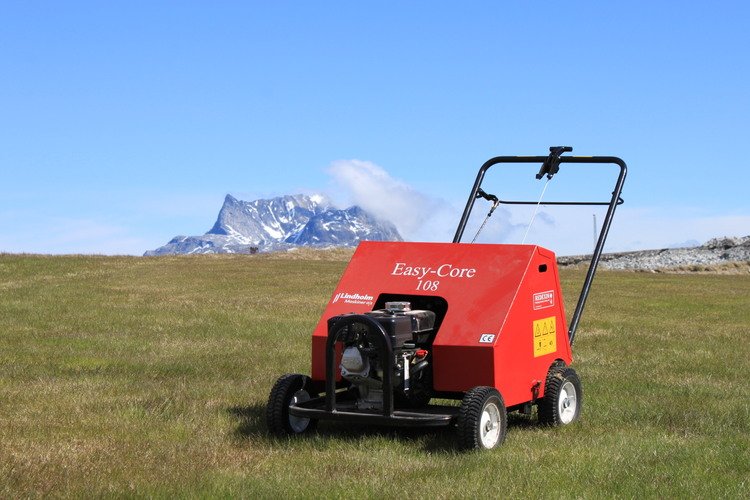

The Easy-Core is a pedestrian punch-action aerator suited to small areas and places with restricted access. The coring tines rapidly remove soil to aid de-compaction while optional solid tines can be fitted should soil conditions require. The Easy-Core’s handles can be folded to aid transport.

  • Great in small areas
  • Quick to cover the ground
  • Very manoeuvrable
  • Consider a tractor mounted aerator should you require increased working depth

Specifications

  • EASY-CORE 108

    SKU117.010.800
    ENGINEHonda 5 HP
    WORKING WIDTH (INCH)20.5
    MAX. WORKING DEPTH (MM)70
    MAX. WORKING DEPTH (INCH)2.75
    WEIGHT (KG)157
    WEIGHT (LBS)346
    HOLE SPACING DISTANCE DRIVING DIRECTION (MM)65 x 170
    HOLE SPACING DISTANCE DRIVING DIRECTION (INCH)2 1/4 x 7
    MAX DIAMETER SOLID TINE (MM)22 x 70
    MAX DIAMETER SOLID TINE (INCH)7/8 x 2 3/4
    MAX DIAMETER HOLLOW TINE (MM)22 x 16 x 70
    MAX DIAMETER HOLLOW TINE (INCH)5/8 x 3/8 x 2 3/4
    NUMBER OF TINES8
    MAX. CAPACITY ( M² HR)2550
    MAX. CAPACITY (FT² HR)27448
    ENGINE OILSAE 30
