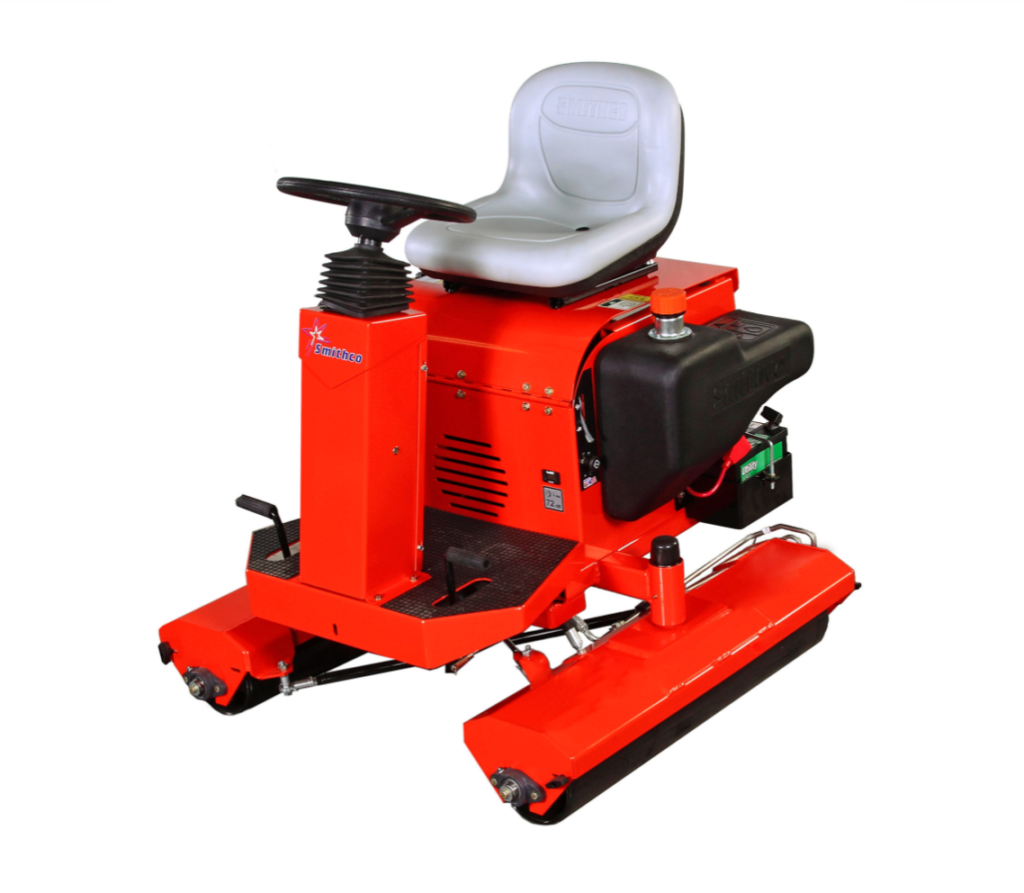

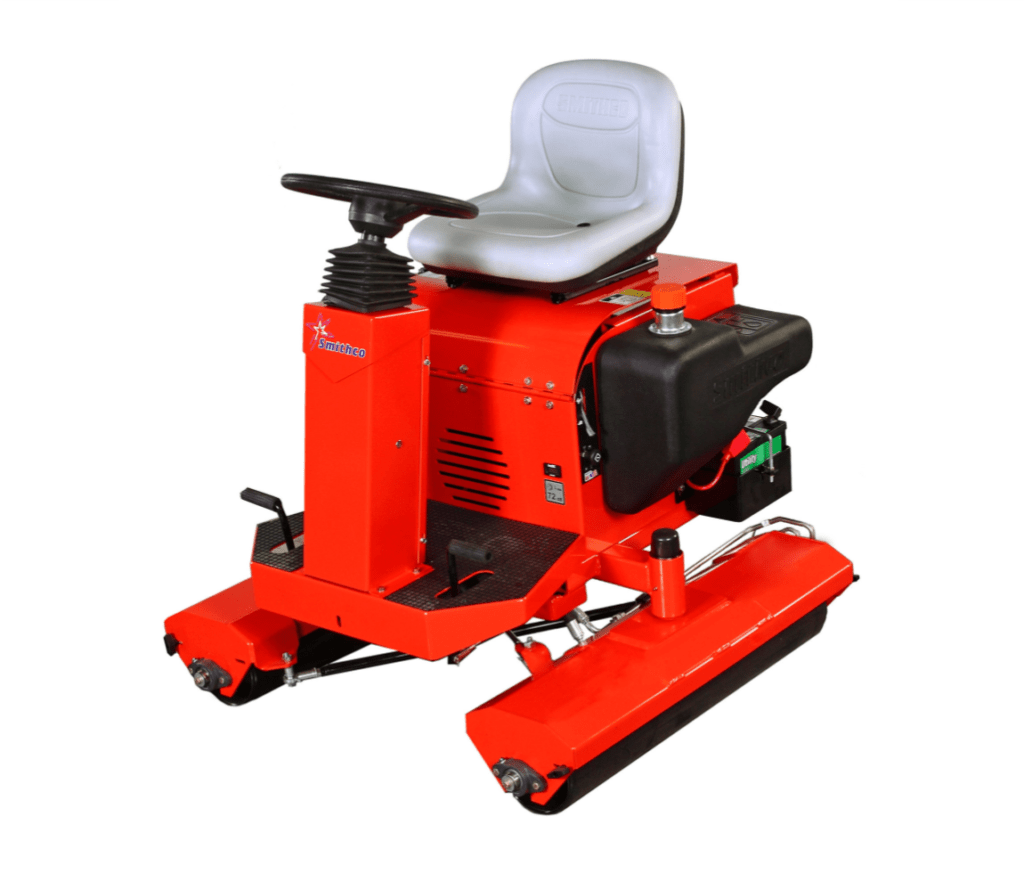

Tournament Ultra Lite 7576
Greensroller
625 LBS
At 625 Ibs, the lightest riding greens roller made with dual hydraulic roller drive for superior traction and maneuverability.
Easy Maintenance
Direct drive eliminates time consuming chain maintenance. Hydraulic operated 8” seamless tapered steel drums eliminates slipping.
Affordable
The Ultra Lite delivers a whole lot yet it’s the most affordable roller Smithco makes.
Specifications
ENGINE
Engine 6.7kW Honda Model#: GX270UT2QA2 Commercial gasoline engine, single-cylinder, air-cooled. Engine mounted air cleaner. Drive Hydrostatic using a 16cc Hydraulic Pump driving two (2) hydraulic motors direct coupled to each roller cylinder. Direct drive motors eliminate maintenance; hydraulic drive to both rollers provides superior traction in all turf and terrain conditions. SPEED
Transport 0-14.5 kph BRAKES AND STEERING
Braking Dynamic through hydrostatic drive system Steering Mechanical chain/sprocket, 40cm automotive type steering wheel GREENSROLLER
Construction Heavy gauge square steel tubing mainframe, hydraulically formed, electrically welded. Rollers Two (2) oscillating 20.32cm x 91cm length, seamless, drawn over mandrel steel tubes. Bolted hubs with bearings on each end of the rollers. Controls Electric start, engine throttle, choke and fuel on/off on the engine. Dual drive pedals control left / right operation and rolling speed. Pedals connected to hydraulic pump via mechanical linkage. Ground Pressure 4 PSI with 175 lb. operator on hard surface 3 PSI with 175 lb. operator on fine turf Seat High back, one piece for operator comfort Electrical System 12-volt system available from the engine while running, no battery Sound Level 90 dbA under normal operating conditions Fuel Tank 3.785L engine mounted Oil Tank 3.785L hydraulic oil tank WEIGHTS AND DIMENSIONS
Length 132 cm Width 125 cm Height 119 cm Weight 283.5 kg OPTIONS
Light Kit 750-555
