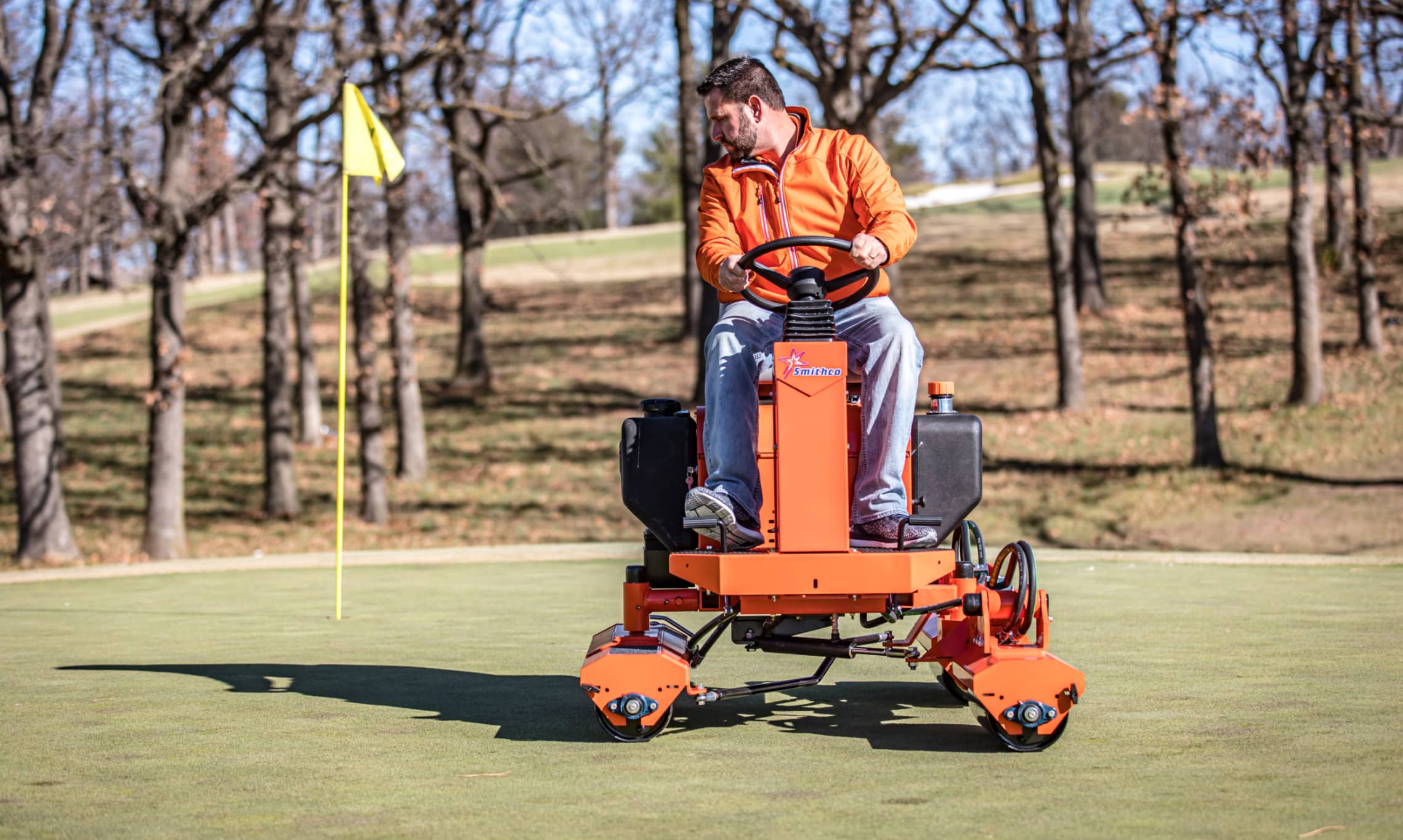

Tournament XL 7000 Ultra Wide
Greensroller
More Productive
Three articulating rolling heads provide 70” wide rolling area. Reduce your rolling time dramatically.
Easy Maintenance
Direct drive to rollers eliminates time-consuming chain maintenance.
Better Traction
Triple hydraulic direct drive to rollers for superior traction. No time-consuming chain maintenance.
Specifications
ENGINE
Power 12kW Briggs Vanguard gasoline engine, two cylinder, air-cooled, electronic ignition, full pressure lubrication system with replaceable filter. Configuration A gasoline engine powered, hydraulic drive, riding golf course greens roller. Hydraulic, triple roller drive system for superior traction and safety. Direct drive hydraulic motors to each roller cylinder eliminating the maintenance required on mechanical drive systems. Drive Hydrostatic using a 16cc hydraulic pump driving three (3) hydraulic motors direct coupled to each roller cylinder. Direct drive motors eliminate maintenance, hydraulic drive to all rollers provides superior traction in all turf and terrain conditions. Battery 12 volt SPEED
Transport Infinitely variable, 0-14.5 kph BRAKES AND STEERING
Braking Dynamic through hydrostatic drive system Steering 10:2 Reduction; 41cm soft grip steering wheel with tilt: 31m diameter turning radius GREENSROLLER
Construction Heavy gauge square steel tubing main frame, hydraulically formed, electrically welded Rollers Two (2) 20cm diameter x 48cm length and one (1) 8 diameter x 91cm seamless rollers, drawn over mandrel steel tubes. Beveled on both ends with roller scrapers. Bolted hubs with bearings on each end of all rollers. Controls Keyed ignition switch, engine throttle, choke at the operator’s station. Dual drive pedals control left / right operation and rolling speed. Pedals connected to hydraulic pump via fully sealed push / pull cable system. Ground Pressure 3.81 PSI with 175 lb. operator on fine turf. Seat High back, one piece for operator comfort Electrical 12 volt system, electric start to engine Sound Level 72 dbA under normal operating conditions Safety Triple drive roller system for superior traction and safe operation in all turf and terrain conditions. Dynamic braking thru hydrostat drive system. Trailer 7525 HD Transport Trailer with Clevis hitch Warranty Smithco two (2) year limited warranty Briggs & Stratton two (2) year engine manufacturer warranty WEIGHTS AND DIMENSIONS
Length 122 cm Width 185 cm Height 119 cm Weight 905 lbs Liquid Capacities 19L fuel tank, 11.35L hydraulic oil tank OPTIONS
Brush Kit 7513 Light Kit 750-450 Ball Hitch 750-435-1
