SLG-78VF Soil Screener

Capable of re-cycling and screening sand, soil, gravel and various other materials

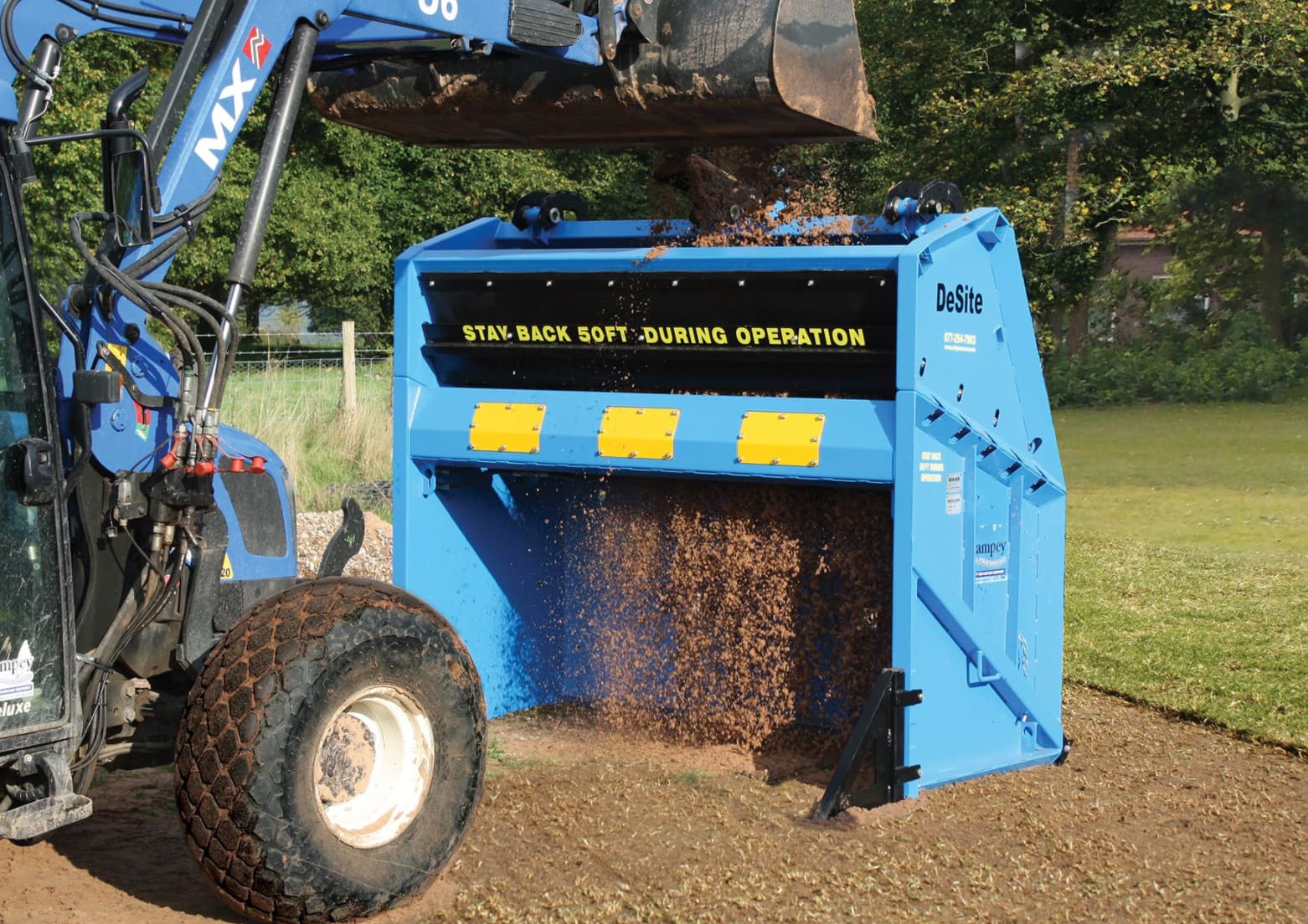

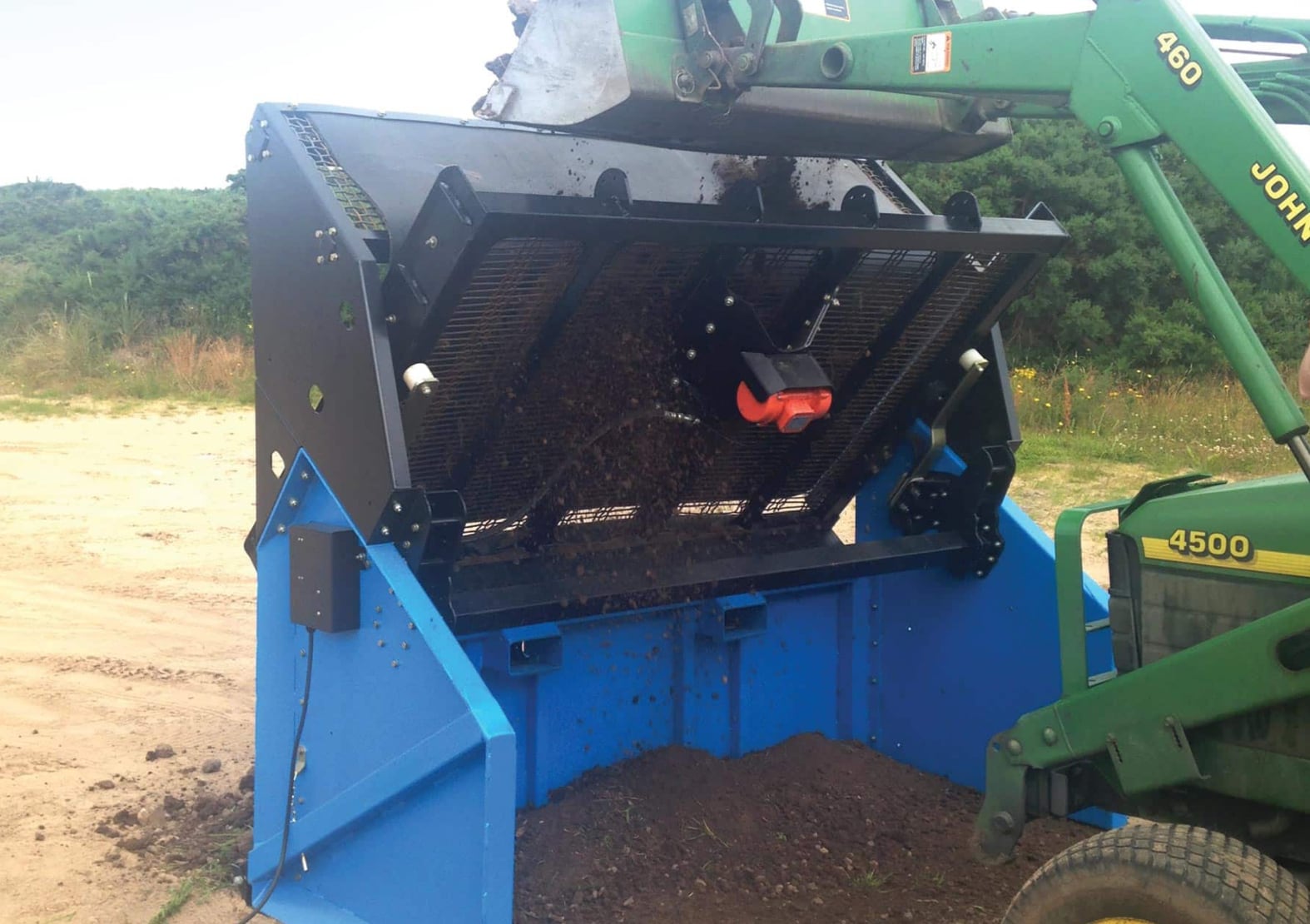

The SLG-78VF is a portable vibratory soil screener, powered by a 110v electric motor to give vibratory screen action and is designed for loading with tractor buckets or skid-steer loaders of up to 78” wide – adjustable screen angle and flow rate. Capable of recycling and screening sand, soil, gravel and various other materials, it is suitable for golf-course, sports field and municipal use. Its high mobility means it can easily be moved around a site. Standard screen size is 19mm, with additional screen sizes available as options.

Specifications

SLG 78VF Soil Screener

LOADING WIDTH	2.13m (84″)
OVERALL / TRANSPORT WIDTH	2.43m (96″)
LOAD HEIGHT / OVERALL HEIGHT	2.00m (78”) 2.20m (86”)
DEPTH	1.22m (48”)
POWER PACK	Electric vibrating motor – 110v / 50Hertz (1200W req’d)
VIBRATORY ACTION	Cantilevered Quad Spring Suspension
SCREEN ANGLE	Adjustable screen angle from 25° – 50°
SCREEN MESH	220cm (86”) x 132cm (52”)
PRODUCTIVITY	15 – 35 yds / hour depending on screen and material
STANDARD SCREEN MESH SIZE	19mm x 100mm (3/4” x 4”)
ADDITIONAL SCREEN SIZES	From 6mm up to 100mm (1/4” up to 4”)
