Freedom TXT
Reliability That Takes You Farther
Efficient and equipped to add value to your golf course, the E-Z-GO Freedom TXT golf cart features all the functionality and accessories you need. Offered in best-in-class 48DC electric drivetrain, or the fuel efficient EX1 gas engine with closed-loop EFI. No matter the course, you’ll have the power and style to get there with ease.
Key Features

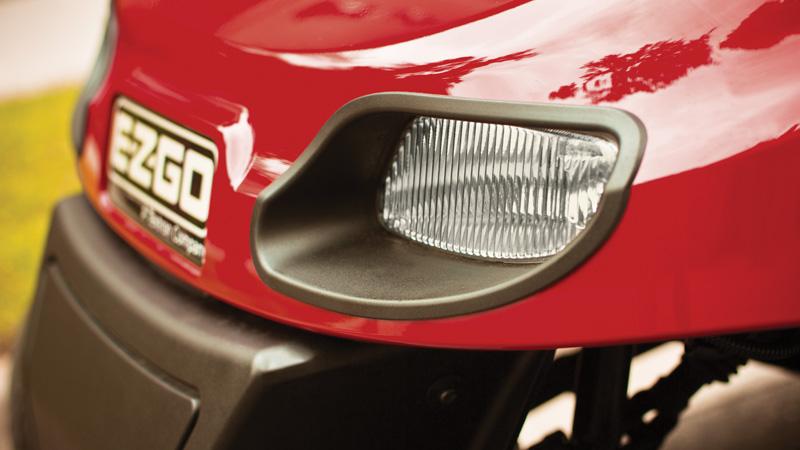

Headlights & Tail lights
Golf cart headlights and tail lights for greater visibility and safety.

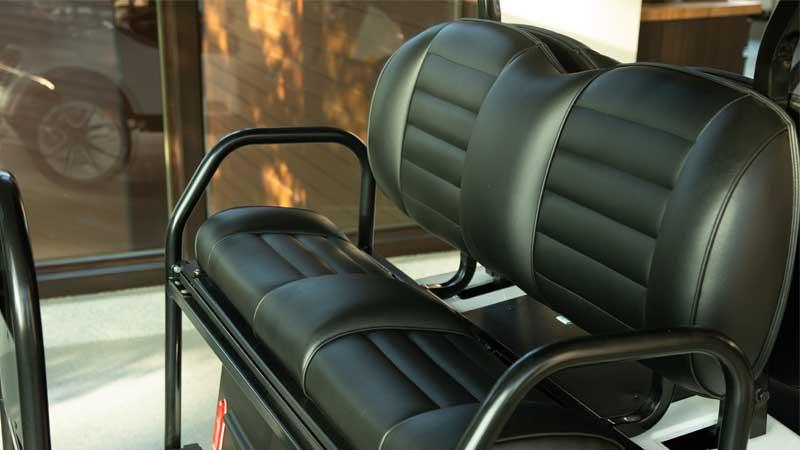

Optional premium seats
Premium golf cart seats for a more comfortable round on any golf course.

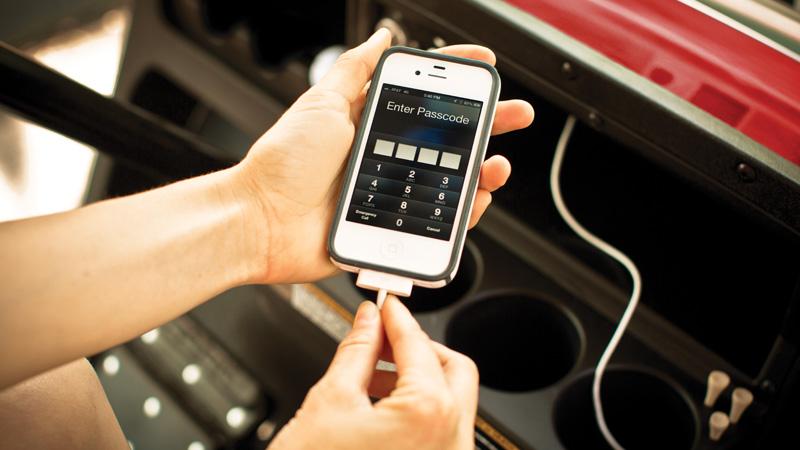

Optional USB port
USB port to charge personal items anywhere on the golf course.

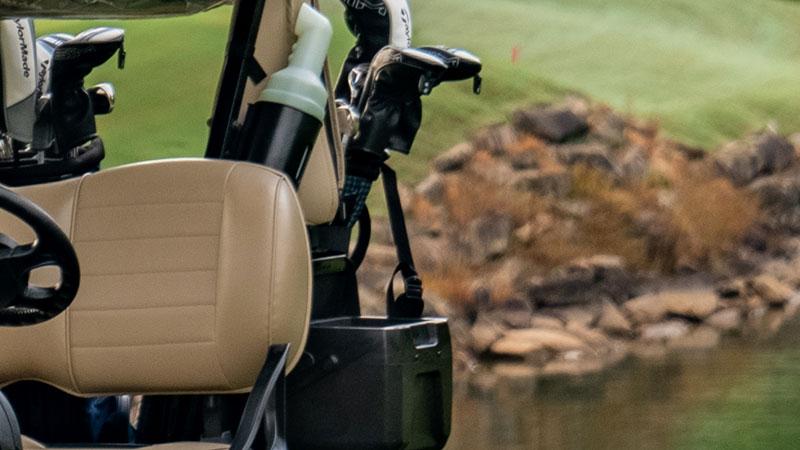

Optional golf course accessories
Optional cooler, sand bottles, and other golf cart accessories for a superior on course experience.
Specifications
DIMENSIONS
MODEL EX1 GAS 48V ELECTRIC OVERALL LENGTH 93.0 in (236 cm) 93.0 in (236 cm) OVERALL WIDTH 47.0 in (119 cm) 47.0 in (119 cm) OVERALL HEIGHT (W/O ROOF) 47.5 in (121 cm) 47.5 in (121 cm) OVERALL HEIGHT (W/ ROOF) 67.5 in (171 cm) 67.5 in (171 cm) WHEEL BASE 66 in (168 cm) 66 in (168 cm) FRONT WHEEL TRACK 34 in (86 cm) 34 in (86 cm) REAR WHEEL TRACK 38.5 in (98 cm) 38.5 in (98 cm) GROUND CLEARANCE @ DIFFERENTIAL 4.5 in (11 cm) 4.5 in (11.4 cm) POWER
MODEL EX1 GAS 48V ELECTRIC POWER SOURCE Single Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc) 48 Volt DC, Shunt Wound FUEL SYSTEM Closed-Loop Electronic Fuel Injection N/A HORSEPOWER (KW) 11.5 hp (8.6 kW) J1995 Standard N/A ELECTRICAL SYSTEM Brushless DC Internal Starter Generator 48-Volt BATTERIES (QTY/TYPE)) One, 12-Volt Maintenance Free Six, 8 Volt Deep Cycle KEY OR PEDAL START Pedal Pedal AIR CLEANER Industrial-Rated Dry Filter N/A LUBRICATION Pressurized Oil System N/A OIL FILTER Reusable Oil Screen N/A COOLING SYSTEM Air Cooled N/A FUEL CAPACITY 5.96 Gallon (22.6 L) Tank N/A BATTERY CHARGER N/A Lead Acid Charger: SC-48 (3.0 M) DC Cord SPEED CONTROLLER N/A 250 Amp Solid State Controller DRIVETRAIN Continuously Variable Transmission (CVT) Motor Shaft Direct Drive TRANSAXLE Differential W/ Helical Gears Differential with Helical Gears GEAR SELECTION Forward-Reverse Forward-Neutral-Reverse REAR AXLE RATIO 11:47:1 (Forward) 14:35:1 (Reverse) 12.44:1 PERFORMANCE
MODEL EX1 GAS 48V ELECTRIC SEATING CAPACITY 2 or 4 Passenger 2 or 4 Passenger DRY WEIGHT 723 lb (328 kg) 577 lb (262 kg) CURB WEIGHT 739 lb (335 kg) 943 lb (429 kg) VEHICLE LOAD CAPACITY 500-800 lb (227-360 kg) 500-800 lb (227-360 kg) OUTSIDE CLEARANCE CIRCLE 19.2 ft (5.8 m) 19.2 ft (5.8 m) SPEED (LEVEL GROUND) 19 mph ± 0.5 mph (31 kph ± 0.8 kph) 14.5 mph-19.5 mph (23.3 kph-31.4 kph) STEERING & SUSPENSION
MODEL EX1 GAS 48V ELECTRIC STEERING Self-Compensating Rack and Pinion Self-Compensating Rack and Pinion SUSPENSION Leaf Springs with Hydraulic Shock Absorbers Leaf Springs with Hydraulic Shock Absorbers SERVICE BRAKE Rear Wheel Mechanical Self-Adjusting Drum Rear Wheel Mechanical Self-Adjusting Drum PARKING BRAKE Self-Compensating, Single Point Engagement Self-Compensating, Single Point Engagement TIRES 18 x 8.50-8 (4-ply rated) 18 x 8.50-8 (4-ply rated) BODY & CHASSIS
MODEL EX1 GAS 48V ELECTRIC FRAME Welded Steel with Powder-Coat Protection Welded Steel with Powder-Coat Protection BODY & FINISH Injection Molded TPO Injection Molded TPO AVAILABLE BODY COLORS Forest Green, Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Inferno Red, Ivory, Metallic Charcoal, Oasis Green, Ocean Gray, Patriot Blue, Platinum, Sunburst Orange Forest Green, Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Inferno Red, Ivory, Metallic Charcoal, Oasis Green, Ocean Gray, Patriot Blue, Platinum, Sunburst Orange AVAILABLE SEAT COLORS Tan, Oyster, Gray, Black Tan, Oyster, Gray, Black AVAILABLE PREMIUM SEAT COLORS Mushroom, Gray (custom colors also available) Mushroom, Gray (custom colors also available)
