Eclipse 360 Hybrid

Diesel / Gas Electric hybrid reel mower / Consistent cut on every pass from the industry’s only diesel / gas hybrid electric

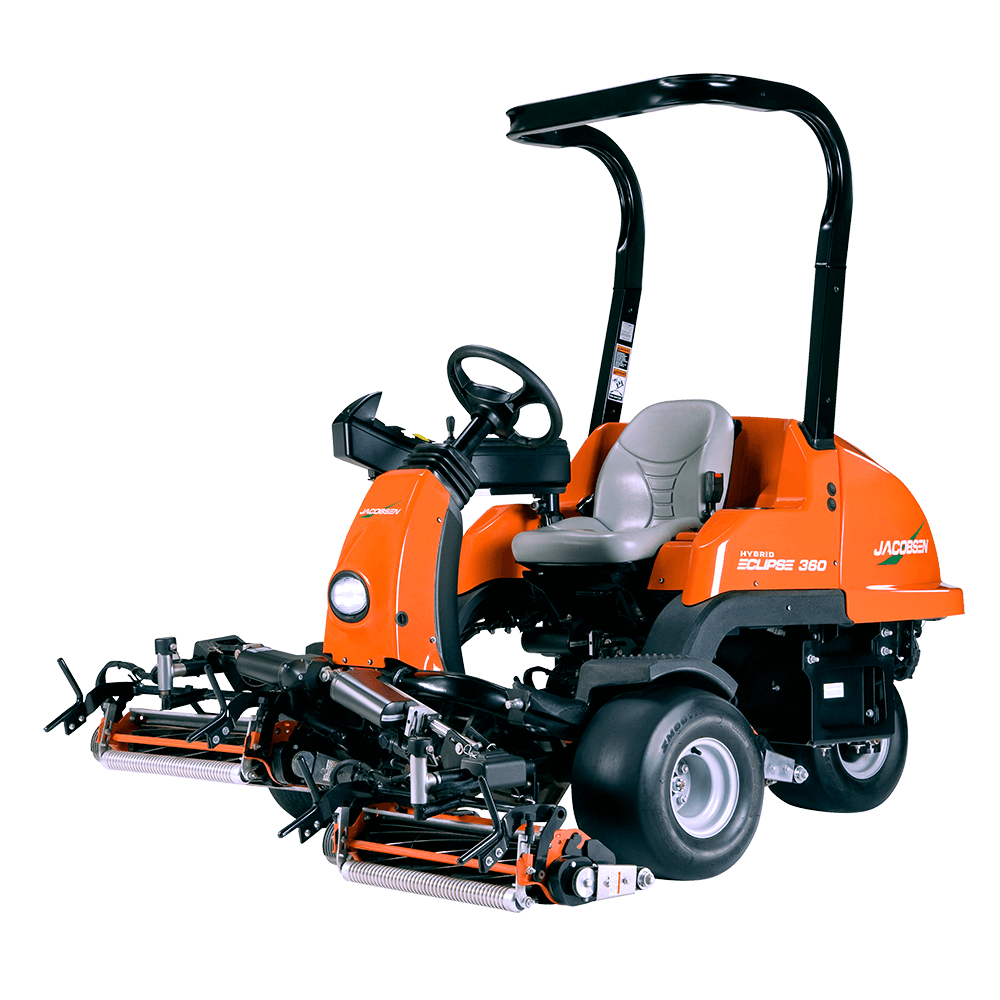

Eclipse_360_Hybrid_product1_compressed

Outstanding technology and a hydraulic-free design make the Eclipse 360 Hybrid one of the most consistent, quietest, and highest quality cut available for your golf course.

Key Features

Jakes’s trusted hybrid reel mower

Eclipse 360 Hybrid Feature 1
Eclipse 360 Hybrid Feature 2

Greatest reel selection, configureD for fine sports turf

Automatic hill hold parking brakes with no wearing parts, no levers of cables

Eclipse 360 Hybrid Feature 3 New

Unique swing out center cutting unit for ease of service

Specifications

  • Key Attributes

    MOWER CUTTING WIDTH63” (1.6 m)
    MOWER HEIGHT OF CUT0.062” - 0.438” (1.6 - 11.1 mm)
    BLADES PER REEL7, 9, 11 or 15
    FUEL/BATTERY CAPACITY (+RUN TIME)Hybrid Gas - 5 gal. (19 L) 10 hrs. approx. run time, Hybrid diesel - 5 gal. (19 L) 15 hrs. approx. run time
    MOWER ENGINEHybrid Gas - 13.3 HP (9.92 kW) Air cooled V twin. Hybrid Diesel - Kubota 13.3 HP (9.92 kW)
    CUTTING CAPACITY2.37 acre (0.96 hectare) / hr (1.6 m x 6 km / hr)
    MOWER WARRANTY2 Years

    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.

  • Reels and Blades

    NUMBER AND SIZE3 x 22” (55.88 cm) reels; 5” (127 mm) diameter
    BLADE MATERIALHardened, high manganese carbon steel
    CUTTING UNIT LIFTNew Long Life linear actuator
    CUTTING FREQUENCY0.036” - 0.250” (0.91 mm - 6.35 mm) with 15 blade reel, electronically adjustable

    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.

  • Traction, Brakes and Speed

    TRACTION DRIVEFront / 2WD - AC; 4.4 HP (3.3 kW) continuous (Optional 3WD – PM; 3.2 HP (2.4 kW))
    REEL DRIVEOne brushless DC motor per reel 1.3 HP (0.97 kW) continuous
    HYDRAULIC SYSTEMNo Hydraulic Oil
    SERVICE BRAKESDynamic regenerative braking system
    PARKING BRAKESAutomatic electro-magnetic multi-plate
    STEERINGVariable ratio Drive-by-wire steering with feedback control
    MOWING SPEED0 - 5.0 mph (0 - 8.9 kph); electronically adjustable max speed
    TYRES18 x 10.5 x 8 4-ply

    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.

  • Weight and Dimensions

    WEIGHTHybrid Gas: 1322 lbs. (599 kg) with all fluids, Hybrid Diesel: 1362 lbs. (618 kg) with all fluids
    LENGTH (LESS CATCHERS)101" (2.56 m) (with Catchers)
    OVERALL HEIGHT INCLUDING ROPS79.3" (2.01 m)
    WHEEL BASE52" (1.32 m)
    TRANSPORT WIDTH67.7" (1.72 m)
    WORKING WIDTH67.7" (1.72 m)

    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.
