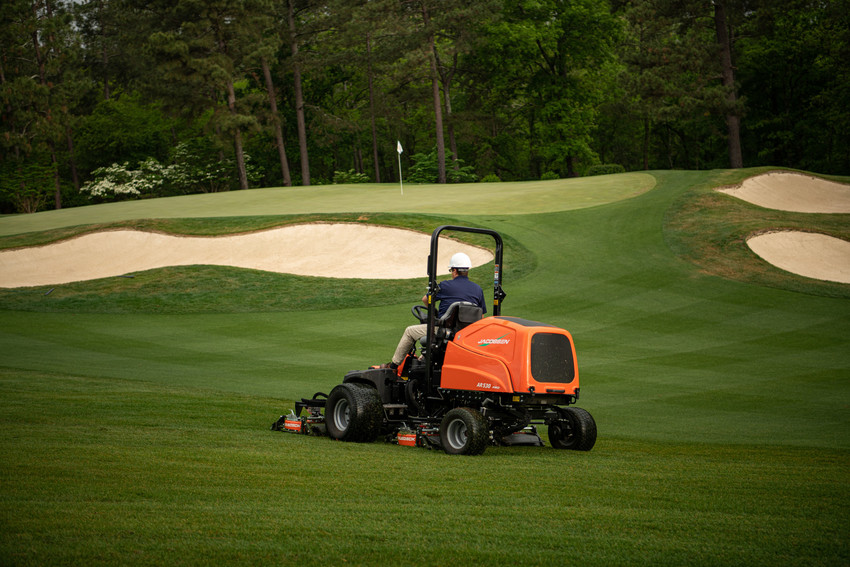

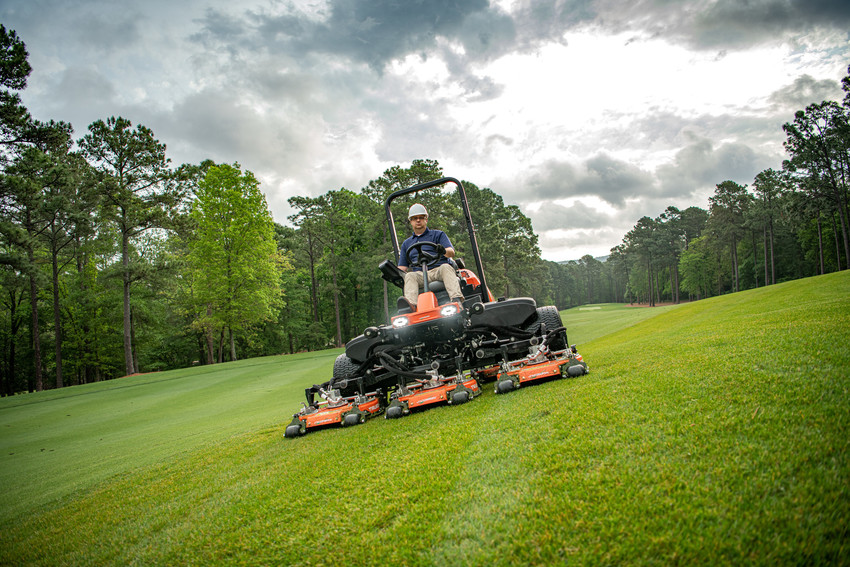

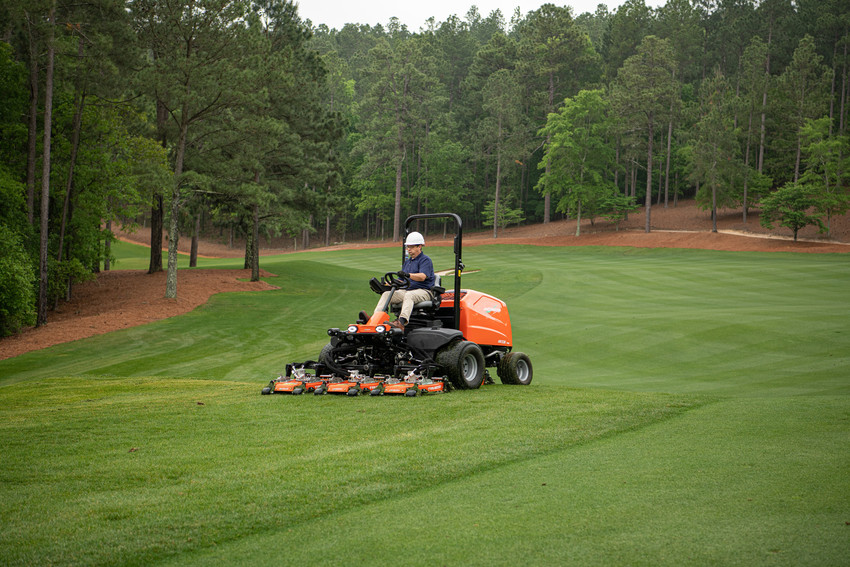

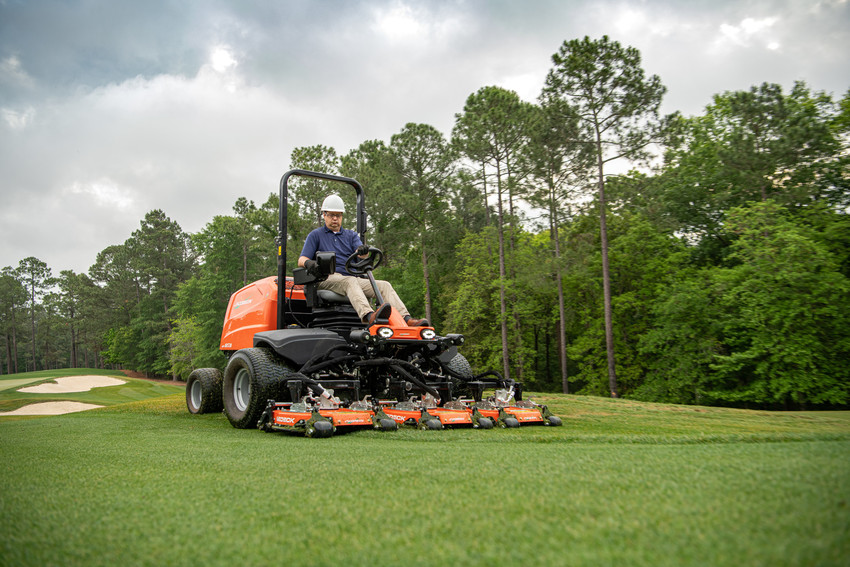

AR530
Articulated contour rotary mower / Best in class traction, improved cut quality, quick adjustment decks
Re-designed from the ground up, the AR530 articulated golf course rough mower is built to give you the best. Improved cut quality, sidehill climbing performance, and operator comfort give you Jake’s Signature Cut Trusted by Generations wherever you need it.
Finborough School Head Groundsman, Rory Ferguson, gives his first impressions on the new AR530 Articulated Contour Rotary Mower.
Rory Ferguson
Head Groundsman
Key Features
Truedeck™ heavy-duty contouring
Superior after-cut appearance
Quick and easy deck adjustment
Trustworthy Kubota® engine
Specifications
Key Attributes
MOWER CUTTING WIDTH 90" (2.3 m) MOWER HEIGHT OF CUT 0.75 - 4.5" (19 - 114 mm)" 0.25" (6 mm) increments MOWER ENGINE Kubota 50.2 HP (37.4kW) diesel CUTTING CAPACITY Up to 5.66 acres/hr at 7 mph (2.29 ha/h at 11.26 km/h) (no overlaps or stops) TRANSPORT SPEED 12 mph (19.3 km/h) FUEL/BATTERY CAPACITY (+RUN TIME) 17 gal. (64.2 L) MOWER WARRANTY 2 Years Engine horsepower may vary due to conditions of specific use. Product available in selected countries.Decks and Cutting Units
NUMBER AND SIZE 5 x TRUEDECK™ 23" (58.4 cm) rotary cutting units. Equipped for rear-discharge chute and smooth rear roller. Mulching baffle, non-striping rear roller and rear roller scrapers available. BLADE MATERIAL 5 x 22.4" (56.8 cm) heat treated alloy combo blades DECK LIFT/LOWER Hand operated, joystick controlled hydraulic lift system WEIGHT TRANSFER Adjustable hydraulic weight transfer – automatic electronic activation at operator controls with mow switch. Selectable through control console DECK CONSTRUCTION 10-gauge, heavy duty modular deck construction Traction, Brakes and Speed
TRACTION DRIVE SureTrac II™ AWD, a unique parallel hydrostatic system, servo-controlled variable displacement hydro; four high-torque wheel motors; 2WD transport and reverse DECK DRIVE Fixed displacement, self-lubricating with 1" (2.54 cm) diameter shaft; double sealed bearings HYDRAULIC SYSTEM 10 gal. (37.9 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter, 40 gpm. Side-by-side radiator/hydraulic oil cooler. SERVICE BRAKES Dynamic through traction system PARKING BRAKES No-Maintenance, Integrated Wet Parking Brake STEERING Rear wheel, hydrostatic power steering with tilt adjustable steering wheel MOWING SPEED 7 mph (11.3 km/h) REVERSE SPEED 8.7 mph (14 km/h) TYRES Engine horsepower may vary due to conditions of specific use. Product available in selected countries.Weight and Dimensions
WEIGHT 3451 lb. (1565 kg) full fluids LENGTH 137.5" (3.49 m) HEIGHT (ROPS UP) 91.6" (232.6 cm) WHEEL BASE 63" (1.6m) TRANSPORT WIDTH 88.6" (2.25 m) Transport WORKING WIDTH 95.3" (2.42 m) FLUID CAPACITIES Engine horsepower may vary due to conditions of specific use. Product available in selected countries.
