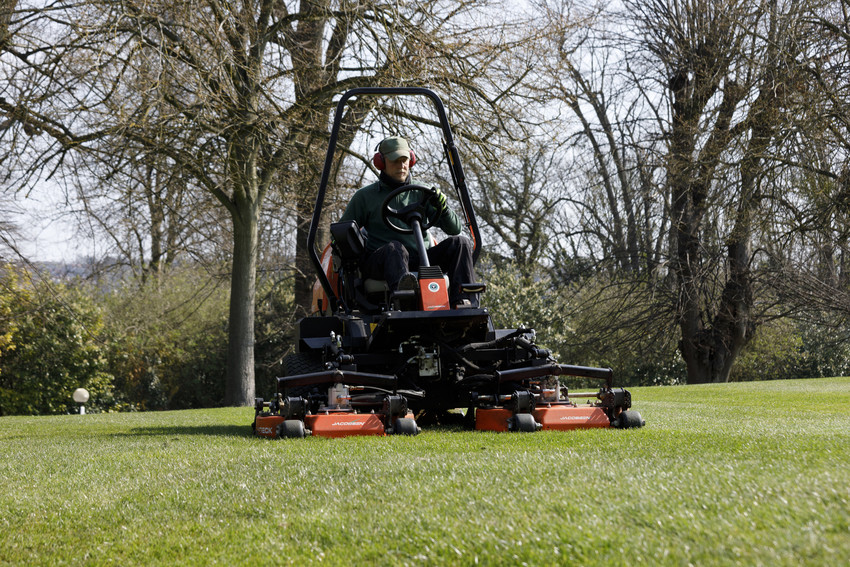

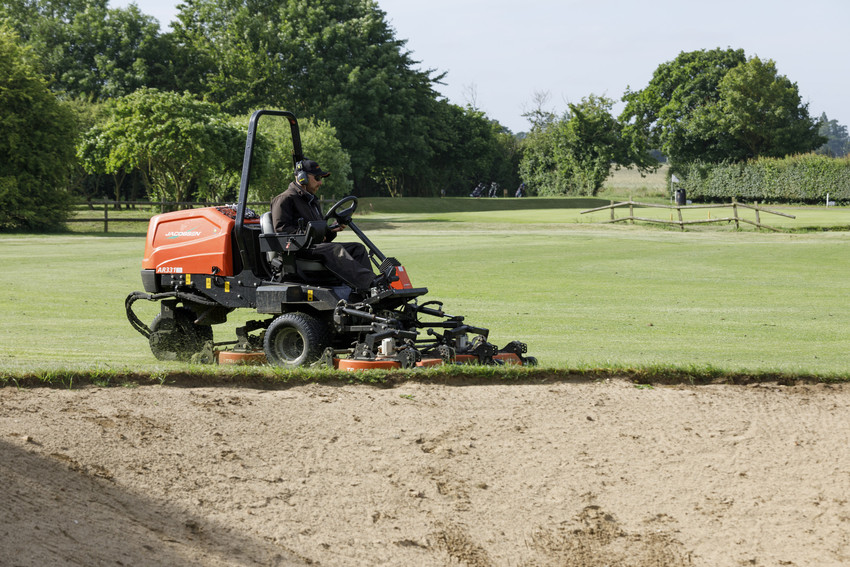

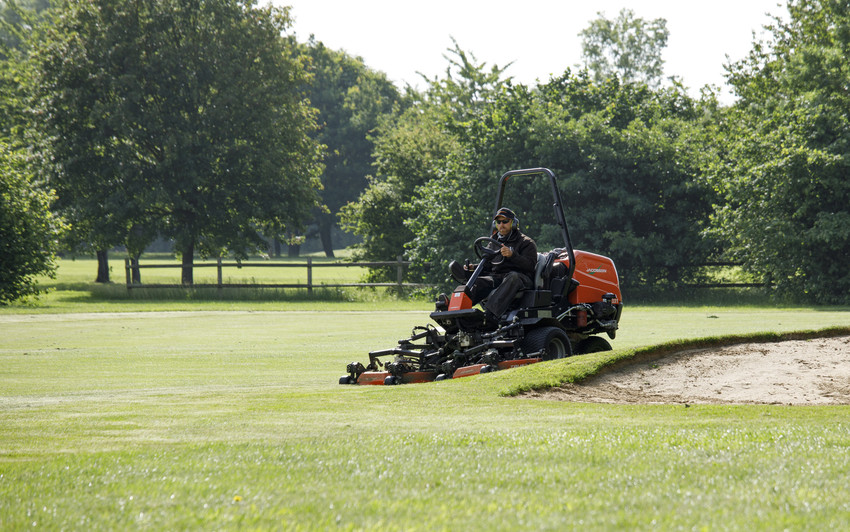

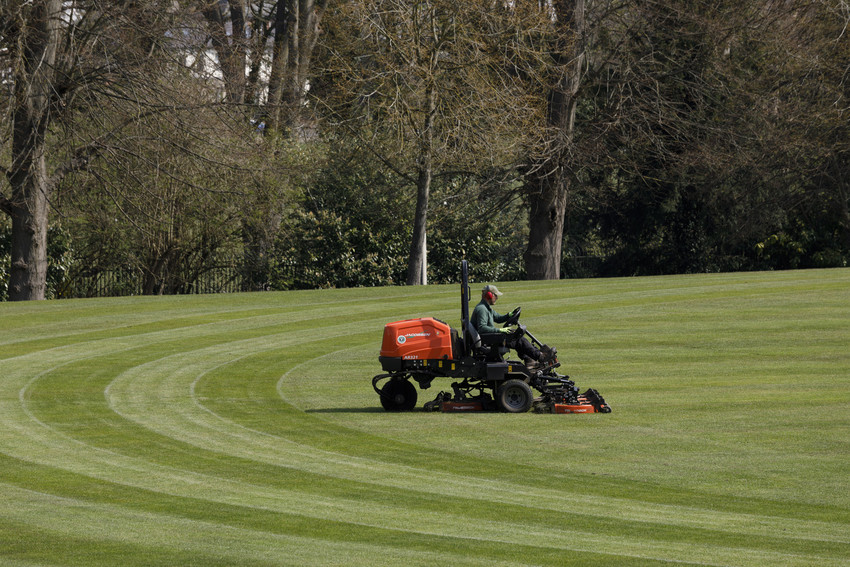

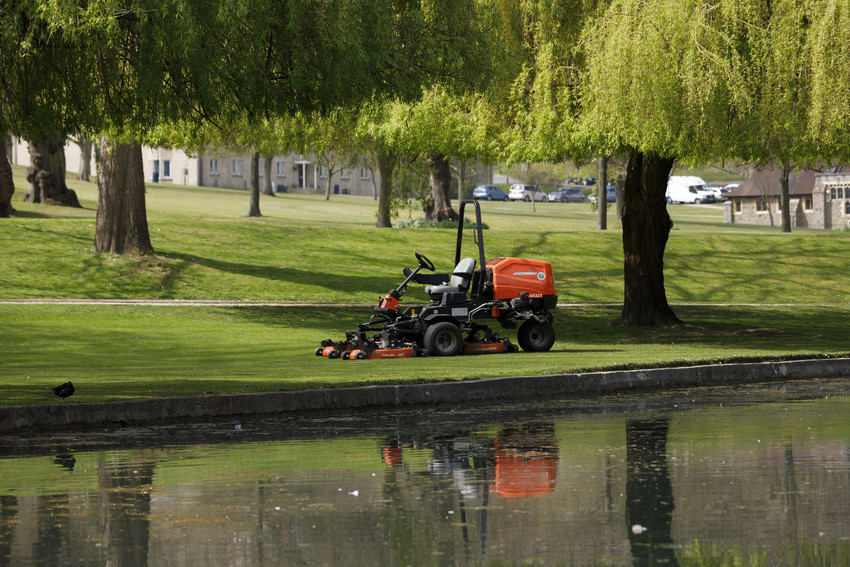

AR321
Contour rotary trim mower / Stays on cut and follows tight undulations
Jake’s Signature Cut Trusted by Generations combines with contour following to give your golf course the after cut finish it deserves. Adjustments and maintenance on the AR321 articulated rotary mower are quick and easy, so you can spend more time on the course.
Wycombe Abbey School Head of Grounds, Daniel Davy, explains why the AR321 is used to cut 85% of their entire site, including sports pitches and surrounds, and the reasons why he’ll be adding a second to his fleet.
Daniel Davy
Head of Grounds Wycome Abbey School
Key Features
Quick adjustment decks
Trustworthy Kubota® engine
Zero maintenance wet parking brakes
Specifications
Key Attributes
MOWER CUTTING WIDTH 72" (182.88 cm) MOWER HEIGHT OF CUT 0.75-3.5" (19-88 mm) MOWER ENGINE Kubota® 24.8 HP (18.6kW) diesel CUTTING CAPACITY 4.5 acres/hr at 6mph (1.83 ha/hr. at 10km/h) TRANSPORT SPEED 8.7 mph (14 km/h) FUEL/BATTERY CAPACITY (+RUN TIME) 7.6 gal. (28.7 L) MOWER WARRANTY 2 Years Specifications, while correct at time of publishing, may change without notice.Decks and Cutting Units
NUMBER AND SIZE 3 x 27" (68.58 cm) TrueDeck rotary cutting units BLADE MATERIAL Hardened, carbon steel alloy DECK LIFT/LOWER Armrest mounted switch WEIGHT TRANSFER Adjustable hydraulic, electronically activated operator control DECK CONSTRUCTION 9-gauge, stamped modular deck construction Specifications, while correct at time of publishing, may change without notice.Traction, Brakes and Speed
TRACTION DRIVE Parallel-series"on demand" 3WD DECK DRIVE Fixed displacement hydraulic HYDRAULIC SYSTEM 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil. SERVICE BRAKES Dynamic braking through hydrostatic drive PARKING BRAKES Service-free electronic wet disc STEERING Hydraulic power steering with tilt wheel MOWING SPEED 6.2 mph (10 km/h) REVERSE SPEED 3.7 mph (6 km/h) TYRES Specifications, while correct at time of publishing, may change without notice.Weight and Dimensions
WEIGHT 1986 lb. (901 kg) LENGTH 122" (3.10 m) HEIGHT (ROPS UP) 82" (2.06 m) WHEEL BASE 61" (1.54 m) TRANSPORT WIDTH 77" (1.96 m) WORKING WIDTH 77" (1.95 m) FLUID CAPACITIES Hydraulic System and Capacity: 8.7 gl. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil Specifications, while correct at time of publishing, may change without notice.
