Vibra-Sandmaster (WITH VERTI-QUAKE)

OverviewSpecifications

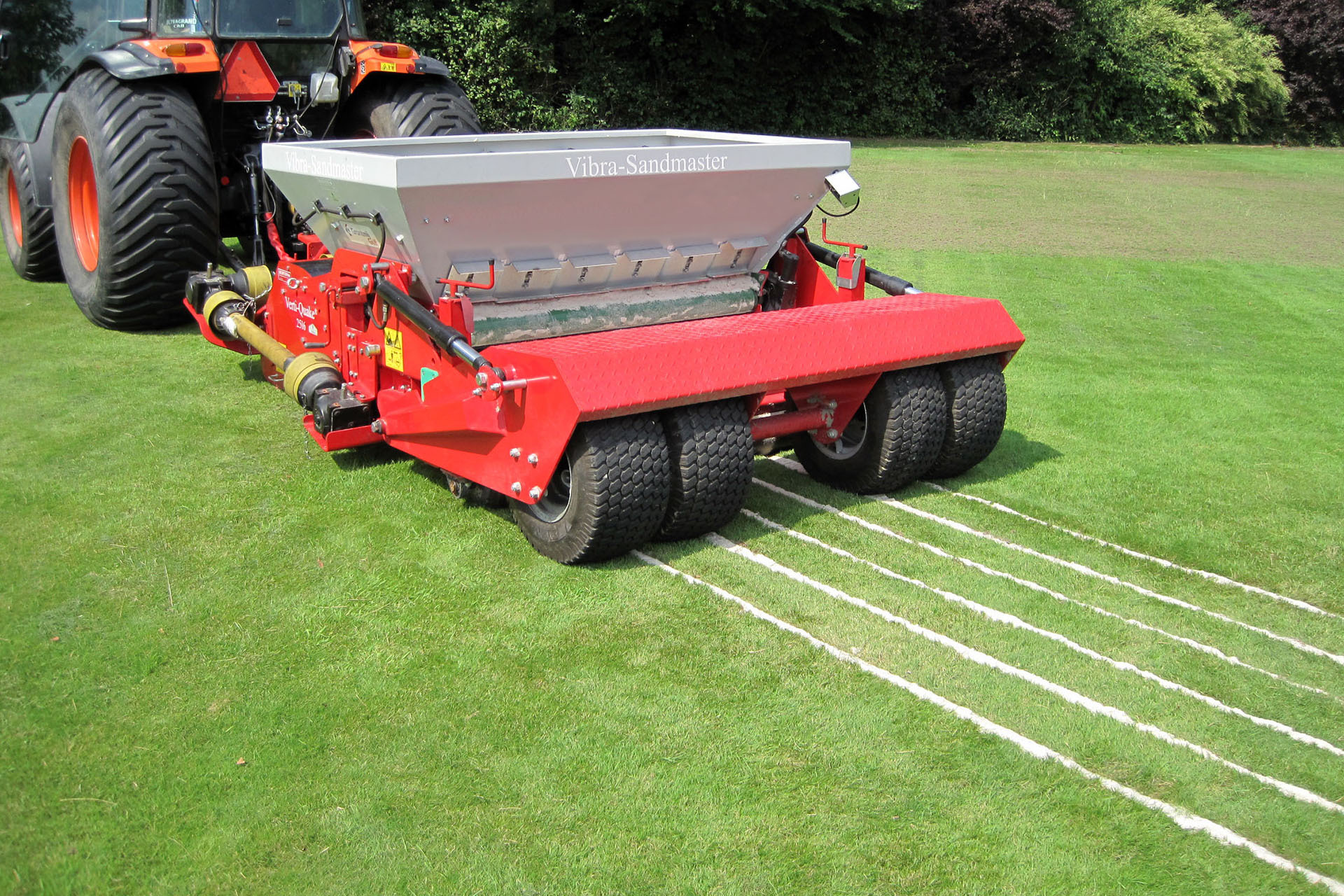

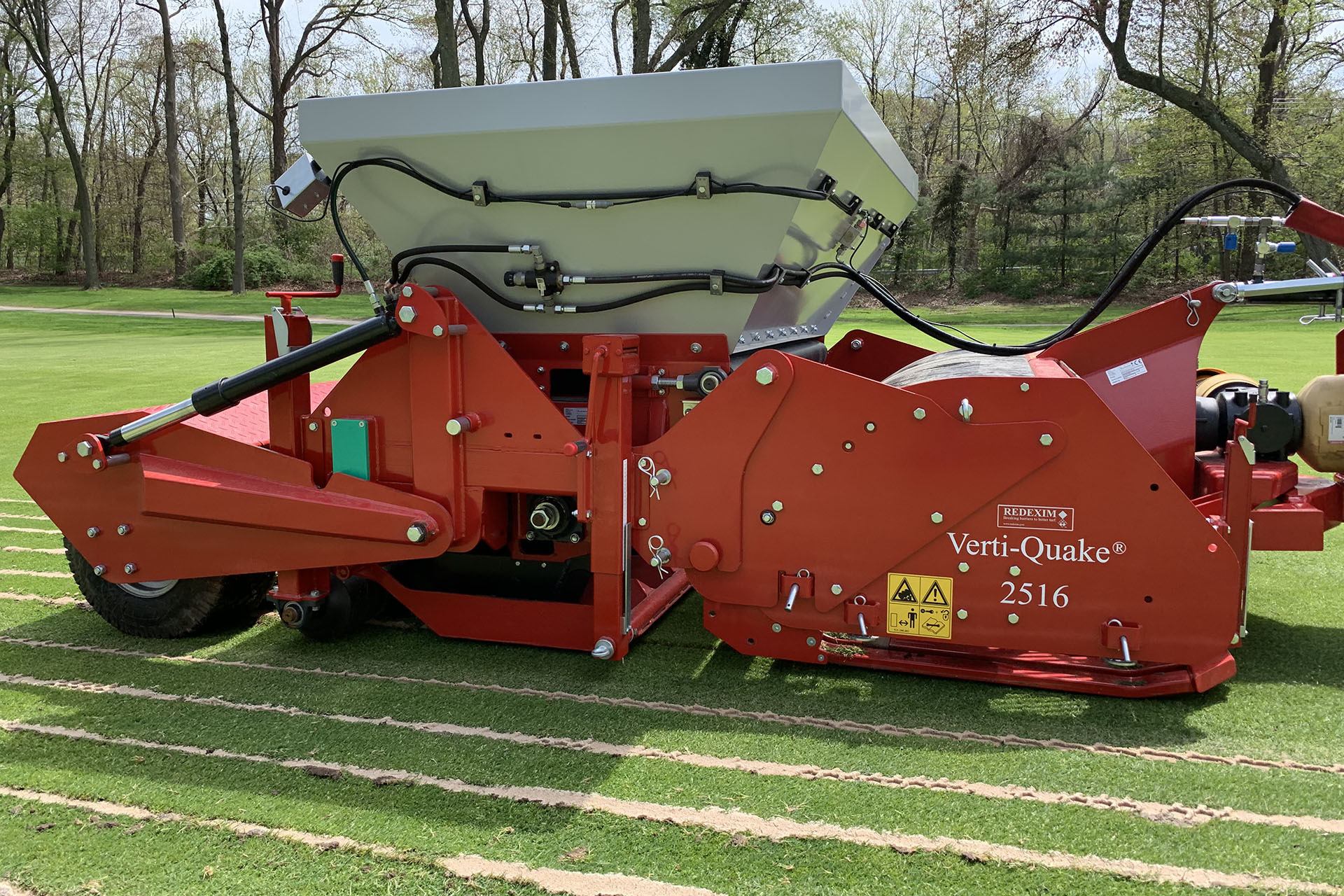

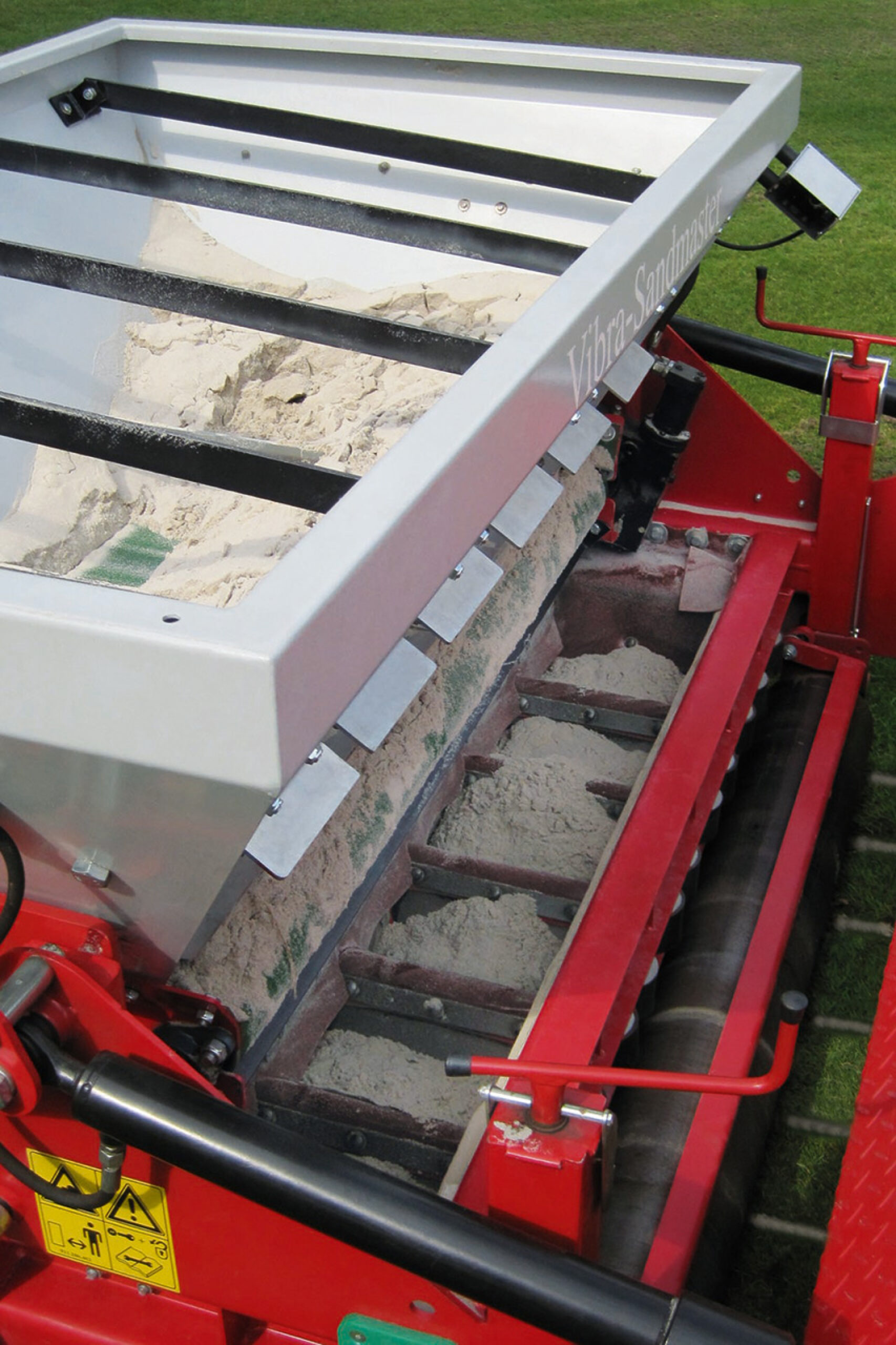

The Vibra-Sandmaster de-compacts & adds surface drainage to the soil profile all in one pass. Integrated within the Vibra-Sandmaster is the Verti-Quake 2516, this de-compacts and opens the soil to depth of 250mm. Vibrating coulters fill the slits with sand to leave minimal surface disruption.

  • Immediate results
  • One pass operation
  • Ideal contractors tools
  • The Rink DS3100 CB is an ideal companion to fill the Vibra-Sandmaster

Specifications

  • VIBRA-SANDMASTER (WITH VERTI-QUAKE)

    SKU115.251.502
    WORKING WIDTH (M)1.56
    WORKING WIDTH (INCH)61.4
    MAX. WORKING DEPTH (MM)125-200
    MAX. WORKING DEPTH (INCH)4.9 - 7.9
    HOPPER CAPACITY (M3)1.5
    HOPPER CAPACITY (FT3)53
    WEIGHT (KG)2650
    WEIGHT (LBS)5842
    NUMBER OF FILLING COULTERS6
    DISTANCE BETWEEN FILLING COULTERS (MM)260
    DISTANCE BETWEEN FILLING COULTERS (INCH)10,236
    THICKNESS OF FILLING COULTERS (MM)25
    MIN. TRACTOR HP REQUIRED65-90 with four-wheel drive
    MAX. CAPACITY ( M² HR)1000
    MAX. CAPACITY (FT² HR)10800
    MIN. OIL SUPPLY OF TRACTOR (L MIN)30
    MIN. OIL SUPPLY OF TRACTOR (US GAL MIN)7.9
    REQUIRED CONNECTIONS1 x Double-acting valve (elevating the machine) 2 x Double-acting valves (conveyor drive)
    RPM MAX.540
    LUBRICANTEP2 + High grade grease HT Q9
