Refined To A Tee

txt_golf_brightwhite_product
EZGo
OverviewKey FeaturesSpecificationsDownload

The E-Z-GO TXT golf cart combines proven reliability with industry-leading performance to deliver a consistently smoother ride and grater energy efficiency. Offered in best-in-class 48V DC electric drivetrain, or the new EX1 gas engine with closed-loop EFI. Whichever you choose will provide the perfect balance of performance and efficiency to your course.

Available Powertrains:

Offered in best-in-class 48 Volt DC electric drivetrain, and fuel efficient EX1 gas engine with closed-loop EFI to perform at a high level on any course.

  • EX1 Gas Engine

A first-its-kind closed-loop EFI gas engine. #1 in fuel economy and maintenance costs with an elevated ride.

  • 48V DC

Trusted and reliable performance, designed to exceed expectations.

Key Features

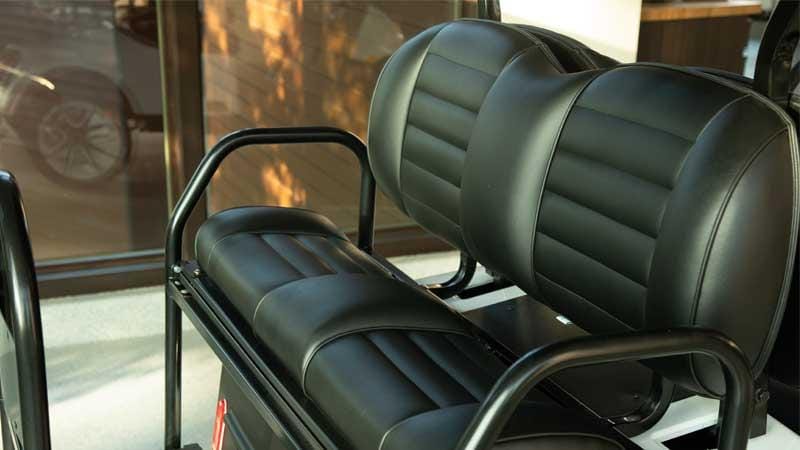

Optional premium seats
Premium golf cart seats for a more comfortable round on any golf course.

Fleet-Accessories_feature2

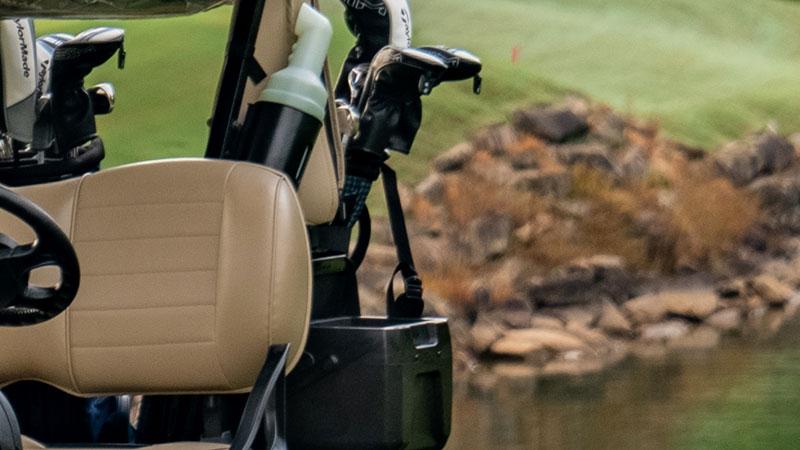

Optional golf course accessories
Optional cooler, sand bottles, and other accessories for a superior on course experience.

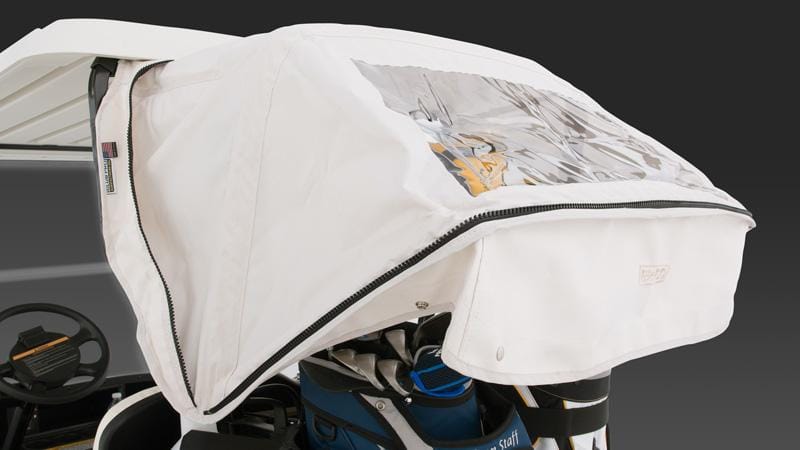

Optional bag cover
Golf bag cover to keep your clubs and personal items protected through unexpected weather.

txt_golf-features-bagcover_feature3
txt_golf-features-usb_feature4

Optional USB port
USB port to charge personal items anywhere on the golf course.

Specifications

  • DIMENSIONS

    MODELEX1 GAS48V ELECTRIC
    OVERALL LENGTH93.0 in (236 cm)93.0 in (236 cm)
    OVERALL WIDTH47.0 in (119 cm)47.0 in (119 cm)
    OVERALL HEIGHT (W/O ROOF)47.5 in (121 cm)47.5 in (121 cm)
    OVERALL HEIGHT (W/ ROOF)67.5 in (171 cm)67.5 in (171 cm)
    WHEEL BASE66 in (168 cm)66 in (168 cm)
    FRONT WHEEL TRACK34 in (86 cm)34 in (86 cm)
    REAR WHEEL TRACK38.5 in (98 cm)38.5 in (98 cm)
    GROUND CLEARANCE @ DIFFERENTIAL4.5 in (11 cm)4.5 in (11.4 cm)

  • POWER

    MODELEX1 GAS48V ELECTRIC
    POWER SOURCESingle Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc)48 Volt DC, Shunt Wound
    FUEL SYSTEMClosed-Loop Electronic Fuel InjectionN/A
    HORSEPOWER (KW)11.5 hp (8.6 kW) J1995 StandardN/A
    ELECTRICAL SYSTEMBrushless DC Internal Starter Generator48-Volt
    BATTERIES (QTY/TYPE))One, 12-Volt Maintenance FreeSix, 8-Volt Deep Cycle
    KEY OR PEDAL STARTPedalPedal
    AIR CLEANERIndustrial-Rated Dry FilterN/A
    LUBRICATIONPressurized Oil SystemN/A
    OIL FILTERReusable Oil ScreenN/A
    COOLING SYSTEMAir CooledN/A
    FUEL CAPACITY5.96 Gallon (22.6 L) TankN/A
    BATTERY CHARGERN/ALead Acid Charger: SC-48 (3.0 M) DC Cord
    SPEED CONTROLLERN/A250 Amp Solid State Controller
    DRIVETRAINContinuously Variable Transmission (CVT)Motor Shaft Direct Drive
    TRANSAXLEDifferential W/ Helical GearsDifferential with Helical Gears
    GEAR SELECTIONForward-ReverseForward-Neutral-Reverse
    REAR AXLE RATIO11:47:1 (Forward) 14:35:1 (Reverse)12.44:1

  • PERFORMANCE

    MODELEX1 GAS48V ELECTRIC
    SEATING CAPACITY2-Passenger2-Passenger
    DRY WEIGHT723 lb (328 kg)577 lb (262 kg)
    CURB WEIGHT739 lb (335 kg)943 lb (429 kg)
    VEHICLE LOAD CAPACITY500-800 lb (227-360 kg)500-800 lb (227-360 kg)
    OUTSIDE CLEARANCE CIRCLE19.0 ft (5.8 m)19.2 ft (5.8 m)
    SPEED (LEVEL GROUND)12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)10.2 mph-14.8 mph (16.4 kph-23.8 kph)

  • STEERING & SUSPENSION

    MODELEX1 GAS48V ELECTRIC
    STEERINGSelf-Compensating Rack and PinionSelf-Compensating Rack and Pinion
    SUSPENSIONLeaf Springs with Hydraulic Shock AbsorbersLeaf Springs with Hydraulic Shock Absorbers
    SERVICE BRAKERear Wheel Mechanical Self-Adjusting DrumRear Wheel Mechanical Self-Adjusting Drum
    PARKING BRAKESelf-Compensating, Single Point EngagementSelf-Compensating, Single Point Engagement
    TIRES18 x 8.50-8 (4-ply rated)18 x 8.50-8 (4-ply rated)

  • BODY & CHASSIS

    MODELEX1 GAS48V ELECTRIC
    FRAMEWelded Steel with Powder-Coat ProtectionWelded Steel with Powder-Coat Protection
    BODY & FINISHInjection Molded TPOInjection Molded TPO
    AVAILABLE BODY COLORSForest Green, Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Inferno Red, Ivory, Metallic Charcoal, Oasis Green, Ocean Gray, Patriot Blue, Platinum, Sunburst OrangeForest Green, Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Inferno Red, Ivory, Metallic Charcoal, Oasis Green, Ocean Gray, Patriot Blue, Platinum, Sunburst Orange
    AVAILABLE SEAT COLORSTan, Oyster, Gray, BlackTan, Oyster, Gray, Black
    AVAILABLE PREMIUM SEAT COLORSMushroom, Gray (custom colors also available)Mushroom, Gray (custom colors also available)
