SprayTek XP

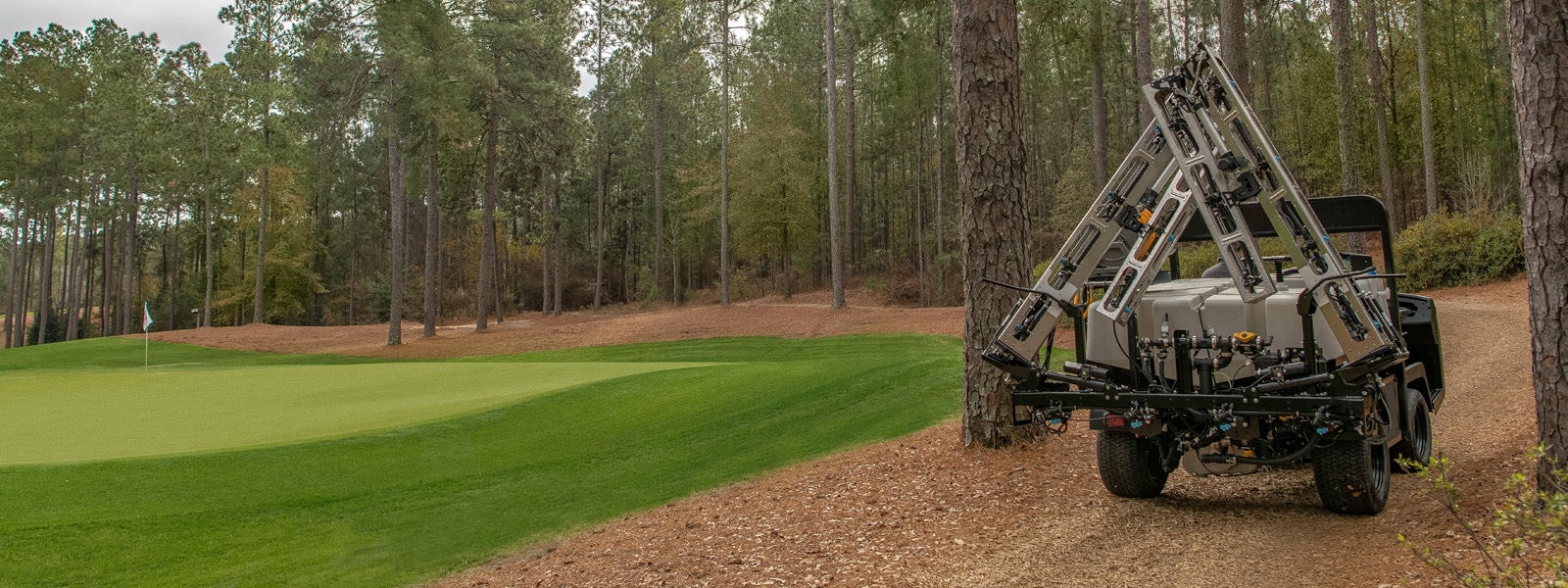

With the widest range of spray boom options up to 30 feet, the SprayTek XP helps you take precision and productivity to new places.

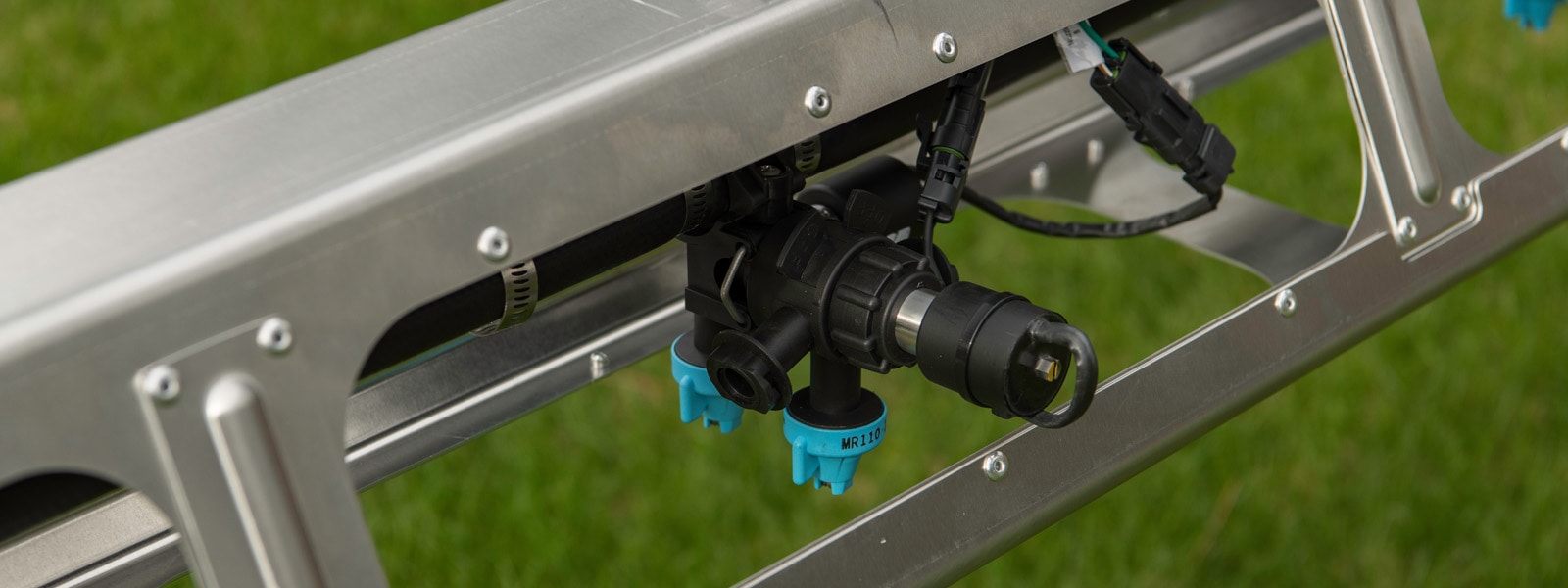

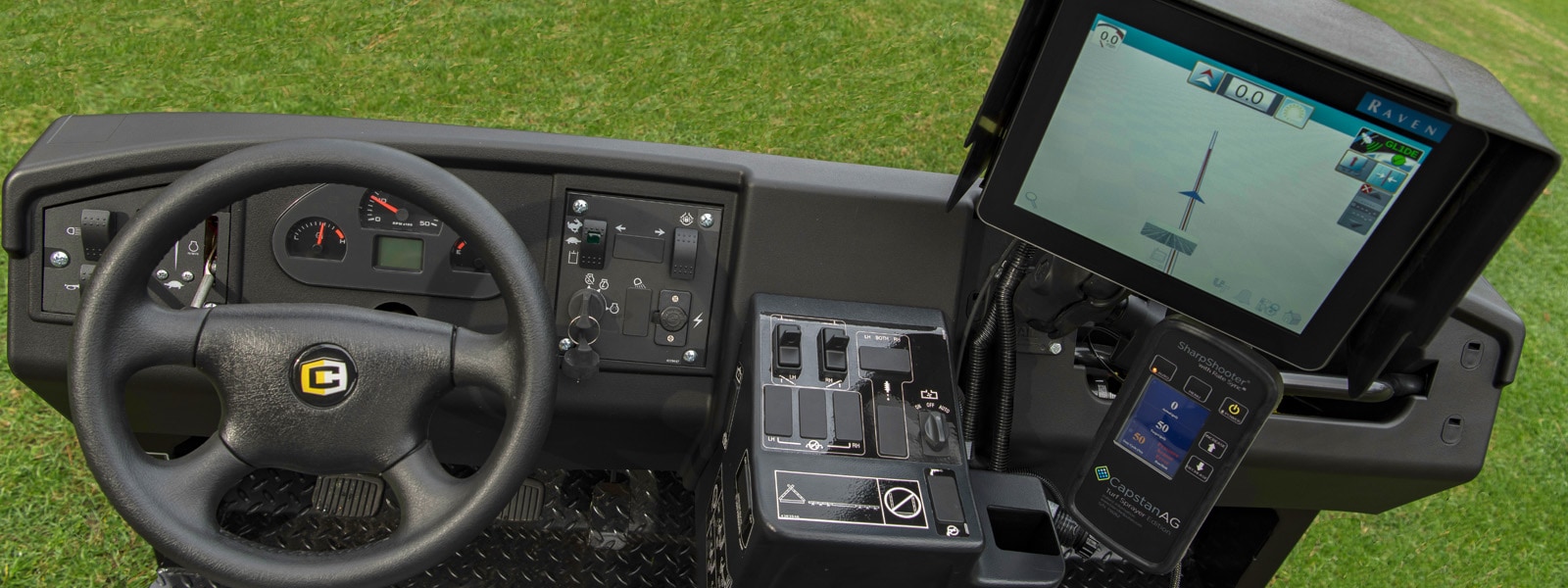

The new Cushman SprayTek XP offers the widest range of turf spray booms for increased productivity and superior precision. An advanced low-profile tank, designed with high pressure agitation, ensures a properly mixed product. A wide array of optional controls, allows the SprayTek XP to easily fit any application and features automatic rate control, which adjusts flow for consistent coverage in varying speeds. Upgrades include a sophisticated GPS mapping system and individual nozzle control that reduces chemical consumption and increase accuracy.
POWERTRAINS
SPRAYTEK XP GAS | SPRAYTEK XP DIESEL |
| – 32.5 HP Kubota® Gas Engine | – 24.8 HP Kubota® Diesel Engine |
| – 51.6 ft-lbs Torque | – 52.7 ft-lbs Torque |
| – 23 mph | – 21 mph |
| – 7.0-gal Fuel Capacity | – 7.0-gal Fuel Capacity |
| – 2-Passenger Seating | – 2-Passenger Seating |
| – Optional 4WD | – Optional 4WD |
Specifications
DIMENSION
SprayTek XP Gas SprayTek XP Diesel OVERALL LENGTH 164 in (4.16 m) 164 in (4.16 m) OVERALL WIDTH Operating / Transport
18.5 ft. (5.6 m) / 76 in. (1.9 m)
20 ft. (6.1 m) / 96 in. (2.4 m)
28.5 ft. (8.7 m) / 76 in. (1.9 m)
30 ft. (9.1 m) / 96 in. (2.4 m)Operating / Transport
18.5 ft. (5.6 m) / 76 in. (1.9 m)
20 ft. (6.1 m) / 96 in. (2.4 m)
28.5 ft. (8.7 m) / 76 in. (1.9 m)
30 ft. (9.1 m) / 96 in. (2.4 m)OVERALL HEIGHT 100 in (2.54 m) with booms up 100 in (2.54 m) with booms up POWER
SprayTek XP Gas SprayTek XP Diesel POWER SOURCE Kubota® 972EFI gas, 3-cylinder, 4-cycle, liquid cooled Kubota® D1105 diesel, 3-cylinder, 4-cycle, liquid cooled HORSEPOWER (KW) 32.5 hp (25.2 kW) 24.8 hp (18.5 kW) ELECTRICAL SYSTEM 60 amp, heavy duty alternator; 12 v starter with safety interlock 60 amp, heavy duty alternator; 12 v starter with safety interlock AIR CLEANER Donaldson® dry cartridge type with evacuator valve Donaldson® dry cartridge type with evacuator valve FUEL CAPACITY 7.0 gal (26.5 L) unleaded 7.0 gal (26.5 L) unleaded GEAR SELECTION Five speed manual transmission with low-low (creeper) first gear; synchronized in all forward gears; Five speed manual transmission with low-low (creeper) first gear; synchronized in all forward gears; two speed rear axle PERFORMANCE
SprayTek XP Gas SprayTek XP Diesel SPEED Maximum speed of 23 mph Optional 5th gear lock out available Maximum speed of 21 mph Optional 5th gear lock out available STEERING & SUSPENSION
SprayTek XP Gas SprayTek XP Diesel STEERING Hydrostatic Power Steering Hydrostatic Power Steering SUSPENSION Solid axle with heavy duty multiple leaf springs and shock absorbers Solid axle with heavy duty multiple leaf springs and shock absorbers SERVICE BRAKE Heavy duty hydraulic four wheel disk brakes with 10.7 in (272 mm) disk. Heavy duty hydraulic four wheel disk brakes with 10.7 in (272 mm) disk. PARKING BRAKER Hand lever actuated disk brakes on rear wheels. Hand lever actuated disk brakes on rear wheels. TIRES Front: 23 x 10.5 – 14 6-ply Ribbed (2WD) 23 x 10.5 – 14 6-ply Treaded (4WD) Rear: 26 x 12 – 14 6-ply Ultra Chevron tread Front: 23 x 10.5 – 14 6-ply Ribbed (2WD) 23 x 10.5 – 14 6-ply Treaded (4WD) Back: 26 x 12 – 14 6-ply Ultra Chevron tread
