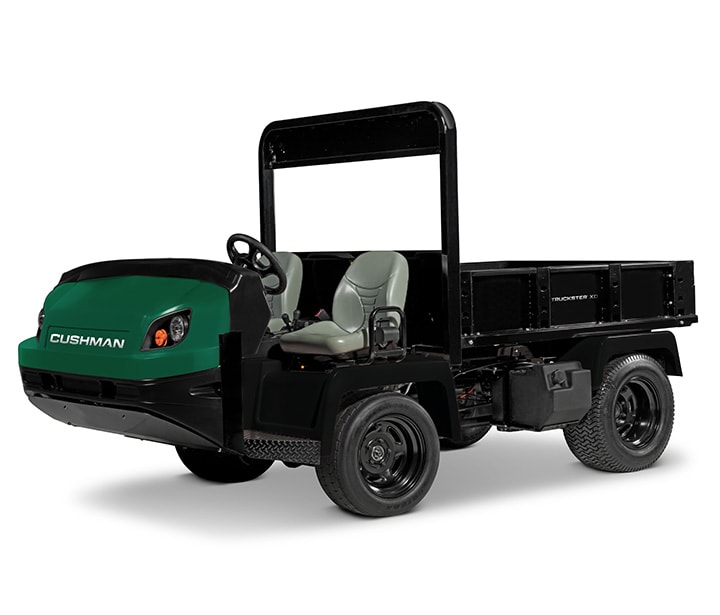

Truckster XD

Available in your choice of a 32.5 HP engine or 24.8 HP diesel engine, the Truckster XD is designed to help your crew tackle demanding tasks.

cushman_trucksterxd product1
Truckster XD product2
Truckster XD product3
Cushman Logo
OverviewKey FeaturesSpecificationsDownload

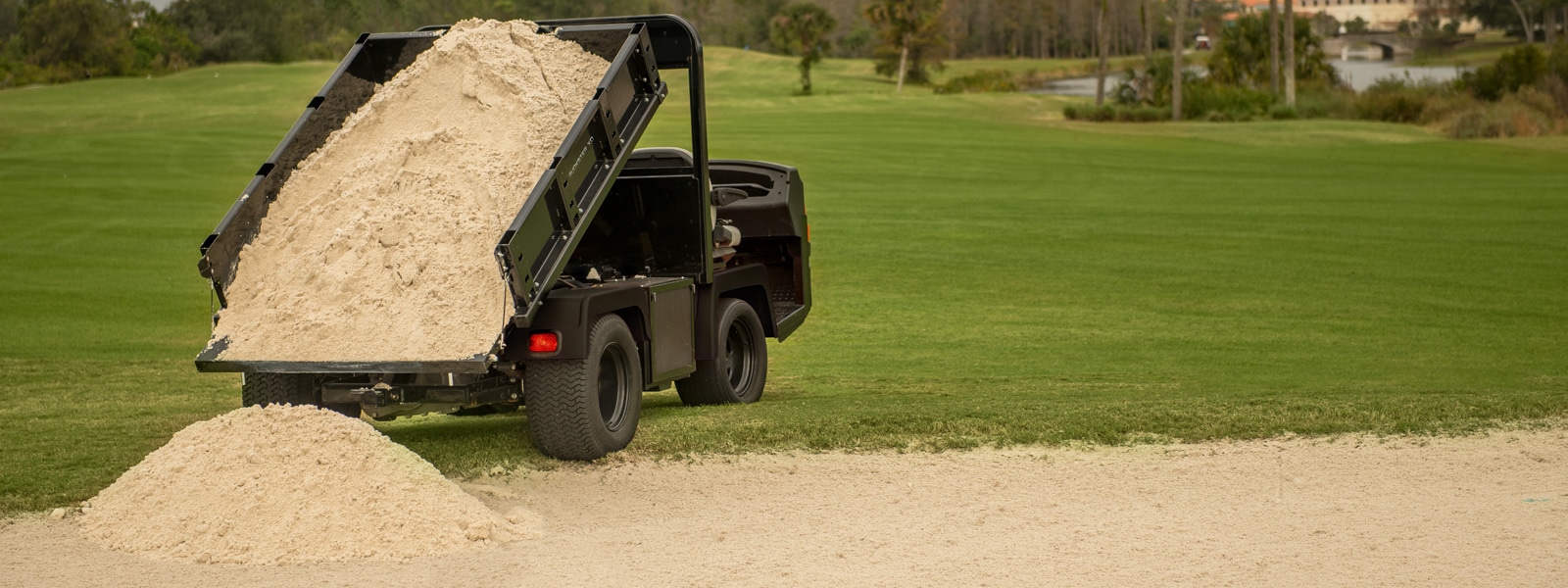

With the combination of either two-wheel or four-wheel drive and a highly versatile bed- manufactured with strong heavy gauge steel, integrated stake pockets and tie-downs- the Truckster XD makes effortless hauling for your heaviest loads at just about any job site.

POWERTRAINS

TRUCKSTER XD GAS
TRUCKSTER XD DIESEL
– 32.5 HP Kubota® Gas Engine– 24.8 HP Kubota® Diesel Engine
– 3,550-lb Vehicle Load Capacity– 3,550-lb Vehicle Load Capacity
– 23 mph– 21 mph
– 23.6-cu-ft Cargo Bed– 23.6-cu-ft Cargo Bed
– 2-Passenger Seating– 2-Passenger Seating
– Optional 4WD– Optional 4WD

Specifications

  • BODY & CHASSIS

     Truckster XD GasTruckster XD Diesel
    FRAMEPowder Coated SteelPowder Coated Steel
    BODY & FINISHInjection MoldedInjection Molded
    STANDARD COLOROrange, Forest GreenOrange, Forest Green

  • DIMENSIONS

     Truckster XD GasTruckster XD Diesel
    OVERALL LENGTH132 in. w/o bed, 136 w/ bed133 in. w/o bed, 136 w/ bed
    OVERALL WIDTH65 in65 in
    OVERALL HEIGHT78 in78 in
    WHEEL BASE65 in65 in
    WHEEL TRACKFront: 49 in/ Rear: 52 inFront: 49 in/ Rear: 52 in
    GROUND CLEARANCE6.5 in6.5 in
    CARGO DECK CAPACITY23.6-cu-ft23.6-cu-ft

  • POWER

     Truckster XD GasTruckster XD Diesel
    POWER SOURCE32.5 HP Kubota Gas Engine24.8 HP Kubota Diesel Engine
    VALVE TRAIN3-Cylinder, 4-Cycle Liquid Cooled EFI3-Cylinder, 4-Cycle Liquid Cooled
    HORSEPOWER (KW)32.5 HP24.8 HP
    BATTERY (QTY/TYPE)12 Volt Battery12 Volt Battery
    KEY OR PEDAL STARTKey StartKey Start
    COOLING SYSTEMLiquid CooledLiquid Cooled
    FUEL CAPACITY7.0 gal. unleaded7.0 gal. diesel
    DRIVE TRAINEngine Shaft Direct DriveEngine Shaft Direct Drive
    GEAR SELECTIONFive Speed ManualFive Speed Manual
    REAR AXLE RATIOHigh 14.2:1 / Low 45:1High 14.2:1 / Low 45:1

  • PERFORMANCE

     Truckster XD GasTruckster XD Diesel
    SEATING CAPACITY2-Person2-Person
    VEHICLE LOAD CAPACITY3,550 LBS3,550 LBS
    TOWING CAPACITY2,200 lbs, 3,500 w/ trailer brakes2,200 lbs, 3,500 w/ trailer brakes
    SPEED23 mph21 mph

  • STEERING & SUSPENSION

     Truckster XD GasTruckster XD Diesel
    STEERINGHydrostatic PowerHydrostatic Power
    SUSPENSIONSolid axle w/ leaf springs & shock absorbersSolid axle w/ leaf springs & shock absorbers
    SERVICE BRAKEHeavy-Duty Hydraulic Four Wheel Disk Brakes w/ 10.7 in. DiskHeavy-Duty Hydraulic Four Wheel Disk Brakes w/ 10.7 in. Disk
    PARKING BRAKEHand Lever Actuated Disk Brakes on Rear WheelsHand Lever Actuated Disk Brakes on Rear Wheels
    TIRESFront: 23 x 10.5 - 14 6-ply Ribbed (2WD) / 14 6-ply Treaded (4WD); Rear: 26 x 12 - 14 6-ply Ultra Chevron TreadFront: 23 x 10.5 - 14 6-ply Ribbed (2WD) / 14 6-ply Treaded (4WD); Rear: 26 x 12 - 14 6-ply Ultra Chevron Tread

Download

Truckster XD Brochure Truckster XD Owner Guide Brochure
