TBOS-BT Bluetooth, Battery-Operated Irrigation Controller

Commercial Control for Battery-Powered Systems

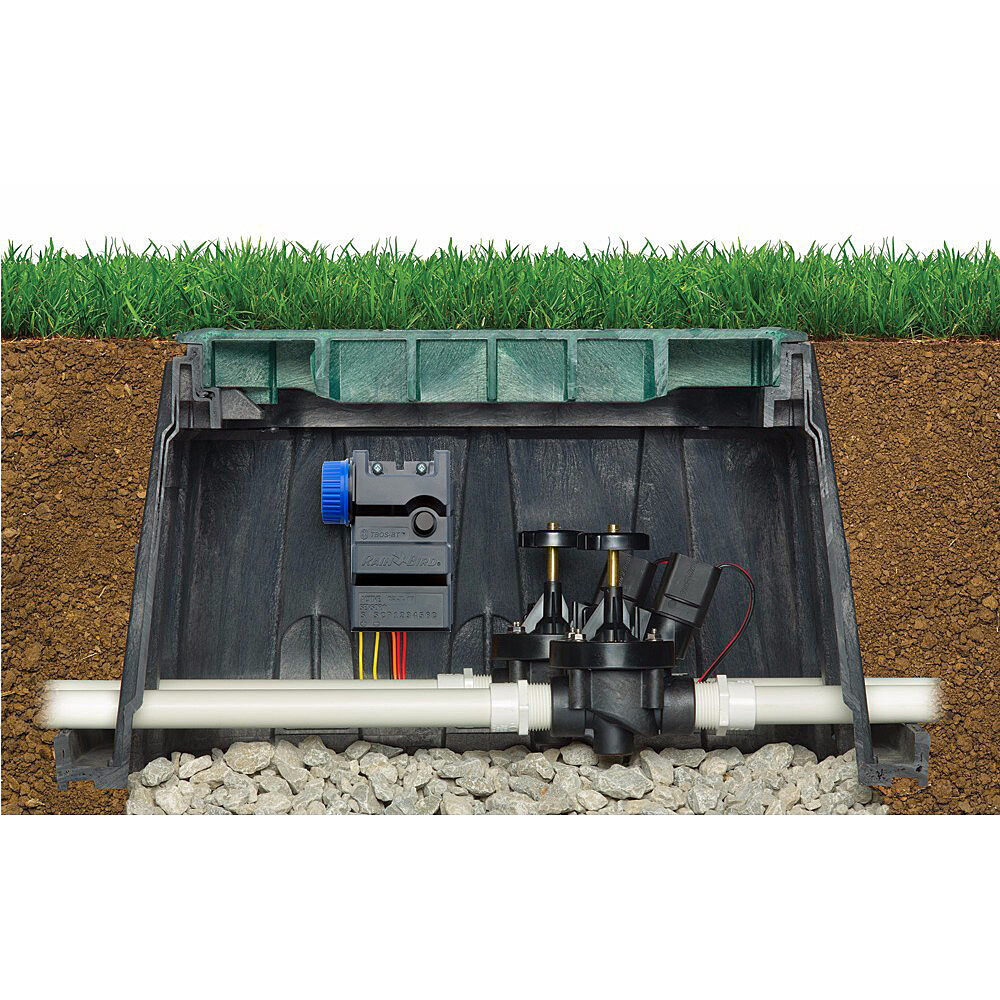

The TBOS-BT 9V Battery Controller provides commercial-level irrigation control that you can program with your smartphone via the free Rain Bird mobile app. Install the controller in street and highway medians, roundabouts, or anywhere you need irrigation control but do not have AC power.

The vandal-proof case makes it ideal for public or high foot traffic areas. With the Rain Bird app you can create flexible schedules that automatically adjust for the season and have multiple programs and start times.

Key Features

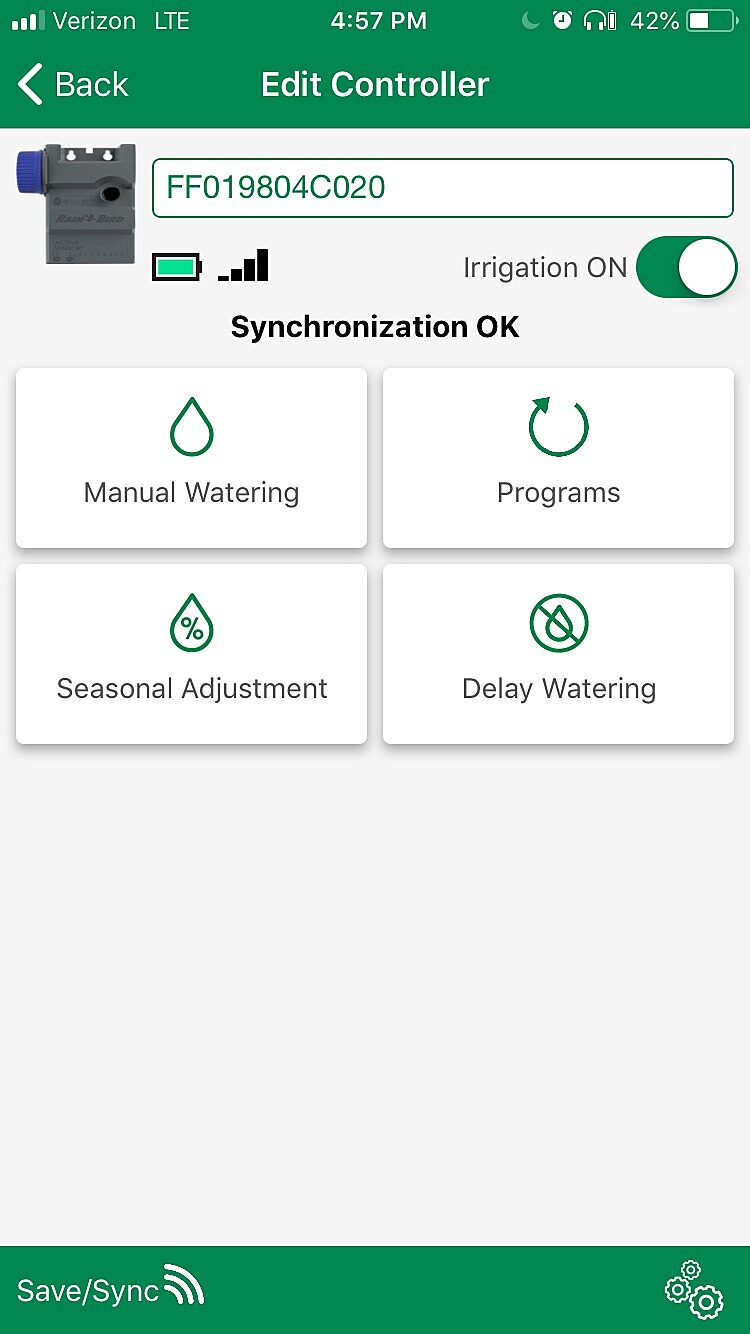

Rain Bird Mobile App Features for TBOS BT

  • Create, review and transmit irrigation programs
  • Capability to set zones or programs to manually irrigate
  • Basic programming includes 3 independent programs A,B and C, each with 8 start times per day
  • Stations can be assigned to several programs with different watering run times
  • Run time is from 1 minute to 12 hours in 1-minute increments
  • Five watering day cycle modes (Custom, even, odd, odd-31, cyclical) selectable by program for maximum flexibility and watering
  • Program and global Monthly Seasonal Adjust; 0% to 300% (1% increments)
  • Delay watering from 1 to 14 days
  • Built-in ID with naming capability. The control module and stations can be individually named
  • Optional passcode
  • Permanently turn the controller off to prevent irrigation
  • Battery indicator reports the status of the control module’s battery
  • Capability to clear the control module’s irrigation program

Controller Features

  • Operates for approximately one full year using one 9-volt alkaline battery
  • Completely potted to obtain IP68 conformity
  • Independent station operation allows sequential start times (with stacking in case of overlap) restriction compliance
  • Master valve output on TBOS BT1, 2, 4, & 6 Control Modules
  • No loss of irrigation program after a battery replacement

Valve Compatibility

  • Rain Bird TBOS Potted Latching Solenoid (K80920) – DV, DVF, ASVF, PGA, PEB, PESB, GB, EFB-CP, BPE and BPES series
  • Hunter 458200
  • Irritrol DCL
  • Toro DCLS-P

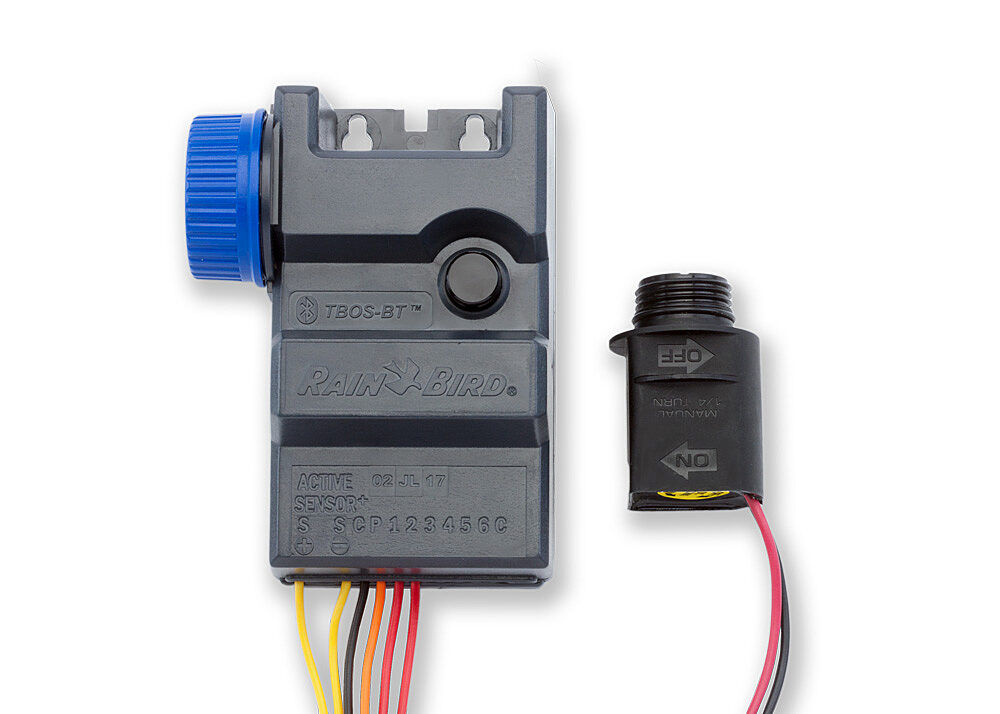

TBOS-BT System Components

Rain Bird Mobile App Features for TBOS BT

  • Available for Android and IOS devices

Specifications

  • Specs

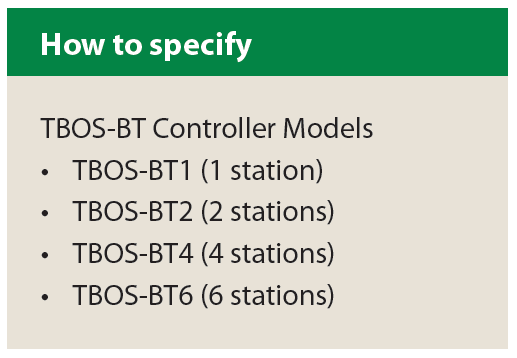

    Available in 4 models: 1, 2, 4 and 6 stations. Operates one valve per station
    Station timing: 1 minute to 12 hours in 1-minute increments with a 365-day calendar. Stations can be assigned to multiple programs
    Active sensor connection accommodates Rain Bird® RSD-BEx Rain Sensor
    Operates with only one 9V alkaline battery (Energizer™ and Duracell™ are recommended) type 6 AM6 (international standard) or 6LR61 (European standard); battery not included
    Battery life is approximately one year with a high-quality 9V alkaline battery
    IP-68 rated waterproof case for reliable operation under water
    Fits Rain Bird valves: DV, DVF, ASVF, PGA, PEB, PESB, GB, EFB-CP, BPE and BPES series. 150 psi (10 bar) maximum operating pressure
    Fits Non-Rain Bird valves: Hunter 458200, Irritrol DCL, Toro DCLS-P
    Maximum Wire run between the module and solenoid:
    18 AWG (0.75 mm2) 32 ft (10 m)
    16 AWG (1.5 mm2) 100 ft (30 m)
    Certifications
    cULus , FCC Part 15b , ISED RSS-247 Issue 2.0 , CE , IP68, ICASA [SOUTH OF AFRICA], CITC [SAUDI ARABIA], ACMA [AUSTRALIA], SUBTEL [CHILE], SRRC [CHINA], MIC [JAPAN], IFETEL [MEXICO], CRA [QATAR], TRA [UNITED ARAB EMIRATES]
  • Dimensions

    CONTROL MODULEWidth: 3.8" (9,5 cm), Height: 5.1" (13,0 cm), Depth: 2" (5,3 cm)
    LATCHING SOLENOIDWidth: 1.4" (4,0 cm), Height: 2.4" (6,0 cm), Depth: 1.5" (4,2 cm)
