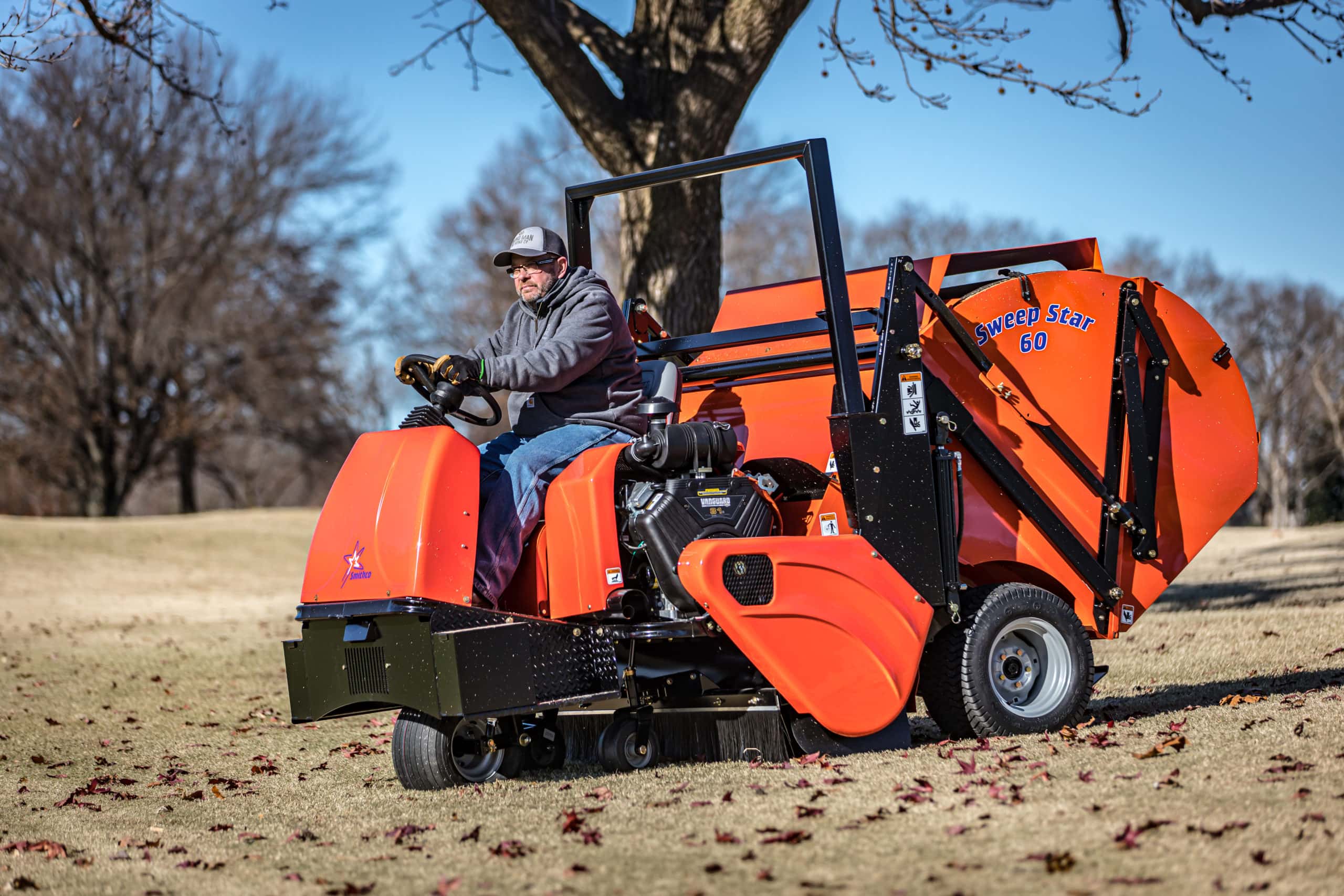

Sweep Star 60

Sweeper

Self propelled

Three-wheel, tri-cycle configuration with front steering, two rear drive wheels and rear mounted high lift debris hopper.

Gas or Diesel

Choice of 35 hp (23kW) twin-cylinder gasoline or 19 hp (15kW) three-cylinder diesel.

Highly Productive

60” sweeper head and hydraulic raise/lower easy to empty dump for quicl and easy clean up of any large turf area.

Extremely Maneuverable

Hydraulically driven, tricycle design makes it extremely maneuverable around trees, fences, building or any other obstacle.

Specifications

SWEEPSTAR 60 SWEEPER SPECIFICATIONS

Models	76-000DB Sweep Star 60 Brush Reel (gasoline) 76-000DF Sweep Star 60 Finger Reel (gasoline) 77-100CB Sweep Star 60 Brush Reel (diesel) 77-100CF Sweep Star 60 Finger Reel (diesel)
Power	Gas – 23 kW twin-cylinder, OHV, air-cooled gasoline engine with double action air intake filtration. (Engine mounted plus remote cyclonic filtration system). Diesel – 14 kW Kubota liquid-cooled three-cylinder diesel engine with remote mounted cyclonic filtration system
Configuration	Self-contained, three-wheel, tri-cycle configuration with front steering, two rear drive wheels and rear-mounted high lift debris hopper.
Debris Hopper	Capacity -2.2 cu m\| Construction – 14 gauge steel formed panels High capacity airflow openings at top and rear
Sweeper Head	Dump - Hydraulic raise / lower debris hopper to dump height to 1.9m above the ground to dump debris into refuse container. \| 153 cm wide; belt-driven single rotating reel; adjustable sweeping height; follows terrain on dual caster wheel; (triple caster wheels optional) Choice of Rubber finger sweep reel with 116 flexible fingers (Models 76-000DF gasoline; 77-100CF diesel) — or — Nylon bristle brush sweep reel (Models 76-000DB gasoline; 77-100CB diesel)
Drive	Hydrostatic variable speed pump. Direct coupling to engine. Drives to two rear-mounted Parker heavy duty/ high-efficiency hydraulic drive motors. Single hydraulic traction pedal for forward and reverse drive.
Speed	Infinitely variable \| Forward 0-16 kph \| Reverse 0-5 kph
Braking	Dynamic braking through the hydraulic drive system; manually operated disc type parking brake on rear wheels
Battery	Automotive Type 24F, 12-volt (battery not included with ocean or air shipment)
Construction	Hydraulically formed, electrically welded heavy wall steel tubing.
Tires & Wheels	Front: (1) 18-9.50 x 8 Multi-ribs \| Rear: (2)24-1300×12 Soft-trac \| Casters (2) 9 x 3.5 x 4
Steering	Manual chain drive with 9.3:1 reduction, 38cm diameter, soft-grip automotive type steering wheel.
Instrumentation	Hydraulic levers to lift/lower debris hopper, open/close debris hopper tailgate and raise/lower of sweeping mechanism head assembly. Hour meter and ammeter
Controls	Single hydraulic traction pedal for forward and reverse Hand-operated throttle control
Seat	High-back, single-piece construction. Adjustable operator position
Electrical	12-volt, electronic key start
Sound Level	MODEL 76-000 92 dbA \| MODEL 77-100 98 dbA
Dimensions	Length: 323 cm \| Width: 179 cm \| Height: 208 cm \| Wheel Base: 174 cm
Weight	998 kg.
Liquid Capacities	Gasoline: 22.7 L in high-density nylon low-perm tank \| Diesel Fuel: 19 L in high-density nylon low-perm tank \| No.1-D or No. 2-D, S500: Low Sulfur Diesel (LSD) less than 500 ppm or 0.05 wt.% No1-D or No.2-D, S15: Ultra Low Sulfur Diesel (ULSD) less than 15 ppm or 0.0015 wt.% Hydraulic fluid: 19 L in high-density polyethylene tank
Safety	Rollover protection (ROPS) with seat belt Auto-deploy stabilizer when lifting debris hopper. Fire proof fuel lines, hydraulic lines covered with abrasion and leak-resistant tubes. Fire extinguisher. Complies with all applicable ANSI, OSHA and European Machinery Directive Standards.
Options	77-328 60″ Nylon Brush Head , 4 rows of 5″ bristles \| 76-329 60″ Rubber Finger Reel, 116 Flexible Rubber Fingers \| 76-271 Dust & Dirt Filtration Kit
