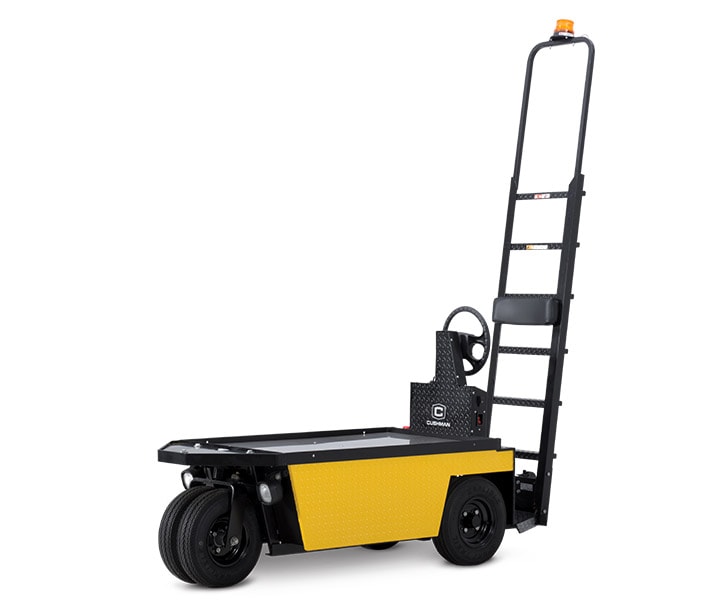

Stock Chaser™ Electric

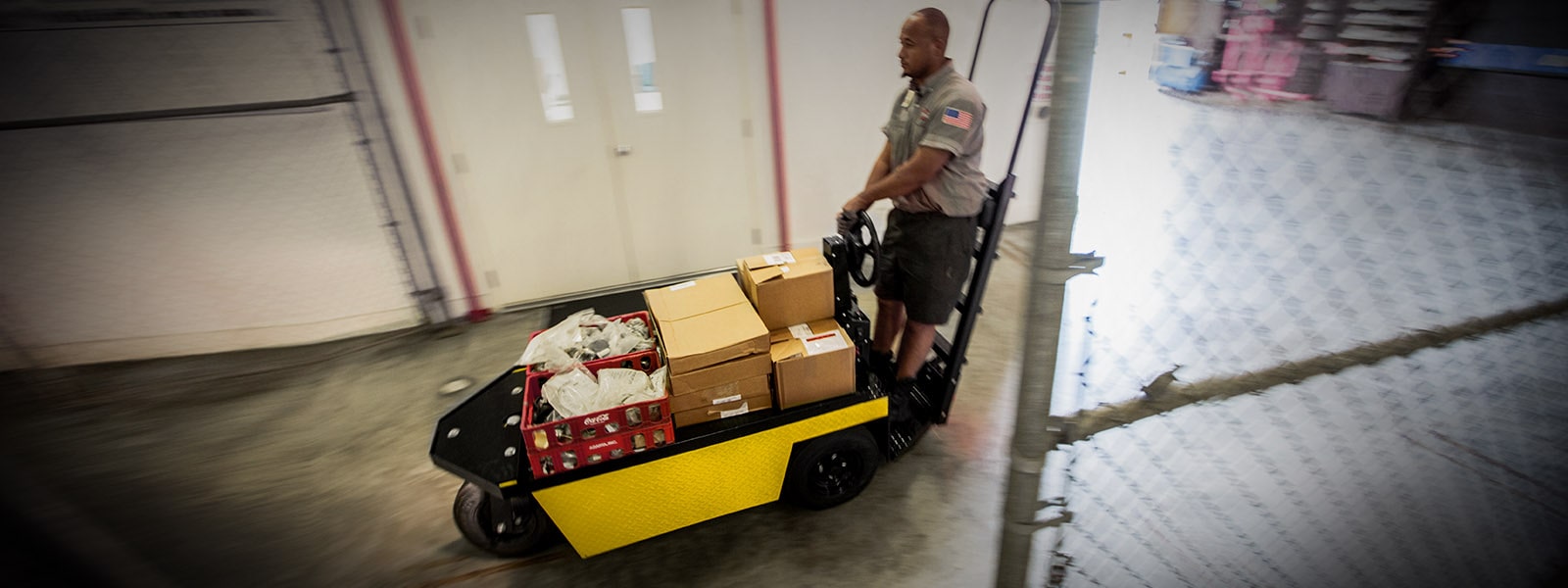

It’s time to end the runaround. With a vast cargo deck, retrieving and moving small loads is easier than ever.

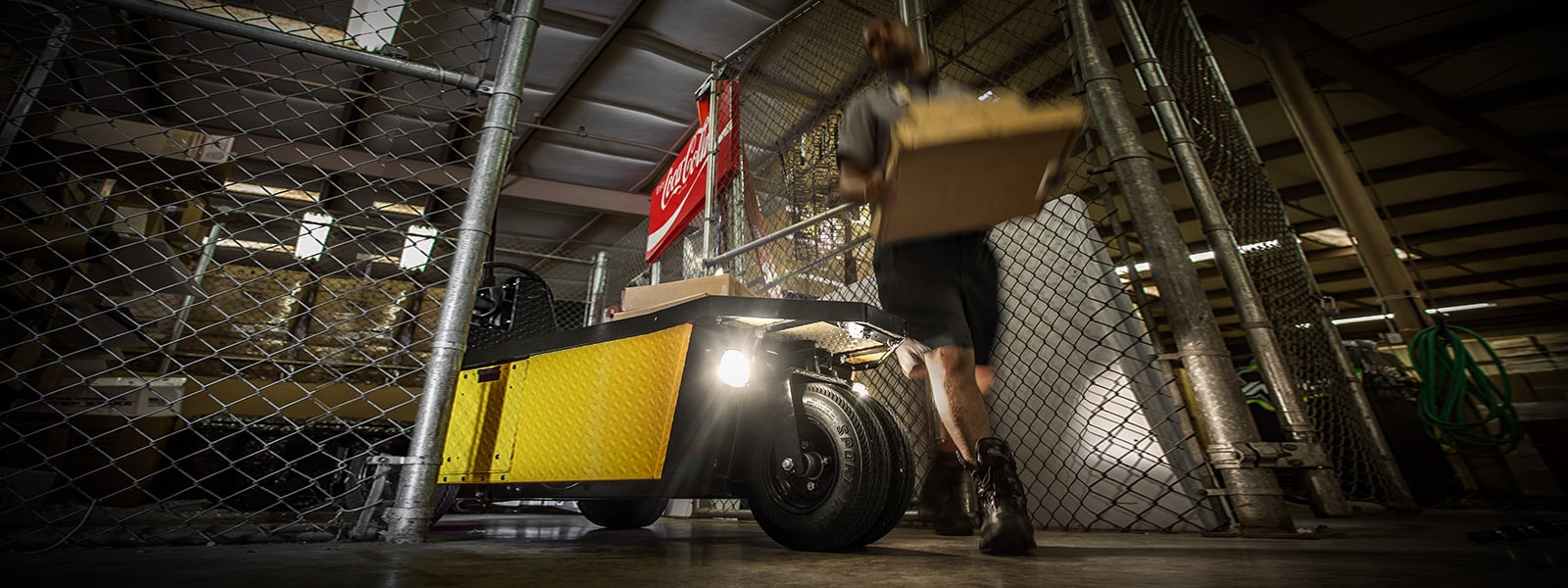

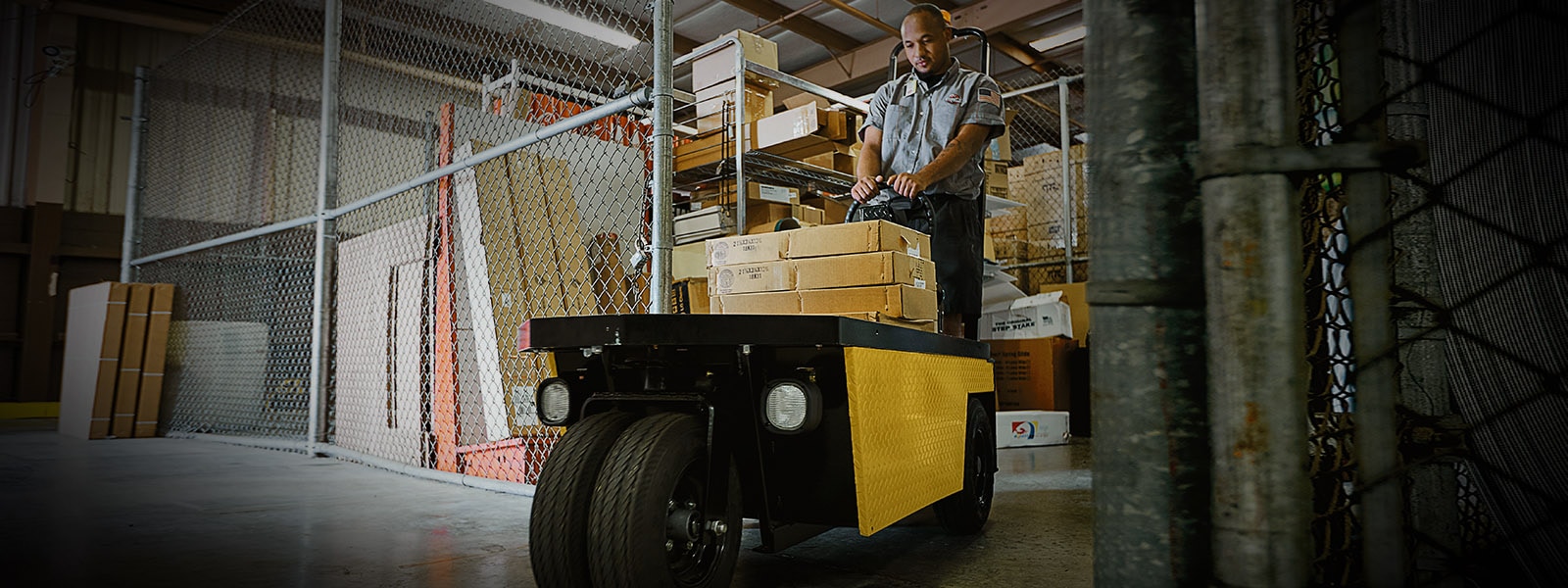

With the Stock Chaser, every nook and cranny of your facility is accessible fast. Navigate tight corners and narrow aisles with the agile design. Then climb the integrated ladder to retrieve items from up above. When other vehicles refuse to make the trek, the Stock Chaser burden carrier does not relent.
Powertrains:
- 24V Electric Drivetrain
- 1000-Ib Vehicle Capacity
- 9.6 sq-ft Cargo Deck
Key Features
24V Electric Drivetrain
Efficient yet robust power.
4- and 6-step ladder options
Choose the height you need for the job.
9.6-sq-ft cargo deck
Space for oversized loads.
Diamond-plated steel
Built to last.
Specifications
BODY & CHASSIS
FRAME Welded Steel w/ DuraShield™ Powder Coat BODY & FINISH Diamond Plate Poly Primer and Acrylic STANDARD COLOR Safety Yellow DIMENSIONS
OVERALL LENGTH 88.4 in (225 cm) OVERALL WIDTH 29.5 in (75 cm) OVERALL HEIGHT 48.0 in (122 cm) (w/o Ladder) 78.0 in (198 cm) (w/ 4-step Ladder) 97.0 in (246 cm) (w/ 6-step Ladder) WHEEL BASE 48.3 in (123 cm) WHEEL TRACK 24.75 in (63 cm) Rear GROUND CLEARANCE 4.0 in (10 cm) CARGO DECK CAPACITY 9.6-sq-ft CARGO DECK MATERIAL Plywood POWER

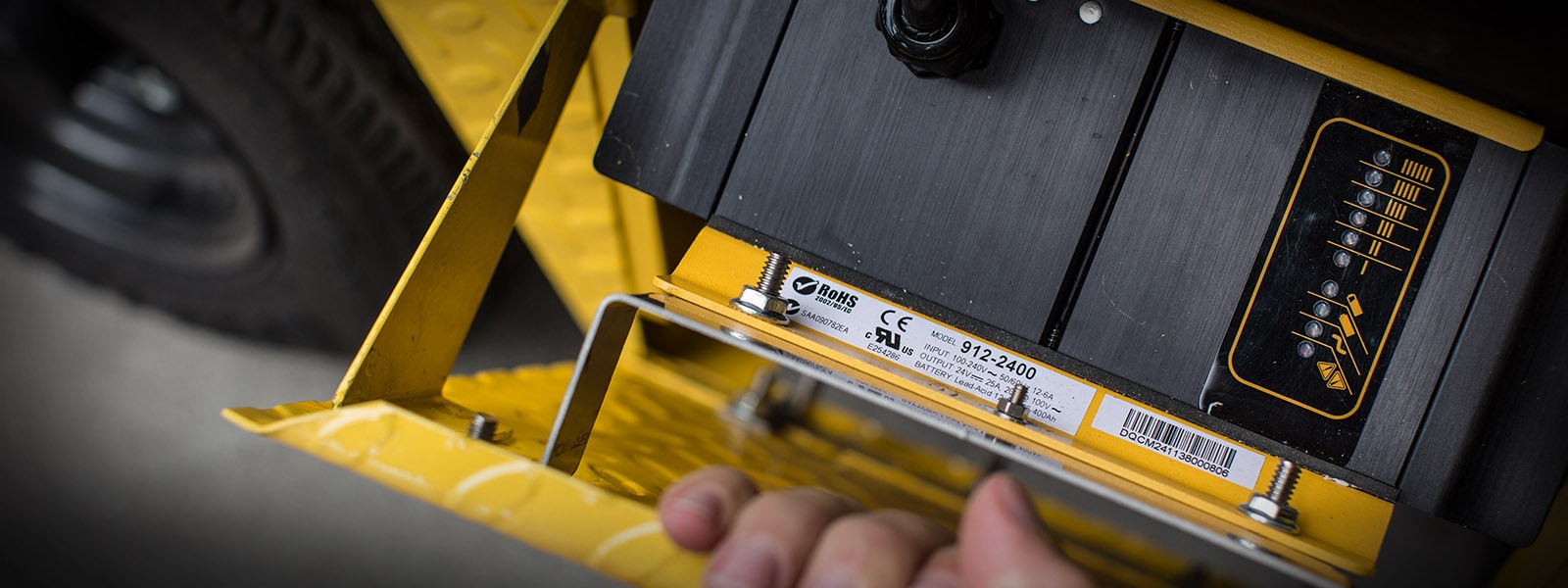

POWER SOURCE 24V DC Series Wound HORSEPOWER (KW) 8.94 hp (6.67 kW) @ 1490 rpm ELECTRICAL SYSTEM 24V BATTERY (QTY/TYPE) Four, 6V Deep Cycle BATTERY CHARGER 24V DC, 100-240V AC On-Board, UL & CE KEY OR PEDAL START Pedal SPEED CONTROLLER Solid State 275 Amp Rated DRIVE TRAIN Motor Shaft Direct Drive TRANSAXLE Differential w/ Helical Gears GEAR SELECTION Dash-Mounted Forward-Neutral-Reverse REAR AXLE RATIO 14.78:1 PERFORMANCE
SEATING CAPACITY 1-Person (Standing) WEIGHT W/O BATTERIES 522 lb (237 kg) CURB WEIGHT 810 lb (367 kg) VEHICLE LOAD CAPACITY 1000 lb (454 kg) BED LOAD CAPACITY 750 lb (340 kg) TOWING CAPACITY Normal Draw Bar: 60 lb (27.2 kg) Max Draw Bar Pull: 715 lb (324 kg) OUTSIDE CLEARANCE CIRCLE 12.4 ft (3.8 m) SPEED 8.5 mph max (13.7 kph max)STEERING & SUSPENSION
STEERING Direct Chain & Linkage SUSPENSION Solid (Front & Rear) SERVICE BRAKE Rear Wheel Mechanical Drum PARKING BRAKE Automatic TIRES 4.80 x 8 (Load Range B)
