- 4 Wheel, Hydraulic drive spray vehicle w/power steering
- 87 HP / 65 kW, Gasoline 4 cylinder, Direct Injection Kubota Liquid cooled engine.
- Smithco Operator Protection Structure with seat belts.
Spray Component
- 530-Gallon (1,970 L) Capacity “Perfect Solution” Ultra-Low-Profile fiber re-enforced polystyrene spray tank)
- Ultra High Volume & High Pressure 4 STAGE STAINLESS STEEL centrifugal spray pump.
- Maximum volume 160 GPM / 606 LPM. Maximum Pressure 160 PSI/11 bar. High Pressure for hand-gun or “walking boom” operation
- SMITHCO / TEEJET DYNA-JET Pulse Width Modulation Advanced Rate Control & Dual Nozzle system for expanded and precise control of spraying speed, pressure & droplet size.

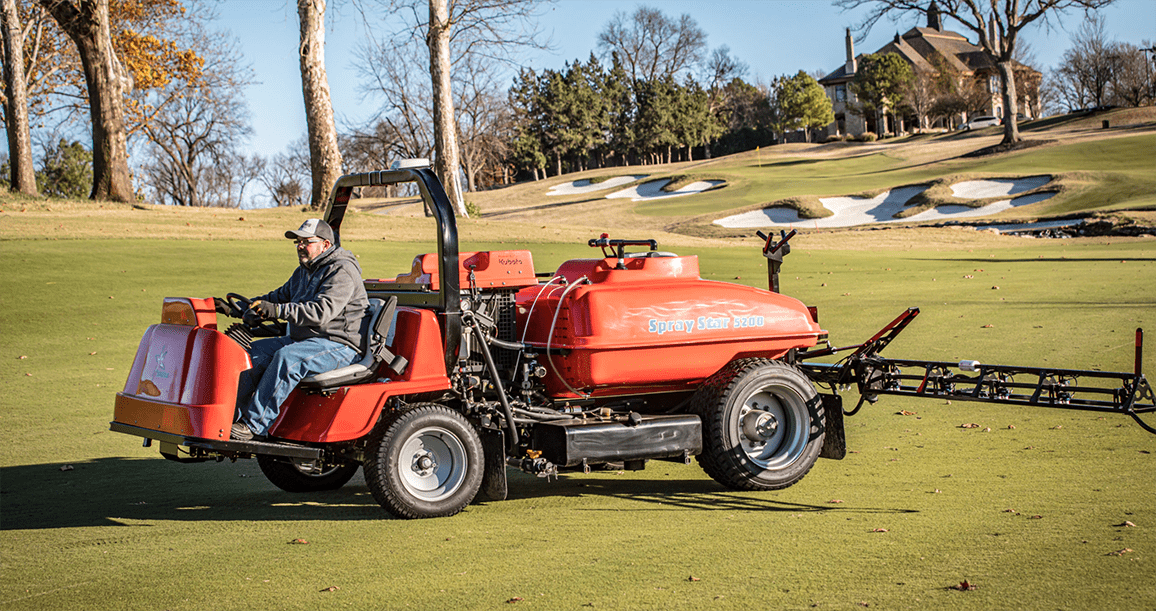

- SPRAY STAR 5200 WITH STAR COMMAND 1 SYSTEM AND 20 FOOT, 24 NOZZLE SPRAY BOOM
- SPRAY STAR 5200 WITH STAR COMMAND 1 SYSTEM WITH 24 FOOT 28 NOZZLE SPRAY BOOM
- Advanced Rate Control Field Computer
- (TeeJet Radion 8140 with Smithco TeeJet Dyna-Jet pulse Width Modulation System. Pressure and droplet size control. Wide range of ground speeds.
Star command 3.0 features
No one matches our 9 years of experience developing the most precise application available for spraying chemicals on turf. With our Partner, TeeJet® Technologies, the Star Command 3.0 System features all of TeeJet’s® previous benefits available on every Star Command sprayer, as well as these exclusive new features:
TURN COMPENSATION corrects flow to keep application rates on target through turns as tight as 20 feet. It lets you avoid straight- line applications on contoured area or rates varying as much as 50% from the inside to the outside of a boom. That doubles the application rate on the inside and cuts the outside rate in half.
TEN INCH NOZZLE SPACING to cut off-target applications in half. This spacing also allows for more efficacy because of increased overlap of the spray patterns.
VIRTUAL, ON-SCREEN NOZZLE CONTROL. TeeJet’s® new job computers operate up to 100 nozzle sections that can be controlled individually. This eliminates the need for extra cabling and job-stopping failure of mechanical switches.
THE DYNAJET SYSTEM is also incorporated into the Aeros 9040 controller, eliminating extra cabling and separate controller.
TERRASTAR-C PRO significantly reduces Convergence Time, to as little as 90 seconds or less.
Specifications
ENGINE
TYPE Kubota WG3800 Gas Engine DISPLACEMENT 3.769 L RATED HORSEPOWER 65 kW @ 3000 RPM AIR CLEANER Double Action air intake filtration COOLING Liquid Cooled LUBRICATION Full Pressurized OIL FILTER Full Flow, Spin on type ELECTRICAL SYSTEM 60 amp, with 12V 900 CCA battery, fuse protected FUEL CAPACITY 75.7 L TRACTION DRIVE
TRACTION SYSTEM Hydraulic power to two rear wheel drive planetary motors HYDRAULIC SYSTEM 37.8 L HYDRAULIC COOLING Full flow filter with oil TIRES, BRAKES AND STEERING
TIRES Front: 27-10.50×15 Turf, Rear: 33/16.00xLL500 Multi trac SERVICE BRAKES Dynamic braking through hydrostatic transmission PARKING BRAKE Auto spring pressure release park brake STEERING Hydraulic Power Steering with orbitrol motor, 15” steering wheel with tilt adjustment SPRAY TANK
CAPACITY 1968 L CONSTRUCTION Fiber reinforced polystyrene with UV inhibitors. 16” hinged lid with built in locking device and nylon strainer basket FILTRATION Downstream filtration 50 or 80 mesh strainer AGITATION Agitator with 4 venturi volume boosters PUMP Rocker switch operated. Stainless, high-volume, 4-stage, centrifugal with silicon carbide seals. 10-130 psi (0-8.96 bar) SPRAY PERFORMANCE
APPLICATION RATES 180 – 2050 L per acre PRODUCTION RATE 6.4 acres/hour @ 5.6 kph SOUND & SPEED
SOUND LEVEL (dBA) Ear – 86 dBA, 30m – 76 dBA TRANSPORTATION SPEED 0-16 kph WEIGHTS AND DIMENSIONS
WEIGHT Dry – 1884 kg, Loaded – 3851 kg LENGTH 4.42 m WIDTH 2.26 m HEIGHT 2.13 m WHEELBASE 1.73 m
