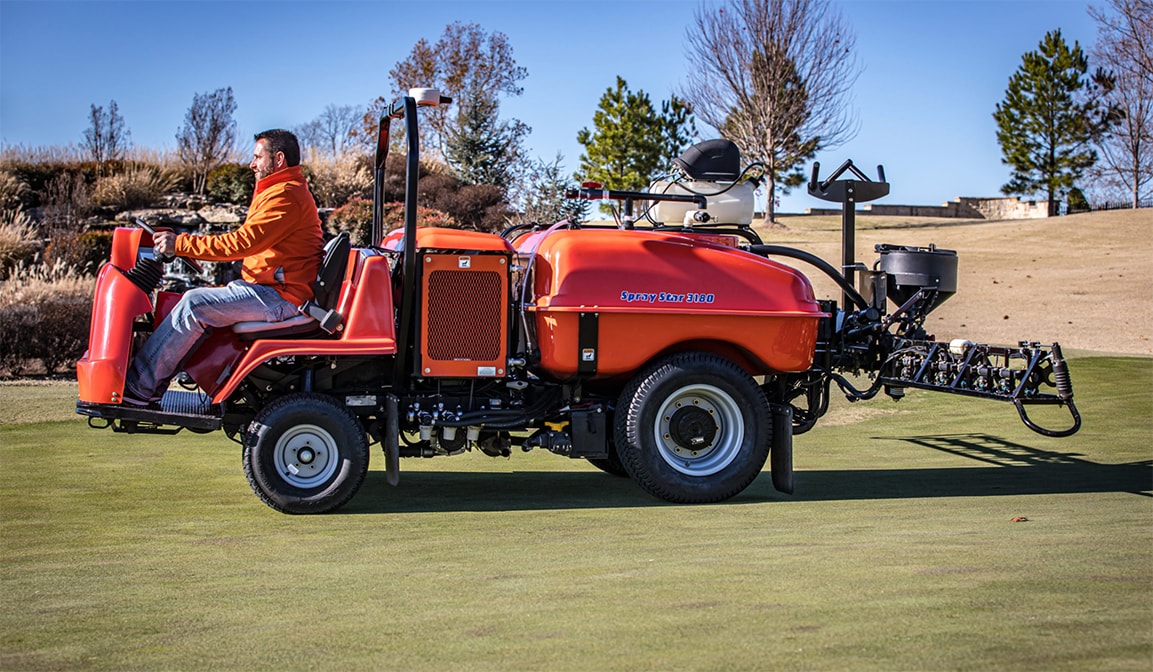

Spray Star 3180 Spray Vehicle
SMITHCO Pulse Width Modulation Advanced Rate Control/Nozzle system with choice of either:
- Automatic Field Computer Spray Control System (Star Command I)
- Automatic GPS Guided Field Spray Controller (Star Command II)
- Hydraulic drive spray vehicle with 318-Gallon (1,202 L) capacity “Perfect Solution” Ultra-Low-Profile fiber re-enforced polystyrene spray tank)
- Diesel -or- Gasoline 4 cylinder, Liquid-cooled, engine.
- Ultra high volume STAINLESS STEEL Centrifugal spray pump.
- Smithco Operator Protection Structure with seat belts.
- CE & British Sprayer Standards compliant (Optional at extra cost)
SPRAY STAR 3180 e/STAR COMMAND II SYSTEM & 18 Foot (6.6;m) Spray Boom
Advanced precision TeeJet Aeros GPS Satellite guided Field Computer. Terra Star Antenna for use with GS, WAAS & Glonass Satellites. Provides Sub-2 in (5cm) position control and permanently retained mapping. Smithco/TeeJet DynaJet Pulse Modulation. Pressure & droplet size control. Wide ground speed range. Purpose-built 18 ft (5.5 meter) Spray Boom. Dual Solenoid Valve System.
SPRAY STAR 3180 e/STAR COMMAND II SYSTEM & 20 Foot (6 m) Spray Boom
Same extreme application accuracy as Model 3185-B (Above) except 20 ft./6m Spray Boom. Same Annual Subscription Required for GS, GPS & Glonass Satellites.
SPRAY STAR 3180 w/STAR COMMAND I SYSTEM & 20 Foot (6m) Spray Boom
Advanced Rate Control Field Computer (TeeJet Radion 8140) with DynaJet Pulse Width Modulation System. Pressure and droplet size control. Wide range of ground speed. Purpose-built spray boom with dual nozzles and dual solenoid valves.
SPRAY STAR 3180 w/STAR COMMAND I SYSTEM & 18.5 Foot (5.5m) Spray Boom
Same extreme application ability as Model 3187-B (Above) except 20 ft./6m Spray Boom.
STAR COMMAND 3.0 FEATURES
No one matches our 9 years of experience developing the most precise application available for spraying chemicals on turf. With our Partner, TeeJet® Technologies, the Star Command 3.0 System features all of TeeJet’s® previous benefits available on every Star Command sprayer, as well as these exclusive new features:
corrects flow to keep application rates on target through turns as tight as 20 feet. It lets you avoid straight-line applications on contoured area or rates varying as much as 50% from the inside to the outside of a boom. That doubles the application rate on the inside and cuts the outside rate in half.
to cut off-target applications in half. This spacing also allows for more efficacy because of increased overlap of the spray patterns.
TeeJet’s® new job computers operate up to 100 nozzle sections that can be controlled individually. This eliminates the need for extra cabling and job-stopping failure of mechanical switches.
is also incorporated into the Aeros 9040 controller, eliminating extra cabling and separate controller.
significantly reduces Convergence Time, to as little as 90 seconds or less.
Specifications
ENGINE
TYPE Kubota WG1605 Gas Engine DISPLACEMENT 1.537 L RATED HORSEPOWER 42.5 kW @3600 RPM AIR CLEANER Double Action air intake filtration COOLING Liquid cooled LUBRICATION Full Pressurized OIL FILTER Full Flow, Spin on type ELECTRICAL SYSTEM 40 amp, with 12V 900 CCA battery, fuse protected FUEL CAPACITY 75.7 L Unleaded TRACTION DRIVE
TRACTION SYSTEM Hydraulic power to two rear-wheel drive planetary motors HYDRAULIC SYSTEM 37.8 L HYDRAULIC COOLING Full flow filter with oil TIRES, BRAKES AND STEERING
TIRES Front: 22-11.00×10 Turf Rear: 29-14.00×15 Multi trac SERVICE BRAKES Dynamic braking through hydrostatic transmission PARKING BRAKE Auto spring pressure release park brake STEERING Hydraulic Power Steering with orbitrol motor. 31.8 cm steering wheel with tilt adjustment SPRAY TANK
CAPACITY 1202 L CONSTRUCTION Fiber reinforced polystyrene with UV inhibitors. 16” hinged lid with built in locking device and nylon strainer basket FILTRATION Downstream filtration 50 or 80 mesh strainer AGITATION Agitator with 4 venturi volume boosters PUMP Rocker switch operated. Stainless high-volume centrifugal with silicon carbide seals.36-225 lpm. 10-85 psi (0-5.9 bar). SPRAY PERFORMANCE
APPLICATION RATES 180 – 2050 L per acre 1.89 -18.93 L per 1000 sq.ft. (0.02 acres) PRODUCTION RATE 6.4 acres/hour @ 5.6 kph SOUND & SPEED
Sound Level (dBA) Ear – 86 dBA 30m – 76 dBA Transportation Speed 0-16 kph WEIGHTS AND DIMENSIONS
WEIGHT Dry – 1061 kg Loaded – 4950 lbs 2245 kg LENGTH 3.4m WIDTH 1.75m HEIGHT 2.11m WHEELBASE 1.73m PRODUCT CONFIGURATION
Leaf spring front suspension Passenger seat “Spray Boss“ mechanical ground speed system & cruise control Choice of electric or computer spray control system Certified ROPs with seat belts SPRAY SYSTEMS
18.5’ or 20’ Super Boom 3182 TeeJet® Radion 8140 w/ GPS speed sensor 3184 Electric Spray Control System 3185 Star Command II Teejet® Aeros GPS Satellite System with 18.5’ boom 3186 Star Command II Teejet® Aeros GPS Satellite System with 20’ boom 3187 Star Command I TeeJet® Radion 8140 and DynaJet System with 20’ boom 3188 Star Command I TeeJet® Radion 8140 and DynaJet System with 18.5’ boom ACCESSORIES
Water Fill Meter Kit – gallons or liters Foam Marker – electric operation, manual control Manual hose Reel – 200’ Electric Hose Reel – 200’ 26 Gallon Wash Tank System Fresh Water Wash Tank Foam Marker Chemical Cleanload Safe fill System Tank Rinse System All Weather Hard Top Canopy Sun Shade Canopy Spray Star 3180 Cab (dealer installed) 3/4” or 5/8” Pressure Hose Kits in 50’, 100’ or 200’ lengths Pistol Grip JD9 Spray Gun Sonar Boom Kit – automatic boom height adjustment system Rogers Cover Spray Boom Drift Reduction Boom Shield
