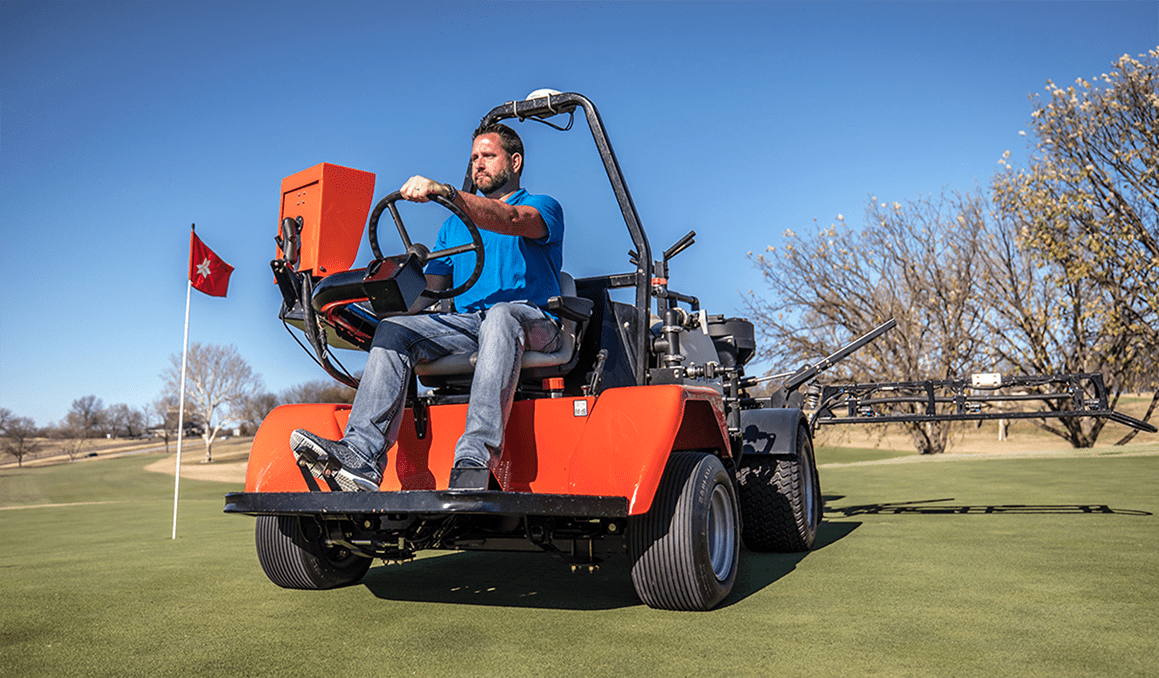

Spray Star 1110 Spray Vehicle

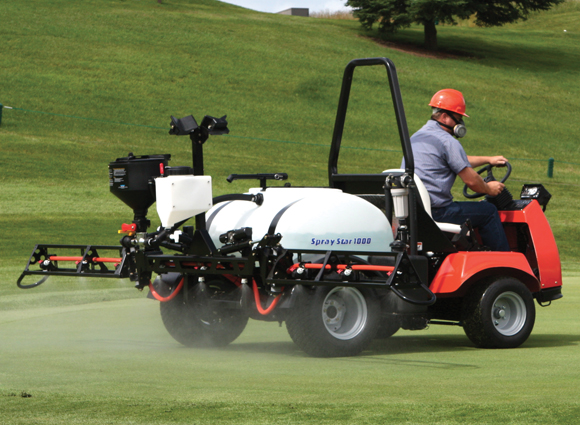

SPRAY STAR 1000 WITH STAR COMMAND I SYSTEM & 15 FOOT (4.5M) SPRAY BOOM
- Advanced Rate Control Field Computer (TeeJet Radion 8140) with DynaJet Pulse Width Modulation System. Pressure and droplet size control. Wide range of ground speed. Purpose-built spray boom with dual nozzles and dual solenoid valves.
SPRAY STAR 1000 WITH STAR COMMAND I SYSTEM & 18.5 FOOT (5.5M) SPRAY BOOM
- Same extreme application ability as Model 1011A (Above) except 18.5 Foot/5.5m Spray Boom.
SPRAY STAR 1000 WITH STAR COMMAND II SYSTEM & 15 FOOT (4.5M) SPRAY BOOM
- Advanced precision TeeJet Aeros GPS Satellite guided Field Computer. Terra Star Antenna for use with GS, WAAS & Glonass Satellite. Provides Sub-2 in (5cm) position control and permanently retained mapping. Smithco/TeeJet DynaJet Pulse Width Modulation. Pressure & droplet size control. Wide ground speed range. Purpose built 5 ft (4.5meter) Spray Boom. Dual Nozzle-Dual Solenoid Valve System.
SPRAY STAR 1000 WITH STAR COMMAND II SYSTEM & 18.5 FOOT (5.5M) SPRAY BOOM
- Same extreme application accuracy as Model 1015(Above) except 18.5 ft/5.5mm Spray Boom. Same Annual Subscription Requited for GS, GPS & Glonass Satellites. CE & British Sprayer Standards compliance (Optional at extra cost).
Star command 3.0 features
No one matches our 9 years of experience developing the most precise application available for spraying chemicals on turf. With our Partner, TeeJet® Technologies, the Star Command 3.0 System features all of TeeJet’s® previous benefits available on every Star Command sprayer, as well as these exclusive new features:
TURN COMPENSATION corrects flow to keep application rates on target through turns as tight as 20 feet. It lets you avoid straight- line applications on contoured area or rates varying as much as 50% from the inside to the outside of a boom. That doubles the application rate on the inside and cuts the outside rate in half.
TEN INCH NOZZLE SPACING to cut off-target applications in half. This spacing also allows for more efficacy because of increased overlap of the spray patterns.
VIRTUAL, ON-SCREEN NOZZLE CONTROL. TeeJet’s® new job computers operate up to 100 nozzle sections that can be controlled individually. This eliminates the need for extra cabling and job-stopping failure of mechanical switches.
THE DYNAJET SYSTEM is also incorporated into the Aeros 9040 controller, eliminating extra cabling and separate controller.
TERRASTAR-C PRO significantly reduces Convergence Time, to as little as 90 seconds or less.
Specifications
ENGINE
TYPE Vanguard V-twin Air Cooled DISPLACEMENT 627 cc RATED HORSEPOWER 17 kw AIR CLEANER Double Action air intake filtration Engine mounted cyclonic filtration system COOLING Air Cooled LUBRICATION Full Pressurized OIL FILTER Full Flow, Spin on type ELECTRICAL SYSTEM 24 amp, with 12V 900 CCA battery, fuse protected FUEL CAPACITY 22.7 L TRACTION DRIVE
TRACTION SYSTEM Hydraulic power to two rear wheel drive HYDRAULIC SYSTEM 19 L HYDRAULIC COOLING Full flow filter with oil TIRES, BRAKES AND STEERING
TIRES Front: 22-10.00×10 Turf, Rear: 24-13.00×12 Multi trac SERVICE BRAKES Dynamic braking through hydrostatic transmission PARKING BRAKE Auto spring pressure release park brake Manual engagement to both rear wheels STEERING Hydraulic Power Steering with orbitrol motor, 15” steering wheel with tilt adjustment SPEED
Forward 0-12.8 kph Reverse 0-4.8 kph SPRAY TANK
CAPACITY 416 L CONSTRUCTION Eliptical polyethylene with UV inhibitors. 16” hinged lid with built in locking device and nylon strainer basket FILTRATION Downstream filtration 50 or 80 mesh strainer AGITATION Agitator with 4 venturi volume boosters PUMP Rocker switch operated. 10-70 gpm (36-225 lpm). 10-60 psi (0-7.4 bar). Stainless high volume centrifugal with silicon carbide seals. SPRAY PERFORMANCE
APPLICATION RATES 180-2050 L per acre 0.5-5 gallons per 1000 sq.ft. PRODUCTION RATE 6.4 acres/hour @ 5.6 kph WEIGHTS AND DIMENSIONS
WEIGHT Dry 675 kg | Loaded – 1025 kg LENGTH 1.78 m WIDTH 70" HEIGHT 1.96 m WHEELBASE 1.35 m PRODUCT CONFIGURATION
Leaf spring front suspension Headlights “Spray Boss“ mechanical ground speed system & cruise control Choice of electric or computer spray control system Certified ROPs with seat belts SPRAY SYSTEMS
15’ or 18.5’ Super Boom 15’ Super Boom with 9-nozzle, 20”(50cm) spacing or 17-nozzle, 10”(25cm) spacing 1008 TeeJet® Radion 8140 w/ GPS speed sensor 1002 Electric Spray Control System 1010 Manual Spray Control System 1011 Star Command I TeeJet® Radion 8140 and Dynajet System with 15’ boom 1012 Star Command I TeeJet® Radion 8140 and Dynajet System with 18.5’ boom ACCESSORIES
Water Fill Meter Kit – gallons or liters Foam Marker – electric operation, manual control Manual hose Reel – 200’ Electric Hose Reel – 200’ 26 Gallon Wash Tank System Fresh Water Wash Tank Foam Marker Chemical Cleanload Safe fill System Tank Rinse System 3/4” or 5/8” Pressure Hose Kits in 50’, 100’ or 200’ lengths Pistol Grip JD9 Spray Gun Drift Reduction Boom Shield
