Jacobsen

SLF530

Super lightweight ride-on reel mower / Our lightest, power reel mower

SLF530 Product Picture_1

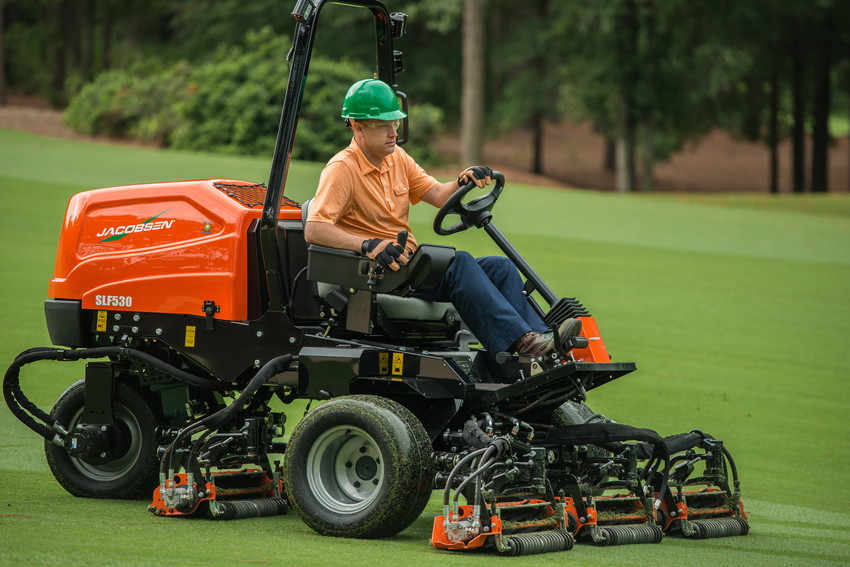

SLF530 Product Picture_2

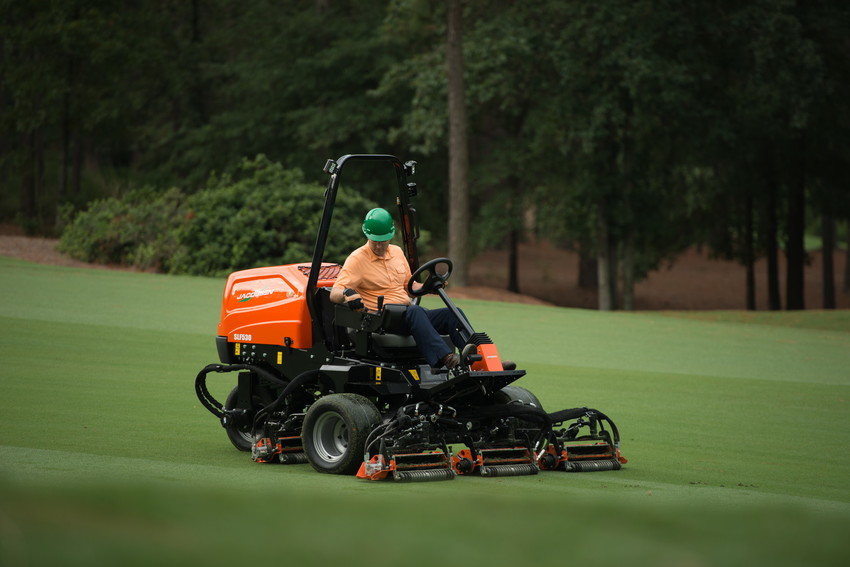

SLF530 Product Picture_3

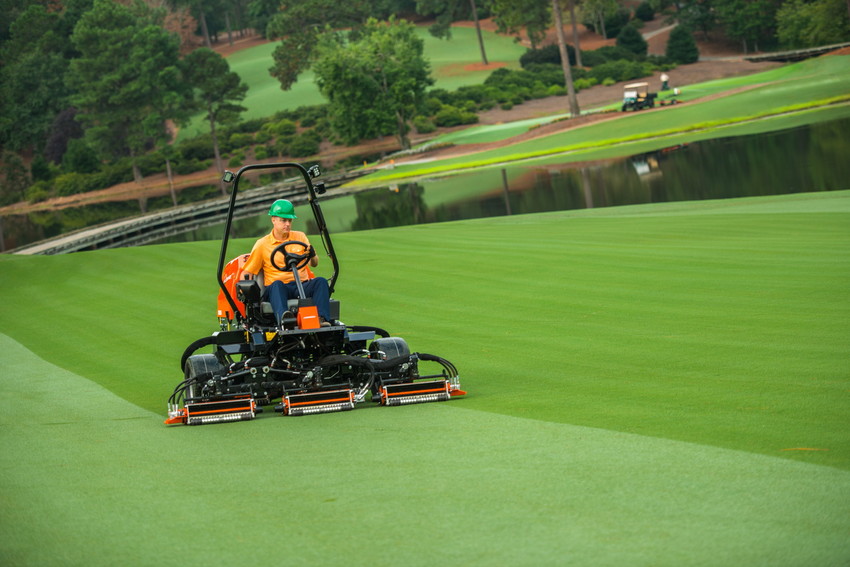

SLF530 Product Picture_4
OverviewKey FeaturesSpecificationsDownload

When presentation is everything in all conditions, you need the super lightweight SLF530. Wide enough to be productive of fairways, light and precise enough to be used on greens. This reel mower is designed for operator comfort and provides unmatched contour following and maneuverability.

Key Features

Jake’s Signature cut

SLF530 Feature 1
SLF530 - Feature 2

LESS THAN 10 PSI GROUND PRESSURE

Specifications

  • Key Attributes

    MOWER CUTTING WIDTH82" (2.08 mm)
    MOWER HEIGHT OF CUT0.30" - 0.70" (7.62 - 177.78 mm), Available high-cut kit raises cutting height to 0.937" (23.8 mm) using low profile, heavy bedknife
    CUTTING REELS5 x 5" (12.7 cm) diameter x 18" (45.7 cm)
    MOWER ENGINEKubota 24.8 HP (18.5kW) diesel
    CUTTING CAPACITY6.5 acres ( 2.63 hectares) per hr. (no overlaps or stops)
    FUEL/BATTERY CAPACITY (+RUN TIME)6.4 gal. (29 L)
    TRANSPORT SPEED8.7 mph (14 km/h)
    MOWER WARRANTY2 Years
    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.

  • Reels and Blades

    NUMBER AND SIZE8 or 11 Blade Fairway reel (greens reel cylinders can be installed for custom applications)
    BLADE MATERIALHardened, high manganese carbon steel
    CUTTING UNIT LIFTHand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels.
    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.


  • Traction, Brakes and Speed

    TRACTION DRIVE3WD: Parallel series 3-wheel drive, 2-wheel drive in reverse. 4WD: Pure Parallel 4-wheel system with selectable 2 or 4-wheel drive and automatic 2-wheel drive in reverse.
    REEL DRIVEFixed displacement hydraulic motors
    HYDRAULIC SYSTEM10 micron remote charge filtration, suction screen at tank, oil cooler, side by side radiator.
    SERVICE BRAKESHydrostatic braking
    PARKING BRAKESWet parking brakes integrated into wheel motors.
    STEERINGHydrostatic powered equal displacement cylinder to rear wheels
    MOWING SPEED6.2 mph (10 km/h)
    REVERSE SPEED3.7 mph (6 km/h)
    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.

  • Weight and Dimensions

    WEIGHT3WD: 1956 lb. (887.2 kg), 4WD: 931.2 kg (2053 lb.), Less than 10 PSI ground pressure
    LENGTH (LESS CATCHERS)102" (2.59 m)
    OVERALL HEIGHT INCLUDING ROPS83.2" (2.11 m)
    WHEEL BASE4wd - 62" (157 cm), 3wd - 61.3" (156 cm)
    TRANSPORT WIDTH96.7" (2.46 m)
    WORKING WIDTH82" (2.08 m)
    Engine horsepower may vary due to conditions of specific use. Product available in selected countries.
