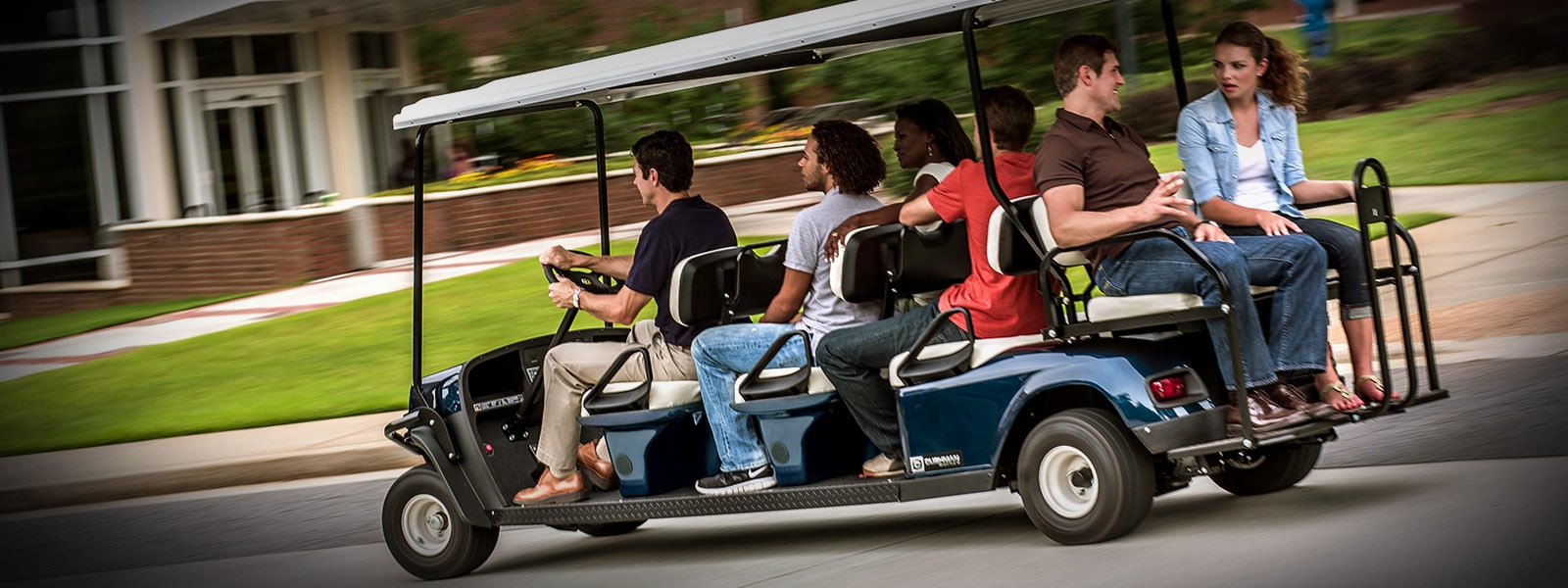

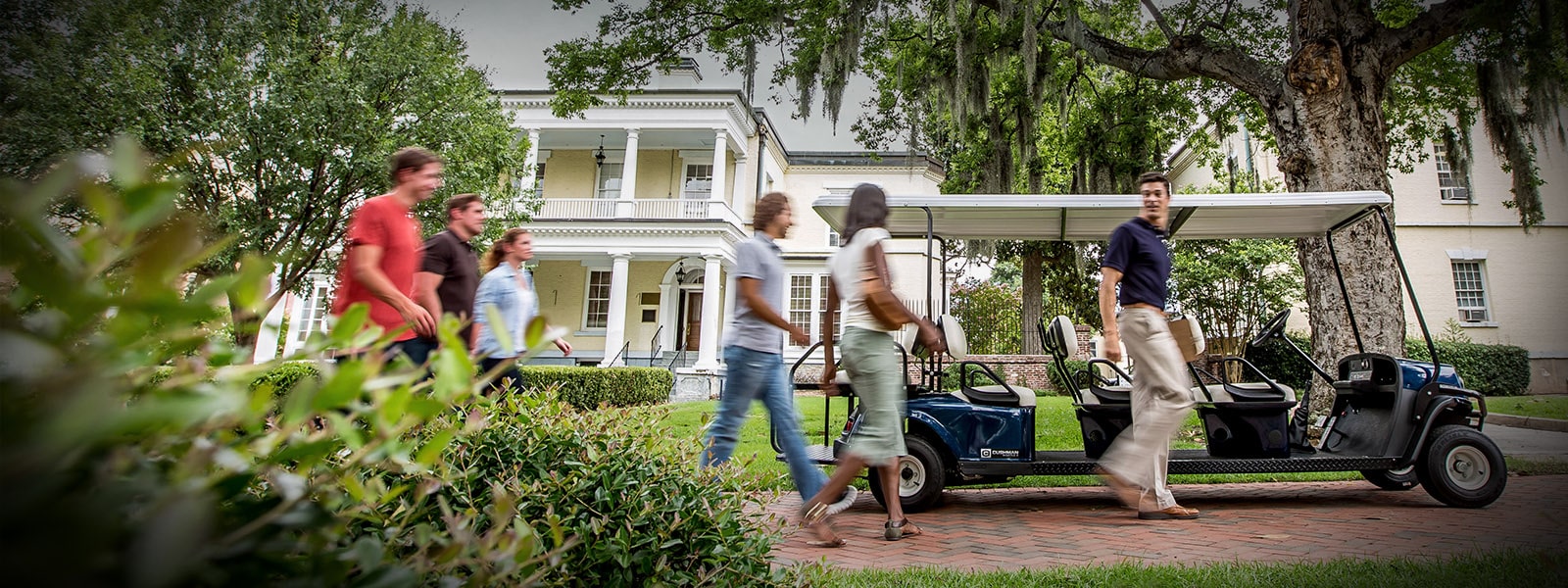

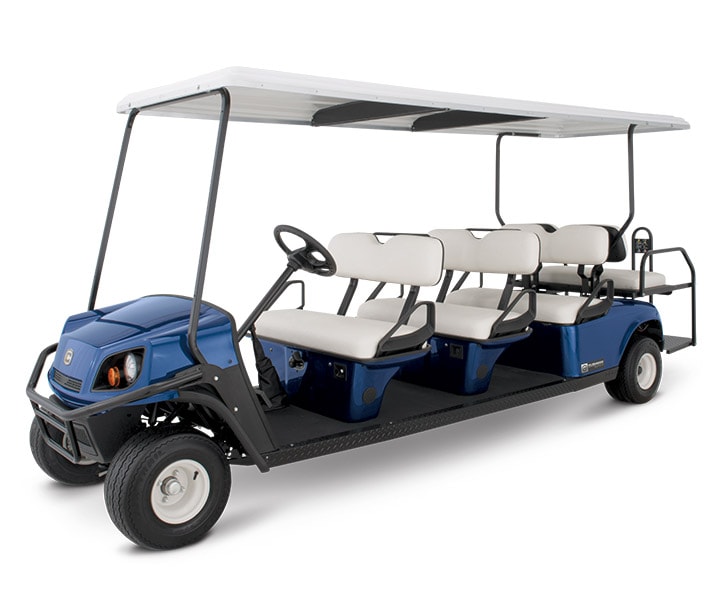

SHUTTLE™ 8
Seating for eight provides efficient and productive transportation no matter where you’re going.
Designed for safety and comfort, the Shuttle™ 8 personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.
POWERTRAINS
SHUTTLE 8 EFI GAS | SHUTTLE 8 ELECTRIC |
| – 13.5-hp EFI Gas Engine | – 72V Electric Drivetrain |
| – 1,600-lb Vehicle Load Capacity | – 1,600-lb Vehicle Load Capacity |
| – 8-Passenger Seating | – 8-Passenger Seating |
Key Features
Gas and electric options
For dependable power, the choice is yours.

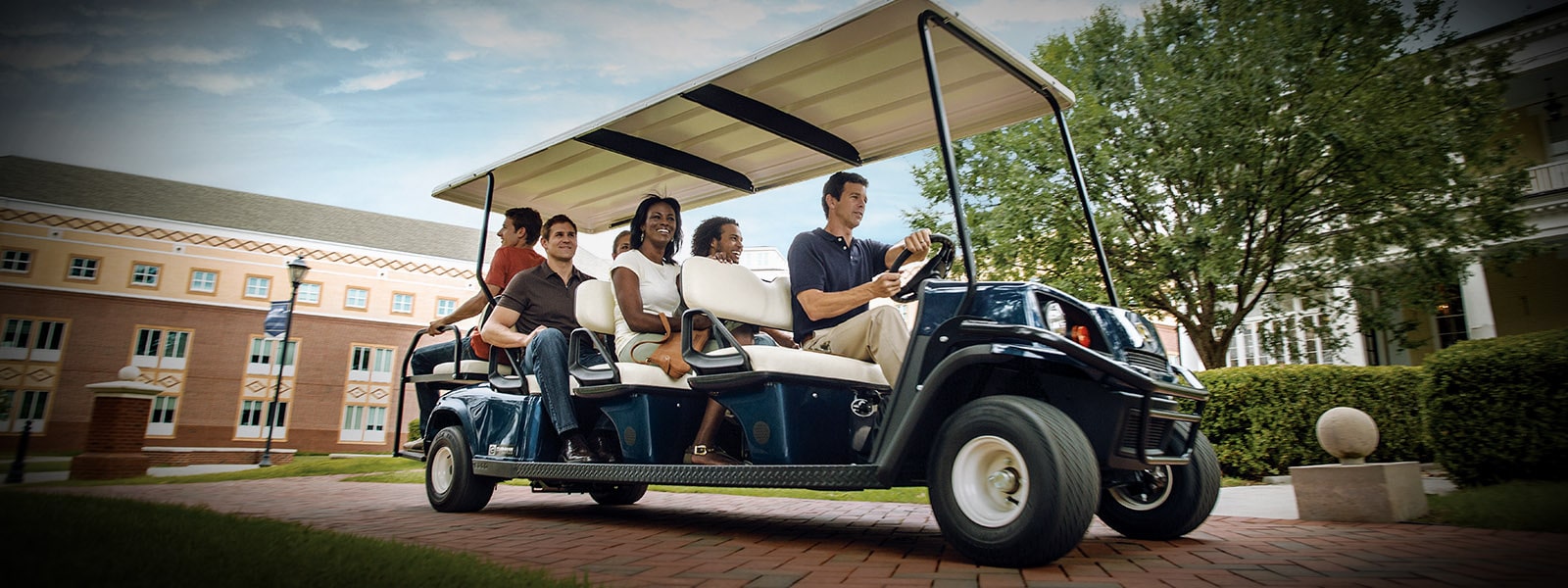

comfortable bench seating
Ergonomically designed for comfort.

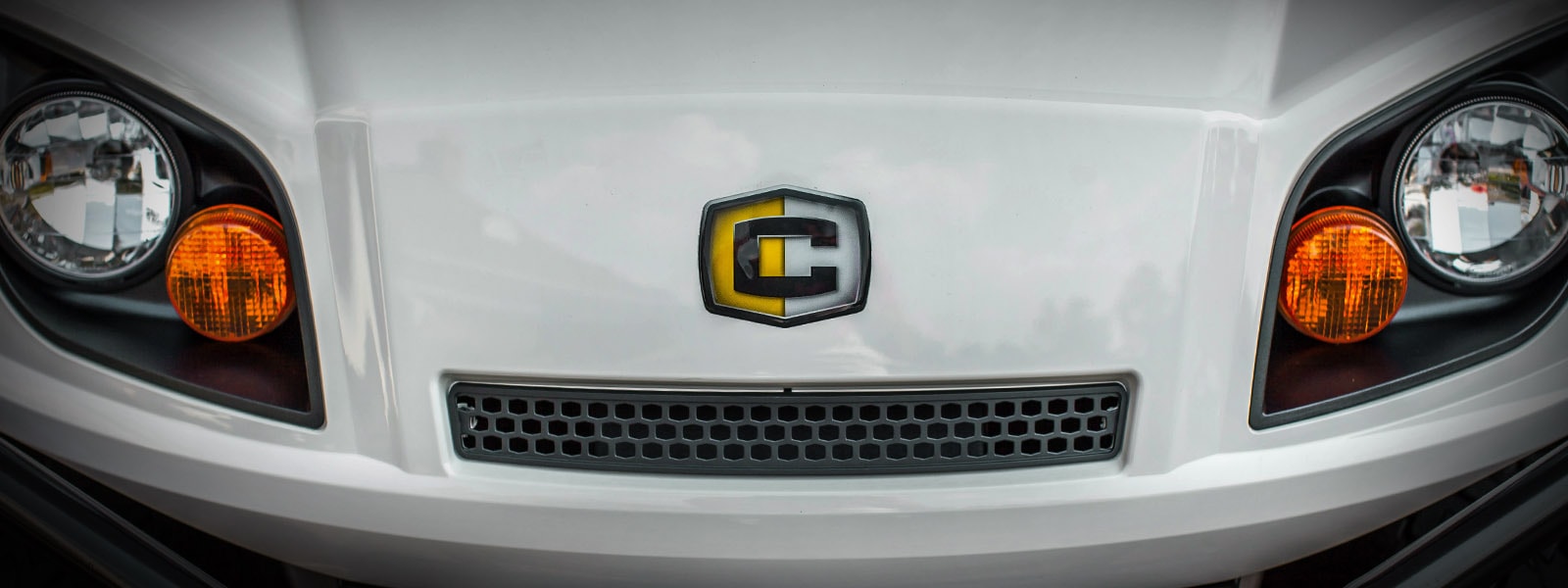

Headlights
Work early mornings and late nights.
Optional weather accessories
Protect passengers with a canopy and windshield..
Specifications
BODY & CHASSIS
Shuttle 8 EFI Gas Shuttle 8 Electric FRAME Welded Steel w/ DuraShield™ Powder Coat Welded Steel w/ DuraShield™ Powder Coat BODY & FINISH Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) Injection Molded TPO STANDARD COLOR Patriot Blue Ivory DIMENSIONS
Shuttle 8 EFI Gas Shuttle 8 Electric OVERALL LENGTH 167.5 in (425 cm) 167.5 in (425 cm) OVERALL WIDTH 49.5 in (126 cm) 49.5 in (126 cm) OVERALL HEIGHT 45.5 in (116 cm) (w/o Roof) 76.0 in (193 cm) (w/ Struts & Roof) 45.5 in (116 cm) (w/o Roof) 76.0 in (193 cm) (w/ Struts & Roof) WHEEL BASE 123.4 in (313 cm) 123.4 in (313 cm) WHEEL TRACK 36.0 in (91 cm) Front 38.0 in (97 cm) Rear 36.0 in (91 cm) Front 38.0 in (97 cm) Rear GROUND CLEARANCE 4.3 in (11 cm) 4.3 in (11 cm) CARGO DECK CAPACITY 400 lb (181 kg) 400 lb (181 kg) POWER
Shuttle 8 EFI Gas Shuttle 8 Electric POWER SOURCE 4-Cycle, 24.5 ci (401cc) 72V AC VALVE TRAIN Single Cylinder OHV - HORSEPOWER (KW) 13.5 hp (10.1 kW) 22.4 hp (16.7 kW) ELECTRICAL SYSTEM - 72V BATTERY (QTY/TYPE) Starter/Generator. Solid State Regulator Six, 12V Deep Cycle BATTERY CHARGER One, 12V Maintenance Free 1000 Watt, 72V, 120/230V VAC UL Listed KEY OR PEDAL START Pedal Pedal AIR CLEANER Replaceable Dry Cartridge - LUBRICATION Pressurized Oil System - OIL FILTER Spin-On - COOLING SYSTEM Air Cooled - FUEL CAPACITY 5.8 Gallon (22.0 L) Tank - SPEED CONTROLLER - 350 Amp AC DRIVE TRAIN Continuously Variable Transmission (CVT) Motor Shaft Direct Drive TRANSAXLE Differential w/ Helical Gears Differential w/ Helical Gears GEAR SELECTION Forward - Reverse Dash-Mounted Forward-Neutral-Reverse REAR AXLE RATIO 11.47:1 (Forward) 14.35:1 (Reverse) 17:1 PERFORMANCE
Shuttle 8 EFI Gas Shuttle 8 Electric SEATING CAPACITY 8-Person 8-Person WEIGHT W/O BATTERIES - 1203 lb (546 kg) CURB WEIGHT 1265 lb (574 kg) 1695 lb (769 kg) VEHICLE LOAD CAPACITY 1600 lb (727 kg) 1600 lb (726 kg) BED LOAD CAPACITY 400 lb (181 kg) 400 lb (181 kg) OUTSIDE CLEARANCE CIRCLE - 33 ft (10 m) SPEED 16 mph +/- 0.5 mph (26 kph +/-0.8 kph) High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) STEERING & SUSPENSION
Shuttle 8 EFI Gas Shuttle 8 Electric STEERING Self-Compensating Rack & Pinion Self-Compensating Rack & Pinion SUSPENSION Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) SERVICE BRAKE 4-Wheel Hydraulic Brakes Front Disk, Rear Drum 4-Wheel Hydraulic Brakes Front Disk, Rear Drum, Regenerative braking PARKING BRAKE Self-Compensating, Single-Point Engagement Self-compensating, single point engagement; Floor Mounted Manual Set/Release w/Warning Buzzer TIRES 18 x 8.50 - 8 (4 Ply Rated) 18 x 8.90 - 8 (8 Ply Rated)
Download

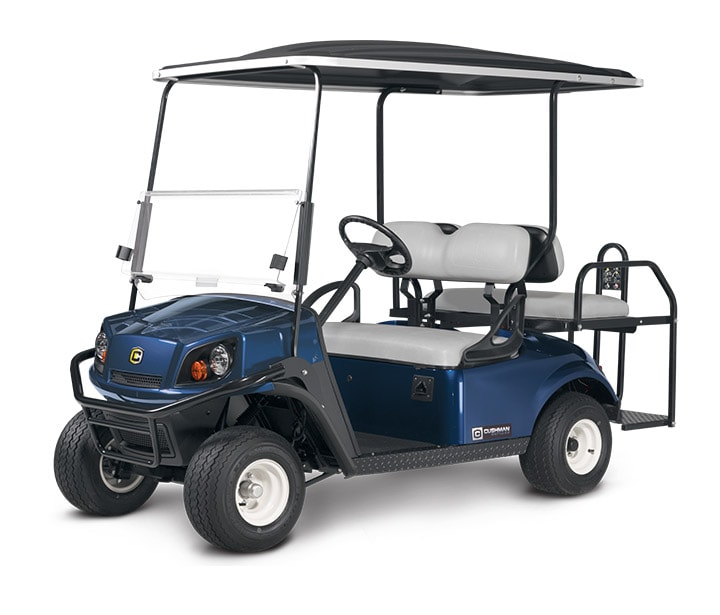

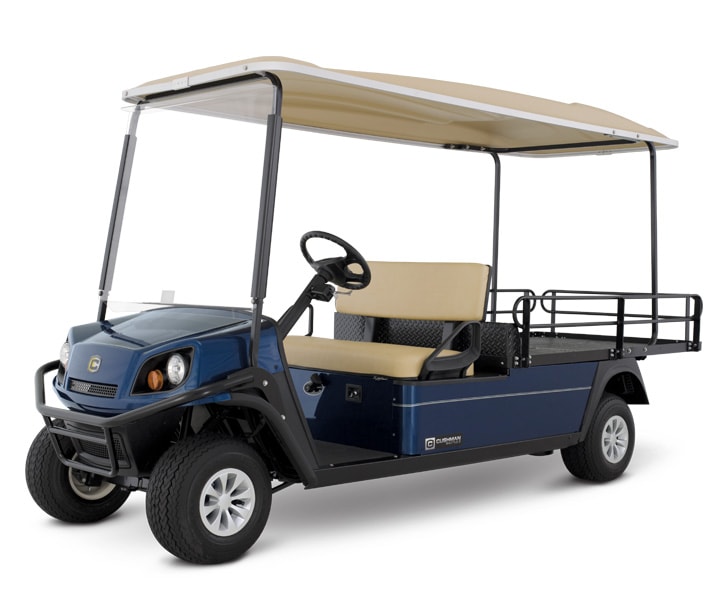

Related Products
