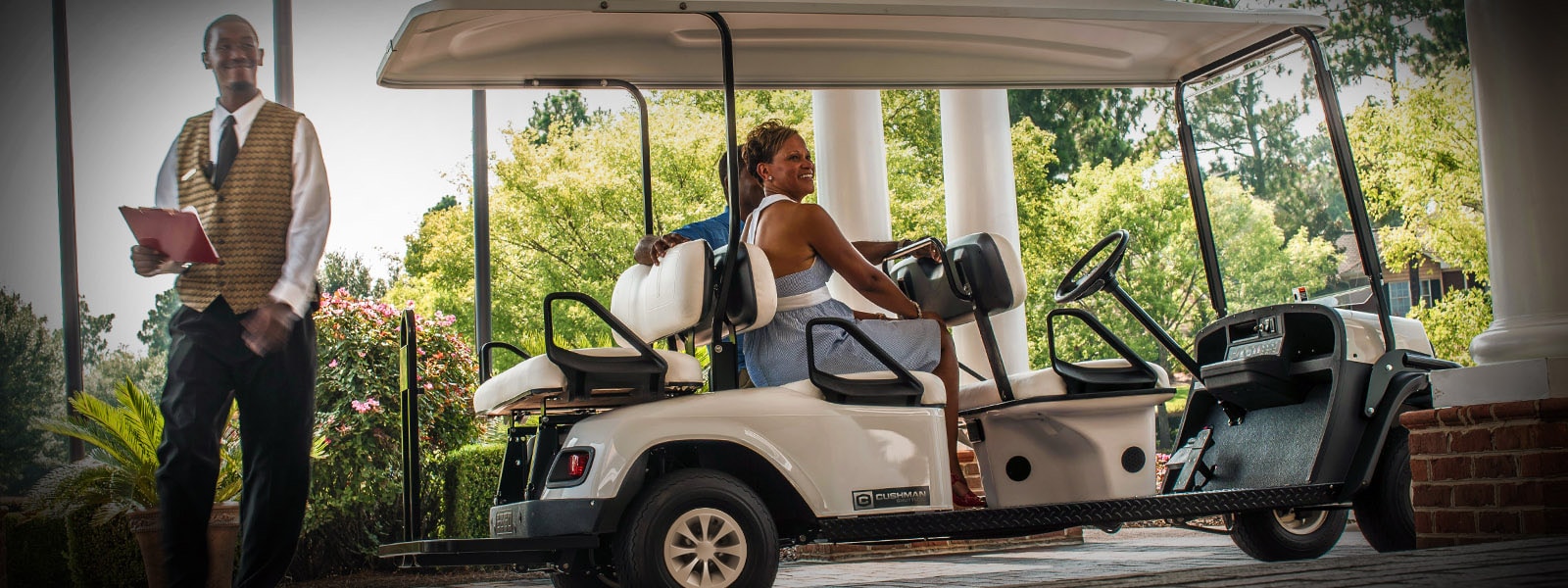

SHUTTLE™ 6

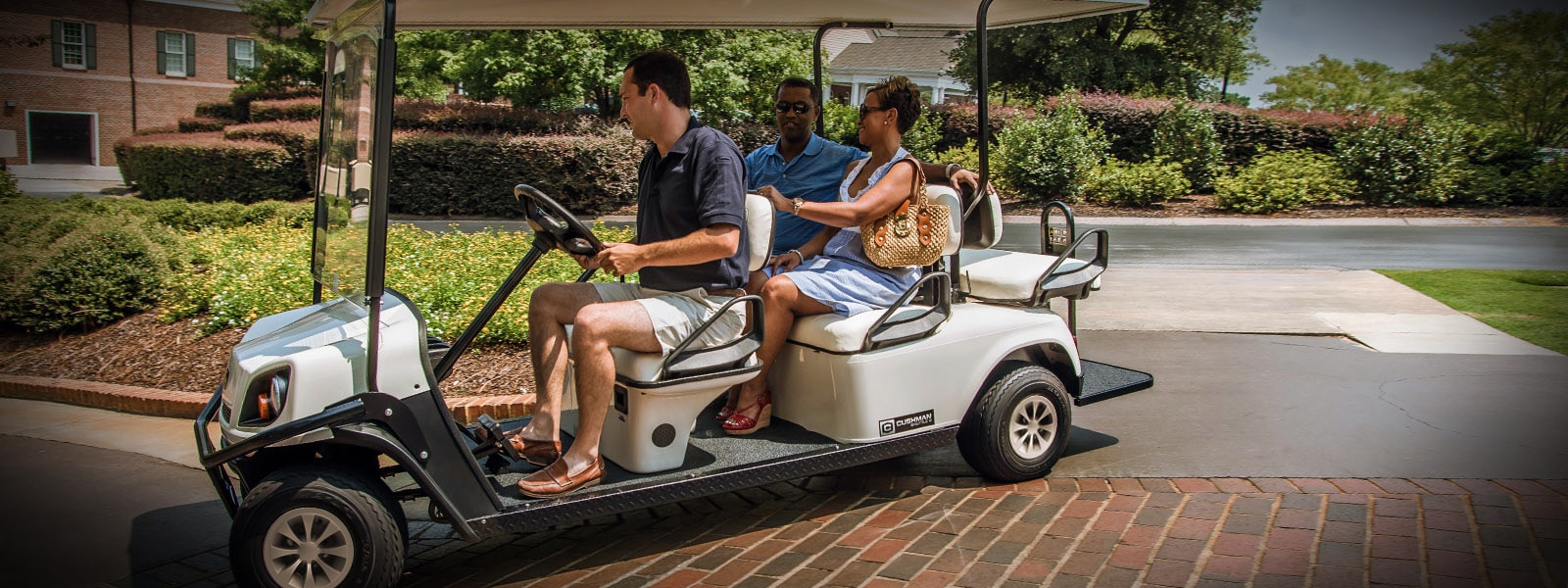

Three rows comfortable bench seating allow you to bring more people along for the ride.
Take your people-moving power to the next level with the six-passenger Shuttle™ 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
POWERTRAINS
SHUTTLE 6 EFI GAS | SHUTTLE 6 ELECTRIC | SHUTTLE 6 ELITE |
| – 13.5-hp EFI Gas Engine | – 72V Electric Drivetrain | – Zero Maintenance 56V AC Lithium Batteries |
| – 1,200-lb Vehicle Load Capacity | – 1,200-lb Vehicle Load Capacity | – 5 year Battery Warranty |
| – 6-Passenger Seating | – 6-Passenger Seating | – 1,200-lb Vehicle Load Capacity |
| – 6-Passenger Seating |
Key Features
Gas and electric options
For dependable power, the choice is yours.
Comfortable bench seating
Ergonomically designed for comfort.
Optional weather accessories
Protect passengers with a canopy and windshield.
Optional limited slip differential
Added traction and greater control.
Specifications
BODY & CHASSIS
Shuttle 6 EFI Gas Shuttle 6 Electric Shuttle 6 ELiTE FRAME Welded Steel w/ DuraShield™ Powder Coat Welded Steel w/ DuraShield™ Powder Coat Welded Steel w/ DuraShield™ Powder Coat BODY & FINISH Injection Molded TPO Steel Base Coat/Clear Coat (Rear) Injection Molded TPO Steel Base Coat/Clear Coat (Rear) Injection Molded TPO Steel Base Coat/Clear Coat (Rear) STANDARD COLOR Patriot Blue Ivory Patriot Blue DIMENSIONS
Shuttle 6 EFI Gas Shuttle 6 Electric Shuttle 6 ELiTE OVERALL LENGTH 136.0 in (345 cm) 136.0 in (345 cm) 136.0 in (345 cm) OVERALL WIDTH 48.5 in (123 cm) 48.5 in (123 cm) 48.5 in (123 cm) OVERALL HEIGHT 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) WHEEL BASE 93.5 in (237 cm) 93.5 in (237 cm) 93.5 in (237 cm) WHEEL TRACK 34.2 in (87 cm) Front 38.0 in (97 cm) Rear 34.2 in (87 cm) Front 38.0 in (97 cm) Rear 34.2 in (87 cm) Front 38.0 in (97 cm) Rear GROUND CLEARANCE 4.3 in (11 cm) 4.3 in (11 cm) 4.3 in (11 cm) POWER
Shuttle 6 EFI Gas Shuttle 6 Electric Shuttle 6 ELiTE POWER SOURCE 4-Cycle, 24.5 ci (401cc) 72V AC 56V AC VALVE TRAIN Single Cylinder OHV 22.4 hp (16.7 kW) Intermittent 22.4 hp (16.7 kW) Intermittent HORSEPOWER (KW) 13.5 hp (10.1 kW) 72V 13.1 HP (9.8 kW) Peak ELECTRICAL SYSTEM Starter/Generator. Solid State Reg. Six, 12V Deep Cycle 56 Volt Deep Cycle BATTERY CHARGER One, 12V Maintenance Free 1000 Watt, 72V, 120/230V VAC UL Listed 56VDC, 120/230 VAC, UL/CSA, CE KEY OR PEDAL START Pedal Pedal Pedal AIR CLEANER Replaceable Dry Cartridge - - LUBRICATION Pressurized Oil System - - OIL FILTER Spin-On - - COOLING SYSTEM Air Cooled - - FUEL CAPACITY 6 Gallon (22.7 L) Tank - - SPEED CONTROLLER - 350 Amp AC 300 Amp AC DRIVE TRAIN Continuously Variable Transmission (CVT) Motor Shaft Direct Drive Motor Shaft Direct Drive TRANSAXLE Differential w/ Helical Gears Differential w/ Helical Gears Differential w/ Helical Gears GEAR SELECTION Forward - Reverse Dash-Mounted Forward-Neutral-Reverse Dash-Mounted Forward-Neutral-Reverse REAR AXLE RATIO 11.47:1 (Forward) 14.35:1 (Reverse) 17:1 17:1 PERFORMANCE
Shuttle 6 EFI Gas Shuttle 6 Electric Shuttle 6 ELiTE SEATING CAPACITY 6-Person 6-Person 6-Person WEIGHT W/O BATTERIES - 964 lb (437 kg) 964 lb (437 kg) CURB WEIGHT 1164 lb (528 kg) 1456 lb (660 kg) 1064 lb (483 kg) VEHICLE LOAD CAPACITY 1200 lb (544 kg) 1200 lb (544 kg) 1200 lb (544 kg) OUTSIDE CLEARANCE CIRCLE 25.5 ft (7.8 m) 25.5 ft (7.8 m) 25.5 ft (7.8 m) SPEED 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) 14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed) STEERING & SUSPENSION
Shuttle 6 EFI Gas Shuttle 6 Electric Shuttle 6 ELiTE STEERING Self-Compensating Rack & Pinion Self-Compensating Rack & Pinion Self-Compensating Rack & Pinion SUSPENSION Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) Leaf Springs w/ Hydraulic Shock Absorbers SERVICE BRAKE Rear Wheel Mechanical, Self-Adjusting Drum Rear wheel mechanical self-adjusting drum, Regenerative braking Rear Wheel Mechanical, Self-Adjusting Drum PARKING BRAKE Self-Compensating,Single-Point Engagement Self-Compensating,Single-Point Engagement Self-Compensating,Single-Point Engagement TIRES 18 x 8.5 - 8 (4 Ply Rated) 18 x 8.5 - 8 (4 Ply Rated) 18 x 8.5 - 8 (4 Ply Rated)
