Cushman

SHUTTLE™ 2+2

With a versatile back seat that folds down into a cargo deck, this is the fast track to get people and loads wherever they need to go.

shuttle22Product1

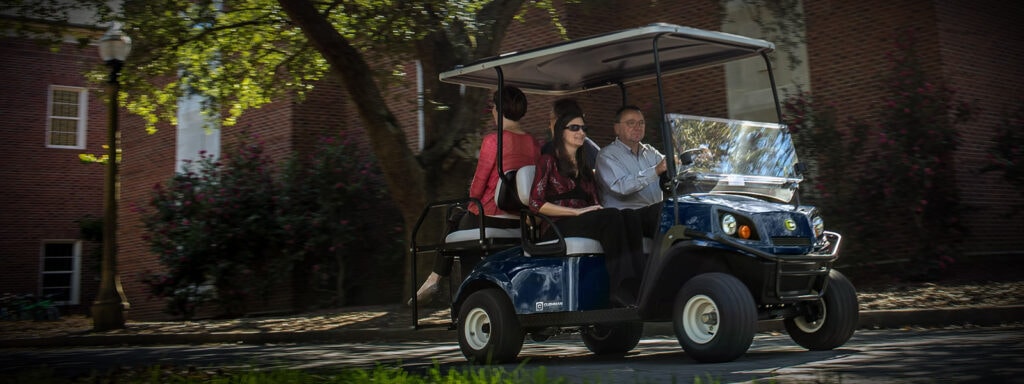

shuttle22product2
shuttle22product3

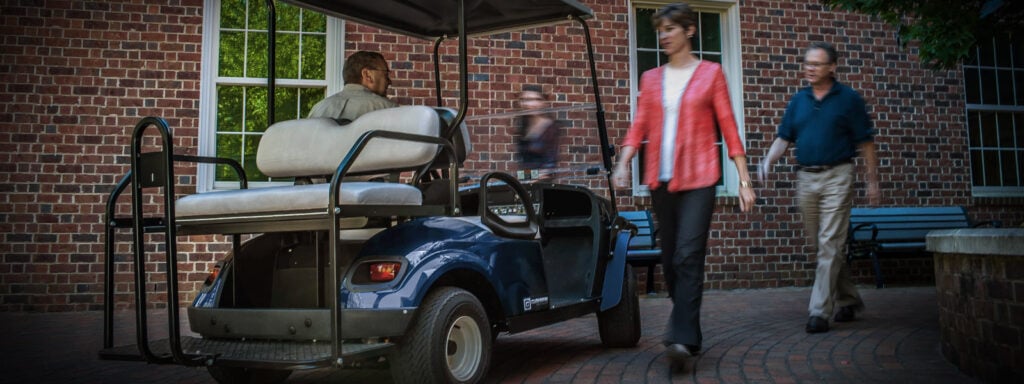

shuttle22product4

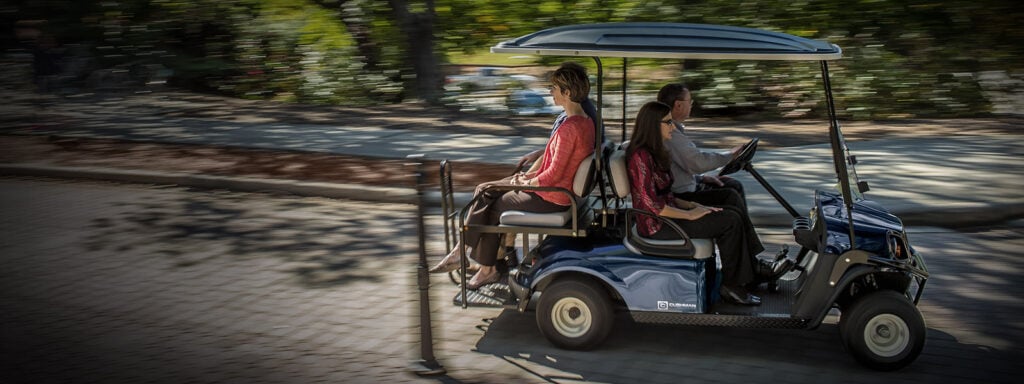

shuttle22product5
Cushman Logo
OverviewKey FeaturesSpecificationsDownload

Versatility rules the day with the Shuttle™ 2+2 personnel carrier. With a rear seat that converts to a flat cargo area, you can haul guests, gear and everything in between. Standard headlights and brush guard keep you prepared for whatever the day holds.

POWERTRAINS

SHUTTLE 2+2 GAS
SHUTTLE 2+2 48V DC ELECTRIC
SHUTTLE 2+2 72V AC ELECTRIC
– 13.5-hp Kawasaki® Gas Engine– 48V DC Electric Drivetrain– 72V AC Electric Drivetrain
– 800-lb Vehicle Load Capacity– 800-lb Vehicle Load Capacity– 800-lb Vehicle Load Capacity
– 250-lb Deck Load Capacity– 250-lb Deck Load Capacity– 250-lb Deck Load Capacity
– 4-Passenger Seating– 4-Passenger Seating– 4-Passenger Seating Deck

Key Features

Gas and electric options

For dependable power, the choice is yours.

shuttle22_vehicledetailpage_feature1_720x450
shuttle22_vehicledetailpage_feature2_720x450

CONVERTIBLE REAR SEAT

Be ready for cargo in seconds.

HEADLIGHTS

Ready to work early mornings and late nights.

shuttle22_vehicledetailpage_feature3_720x450
shuttle22_vehicledetailpage_feature4_720x450

Optional weather accessories

Specifications

  • BODY & CHASSIS

    SHUTTER 2+2 GASSHUTTER 2+2 48V DC ELECTRICSHUTTER 2+2 72V AC ELECTRIC
    FRAMEWelded Steel w/ DuraShield™ Powder CoatWelded Steel w/ DuraShield™ Powder CoatWelded Steel w/ DuraShield™ Powder Coat
    BODY & FINISHInjection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
    STANDARD COLORPatriot BluePatriot BluePatriot Blue

  • DIMENSIONS

     SHUTTER 2+2 GASSHUTTER 2+2 48V DC ELECTRICSHUTTER 2+2 72V AC ELECTRIC
    OVERALL LENGTH108.5 in (276 cm)108.5 in (276 cm)107.5 in (272 cm)
    OVERALL WIDTH48.5 in (123 cm)48.5 in (123 cm)49.5 in (126 cm)
    OVERALL HEIGHT46.5 in (118 cm) (Top of steering wheel) 77.0 in (196cm) (Top of Sun Canopy)46.5 in (118 cm) (Top of steering wheel) 77.0 in (196cm) (Top of Sun Canopy)47.5 in (121 cm)
    WHEEL BASE65.5 in (166 cm)65.5 in (166 cm)67 in (170 cm)
    WHEEL TRACK38.0 in (97 cm) Front 38.5 in (98 cm) Rear38.0 in (97 cm) Front 38.5 in (98 cm) Rear34 in (88 cm) Front 38.5 in (98 cm) Rear
    GROUND CLEARANCE4.5 in (11 cm)4.5 in (11 cm)5.8 in (14.6 cm)
    CARGO DECK CAPACITY32.0 in (81 cm)250 lb250 lb
    CARGO DECK MATERIAL40.0 in (102 cm) W x 32.0 in (81 cm) LHigh Density PolyethyleneHigh Density Polyethylene

  • POWER

     SHUTTER 2+2 GASSHUTTER 2+2 48V DC ELECTRICSHUTTER 2+2 72V AC ELECTRIC
    POWER SOURCE4-Cycle, 24.5 ci (401cc)48V DC72V DC
    VALVE TRAINSingle Cylinder OHVShunt WoundAC Induction
    HORSEPOWER (KW)13.5 hp (10.1 kW)3.0 HP (2.2kW) Continuous22.4 HP
    ELECTRICAL SYSTEMStarter/Generator. Solid State Regulator48V72V
    BATTERY (QTY/TYPE)One, 12V Maintenance FreeSix, 8V Deep CycleSix, 12V Deep Cycle
    BATTERY CHARGER-48 VDC Delta Q, 120/230V AC, UL/CSA72V DC Delta Q, 120/230V AC, UL/CSA
    KEY OR PEDAL STARTPedalPedalPedal
    AIR CLEANERReplaceable Dry Cartridge--
    LUBRICATIONPressurized Oil System--
    OIL FILTERSpin-On--
    COOLING SYSTEMAir Cooled--
    FUEL CAPACITY6 Gallon (22.7 L) Tank--
    SPEED CONTROLLER-250 Amp Solid State Controller350 Amp Solid State Controller
    DRIVE TRAINContinuously Variable Transmission (CVT)Motor Shaft Direct DriveMotor Shaft Direct Drive
    TRANSAXLEDifferential w/ Helical GearsDifferential w/ Helical GearsDifferential w/ Helical Gears
    GEAR SELECTIONDash-Mounted Forward-Neutral-ReverseDash-Mounted Forward-Neutral-ReverseDash-Mounted Forward-Neutral-Reverse
    REAR AXLE RATIO11.47:1 (Forward) 15.78:1 (Reverse)12.44:117:1

  • PERFORMANCE

     SHUTTER 2+2 GASSHUTTER 2+2 48V DC ELECTRICSHUTTER 2+2 72V AC ELECTRIC
    SEATING CAPACITY4-Person4-Person4-Person
    WEIGHT W/O BATTERIES861 lb (391 kg)658 lb (298 kg)794 lb (360 kg)
    CURB WEIGHT896 lb (406 kg)1036 lb (470 kg)1268 lb (575 kg)
    VEHICLE LOAD CAPACITY800 lb (363 kg)800 lb (363 kg)800 lb (363 kg)
    BED LOAD CAPACITY250 lb (113 kg)250 lb (113 kg)250 lb (113 kg)
    OUTSIDE CLEARANCE CIRCLE19 ft ( 5.8 m)19 ft ( 5.8 m)19 ft ( 5.8 m)
    SPEED14 mph +/- 0.5 mph (22.5 kph +/- 0.8 kph)14 mph +/- 0.5 mph (22.5 kph +/- 0.8 kph)14.5 mph +/- 0.5 mph (23.3 kph +/- 0.8 kph)

  • STEERING & SUSPENSION

     SHUTTER 2+2 GASSHUTTER 2+2 48V DC ELECTRICSHUTTER 2+2 72V AC ELECTRIC
    STEERINGSelf-Compensating Rack & PinionSelf-Compensating Rack & PinionSelf-Compensating Rack & Pinion
    SUSPENSIONLeaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
    SERVICE BRAKERear Wheel Mechanical, Self-Adjusting DrumRear Wheel Mechanical, Self-Adjusting DrumRear Wheel Mechanical, Self-Adjusting Drum
    PARKING BRAKESelf-Compensating, Single-Point EngagementSelf-Compensating, Single-Point EngagementSelf-Compensating, Single-Point Engagement
    TIRES18 x 8.5 - 8 (4 Ply Rated)18 x 8.5 - 8 (4 Ply Rated)20 x 8 - 10 (4-Ply Rated)

Download

Shuttle 2+2 Brochure
