SHUTTLE™ 2
With one of the industry's largest cargo decks, it's time to put your big tasks to bed.

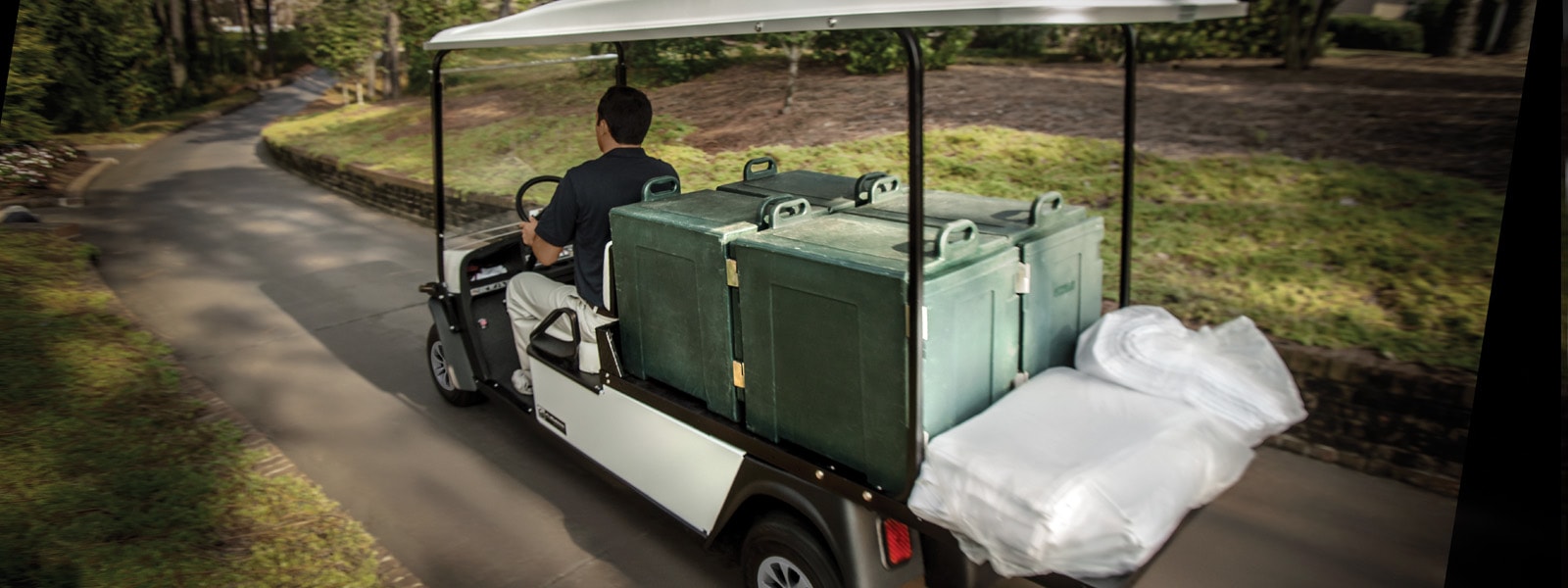

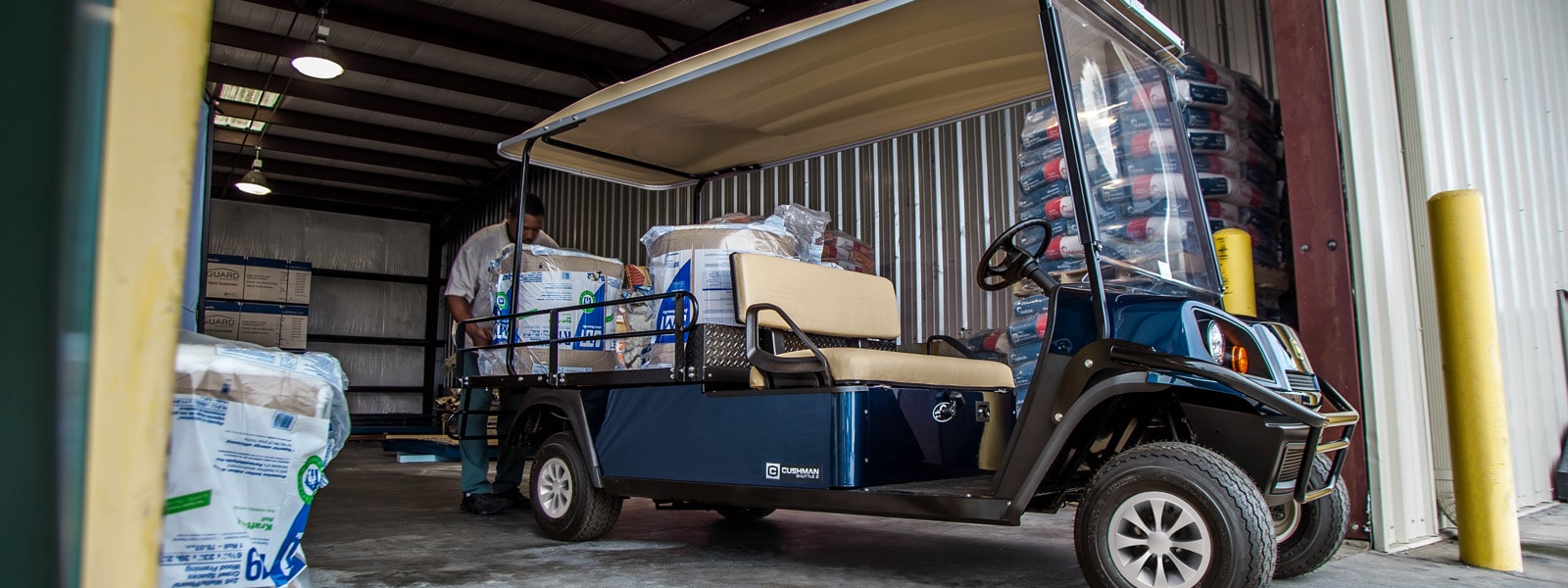

This vehicle was built for big hauling and big possibilities with a 20.9-sq-ft cargo deck. Whether you’re hauling tools and supplies or luggage and catering, the Shuttle™ 2 personnel transport vehicle makes sure that you’re driven to get it done right.
POWERTRAINS
Shuttle 2 EFI Gas | Shuttle 2 Electric |
| – 13.5-hp EFI Gas Engine | – 48V Electric Drivetrain |
| – 1,200-Ib Vehicle Load Capacity | – 1,000-Ib Vehicle Load Capacity |
| – 20.9-sq-ft Cargo Deck | – 20.9-sq-ft Cargo Deck |
| – 2-Passenger Seating | – 2-Passenger Seating |
Key Features
Gas and electric options
For dependable power, the choice is yours.
20.9-sq-ft cargo deck
Room for almost anything.
Optional limited slip differential
Added traction and greater control.
Optional weather accessories
Protected passengers with a canopy, windshield or cab.
Specifications
BODY & CHASSIS
SHUTTER 2 EFI GAS SHUTTER 2 ELECTRIC FRAME Welded Steel w/ DuraShield™ Powder Coat Welded Steel w/ DuraShield™ Powder Coat BODY & FINISH Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) STANDARD COLOR Patriot Blue Patriot Blue DIMENSIONS
SHUTTER 2 EFI GAS SHUTTER 2 ELECTRIC OVERALL LENGTH 141.0 in (358 cm) 141.0 in (358 cm) OVERALL WIDTH 48.5 in (123 cm) 48.5 in (123 cm) OVERALL HEIGHT 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) WHEEL BASE 93.5 in (237 cm) 93.5 in (237 cm) WHEEL TRACK 34.2 in (87 cm) Front 38.0 in (97 cm) Rear 34.2 in (87 cm) Front 38.0 in (97 cm) Rear GROUND CLEARANCE 4.3 in (12 cm) 4.3 in (11 cm) CARGO DECK CAPACITY 20.9-sq-ft (1.94 m2) 20.9-sq-ft (1.94 m2) POWER
SHUTTER 2 EFI GAS SHUTTER 2 ELECTRIC POWER SOURCE 4-Cycle, 24.5 ci (401cc) 48V DC VALVE TRAIN Single Cylinder OHV - HORSEPOWER (KW) 13.5 hp (10.1 kW) 18.1 hp (13.5 kW) @ 1900 rpm ELECTRICAL SYSTEM Starter/Generator. Solid State Regulator 48V BATTERY (QTY/TYPE) One, 12V Maintenance Free Eight, 6V Deep Cycle BATTERY CHARGER - 48 V, 120V AC, UL/CSA KEY OR PEDAL START Pedal Pedal AIR CLEANER Replaceable Dry Cartridge - LUBRICATION Pressurized Oil System - OIL FILTER Spin-On - COOLING SYSTEM Air Cooled - FUEL CAPACITY 6 Gallon (22.7 L) Tank - SPEED CONTROLLER - 400 Amp Precision Drive System (PDS) DRIVE TRAIN Continuously Variable Transmission (CVT) Motor Shaft Direct Drive TRANSAXLE Differential w/ Helical Gears Differential w/ Helical Gears GEAR SELECTION Forward - Reverse Dash-Mounted Forward-Neutral-Reverse REAR AXLE RATIO 11.47:1 (Forward) 14.35:1 (Reverse) 14.7:1 PERFORMANCE
SHUTTLE 2 EFI GAS SHUTTER 2 ELECTRIC SEATING CAPACITY 2-Person 2-Person WEIGHT W/O BATTERIES 926 lb (420 kg) 810 lb (367 kg) CURB WEIGHT - 1300 lb (590 kg) VEHICLE LOAD CAPACITY 1200 lb (544 kg) 1000 lb (454 kg) OUTSIDE CLEARANCE CIRCLE - 25.5 ft (7.8 m) SPEED 14 mph +/- 0.5 mph (22.5 kph +/-0.8 kph) 13 mph +/- 0.5 mph (21 kph +/-0.8 kph) STEERING & SUSPENSION
SHUTTER 2 EFI GAS SHUTTER 2 ELECTRIC STEERING Self-Compensating Rack & Pinion Self-Compensating Rack & Pinion SUSPENSION Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) SERVICE BRAKE Rear Wheel Mechanical, Self-Adjusting Drum Rear Wheel Mechanical, Self-Adjusting Drum PARKING BRAKE Self-Compensating,Single-Point Engagement Self-Compensating,Single-Point Engagement TIRES 18 x 8.5 - 8 (4 Ply Rated) 18 x 8.5 - 8 (4 Ply Rated)
