Sand Star Hydraulic Series

OverviewSpecifications

Perfectly Balanced

  • Smithco’s drive system on 3 wheel drive models makes for superior traction and increased stability.

Choice of 4 Models

  • In both 2 and 3 wheel drive, offering 16 or 18 hp gasoline engines and 19 hp diesel.

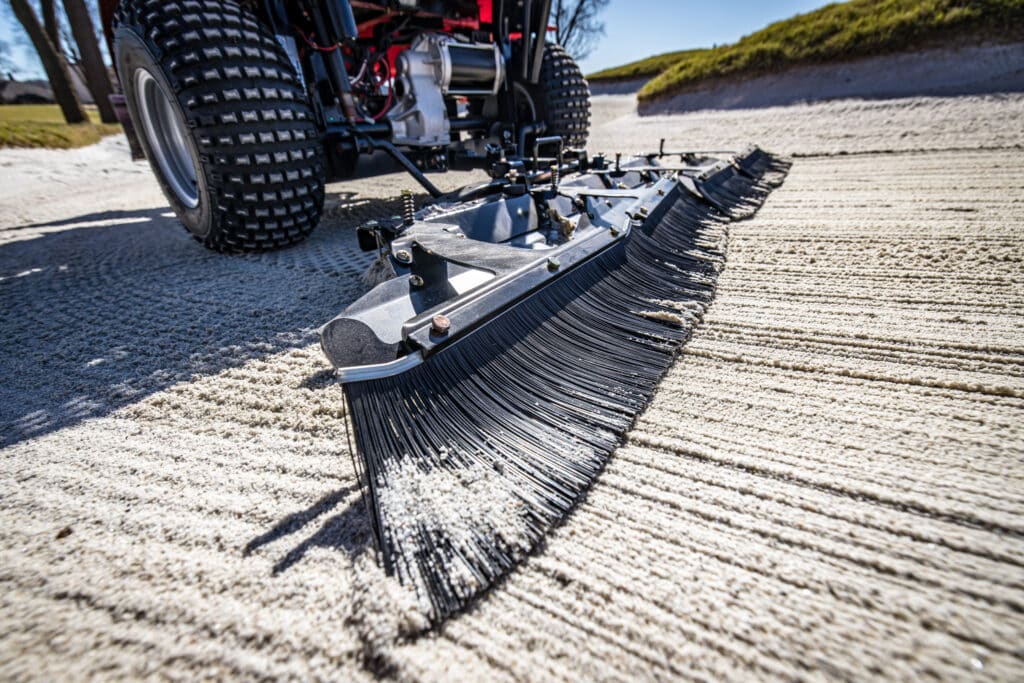

More Implements

  • Widest range of implements for grooming.

Sand Star (Prime Movers) - Sand Star I SPECIFICATONS

2-wheel drive, 12 kW OHV Vanguard gasoline engine, INCLUDES 45-017 Remote Cyclo-Pac Air Cleaner & 45-018 and Hydraulic Center Implement lift/lower, Factory Installed.

  • ENGINE

    TYPEVanguard V-twin air cooled
    DISPLACEMENT1.123 L
    RATED HORSEPOWER11.9kW
    AIR CLEANEREngine mount and remote cyclonic
    COOLINGPressurized, sealed cooling system
    LUBRICATIONFull Pressurized
    OIL FILTERFull Flow, Spin on type
    ELECTRICAL SYSTEM16 amp, with 12V 300 CCA battery, fuse protected
    FUEL CAPACITY19 L

  • TRACTION DRIVE

    TRACTION SYSTEMVariable displacement hydraulic pump. Series Parallel drive to rear and hydraulic motor on front.
    HYDRAULIC SYSTEM19 L
    HYDRAULIC COOLINGFull flow filter with oil cooler

  • TIRES, BRAKES AND STEERING

    TIRES22 – 11 x 10.0 Knobby Tire
    SERVICE BRAKESHydrostatic
    PARKING BRAKEHand operated, 8” drum type
    STEERINGManual chain drive front wheel steering

  • SPEED

    Transport0-16 kph
    Reverse0-8 kph

  • WEIGHTS AND DIMENSIONS

    Weight397 kg
    Length1.73 m
    Width1.47 m
    Height1.2 m
    Ground Clearance13-18 cm
    Wheelbase1.07 m

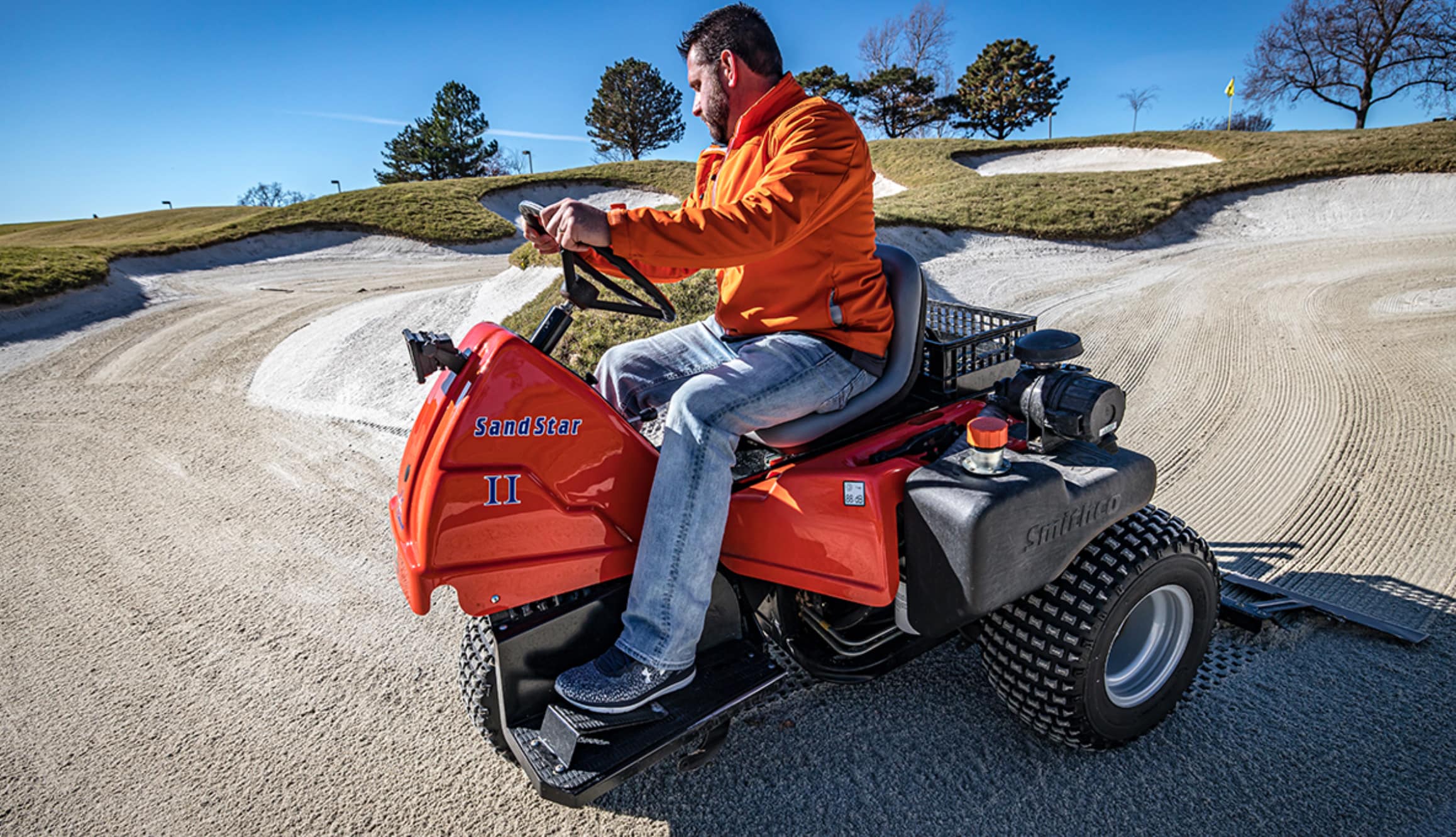

SAND STAR (PRIME MOVERS) - SAND STAR II SPECIFICATONS

3-wheel drive Smithco 2WD-3WD Traction Assist, 2-Wheel drive selector for traction & increased transport speed, 13 kW OHV Vanguard gasoline engine. INCLUDES 45-017 Remote Cyclo-Pac Air Cleaner & 45-018 & Hydraulic Center Implement lift/lower, Factory Installed.

  • ENGINE

    TYPEVanguard V-twin air cooled
    DISPLACEMENT570 cc
    RATED HORSEPOWER13 kW
    AIR CLEANEREngine mount and remote cyclonic air intake
    COOLINGPressurized, sealed cooling system
    LUBRICATIONFull Pressurized
    OIL FILTERFull Flow, Spin on type
    ELECTRICAL SYSTEM16 amp, with 12V 300 CCA battery, fuse protected
    FUEL CAPACITY19 L

  • TRACTION DRIVE

    TRACTION SYSTEMVariable displacement hydraulic pump; individual hydraulic wheel motors on rear.
    HYDRAULIC SYSTEM19 L
    HYDRAULIC COOLINGFull flow filter with oil cooler

  • TIRES, BRAKES AND STEERING

    TIRES22 – 11 x 10.0 Knobby Tire
    SERVICE BRAKESHydrostatic
    PARKING BRAKEHand operated, 8” drum type
    STEERINGManual chain drive front wheel steering

  • SPEED

    Transport0-16 kph
    Reverse0-8 kph

  • WEIGHTS AND DIMENSIONS

    Weight415 kg
    Length1.73 m
    Width1.47 m
    Height1.2 m
    Ground Clearance13-18 cm
    Wheelbase1.07 m

SAND STAR (PRIME MOVERS) - SAND STAR IV SPECIFICATONS

3-wheel drive Smithco SERIES-PARALEEL Traction Assist DRIVE, Hydraulic Power Steering, 13 kW OHV Vanguard gasoline engine. INCLUDES 45-017 Remote Cyclo-Pac Air Cleaner & 45-018 & Hydraulic Center Implement lift/lower, Factory Installed.

  • ENGINE

    TYPEVanguard V-twin air cooled
    DISPLACEMENT570 cc
    RATED HORSEPOWER13 kW
    AIR CLEANEREngine mount and remote cyclonic air intake
    COOLINGPressurized, sealed cooling system
    LUBRICATIONFull Pressurized
    OIL FILTERFull Flow, Spin on type
    ELECTRICAL SYSTEM16 amp, with 12V 300 CCA battery, fuse protected
    FUEL CAPACITY19 L

  • TRACTION DRIVE

    TRACTION SYSTEMVariable displacement hydraulic pump. Series Parallel drive to rear and hydraulic motor on front.
    HYDRAULIC SYSTEM19 L
    HYDRAULIC COOLINGFull flow filter with oil cooler

  • TIRES, BRAKES AND STEERING

    TIRES22 – 11 x 10.0 Knobby Tire
    SERVICE BRAKESHydrostatic
    PARKING BRAKEHand operated, 8” drum type
    STEERINGHydraulic steering

  • SPEED

    Transport0-16 kph
    Reverse0-8 kph

  • WEIGHTS AND DIMENSIONS

    Weight415 kg
    Length1.73 m
    Width1.47 m
    Height1.2 m
    Ground Clearance13-18 cm
    Wheelbase1.07 m

SAND STAR (PRIME MOVERS) - SAND STAR Diesel SPECIFICATONS

3-wheel drive Smithco SERIES-PARALEEL Traction Assist DRIVE, Hydraulic Power Steering, 13 kW Liquid-Cooled, 3-cylinder Diesel Engine Tier 4 Compliant. INCLUDES 45-017 Remote Cyclo-Pac Air Cleaner & 45-018 & Hydraulic Center Implement lift/lower, Factory Installed.

  • ENGINE

    TYPEKubota® D722 3-cylinder, liquid cooled
    DISPLACEMENT719 cc
    RATED HORSEPOWER14.9 kW
    AIR CLEANEREngine mount and remote cyclonic air intake
    COOLINGPressurized, sealed cooling system
    LUBRICATIONFull Pressurized
    OIL FILTERFull Flow, Spin on type
    ELECTRICAL SYSTEM16 amp, with 12V 300 CCA battery, fuse protected
    FUEL CAPACITY19 L

  • TRACTION DRIVE

    TRACTION SYSTEMVariable displacement hydraulic pump. Series Parallel drive to rear and hydraulic motor on front.
    HYDRAULIC SYSTEM19 L
    HYDRAULIC COOLINGFull flow filter with oil cooler

  • TIRES, BRAKES AND STEERING

    TIRES22 – 11 x 10.0 Knobby Tire
    SERVICE BRAKESHydrostatic
    PARKING BRAKEHand operated, 8” drum type
    STEERINGHydrauic steering

  • SPEED

    Transport0-16 kph
    Reverse0-8 kph

  • WEIGHTS AND DIMENSIONS

    Weight508 kg
    Length1.73 m
    Width1.47 m
    Height1.2 m
    Ground Clearance13-18 cm
    Wheelbase1.07 m
