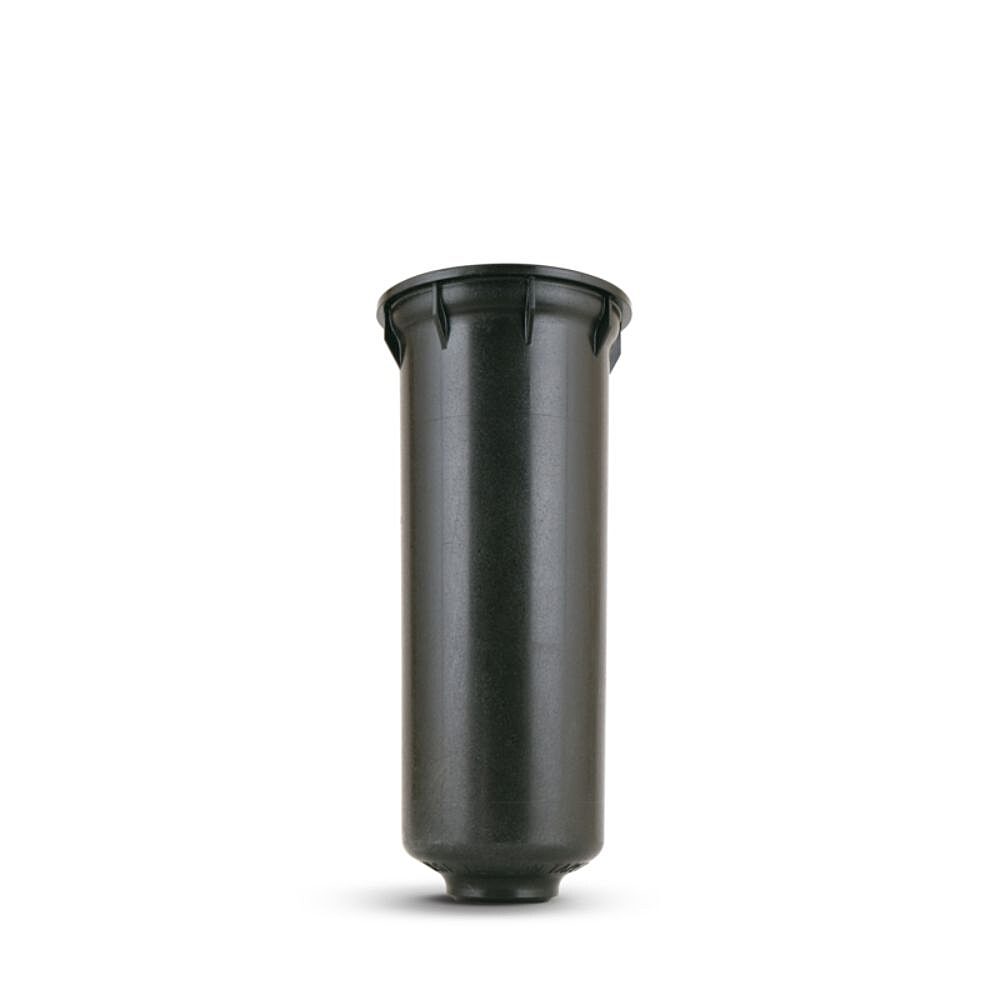

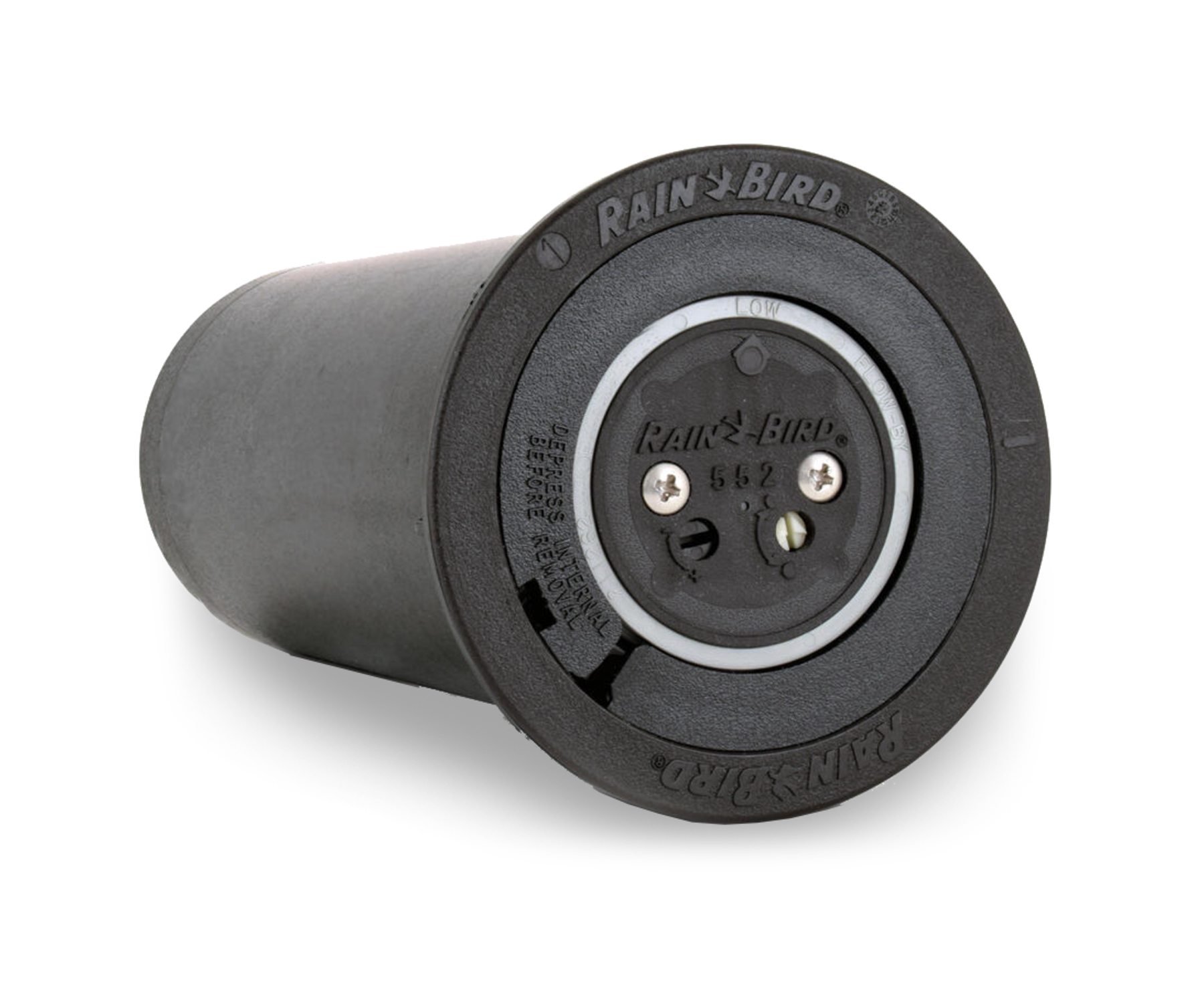

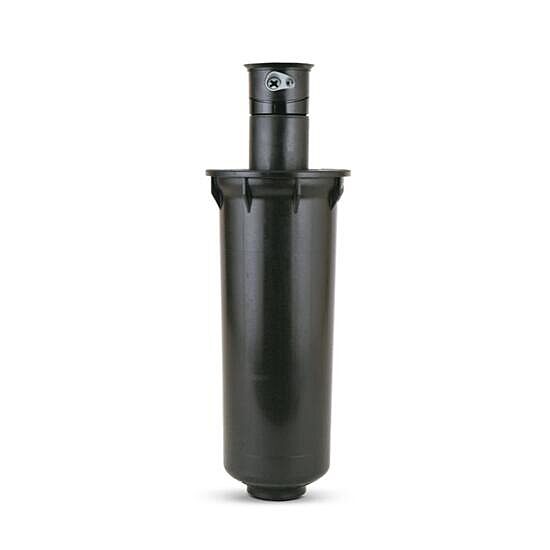

Rain Bird® Block Rotors

Flexible, Time-Saving Benefits

OverviewKey FeaturesSpecificationsDownload

Rain Bird block rotors are designed for the harsh conditions encountered in golf applications. Engineered for precise application and distribution uniformity, Rain Bird block rotors help you get the most from your water source.

  • One stator for any nozzle providing consistent rotation speeds
  • Seal-A-Matic Check Valve improves holdback up to 17’ (5.2m)
  • 75% faster nozzle changes in the field with simply a screwdriver

Key Features

Peace of Mind Today. Continuous Innovation for the Future.

  • Patented self-flushing action prevent stuck-up rotors, requiring less maintenance
  • Closed-case design prevents porting to atmosphere, saving water
  • Timeless Compatibility™ means new internals will fit into existing cases dating back to the 90’s, saving you money
  • Rapid-Adjust technology and MemoryArc® make adjustments in the field easy, saving your crew time

Specifications

  • Specs

    RADIUS
    Rain Bird 552: 33' to 55' (10.1 m to 16.8 m)
    Rain Bird 702: 59' to 77' (18.0 m to 23.5 m)
    Rain Bird 752: 19' to 84' (5.8 m to 25.6 m)
    FLOW RATE
    Rain Bird 552: 6.80 to 14.00 gpm (0.43 to 0.88 l/s); (1.54 to 3.18 m³/h)
    Rain Bird 702: 16.9 to 42.9 gpm (1.06 to 2.70 l/s); (3.83 to 9.73 m³/h)
    Rain Bird 752: 6.7 to 47 gpm (0.42 to 2.97 l/s); (1.51 to 10.68 m³/h)
    ARC
    Full-circle, 360°
    Part-circle, 30-345°
    MAXIMUM INLET PRESSURE100 psi (6.9 bars)
    MAXIMUM STREAM HEIGHT
    Rain Bird 552: 51 Nozzle: 5' (1.5 m), 52, 53, 54 Nozzles: 13' (4.0 m)
    Rain Bird 702/752: Standard Nozzle: 17' (5.2 m), Wind Tolerant: 10' (3.1 m)
    Rain Bird 752: Low Angle: 12' (3.7 m)
    NOZZLE TRAJECTORY
    Rain Bird 552: 51 Nozzle: 12°, 52, 53, 54 Nozzles: 25°
    Rain Bird 702/752: Standard Nozzle: 25°, Wind Tolerant: 12°
    Rain Bird 752: Low Angle & #18 Nozzle: 15°
    INLET THREADS1" (2.5 cm) ACME
    HOLDBACK17' (5.2 m) of elevation change
    ROTATION TIME180° in ≤ 90 seconds, 80 seconds nominally
    TOP-SERVICEABLE INTERNAL COMPONENTSYes
    SPECIAL FEATURES
    Self-Adjusting Stator
    Low Flow-by Bearing Guide

  • Dimensions

    BODY HEIGHT
    9.6" (24.5 cm)
    POP-UP HEIGHT TO MID-NOZZLE2.6" (6.6 cm)
    TOP DIAMETER4.25" (10.8 cm)

Download

552 Series Golf Rotors Technical Spec 702 Series Golf Rotors Technical Spec 702 Series Nozzles Performance Card-5x3.25 702-752 Golf Rotors Details Sheet 752 Series Golf Rotors Technical Spec 752 Series Nozzles Performance Card Golf Rotor TroubleShooting Guide Golf Rotors Operations and Maintenance Manual
