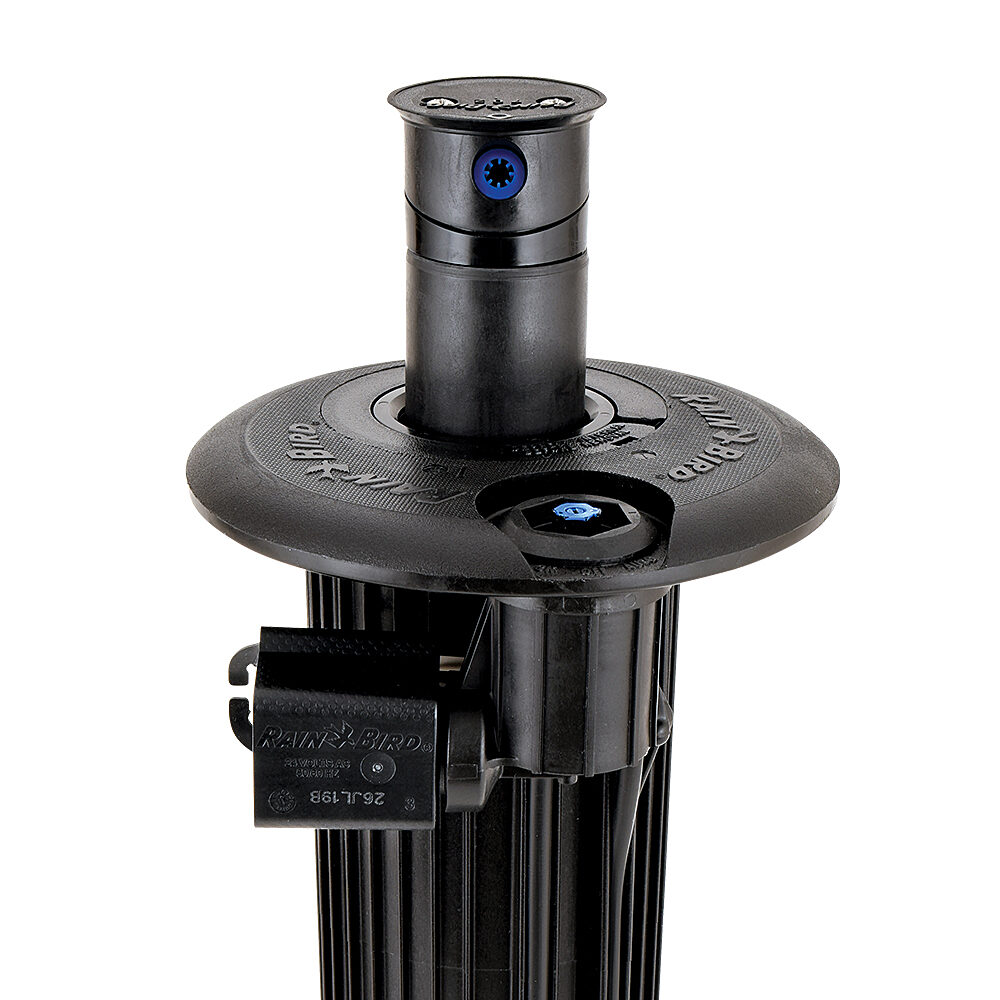

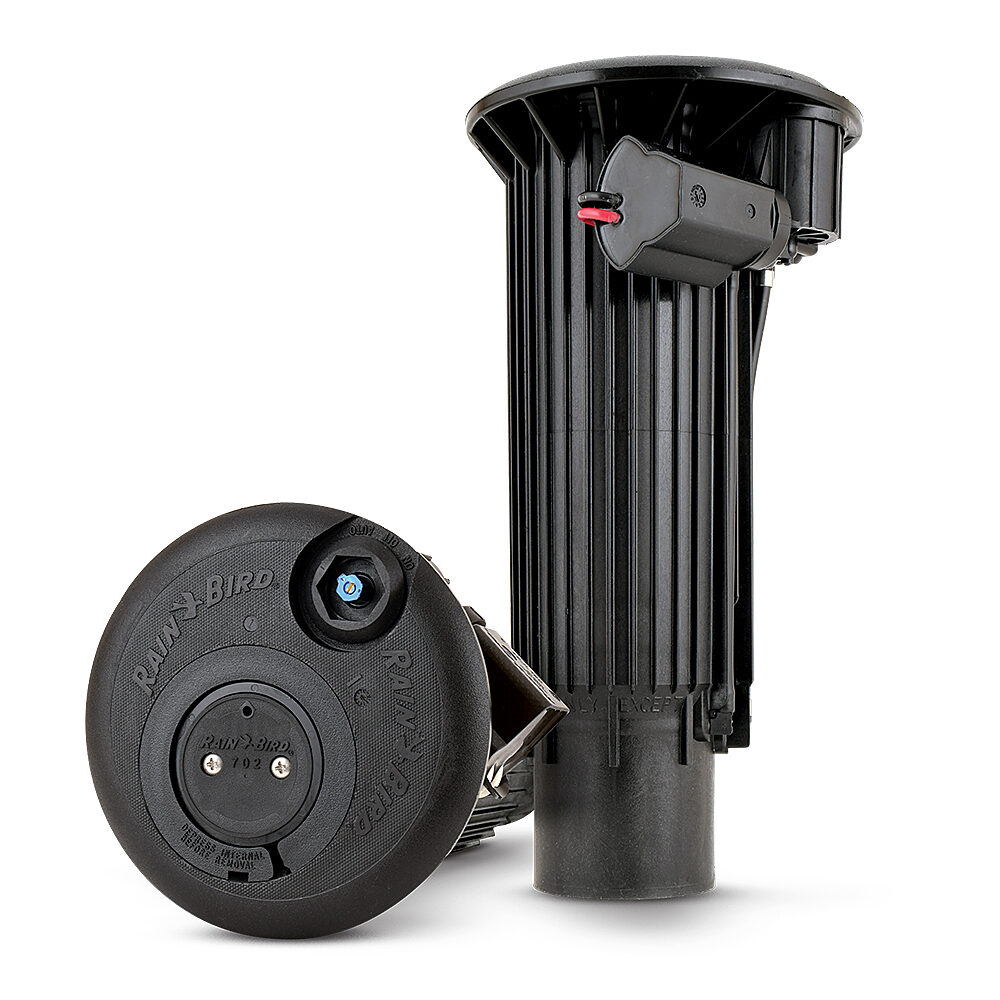

Rain Bird® 702/752 Series

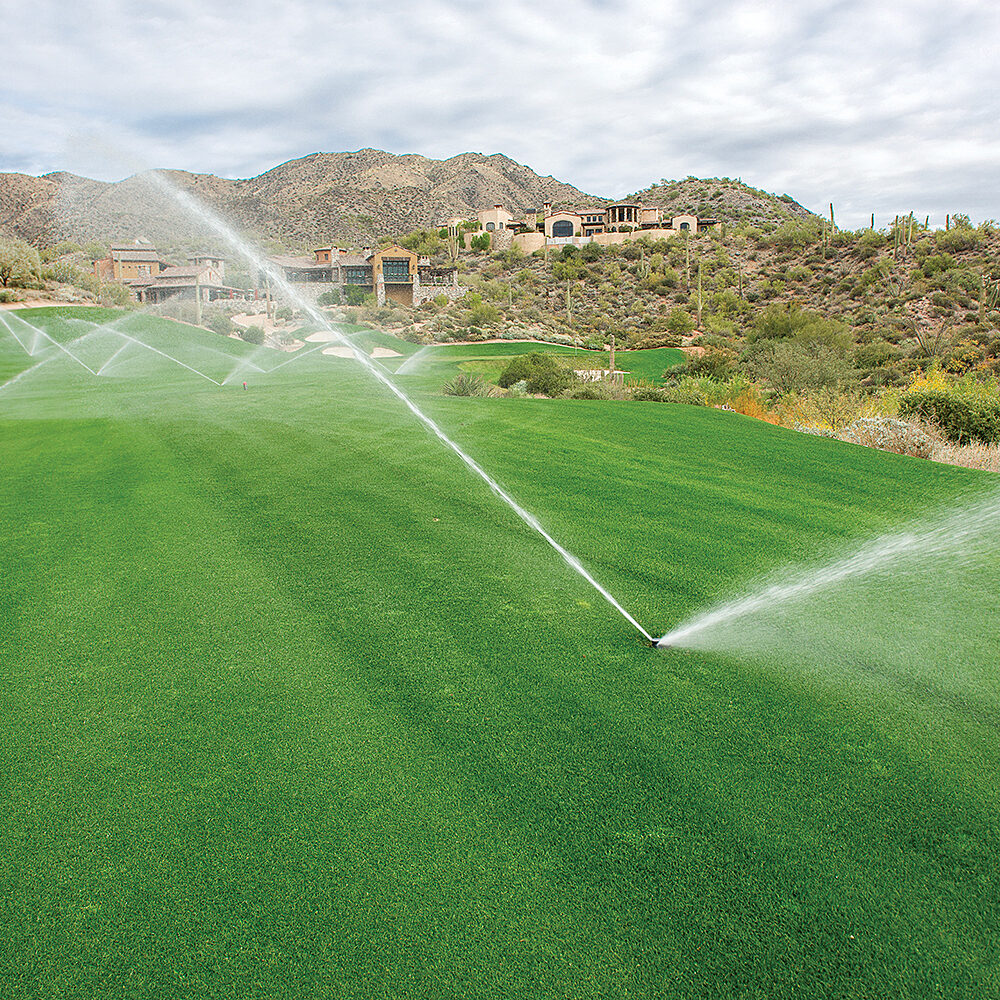

Dependable Coverage Throughout Your Course

OverviewKey FeaturesSpecificationsdownload

Available in IC and electric models, the full-circle 702 Series and full/part-circle 752 Series deliver unmatched flexibility and industry-leading uniformity, making it easier to maintain flawless turf.

  • 75% faster nozzle changes, with no need for removing internals
  • When changing nozzles, the self-adjusting stator automatically adjusts flow to control rotation speed and optimize performance
  • MemoryArc® saves time and labor by retaining two part-circle arc settings

Key Features

Peace of Mind Today. Continuous Innovation for the Future.

Top Serviceability

  • Pressure regulation and arc adjustments can be made from the top of the rotor, requiring only a common screwdriver.
  • Quick nozzle changes can be completed in field in just second.
  • Internal components can be quickly accessed from the top of the rotor.

Unrivaled Efficiency

  • The 702 Series offers reliable full-circle coverage while the 752 Series delivers ultimate full-circle/part-circle versatility and easy arc adjustments.
  • Self-adjusting stator automatically modifies flow after nozzle changes, saving your crew time.
  • Choose between electric and Integrated Control (IC) models.

Lasting Performance

  • A GBS25 solenoid delivers unrivaled 25kV surge protection and built-in filtration for an extra level of defense from debris.
  • Every model has been exhaustively tested and held to the highest standards in the industry.

Specifications

  • Specs

    RADIUS
    Rain Bird 702 Series: 59' to 77' (18.0 m to 23.5 m)
    Rain Bird 752 Series: 19' to 84' (5.8 m to 25.6 m)
    FLOW RATE
    Rain Bird 702 Series: 16.9 to 42.9 gpm (1.06 to 2.70 l/s); (3.83 to 9.73 m³/h)
    Rain Bird 752 Series: 6.7 to 47.0 gpm (0.42 to 2.97 l/s); (1.51 to 10.68 m³/h)
    ARC
    Rain Bird 702 Series: Full-circle, 360°
    Rain Bird 752 Series: Full-circle, 360°, Adjustable 30-345°
    MAXIMUM INLET PRESSURE150 psi (10.3 bars)
    PRESSURE REGULATION RANGE60 to 100 psi (4.1 to 6.9 bars)
    FACTORY PRESSURE SETTINGSAvailable in 70 and 80 psi (4.8 and 5.5 bar)
    MAXIMUM STREAM HEIGHT
    Rain Bird 702/752 Series: Standard: 17' (5.2 m), Wind Tolerant: 10' (3.1 m)
    Rain Bird 752 Series: Low Angle: 12' (3.7 m)
    NOZZLE TRAJECTORY
    Rain Bird 702/752 Series: Standard: 25°, Wind Tolerant: 12°
    Rain Bird 752 Series: #18 & Low Angle Nozzle: 15°
    INLET THREADS1.25" (32 mm) ACME female thread
    ROTATION TIME180° in ≤ 90 seconds, 80 seconds nominally
    SOLENOID
    24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
    60 cycle: 0.25 amp holding current (6.0 VA)
    50 cycle: 0.32 amp holding current (7.7 VA)
    SURGE RESISTANCEUp to 25KV standard on electric models with the GBS25 solenoid
    TOP-SERVICEABLE INTERNAL COMPONENTSYes
    HIGH & LOW FLOW VALVES TO ENSURE OPTIMAL PERFORMANCE
    752 Series Nozzles 18, 20, 22, 24, and 26 require a low-flow valve which comes preinstalled on rotors during manufacturing.
    752 Series Nozzles 28, 32, 36, 40, 44, 48 and 50 require a high-flow valve which comes preinstalled on rotors during manufacturing.

  • Dimensions

    BODY HEIGHT12.0" (30.5 cm)
    POP-UP HEIGHT TO MID-NOZZLE2.6" (6.6 cm)
    TOP DIAMETER6.25" (15.9 cm)
