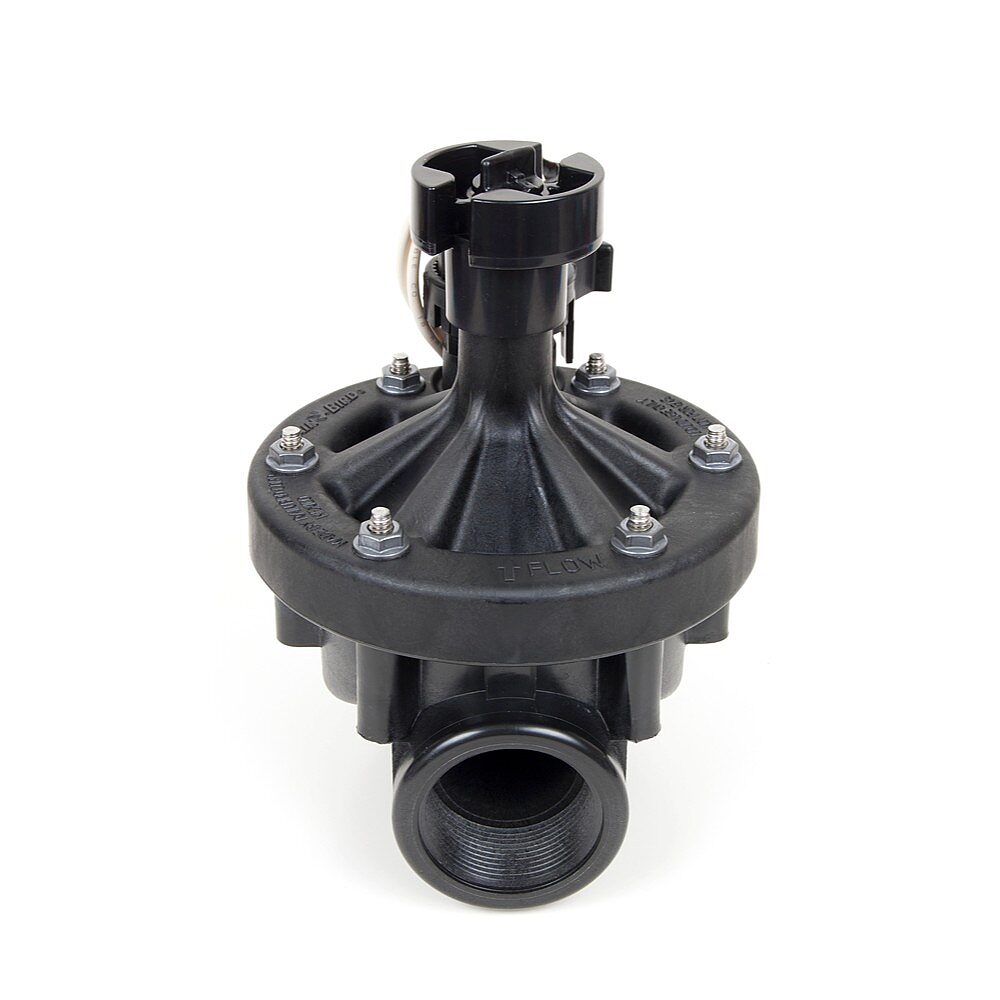

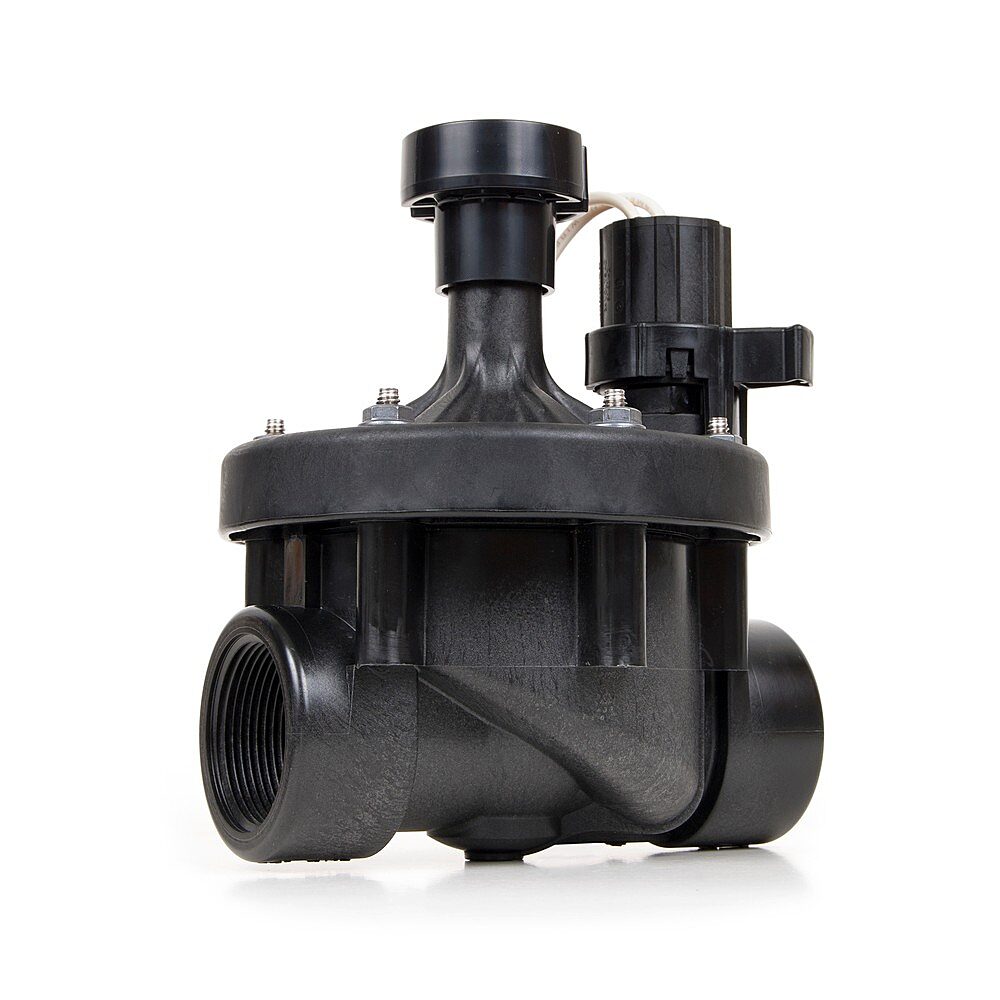

PEB/PESB Series
Best-in-class professional series plastic irrigation valves
The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.
The PESB series incorporates patented scrubber technology for reliable performance in dirty water irrigation applications.
Key Features
- Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
- Globe configuration

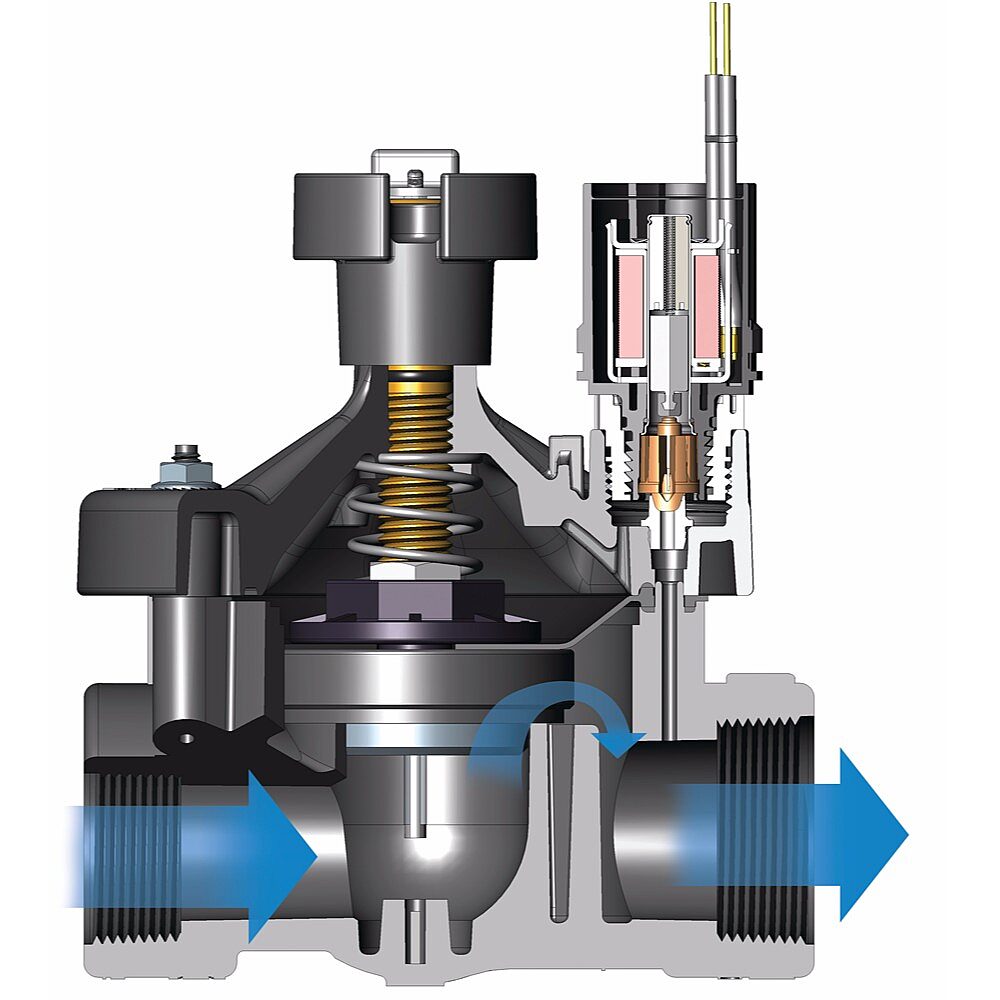

- Normally closed, forward flow design
- Slow closing to prevent water hammer and subsequent system damage
- Low flow capability for a wide range of applications
- One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
- Flow control handle adjusts water flows as needed
- Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
- Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs
- Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads
- Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging (PESB Series only)
- Five-year trade warranty
Specifications
Specs
PRESSURE
20 to 200 psi (1.4 to 13.8 bar) FLOW WITHOUT PRS-D OPTION 0.25 to 200 GPM (0.06 to 45 m3/h; 0.02 to 12.60 l/s) FLOW WITH PRS-D OPTION 5 to 200 GPM (1.14 to 45 m3/h; 0.32 to 12.60 l/s) TEMPERATURE Up to 150° F (66° C) POWER 24VAC 50/60Hz (cycles/sec) solenoid power requirement INRUSH CURRENT 0.41A (9.9VA) at 50/60Hz HOLDING CURRENT 0.14A (3.43VA) at 50/60Hz Options
Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance Regulates up to 100 psi (6.9 bar) Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10.35 bar) Compatible with ESP-LXD decoders Optional purple flow control handle for non-potable water applications PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1½" and 2") Dimensions

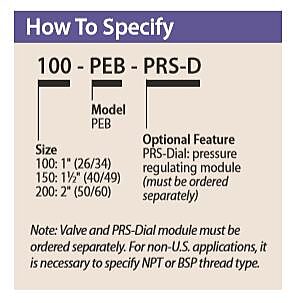

100-PEB 6½" x 4" x 4" – (16.5 cm) x (10.2 cm) x (10.2 cm) H x L x W 150-PEB 8" x 6" x 6" – (20.3 cm) x (15.2 cm) x (15.2 cm) H x L x W 200-PEB 8" x 6" x 6" – (20.3 cm) x (15.2 cm) x (15.2 cm) H x L x W
