Minute Miser™ Electric
From short runs to long hauls, always be ready to help your crew get around fast.
Long walks are wasted minutes when workers are on the clock. The Minute Miser personnel carrier was built to cut the waste, with a quick and agile design that lets you move workers and supplies around your facility fast. So hop aboard and take hold of a more efficient opearation.
Powertrains:
- 24V Electric Drivetrain
- 550-Ib Vehicle Load Capacity
- 300-Ib Cargo Deck Capacity
- 2-Passenger Seating
Key Features
24V Electric Drivetrain
Effecient yet robust power.

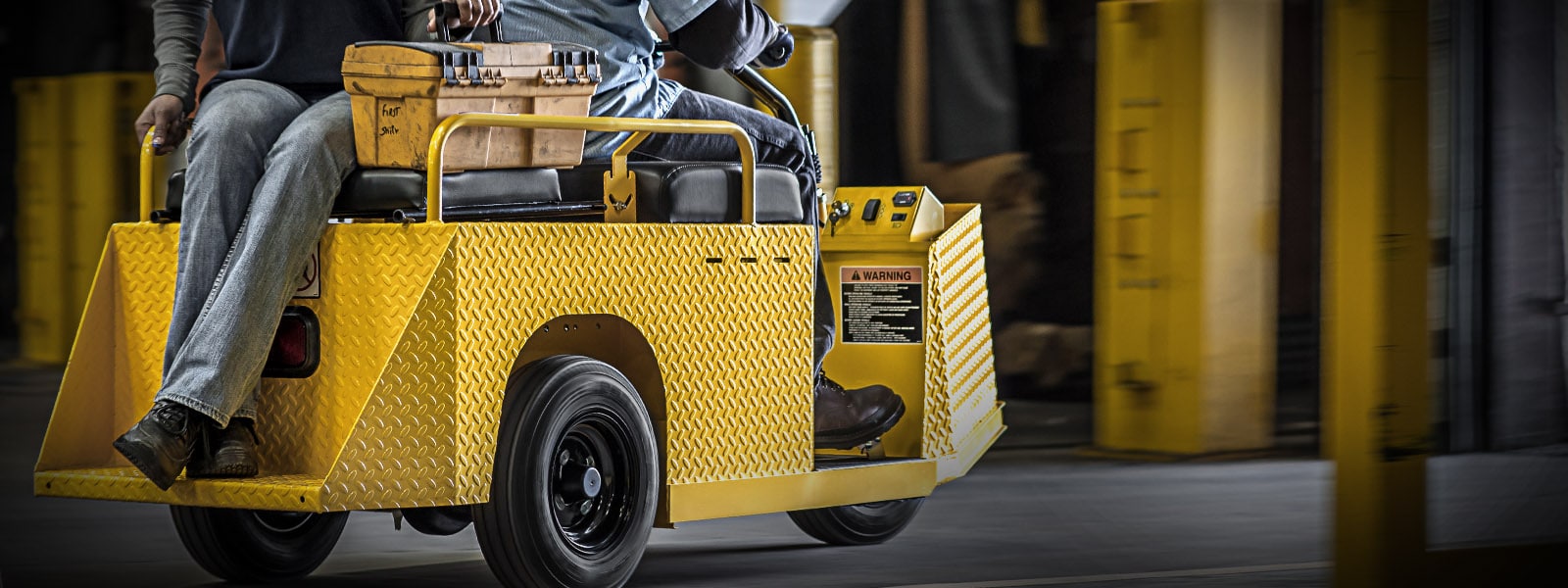

Convertible rear seat
Switch the extra seat to a cargo deck fast.

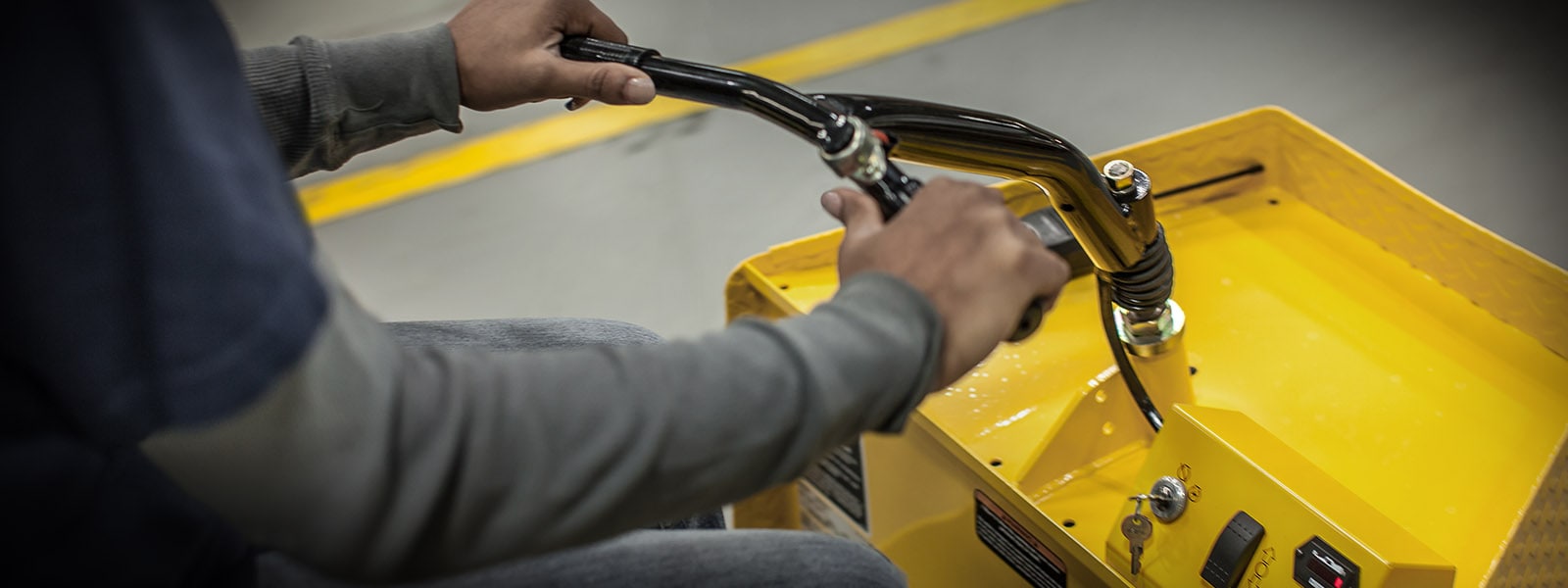

Handlebar steering
Simple control in any setting.
Diamond-plated steel
Built to last.
Specifications
BODY & CHASSIS
FRAME Welded Steel w/ DuraShield™ Powder Coat BODY & FINISH Diamond Plate Patterned. Poly Primer & Acrylic STANDARD COLOR Safety Yellow DIMENSIONS
OVERALL LENGTH 85.0 in (216 cm) OVERALL WIDTH 30.0 in (76 cm) OVERALL HEIGHT 39.0 in (99 cm) WHEEL BASE 48.0 in (122 cm) WHEEL TRACK 25.5 in (65 cm) Rear GROUND CLEARANCE 4.0 in (10 cm) CARGO DECK CAPACITY 300 lb (136 kg) CARGO DECK MATERIAL Plywood POWER
POWER SOURCE 24V DC Series Wound HORSEPOWER (KW) 8.25 hp (6.15 kW) @ 1570 rpm ELECTRICAL SYSTEM 24V DC BATTERY (QTY/TYPE) Four, 6V Deep Cycle BATTERY CHARGER 24V DC, 100-240V AC On-Board, UL & CE KEY OR PEDAL START Pedal SPEED CONTROLLER Solid State 250 Amp Rated DRIVE TRAIN Motor Shaft Direct Drive TRANSAXLE Differential w/ Helical Gears GEAR SELECTION Forward-Neutral-Reverse REAR AXLE RATIO 14.78:1 PERFORMANCE
SEATING CAPACITY 2-Person WEIGHT W/O BATTERIES 440 lb (200 kg) CURB WEIGHT 690 lb (313 kg) VEHICLE LOAD CAPACITY 550 lb (250 kg) BED LOAD CAPACITY 300 lb (136 kg) OUTSIDE CLEARANCE CIRCLE 10.8 ft (3.3 m) SPEED 10 mph +/- 0.5 mph (14 kph +/- 0.8 kph)STEERING & SUSPENSION
STEERING Direct Handlebar to Front Fork SUSPENSION Torque Block (Front) Coil Springs & Single Shock Absorber (Rear) SERVICE BRAKE Rear Wheel Mechanical Drum PARKING BRAKE Single-Point Latch TIRES 4.80 x 8 (Load Range B)
