Liberty
The Vehicle Pushing Everything in a New Direction
The all-new EZGO® Liberty is a first-of-its-kind vehicle pushing everything in a new direction with its four-forward facing seats. As an ELiTE™ lithium vehicle the EZGO Liberty is powered by a proven, maintenance-free Samsung SDI lithium battery system that will propel your next adventure. Make the best of every moment while experiencing unmatched maneuverability, increased comfort and more performance. Explore your next adventure with the EZGO Liberty.
Key Features

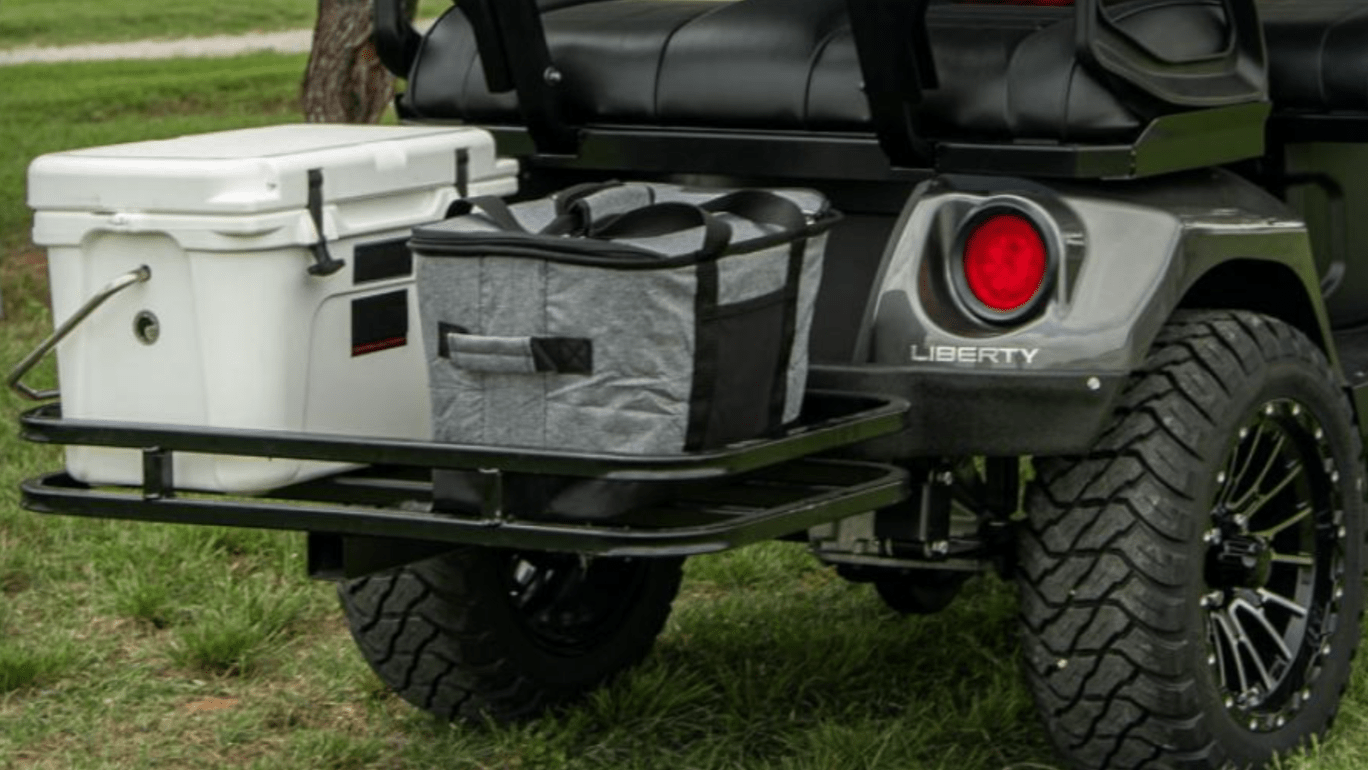

OPTIONAL MOUNT ACCESSORIES
Make the most of your Liberty with our mount accessories including a hitch mounted storage receiver and a 4 bag holder.

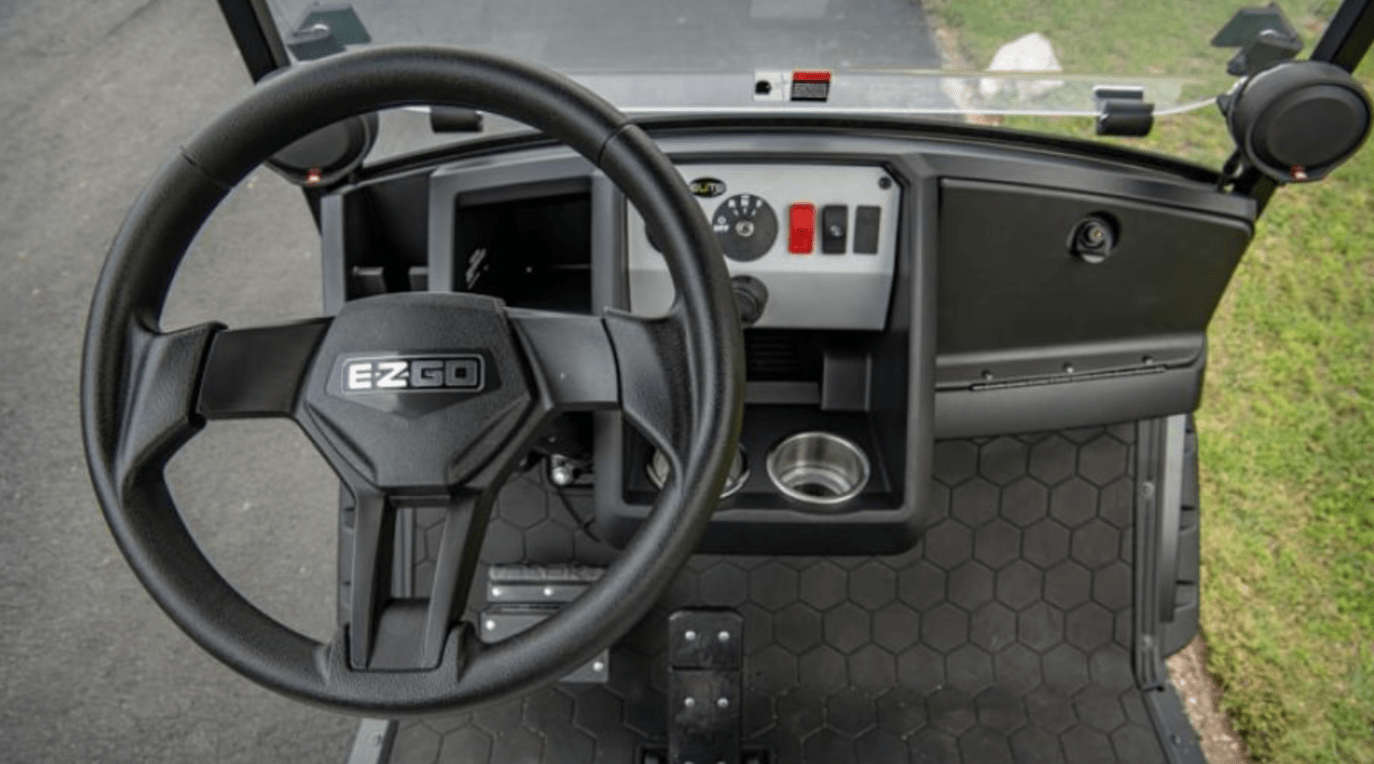

STANDARD PREMIUM INTERIOR
The Premium Interior offers lighted cupholders, premium steering wheel, land individual key switch, glove box door, mats and shelf.

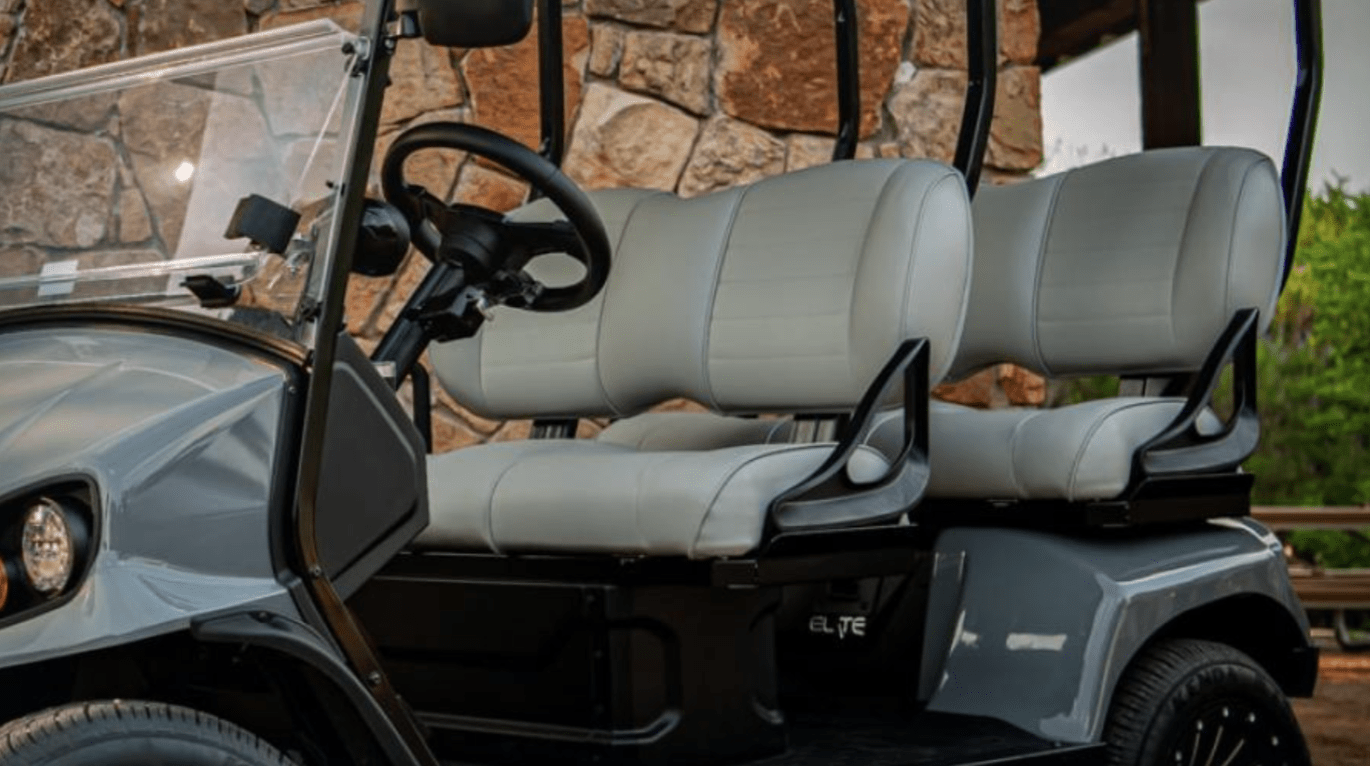

FOUR FORWARD FACING SEATS
Enjoy a spacious and secure second row that will give your passengers a whole new perspective.
UNMATCHED HANDLING AND CONTROL
With its optimized wheelbase, Liberty gives you a tighter turning radius and enhanced maneuverability.
Specifications
DIMENSIONS
OVERALL LENGTH 106.5 in (271 cm) OVERALL WIDTH 48 in (122 cm) OVERALL HEIGHT (W/O ROOF) 54.5 in (138cm) OVERALL HEIGHT (W/ ROOF) 78 in (198 cm) WHEEL BASE 76 in (193 cm) FRONT WHEEL TRACK 37.5 in (95 cm) REAR WHEEL TRACK 39 in (99 cm) GROUND CLEARANCE @ DIFFERENTIAL 7 in (18 cm) POWER
POWER SOURCE 56.7V DC MOTOR TYPE AC Induction HORSEPOWER (KW) 11.7 hp (8.7 kW) ELECTRICAL SYSTEM 56.7V BATTERIES (QTY/TYPE) Single, 56.7V Li-Ion Composite Module (Standard Configuration) KEY OR PEDAL START Pedal BATTERY CHARGER 56.7V 350 W Domestic Charger, 3m Charging Cord SPEED CONTROLLER 235 amp AC controller DRIVETRAIN Motor Shaft Direct Drive TRANSAXLE Differential with Helical Gears GEAR SELECTION Dash Mounted FNR/ Key Switch REAR AXLE RATIO 16.99:1 (Forward) PERFORMANCE
SEATING CAPACITY 4-passenger DRY WEIGHT 854 lb (387 kg) (without batteries) CURB WEIGHT 900 lb (408 kg) DASH/ IP STORAGE CAPACITY 1123 in² VEHICLE LOAD CAPACITY 800 lb (364 kg) REAR CARGO RACK LOAD CAPACITY 100 lb (45.6 kg) TURNING RADIUS 12.85 ft (3.92m) OUTSIDE CLEARANCE CIRCLE 25.7 ft (7.83 m) SPEED (LEVEL GROUND) 19.5 mph (31 kph) +/- 0.5 mph (0.8 kph) STEERING & SUSPENSION
STEERING Self-Compensating Rack and Pinion SUSPENSION Leaf Springs with Hydraulic Shock Absorbers SERVICE BRAKE Dual Rear Wheel Mechanical Self-Adjusting Drum PARKING BRAKE Self-Compensating, Single Point Engagement TIRES Paramount M/T 23x10-14 BODY & CHASSIS
FRAME Welded steel with DuraShield powder coat FRONT BODY & FINISH Injection Molded TPO BACK BODY & FINISH Thermoform ABS AVAILABLE BODY COLORS Black, Bright White, Flame Red, Ocean Grey, Slate, Metallic Charcoal AVAILABLE SEAT COLORS Gray on Black AVAILABLE PREMIUM SEAT COLORS Black, Mushroom, Gray
