KORO® TOP DRAIN
Compete one-pass surface drainage system

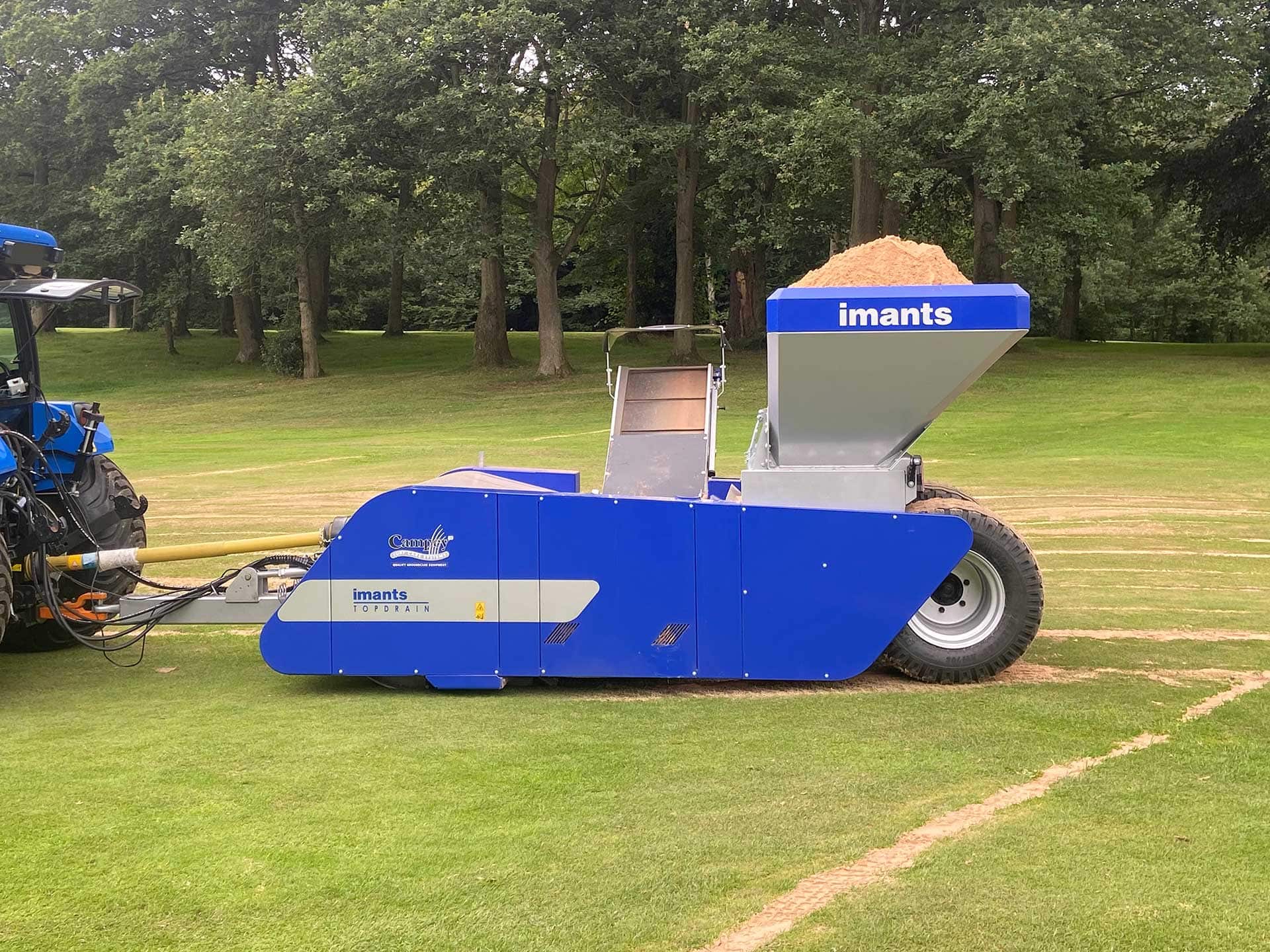

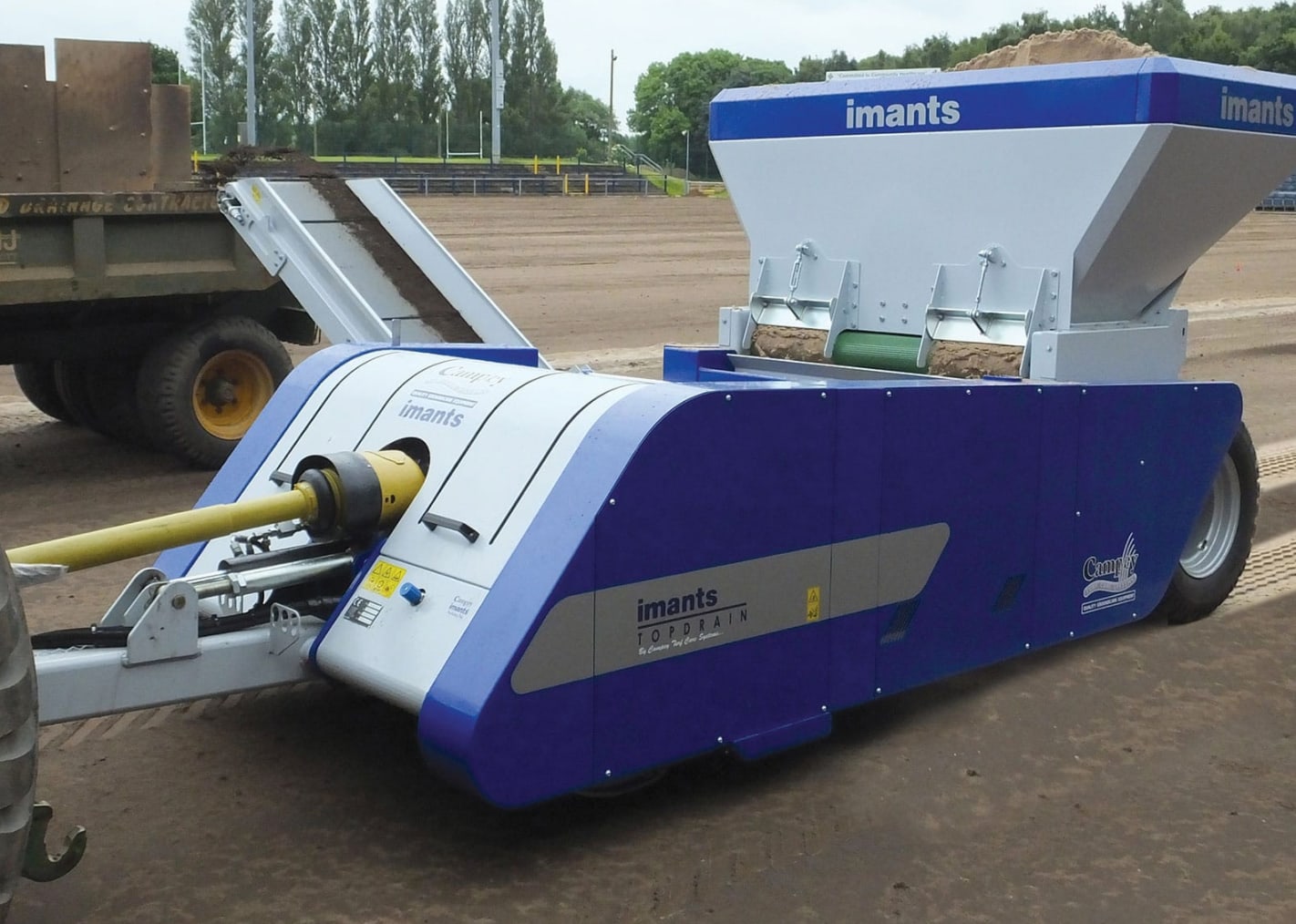

Top Drain® 1000

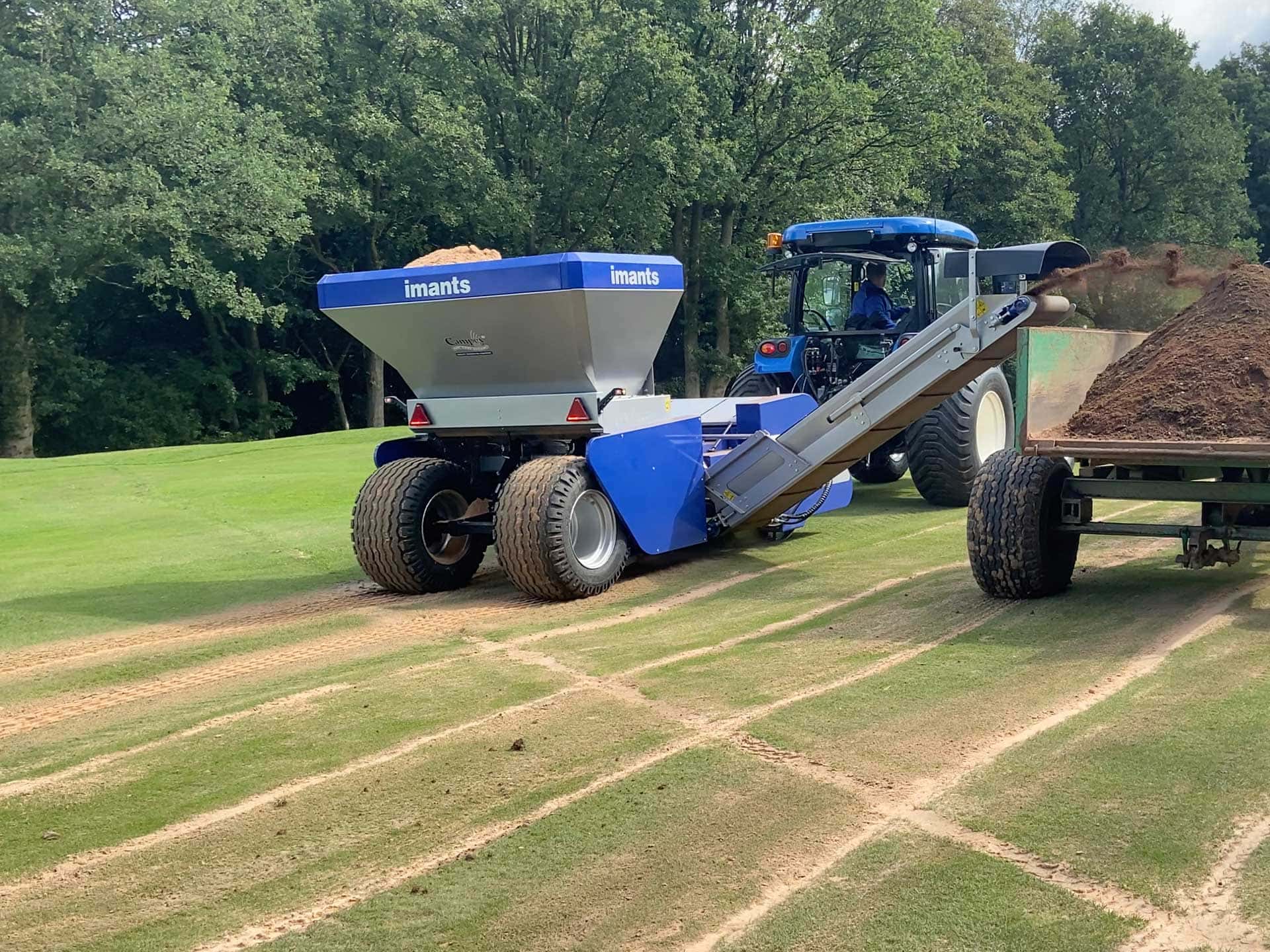

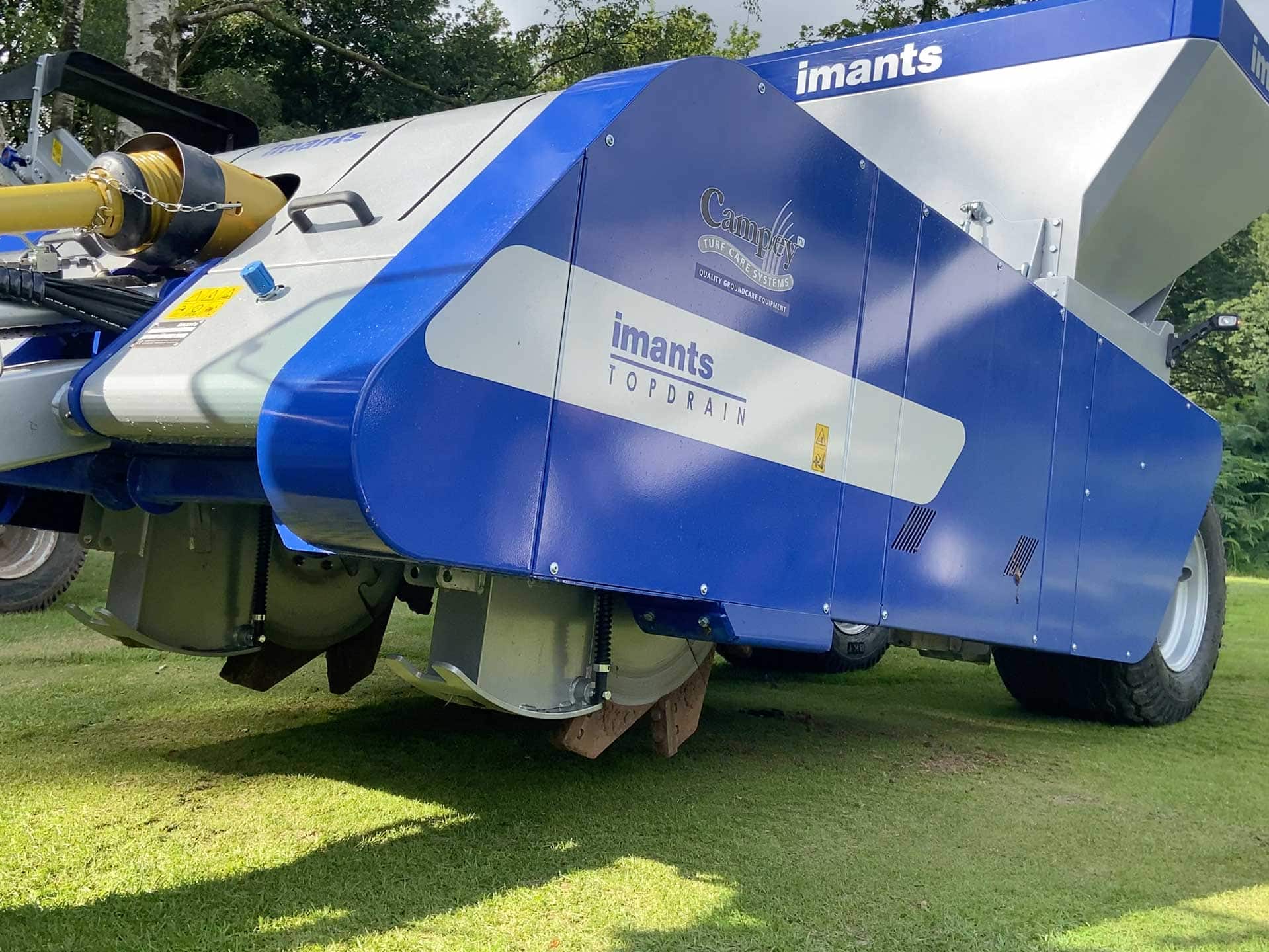

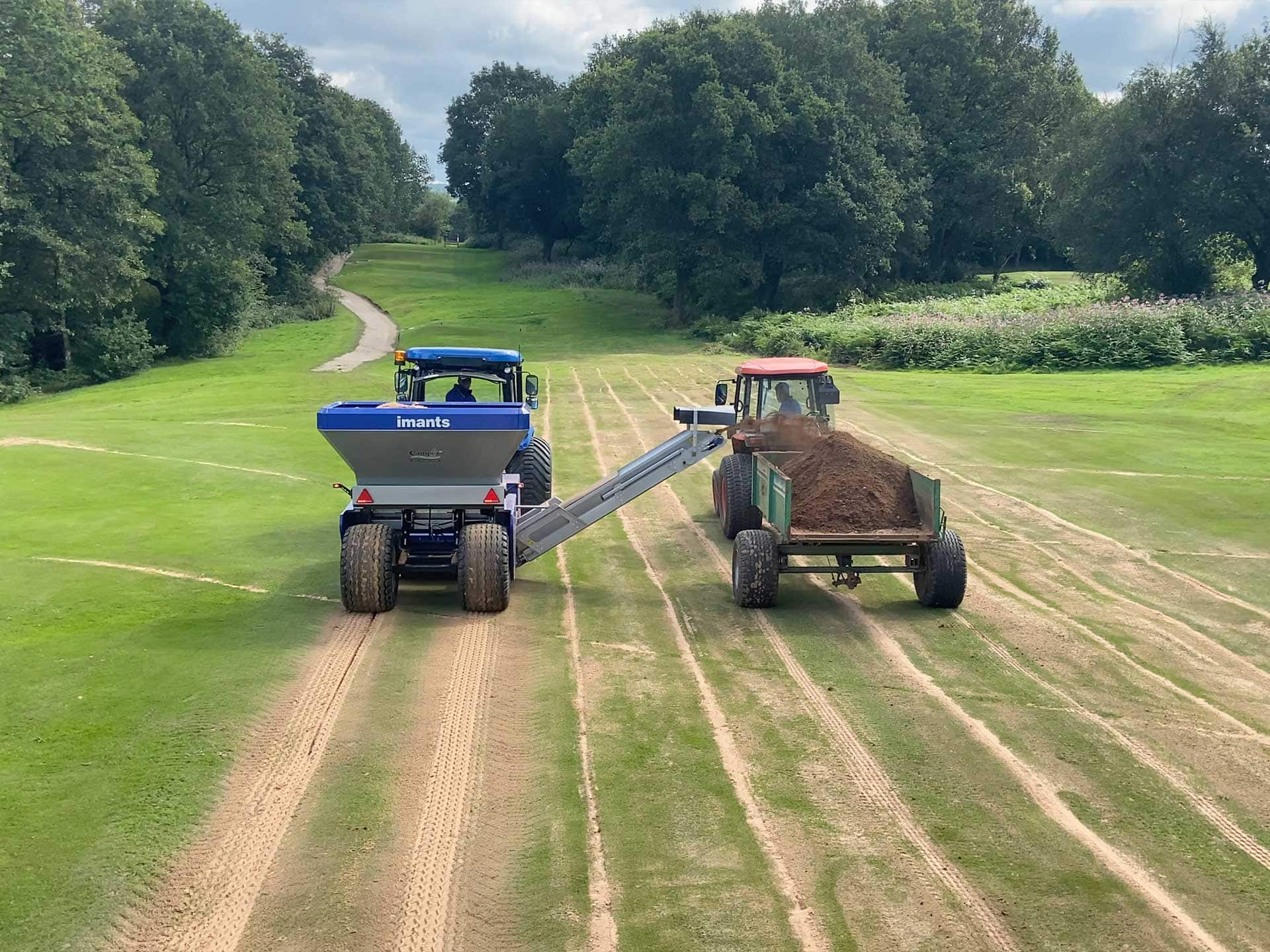

Complete one-pass surface drainage system. The TopDrain 1000 is a unique multifunctional machine that trenches, removes spoil, injects sand and re-compacts all in one operation. Designed for sportfields and golf course fairways, the TopDrain benefits include; material and labour saving, faster processing times and less surface contamination than conventional methods. The sand grid created by the TopDrain is meant to compliment the existing drainage system.
Top Drain® 1500
The TopDrain 1500 is a unique multifunctional machine that trenches, removes spoil, injects sand and re-compacts all in one operation. Designed for sportsfields and golf course fairways, the TopDrain benefits include; material and labour savings, faster processing times and less surface contamination than conventional methods. The sand grid created by the TopDrain complements existing drainage systems.
Testimonials
Since starting with the TopDrain we have done five and a half hectares and you can definitely tell the difference in those areas. We want to provide a high standard of course for the races and it’s very important to us that the safety of the horses and the reliability of the course is up to scratch, and using the TopDrain is helping us do that.
Adrian Kay
Head Groundsman, York Racecourse
We could see the opportunity for it to save us not hours but days of resources and labour charges, and leave a job in a very professional manner with a happy client having their surface out of action for a fraction of the time
Alex Lingard
Contracts Manager, Bourne Amenity
Specifications
TOPDRAIN 1000
WORKING WIDTH 1.00m OVERALL WIDTH DEPTH 2.24m MACHINE HEIGHT (MACHINE ON LEGS) 2.52m * rear wheels lowered HEIGHT OF ELEVATOR (BLADES ON GROUND) 1.70m HEIGHT OF HOPPER (BLADES ON GROUND) 1.85m MACHINE LENGTH 4.99m WORKING DEPTH 260mm (maximum) WEIGHT (APPROX) 2,500kgs (unladen) NUMBER OF CUTTING DISCS 2 SPACING OF DISCS 1.00m THICKNESS OF DIGGING BLADES 4cms POWER REQUIREMENT 55hp – 85hp maximum TRACTOR REQUIREMENTS 540 pto / 6 spline pto6 hyd valves – female fittings on tractor required OPERATING SPEED 0 – 3 kph OPTIONS Road lights TOPDRAIN 1500
WORKING WIDTH 1.50m OVERALL WIDTH 2.75cms NUMBER OF CUTTING BLADES 3 SPACING OF DISCS 50cm THICKNESS OF DISCS 40mm THICKNESS OF BLADES 40mm TRANSPORT WIDTH 2.75m WEIGHT (APPROX) 3300kg (unladen) POWER REQUIREMENT 95hp Creep gear TRACTOR REQUIREMENTS 540 pto. 2 x double, 1 x single spool, 12v plug OPERATING SPEED 0 – 1.8mph (0 – 3kph) OPTIONS Extended side conveyor. Hopper vibrator
