KORO® RECYCLING DRESSER

Decompacting blades improves the quality of turf reducing potential closures, providing consistent revenue

OverviewSpecificationsDownload

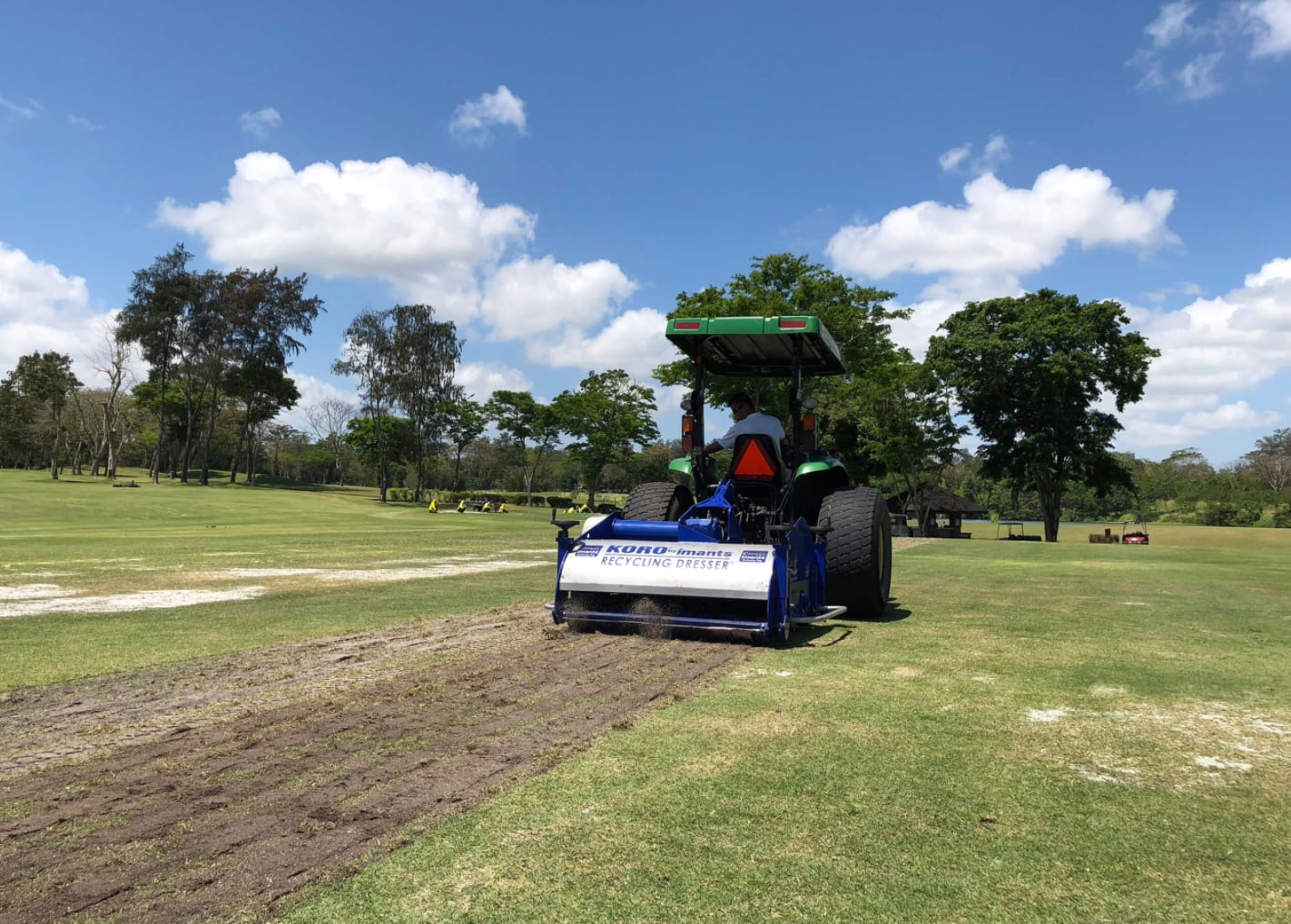

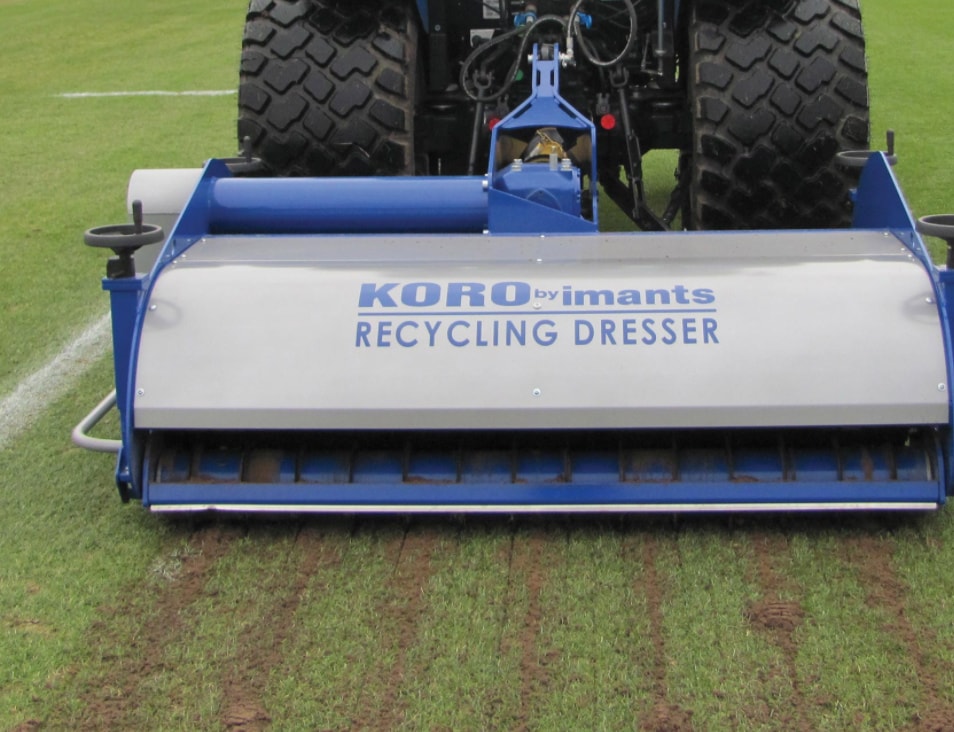

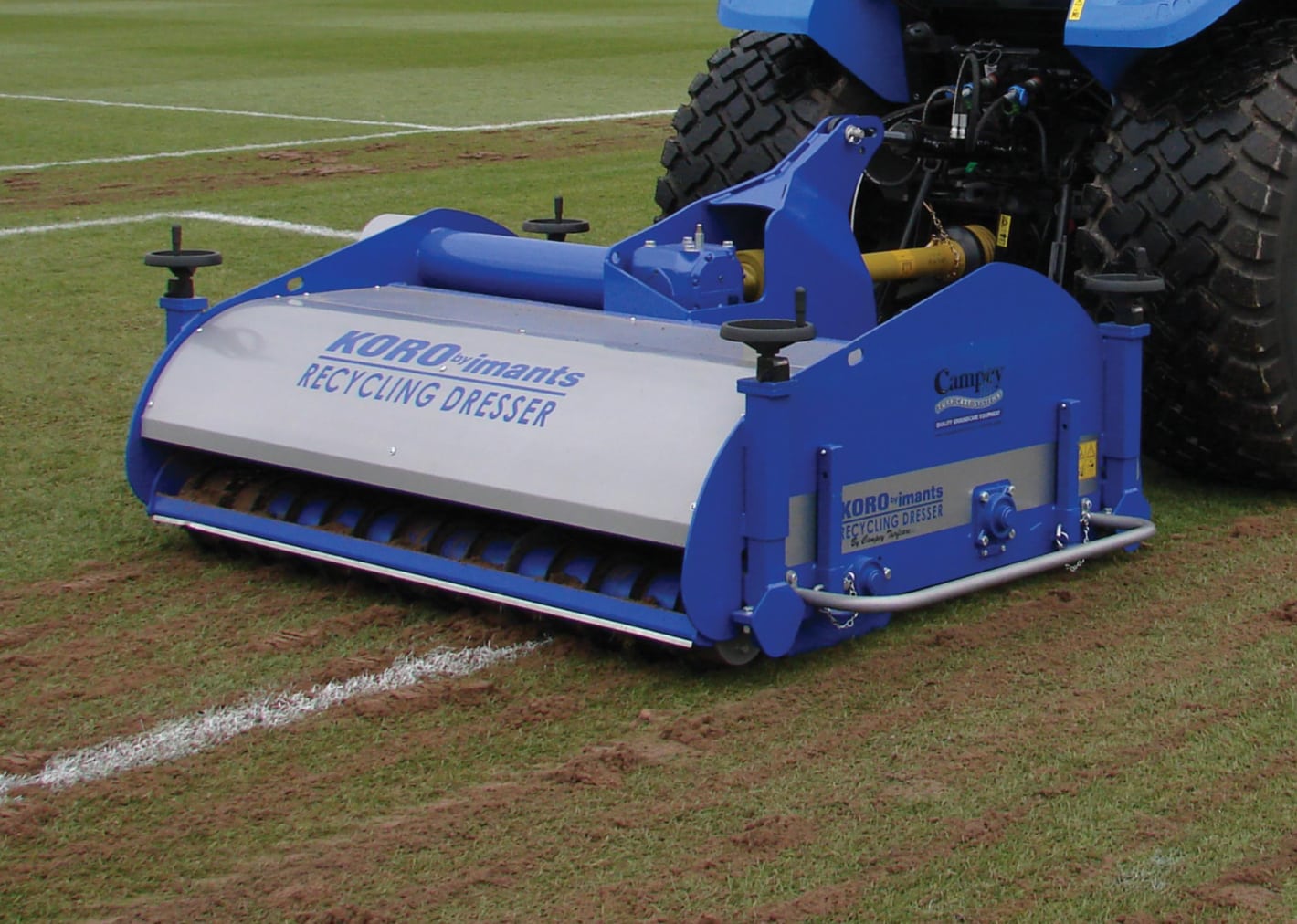

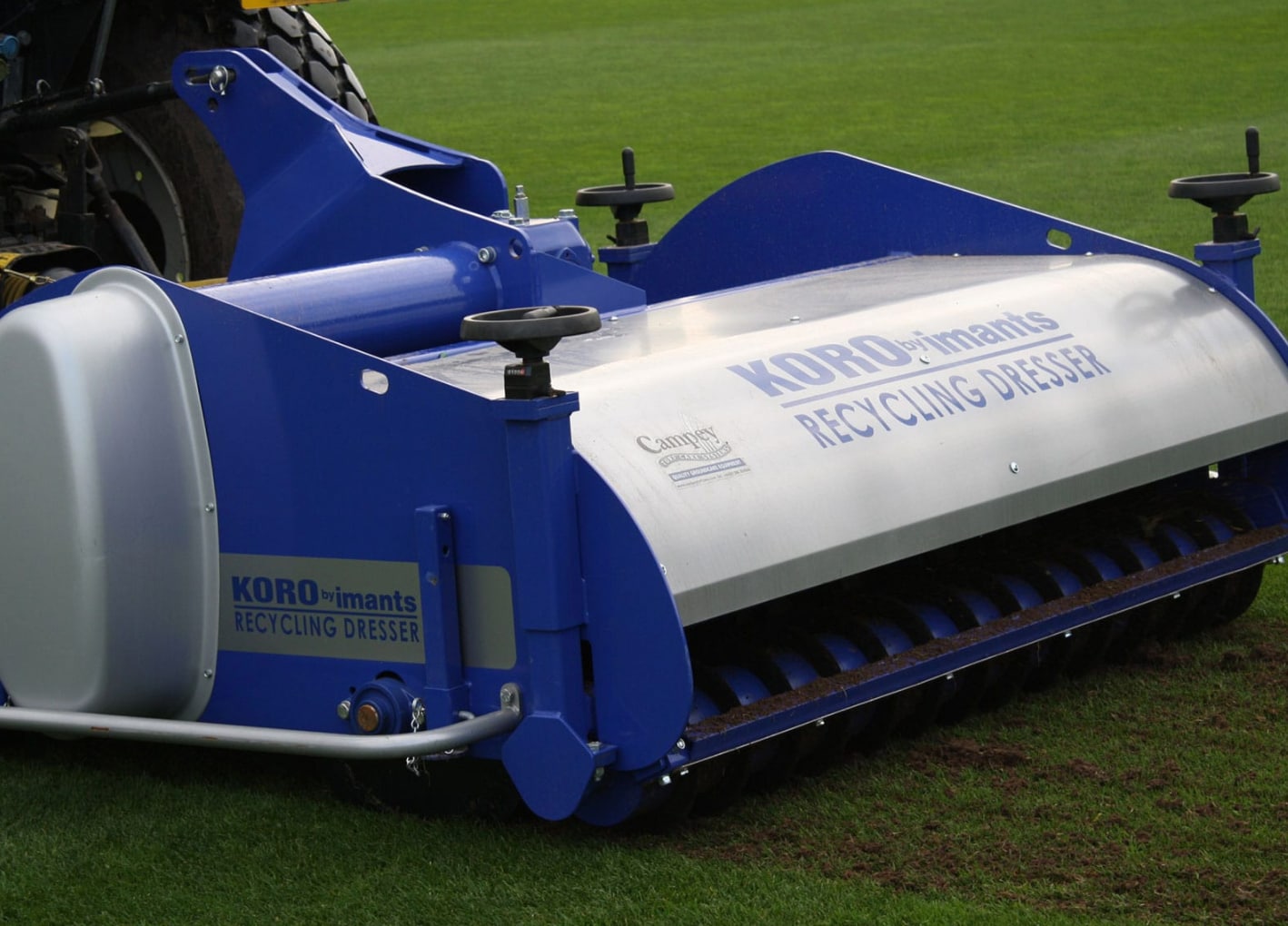

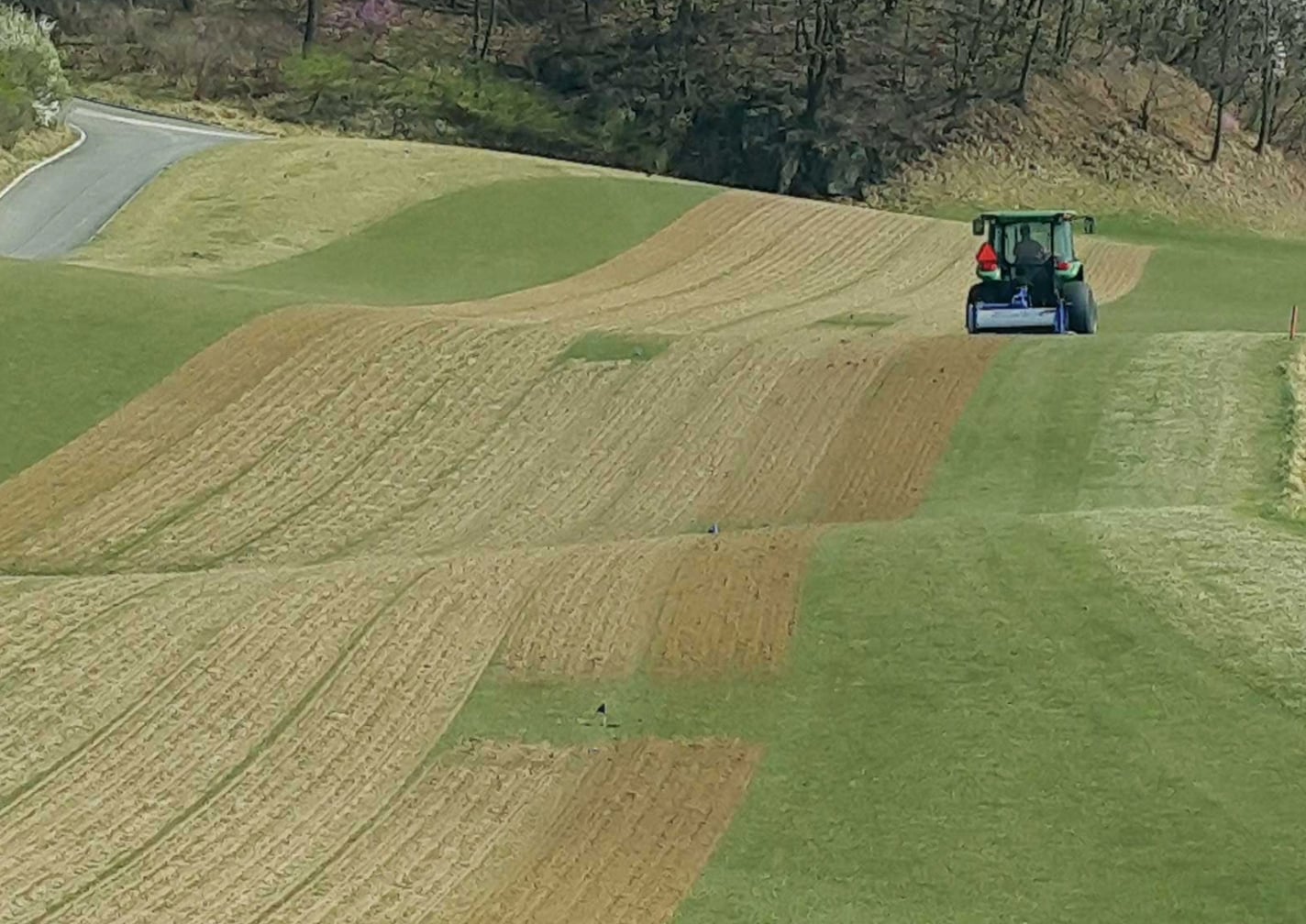

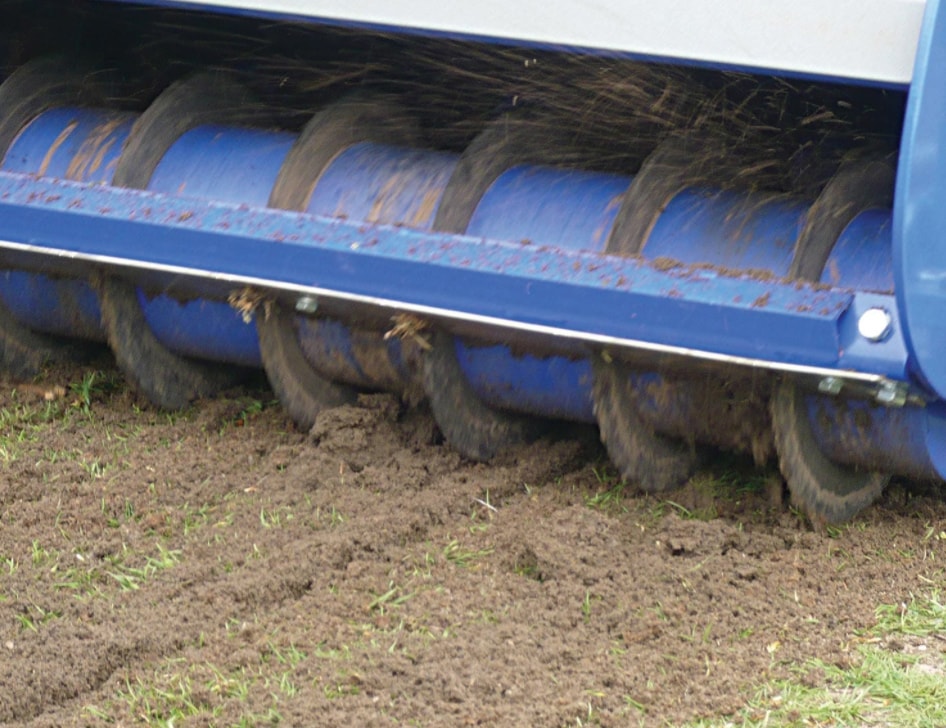

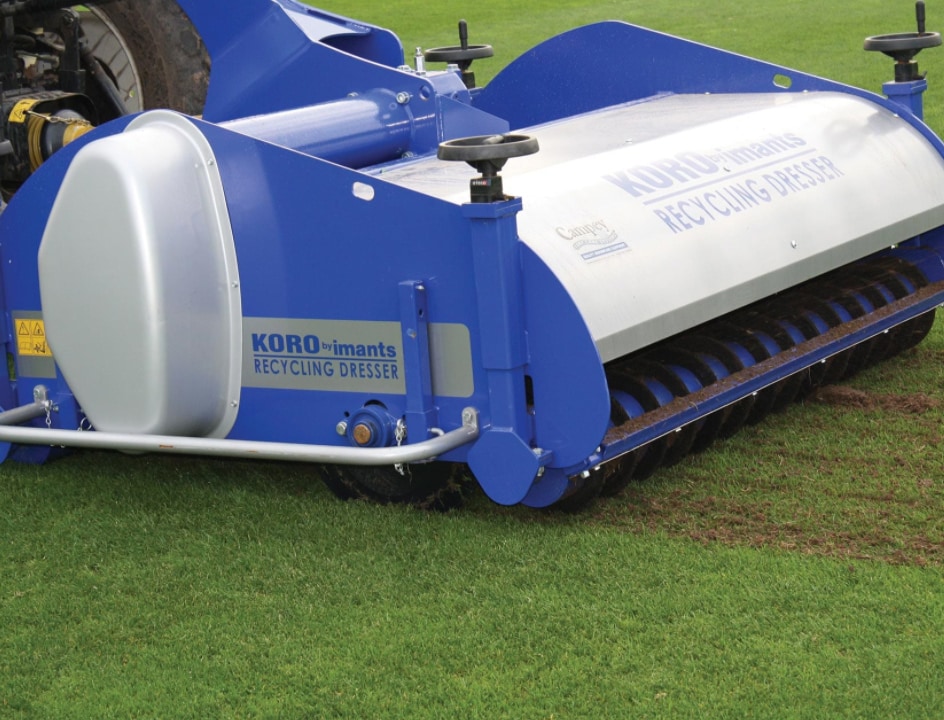

The RECYCLINGDRESSER aerates the underlying soil vertically and horizontally, removing soil from the root zone and re-distributing it across the playing surface. Layering and compaction are eliminated, biological activity increased and existing fertilisers in the soil are better utilized. The RECYCLINGDRESSER reduces the amount of new top-dressing required, therefore saving labour and material costs and promoting sustainable maintenance. 3 different working widths are available in the range.

Testimonials

After using the RecyclingDresser (RCD) the compaction is no longer an issue. Following the treatment with the RCD we over-seeded and fertilised the fairway and within 12 days we started to notice a real difference. The Koro RCD brought the sand back up and gave us a good seed bed and enhanced the water movement within the fairway which is exactly what we wanted.

Fintan Brenan

Links Superintendent, Portmarnock Hotel and Golf Links

Specifications

  • 1600 MK II

    WORKING WIDTH1.60m
    WORKING DEPTH10 – 17mm
    NO. OF DIGGING BLADES (8MM THICK)20
    SPACING OF DIGGING BLADES & DISCS (INTERPITCHED)300mm
    NO. OF COULTER DISCS (4MM) THICK6mm
    WEIGHT (APPROX) INC EXTRA WEIGHT1,010kg
    POWER REQUIREMENT WITH CREEP BOX50hp plus
    TRACTOR REQUIREMENT540 pto
    OPERATING SPEED0.5 – 0.75mph (0.5 – 1kph)

  • 1900 MK II

    WORKING WIDTH1.90m
    WORKING DEPTH10 – 17mm
    NO. OF DIGGING BLADES (8MM THICK)24
    SPACING OF DIGGING BLADES & DISCS (INTERPITCHED)300mm
    NO. OF COULTER DISCS (4MM) THICK7mm
    WEIGHT (APPROX) INC EXTRA WEIGHT1,030kg
    POWER REQUIREMENT WITH CREEP BOX60hp plus
    TRACTOR REQUIREMENT540 pto
    OPERATING SPEED0.5 – 0.75mph (0.5 – 1kph)

  • 2200 MK II

    WORKING WIDTH2.20m
    WORKING DEPTH10 – 17mm
    NO. OF DIGGING BLADES (8MM THICK)28
    SPACING OF DIGGING BLADES & DISCS (INTERPITCHED)300mm
    NO. OF COULTER DISCS (4MM) THICK8mm
    WEIGHT (APPROX) INC EXTRA WEIGHT1,250kg
    POWER REQUIREMENT WITH CREEP BOX80hp plus
    TRACTOR REQUIREMENT540 pto
    OPERATING SPEED0.5 – 0.75mph (0.5 – 1kph)
