KORO® FTM®

Heavy-duty fraise mower for surface restoration of sports pitches

OverviewSpecificationsDownload

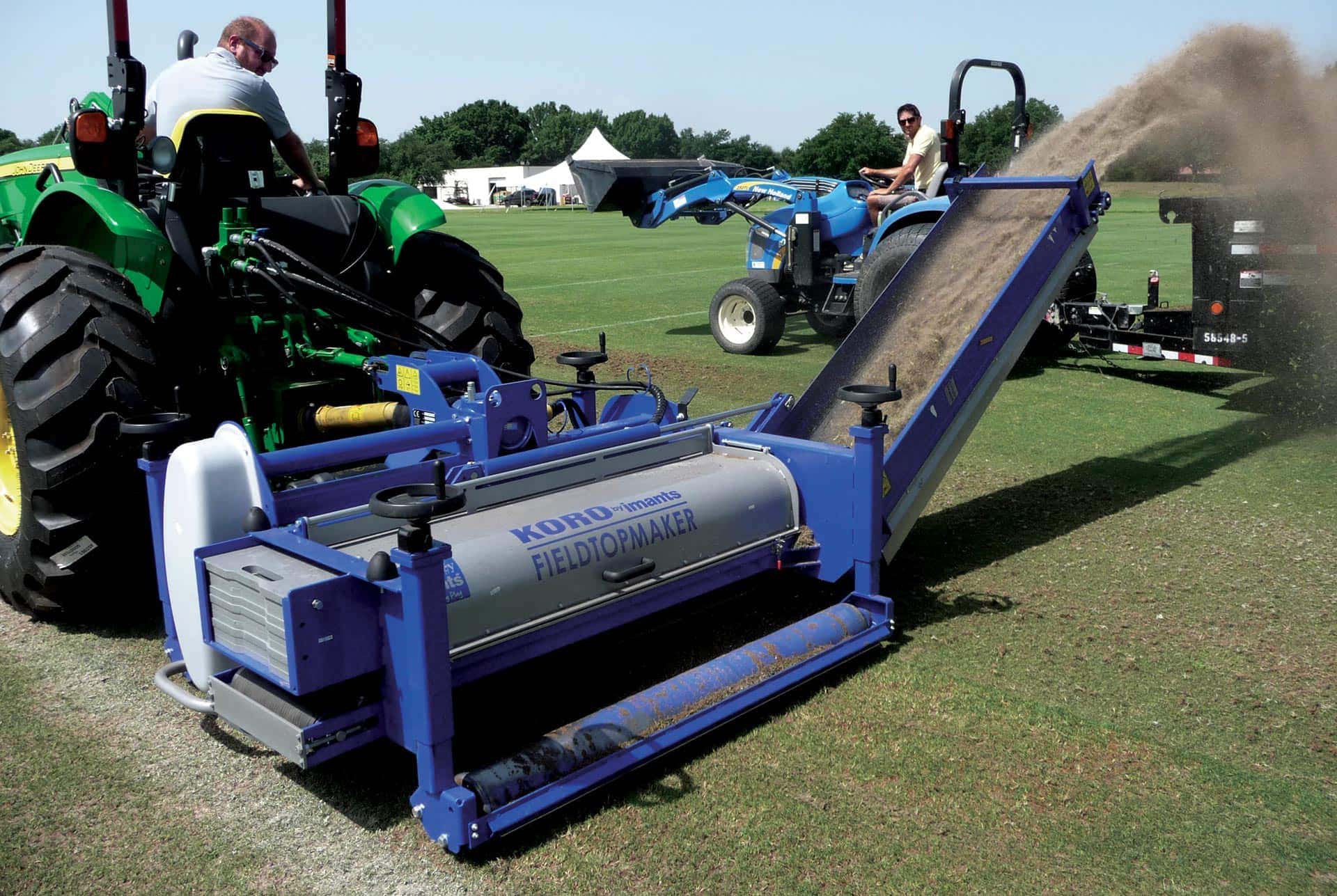

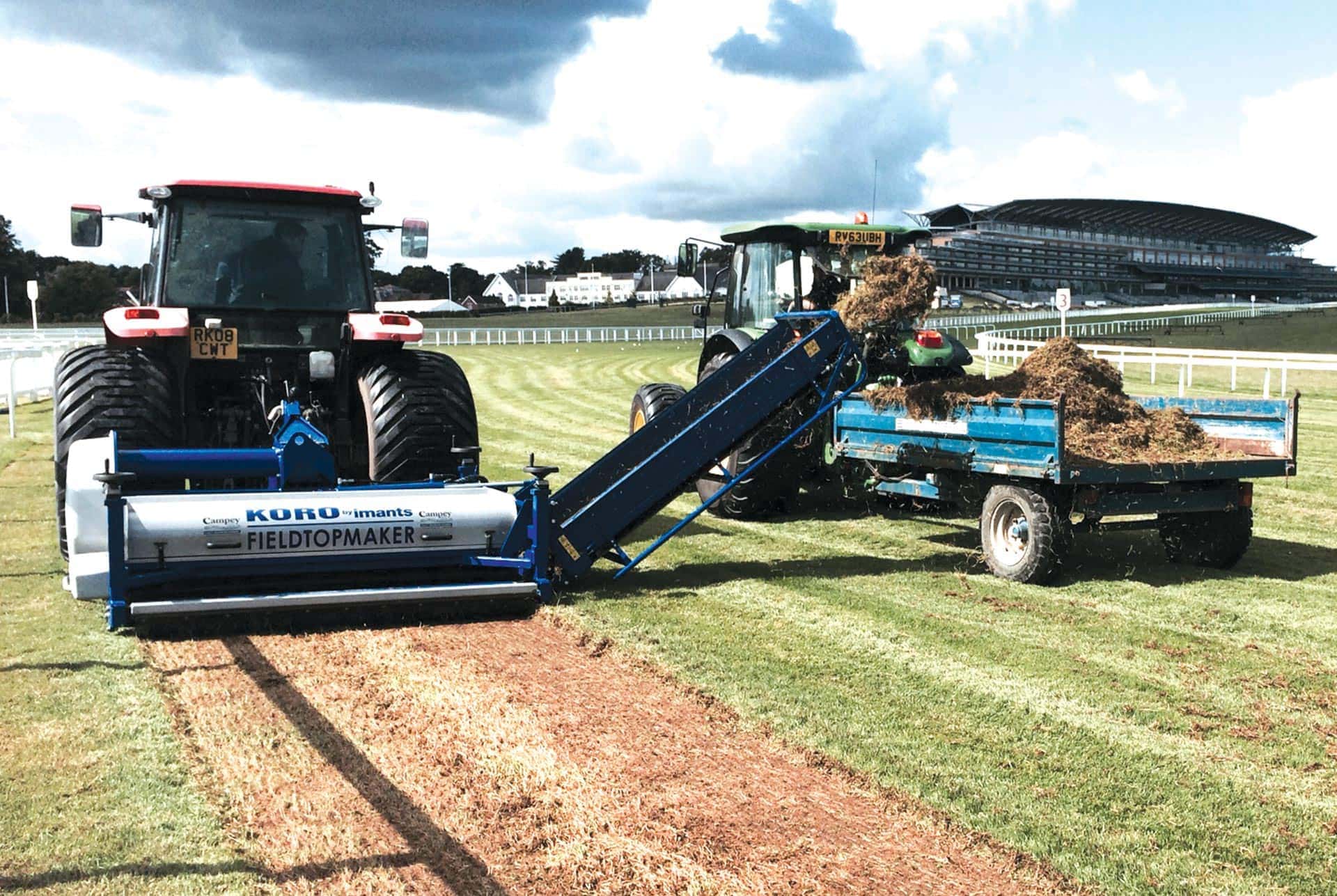

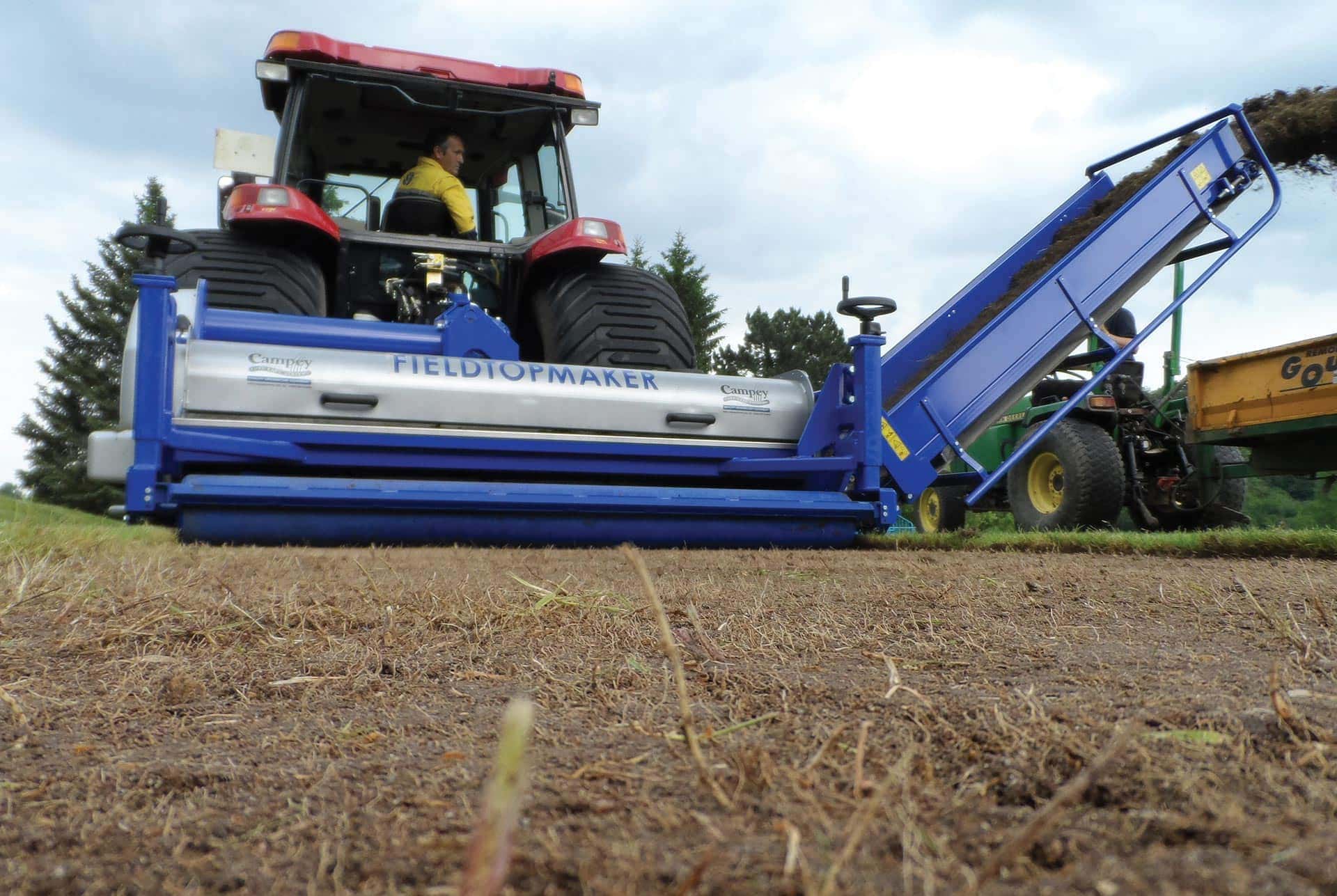

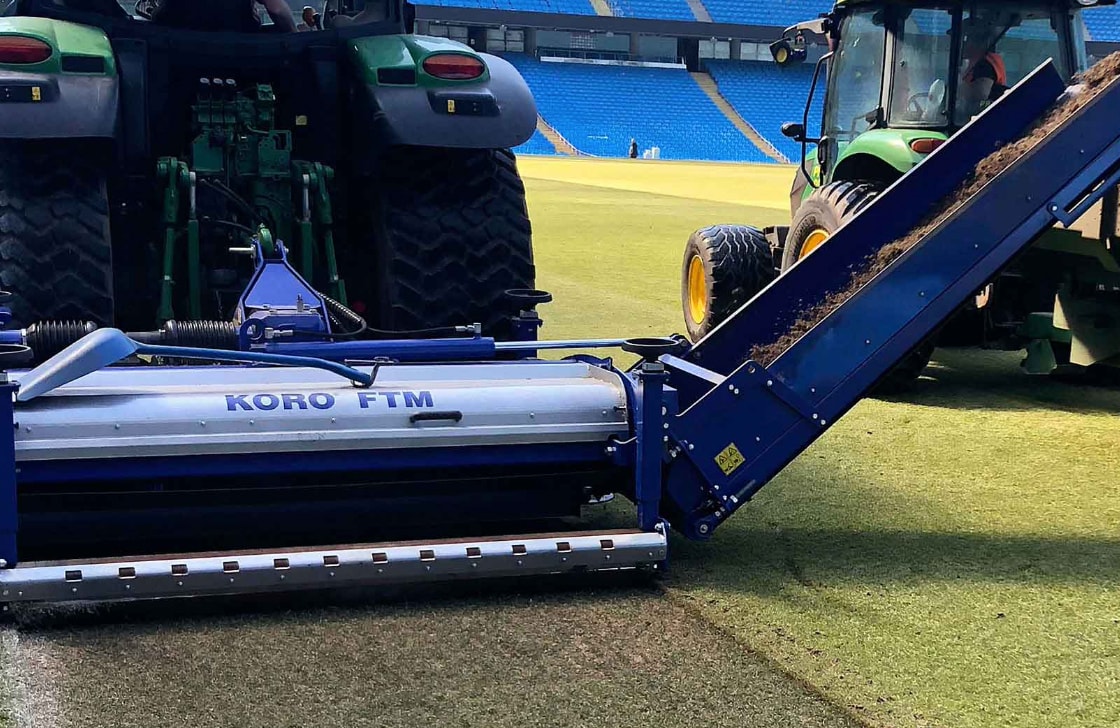

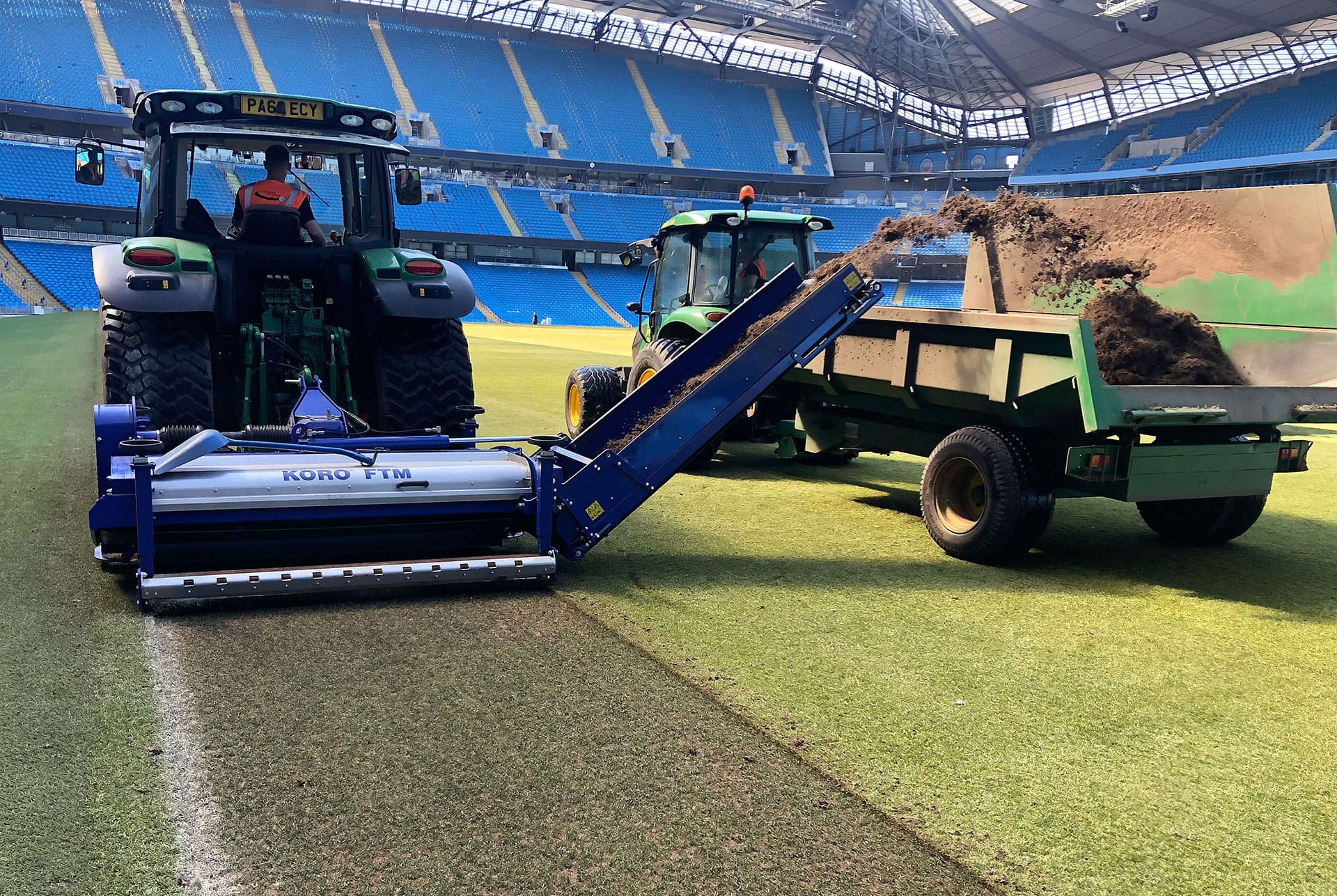

The undisputable success of the KORO® FIELD TOPMAKER® across all sports surfaces has helped produce healthier turf through greatly improved surface hygiene, and the remastered 1.2m, 1.6m, 2.0m and 2.5m models build on that success. To make the machines more user-friendly for golf the weight and balance have been analyzed, resulting in a lighter, steadier experience. Solid locking pins now offer greater consistency and the overall performance is improved due to the re-designed patented UNIVERSE® rotor and angled cross conveyor.

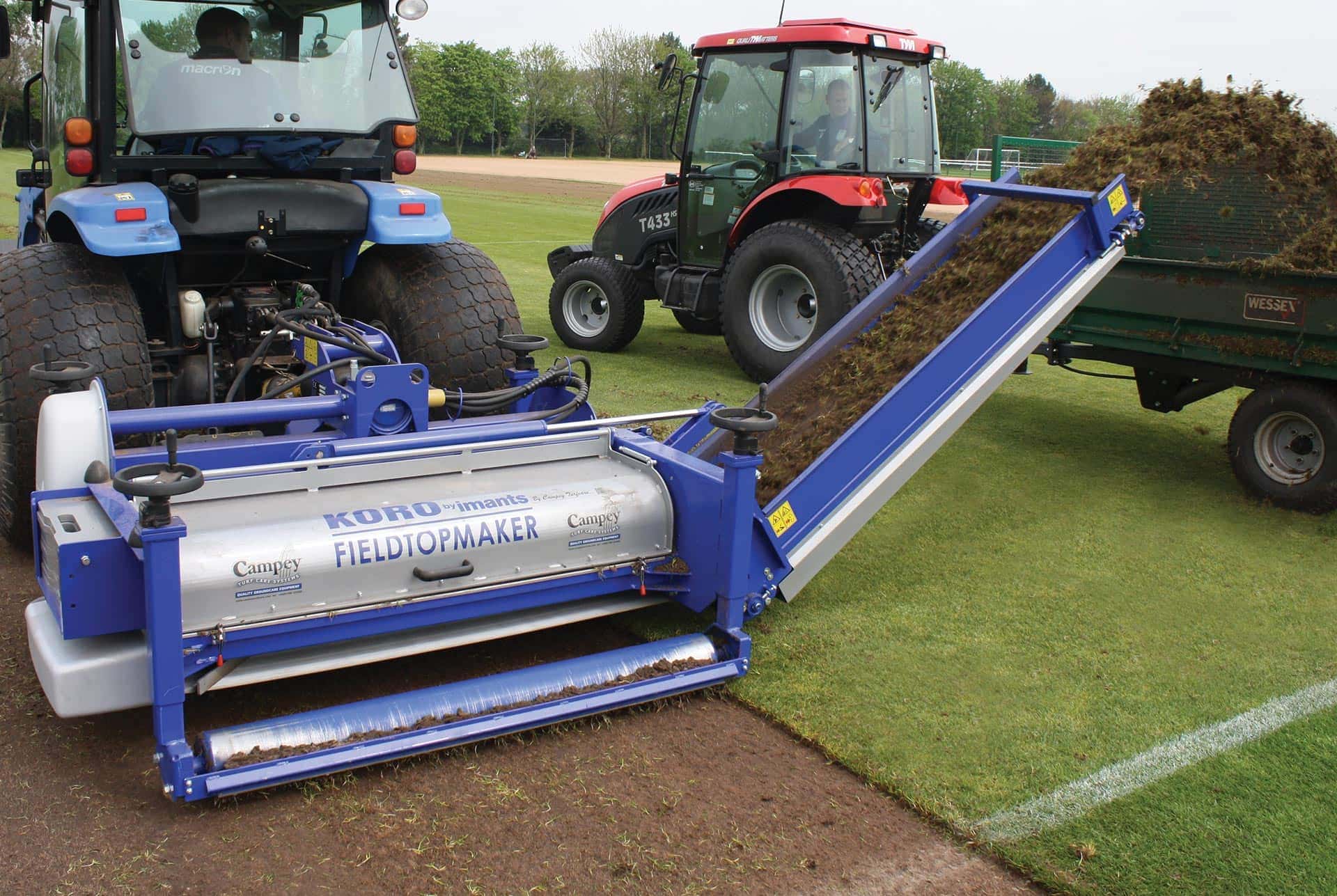

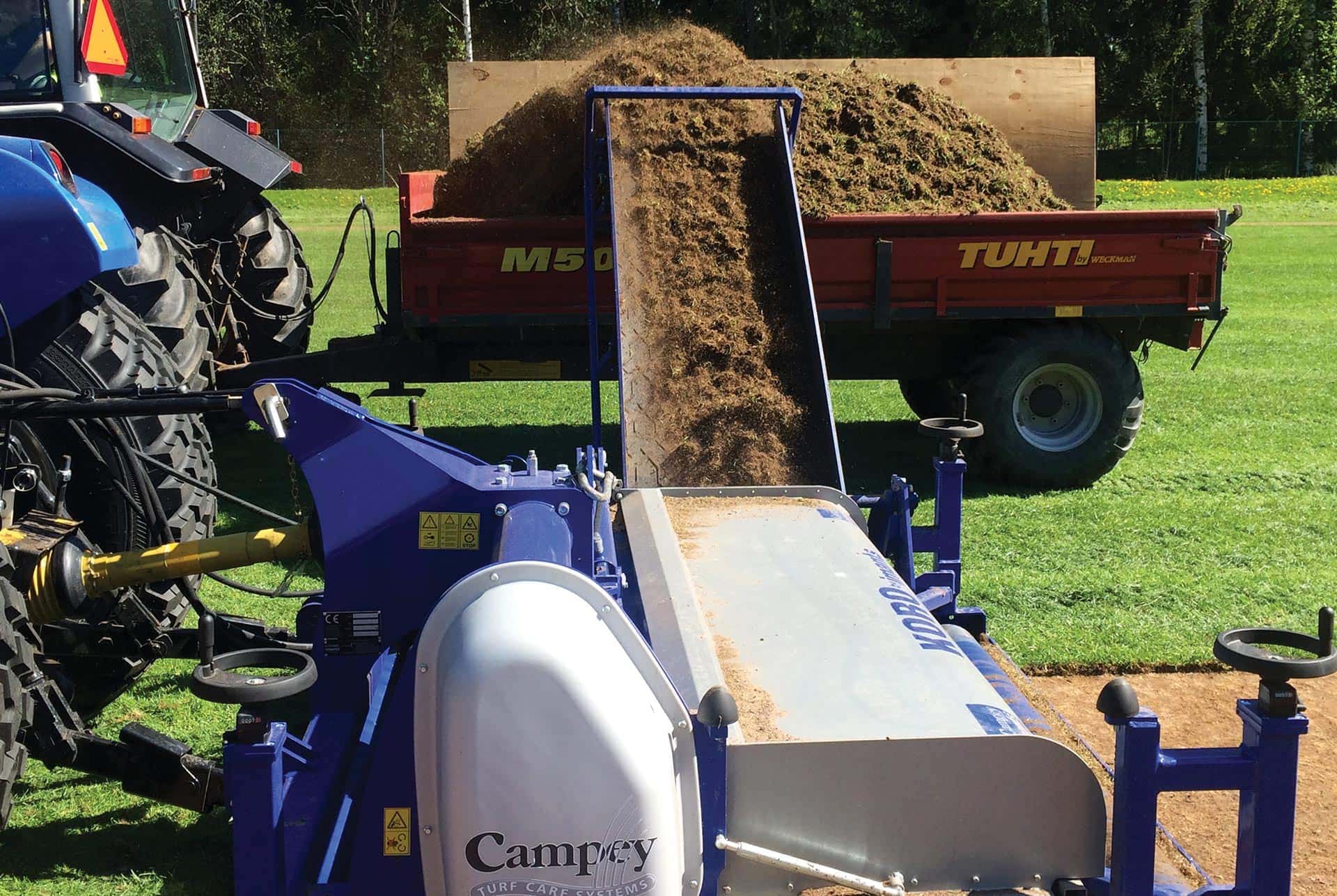

The new angled cross conveyor has been introduced to move material evenly with perfect belt tracking, whilst the weight of the machines has been reduced using a removable 100kg that greatly improves the overall weight balance.

This redistribution of weight means a much smaller tractor can be used to run the KORO® FIELD TOPMAKER®, because the center of gravity has been shifted towards the tractor making it easier to lift. Even when the weight is removed the machine still has improved balanced against previous models.

Maintaining the new range of KORO® FIELD TOPMAKER® s has also been enhanced to ensure working reliability. A modular set-up allows the machine to run without belts and the strong state of the art driveline is maintenance free.

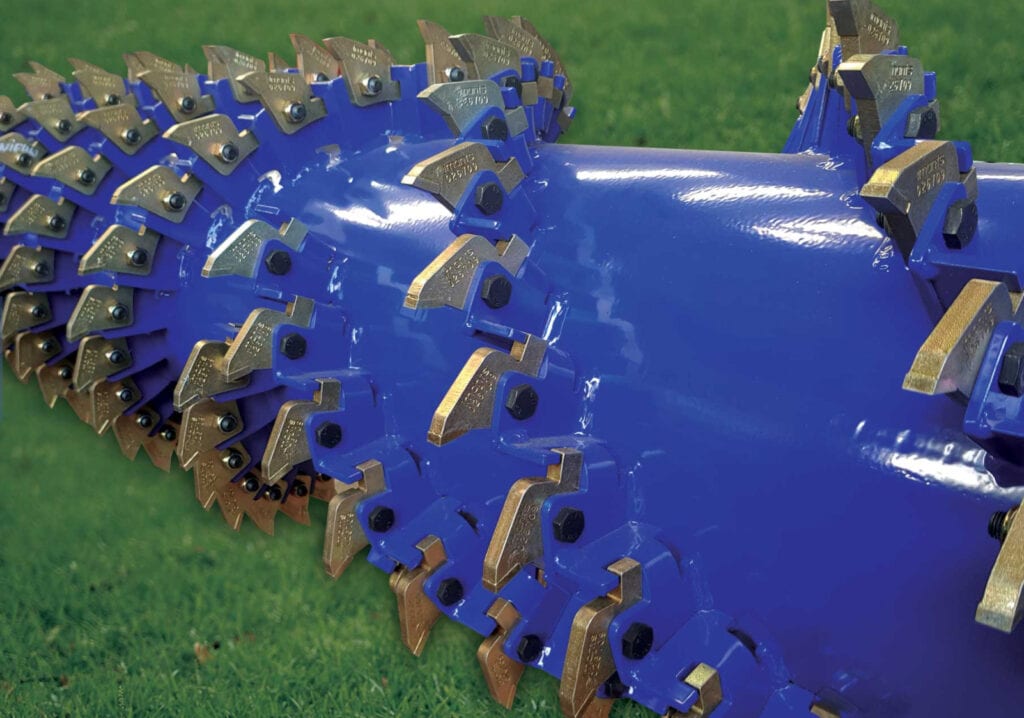

All of the range can facilitate the enhanced patented UNIVERSE® rotor which offers improved clean up and greater surface hygiene. Previous rotors will fit on the 2.0m and 2.5m models but not on the 1.2m or 1.6m

Specifications

  • KORO 1.2

    WORKING WIDTH1.20m
    OVERALL / TRANSPORT WIDTH1.88m
    WORKING DEPTH0-50mm deep ( depending on rotor )
    NO. OF UNIVERSE® BLADES(10mm) 121 on every holder
    NO. OF UNIVERSE® FINESSE BLADES
    (3mm) 121 on every holder *
    (5mm) 121 on every holder *
    NO. OF TERRAPLANE® BLADES36
    WEIGHT765kgs (fitted with Universe Rotor)
    POWER REQUIREMENT35 – 50hp. Creep speed or hydrostatic drive required.
    TRACTOR REQUIREMENT540 pto. 30ltr/min hyd. flow. 2 x double acting spool
    OPERATING SPEED (APPROX)
    0 – 2.4mph (0-4kph) for Universe® rotor
    0 – 3.7mph (0-6kph) with Universe® Finesse blades
    0 – 1.2mph (0-2kph) with Terraplane® rotor
    OPTIONSMid mounted roller (32kg)

    * different configurations are available

  • KORO 1.6

    WORKING WIDTH1.60m
    OVERALL / TRANSPORT WIDTH2.88m
    WORKING DEPTH0-50mm deep ( depending on rotor )
    NO. OF UNIVERSE® BLADES(10mm) 161 on every holder
    NO. OF UNIVERSE® FINESSE BLADES
    (3mm) 161 on every holder *
    (5mm) 161 on every holder *
    NO. OF TERRAPLANE® BLADES48
    WEIGHT880kgs (fitted with Universe Rotor)
    POWER REQUIREMENT45 – 65hp. Creep speed or hydrostatic drive required.
    TRACTOR REQUIREMENT540 pto. 30ltr/min hyd. flow. 2 x double acting spool
    OPERATING SPEED (APPROX)
    0 – 2.4mph (0-4kph) for Universe® rotor
    0 – 3.7mph (0-6kph) with Universe® Finesse blades
    0 – 1.2mph (0-2kph) with Terraplane® rotor
    OPTIONSMid mounted roller (42.2kgs)

    * different configurations are available

  • KORO 2.0

    WORKING WIDTH2.00m
    OVERALL / TRANSPORT WIDTH2.55m
    WORKING DEPTH0-50mm deep ( depending on rotor )
    NO. OF UNIVERSE® BLADES(10mm) 202 on every holder
    NO. OF UNIVERSE® FINESSE BLADES
    (3mm or 5mm) 202 on every holder (101 in half-set)
    NO. OF TERRAPLANE® BLADES60
    NO. OF DIGGING BLADES64 (32 x LH, 32 x RH)
    NO. OF SCARIFYING BLADES112 (1.5mm thick or 3mm thick)
    SCARIFYING BLADE SPACING34mm (3mm blades)
    WEIGHT1,330kgs depending on rotor fitted.
    POWER REQUIREMENT70 – 90hp. Creep speed or hydrostatic drive required
    TRACTOR REQUIREMENT540 pto. 30ltr/min hyd. flow. 2 x double acting spool
    OPERATING SPEED (APPROX)
    0 – 2.4mph (0-4kph) for Universe® rotor
    0 – 3.7mph (0-6kph) with scarifying blades
    0 – 1.2mph (0-2kph) with Terraplane® or Digging rotor
    OPTIONSMid mounted roller (54kg)

    * different configurations are available

  • KORO 2.5

    WORKING WIDTH2.50m
    OVERALL / TRANSPORT WIDTH3.00m
    WORKING DEPTH0-50mm deep ( depending on rotor )
    NO. OF UNIVERSE® BLADES(10mm) 252 on every holder
    NO. OF UNIVERSE® FINESSE BLADES(3mm or 5mm) 252 on every holder (126 in half-set)
    NO. OF TERRAPLANE® BLADES75
    NO. OF DIGGING BLADES80 (40 x LH, 40 x RH)
    NO. OF SCARIFYING BLADES148 (1.5mm thick or 3mm thick)
    SCARIFYING BLADE SPACING34mm (3mm blades)
    WEIGHT1,530kgs depending on rotor fitted.
    POWER REQUIREMENT95 – 120hp. Creep speed or hydrostatic drive required
    TRACTOR REQUIREMENT540 pto. 30ltr/min hyd. flow. 2 x double acting spool
    OPERATING SPEED (APPROX)
    0 – 2.4mph (0-4kph) for Universe® rotor
    0 – 1.2mph (0-2kph) with Terraplane® or Digging rotor
    0 – 3.7mph (0-6kph) with scarifying blades

    * different configurations are available
