G-Series Hydraulic Suction Scanning Screen Filer
Self-Cleaning, Line Powered Water Filters for Landscape, Turf and Golf Applications

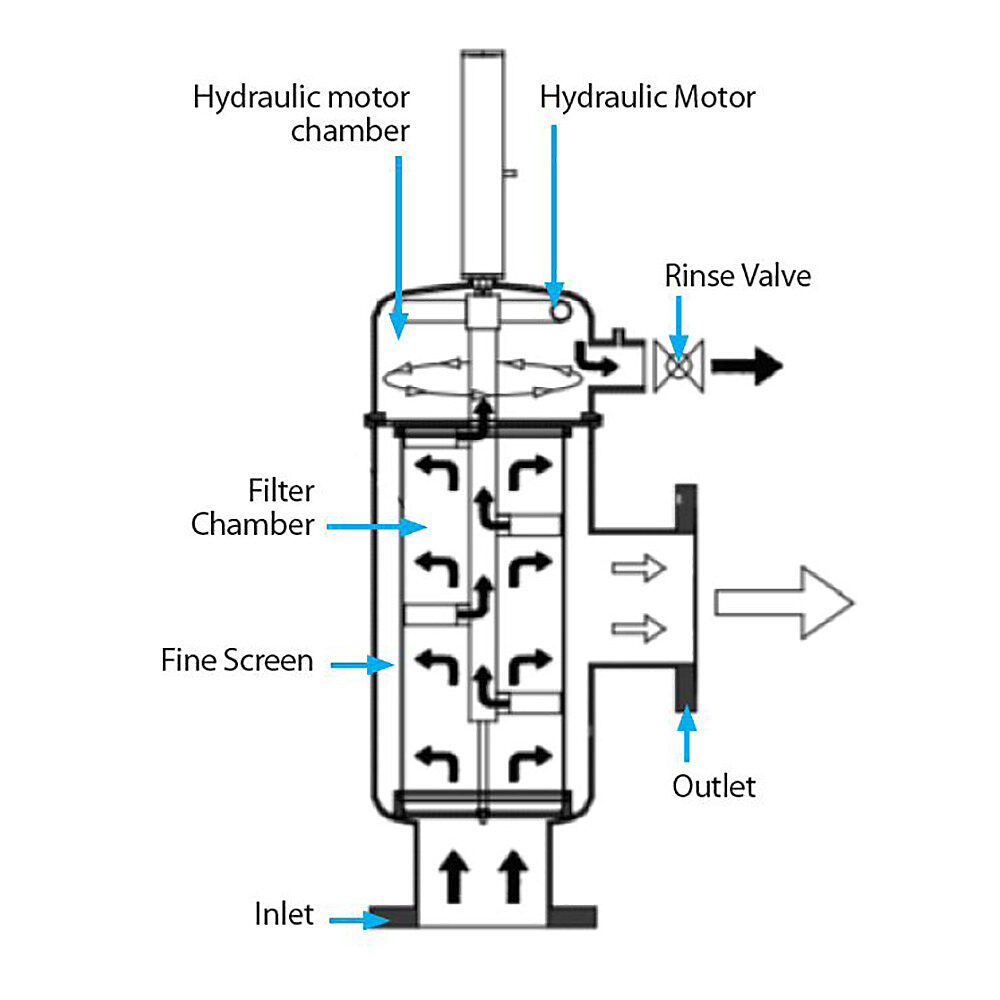

Rain Bird’s G-Series Vertical Hydraulic Suction Scanning Screen Filter provides cost-effective, worry-free medium-flow filtered water to protect all types of irrigation system components. Powered by source line water pressure, the filter’s backwashing system produces a concentrated high velocity and low volume reverse water flow to systematically clean the screen of any entrapped contaminants. Models are available as a filter unit only, or as a filter assembly including bypass plumbing and valves for fast and easy installation on site.
Key Features
- Provides worry free medium-flow rate filtered water quality
- Powered by source line water pressure, the filter’s backwashing system produces a concentrated high velocity and low volume reverse water flow to systematically clean the screen of any entrapped contaminants
- Models are available as a filter unit only, or as a filter assembly including bypass plumbing and valves for fast and easy installation on site
- Heavy-duty, durable, SS woven wire mesh screen filtration element with PVC support is supplied standard. Optional screen construction including multi-layer sintered SS and wedge wire are also available upon request. HT models only supplied with sintered SS
- Standard: 200 micron. Optional: 50 – 2000 micron. Flow rates will vary with screen size and water source. Max flow assumes good water quality (< 20 ppm solids) and 200 micron screen
- Standard flow rates from 100 to 2,640 GPM
- Standard maximum operating pressure of 150 PSI (higher pressures optionally available)
- Filtered, clean water backwashing initiated automatically by time or pressure differential via integrated Rain Bird F2 AC/DC Controller
- Flanged inlet and outlet standard except on HO-G-02 and HT-G-02 filter only configurations which are threaded. Grooved inlet and outlet configuration optionally available
- Vessel Material (based on model): Powder Coated Carbon Steel or 304 Stainless Steel, 316 SS and Duplex SS optional
- Available as filter only, or as a complete assembly with bypass manifold and valves. Higher pressures optionally available
Specifications
Filter
FLOW RATE
100-1320 gpm; higher flows available upon request FILTER BODY Powder Coated Carbon Steel or 304 stainless steel (depending on model) FINE SCREEN SS Mesh screen with PVC support or 316 SS sintered screen (depending on model), SS wedge wire slotted screen is also optionally available OPTIONAL BYPASS MANIFOLD Powder coated carbon steel FILTRATION LEVEL 120, 200 & 300 microns standard, others optional INLET/OUTLET CONNECTIONS 2” NPT, 3”, 4”, 6”, 8” flanged FLUSH VALVE 1”, 1.5” or 2” depending on model MINIMUM OPERATING PRESSURE FOR FLUSH OPERATION 35 psi MAXIMUM OPERATING PRESSURE 150 psi (higher pressure options available) Automatic Controller
Two stations plus master valve Input voltage: 110VAC, 50/60 Hz; 220 VAC optional Rust-proof outdoor enclosure Pressure differential, time, or manual backflush actuation Dimensions: 9.5” height x 7.8” width x 4” depth
