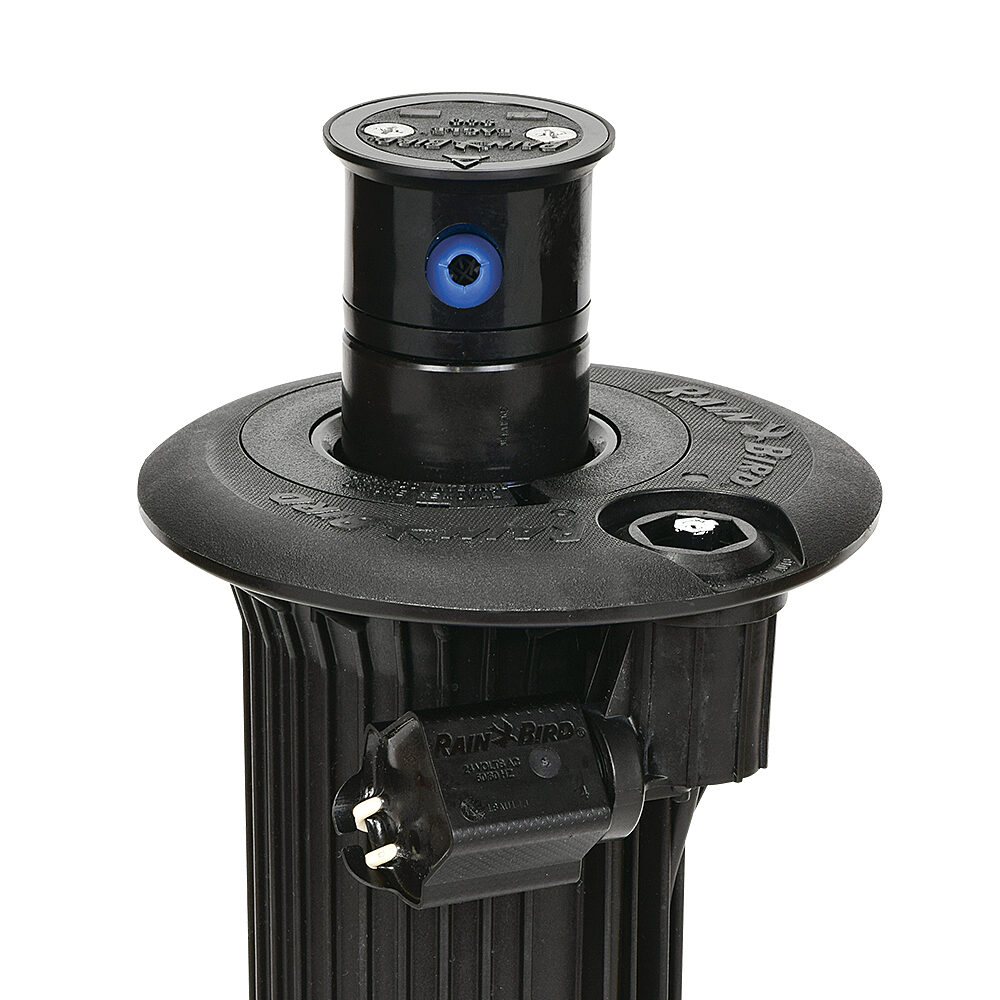

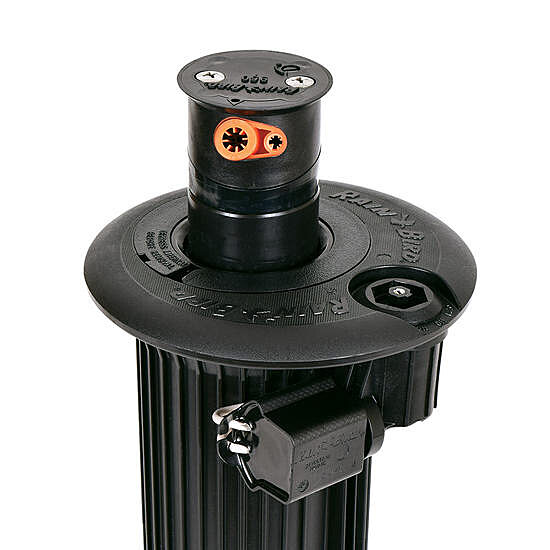

Eagle™ 900/950 Series
Our Largest Throw Range for Big Areas

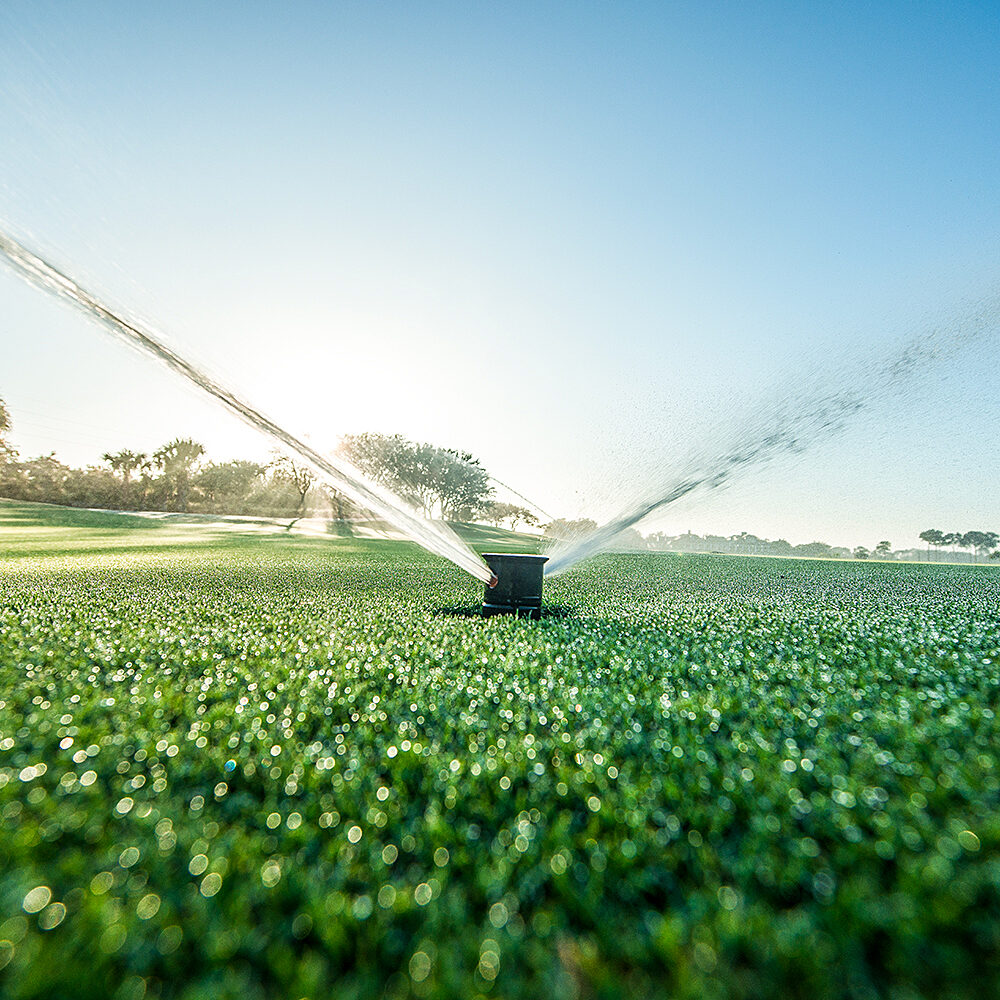

The Full-circle 900 Series and part-circle 950 Series are available in IC, electric and SAM models. With a uniform spray pattern, it allows you to reach longer distances more efficiently and get more coverage from each rotor.
- Reach up to 97’ of throw range on full-circle applications or 92’ on part-circle
- High- performance nozzles deliver increased droplet size for maximum efficiency
Key Features
Timeless Compatibility™
- Designed for Timeless Compatibility™ with every EAGLE® rotor manufactured since 1992, these rotors give you the flexibility to update internals without having to dig up the case, saving you even more time.
GBS25 Solenoid
- Delivers 25kV surge protection and built-in filtration for a second level of protection from debris. Eliminates the most common maintenance tasks that plague competing rotors.
Top Serviceability
- With superior performance in a smaller footprint than competing rotors and an intelligent snap-ring design for quick access to serviceable components, Rain Bird rotors have long been the perfect choice for golf courses.
Specifications
Specs
RADIUS EAGLE 900: 63' to 97' (19.2 m to 29.6 m)EAGLE 950: 70' to 92' (21.3 m to 28.0 m)FLOW RATE EAGLE 900: 21.4 to 57.1 gpm (1.35 to 3.60 l/s) (4.85 to 12.97 m³/h)EAGLE 950: 19.5 to 59.4 gpm (1.23 to 3.75 l/s) (4.43 to 13.49 m³)ARC EAGLE 900: Full-circle 360°EAGLE 950: Part-circle, 40° to 345°MAXIMUM INLET PRESSURE Models E and IC: 150 psi (10.3 bars)Models SAM: 100 psi (6.9 bars)PRESSURE REGULATION RANGE 60 to 100 psi (4.1 to 6.9 bars) FACTORY PRESSURE SETTINGS 900E/IC & 950E/IC available in 70 and 80 psi (4.8 and 5.5 bars) NOZZLE TRAJECTORY Standard: 25° INLET THREADS 1.5" (3.8 cm) (15/21) ACME Female Threaded HOLDBACK SAM: 15' (4.6 m) of elevation ROTATION TIME EAGLE 900: 360° in ≤ 240 seconds; 210 seconds nominallyEAGLE 950: 180° in ≤ 120 seconds; 105 seconds nominallyMAXIMUM STREAM HEIGHT 20' (6.1 m) SOLENOID 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)60 cycle: 0.25 amp holding current (6.0 VA)50 cycle: 0.32 amp holding current (7.7 VA)SURGE RESISTANCE Up to 25KV standard on electric models with the GBS-25 solenoid TOP-SERVICEABLE ROCK SCREEN™ AND REPLACEABLE VALVE SEAT All 900 & 950 models Dimensions
BODY HEIGHT 13.4" (34.0 cm), Pop-Up Height to Mid-Nozzle: 2.25" (5.7 cm), Top Diameter: 7" (17.8 cm)
