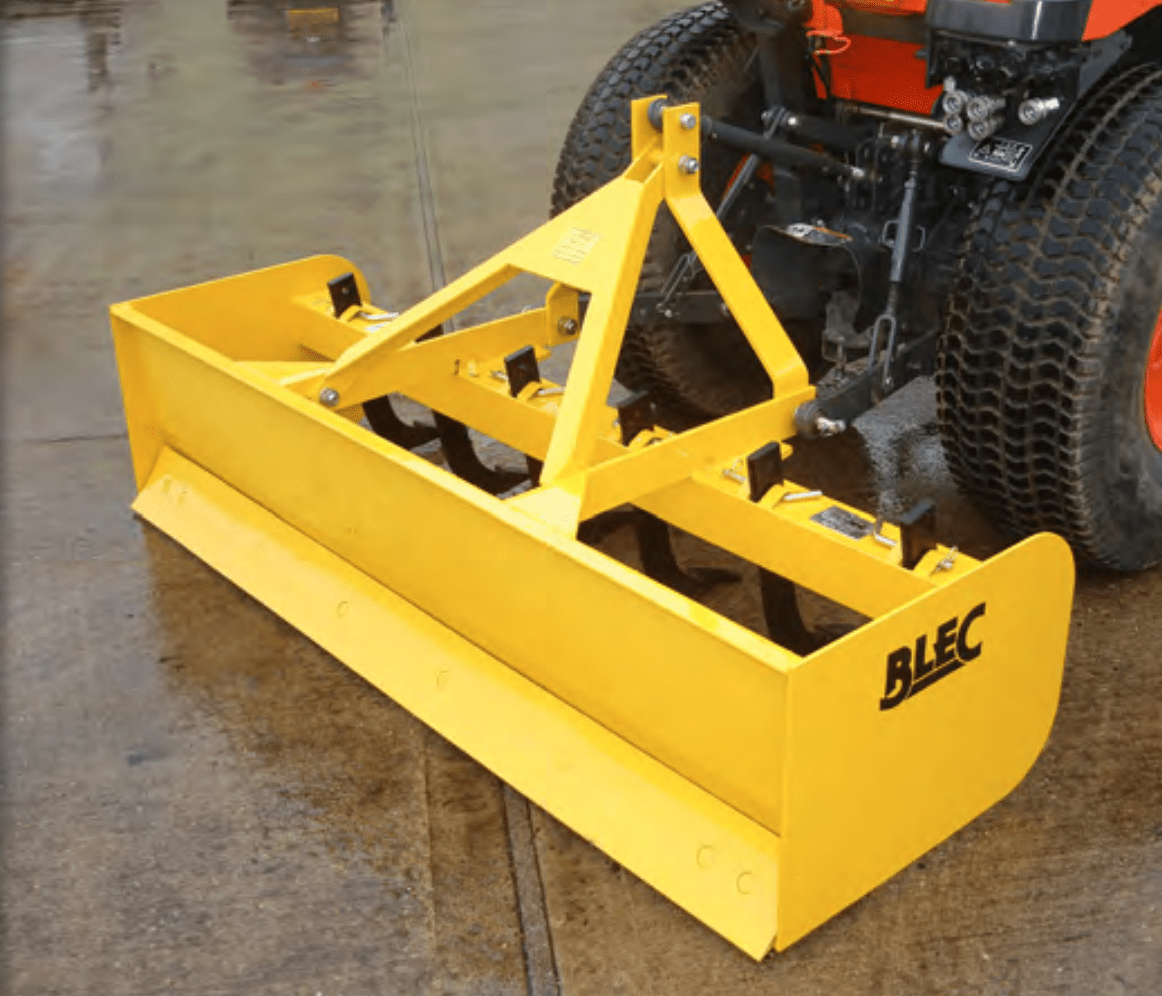

Blec Box Scraper
- Universal landscape implement
- All models equipped with front and rear blades for moving soil/stones
- Adjustable ripping tines
- Easy to use and maintain
- Replaceable cutting blades
- Available in widths 1.5 and 1.8m
- Optional wheel kit for accurate grading
The BLEC Box Scrapers are a low cost, easy to use landscaping tools, ideal for cultivating, levelling and clearing – a must for the contractor. Adjustable ripping tines can be raised clear of the ground or set down to rip up the ground, the ‘box’ effect will allow soil to be dragged forward filling in any undulations, the reverse blade will backfill or back blade very effectively. An optional wheel kit permits accurate grading. Also ideal for grading stone/gravel roadways.
Specifications
BLEC BOX SCRAPER
Model 1500 1800 Model Number 192.150.008 192.180.008 Tractor hp req 18-30 20-50 Working width cm (in) 150cm (59”) 180cm (71”) No of ripping tines 6 6 3 Point Linkage type CAT 1/2 CAT 1/2 Cutting blades) Bolt on replaceable edges Bolt on replaceable edges Weight kg (lb) 229kg (505lb) 384kg (847lb) Dimensions WxLxH cm (in) 150 x 60 x 70 (59 x 24 x 28”) 190 x 90 x 80 (75 x 35 x 31”) Options
Model 1500 1800 Swivel Wheel Kit 292.150.010 292.180.006
