5000/5000+ Series

Engineered to be the Industry’s Most Reliable and Best Performing Rotor

Offering unmatched performance from 25′ to 50′, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain™ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

Exclusive Triple Blade Wiper Seal
Industry-Leading Rain Curtain Nozzles
Options for Every Application
Backed by a 5-Year Trade Warranty

Key Features

Oversized wiper seal prevents leaks and protects internals from debris

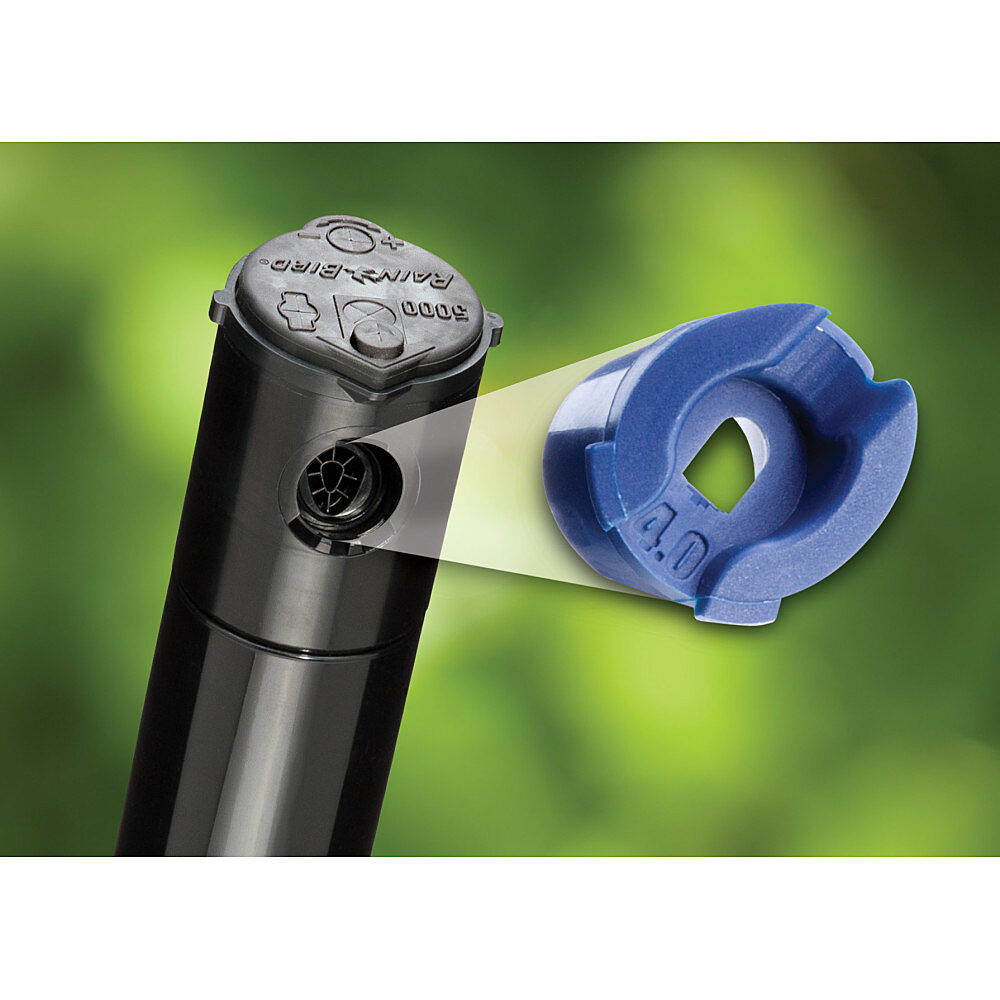

Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
A history of proven performance and reliability tested in millions of installations
Self-flushing arc adjustment port that prevents buildup of debris
5 year trade warranty

Specifications

Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)

Radius: 25 to 50 feet (7.6 to 15.2 m)

Radius may be reduced up to 25% with radius reduction screw

Pressure: 25 to 65 psi (1.7 to 4.5 bar)

Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)

Reversing full- and part-circle adjustment from 40° - 360°

Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.

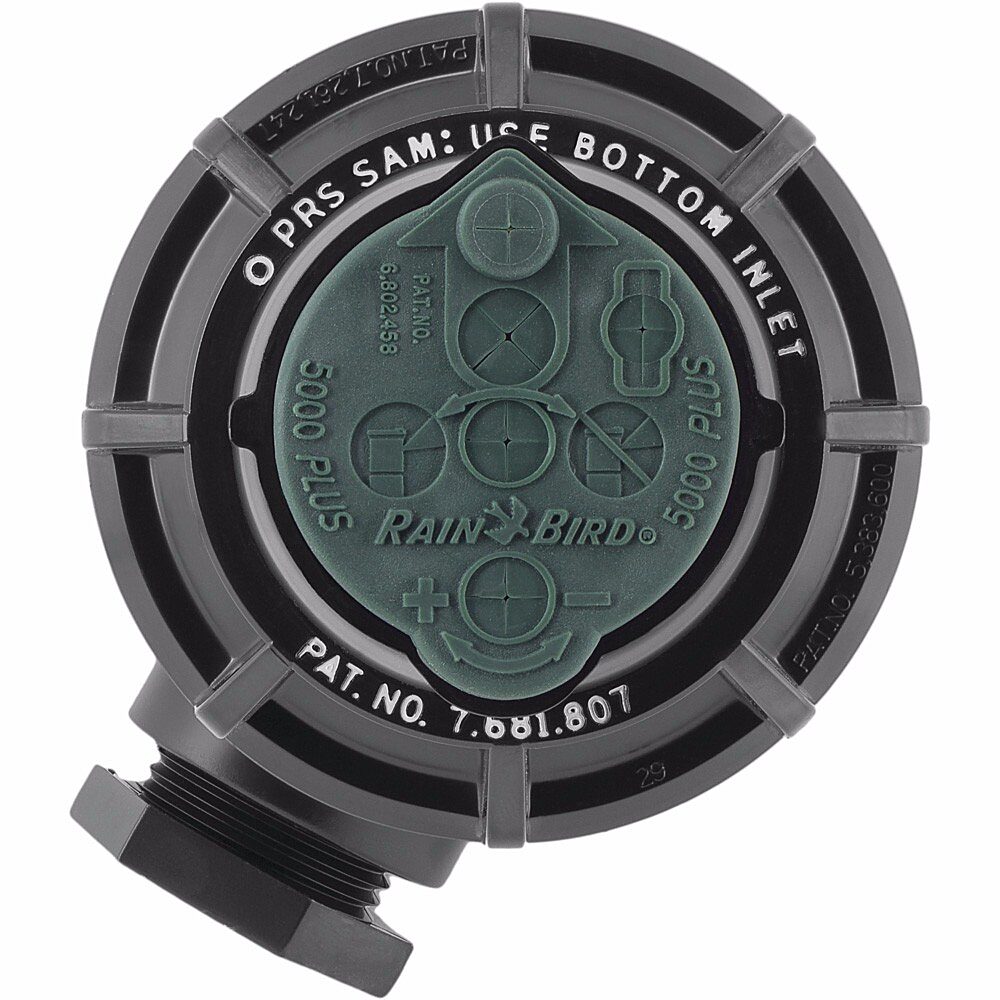

PLUS (+) FLOW SHUTOFF	“The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
PRS (R) WITH FLOW OPTIMIZER TECHNOLOGY	The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
SAM SEAL-A-MATIC™ CHECK VALVE	holds up to 7 feet (2.1 m) of elevation change

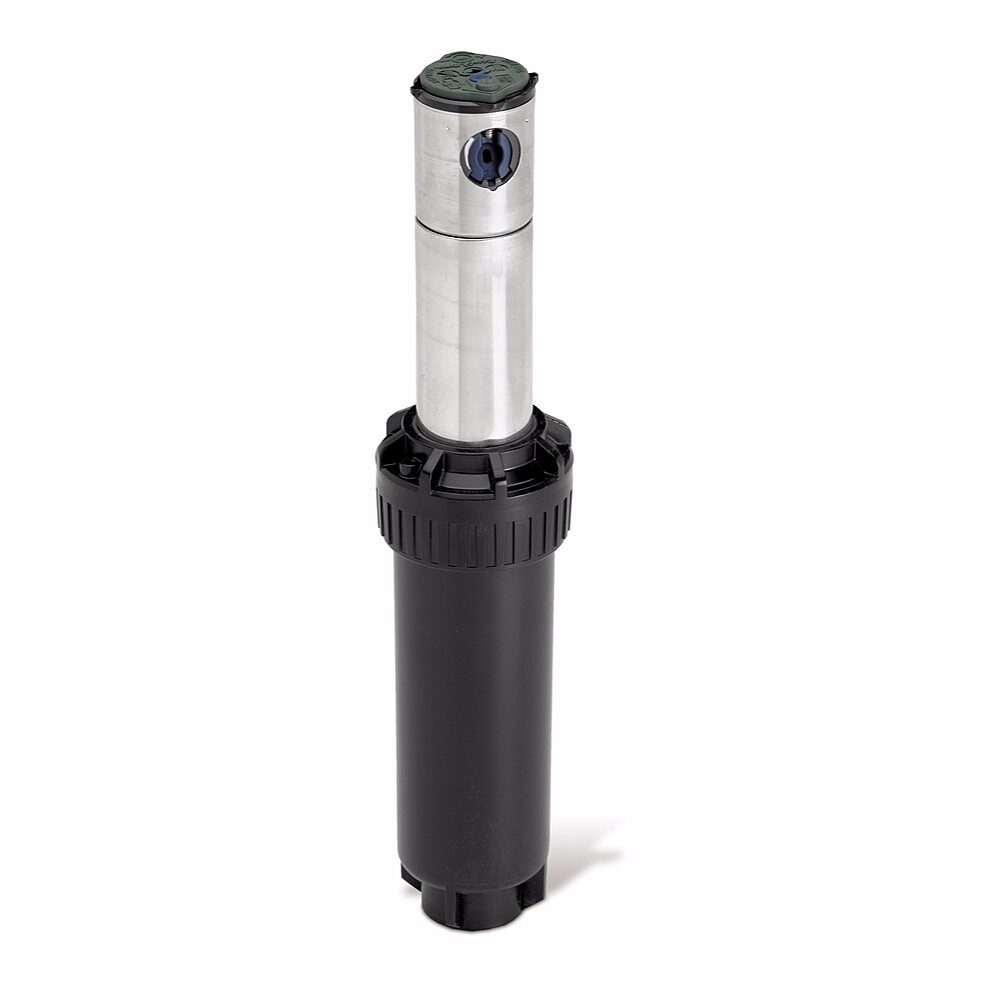

STAINLESS STEEL (SS) RISER	helps deter vandalism on public turf areas (available on 4 and 6" models)
PURPLE COVER (NP)	for non-potable systems

POP-UP HEIGHT	Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
OVERALL BODY HEIGHT	Shrub; 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
EXPOSED SURFACE DIAMETER	1 5/8" (4,1 cm)
