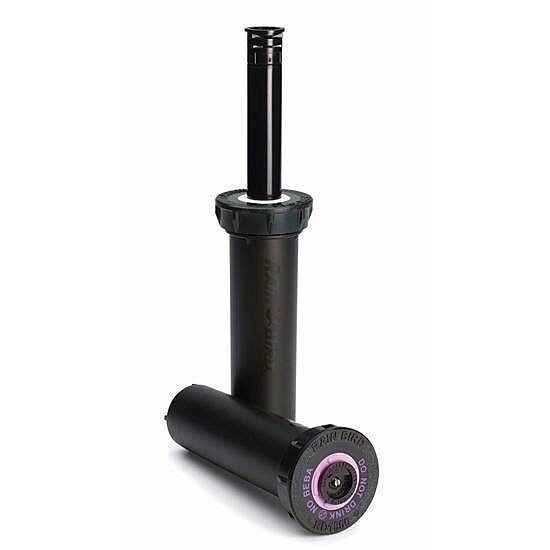

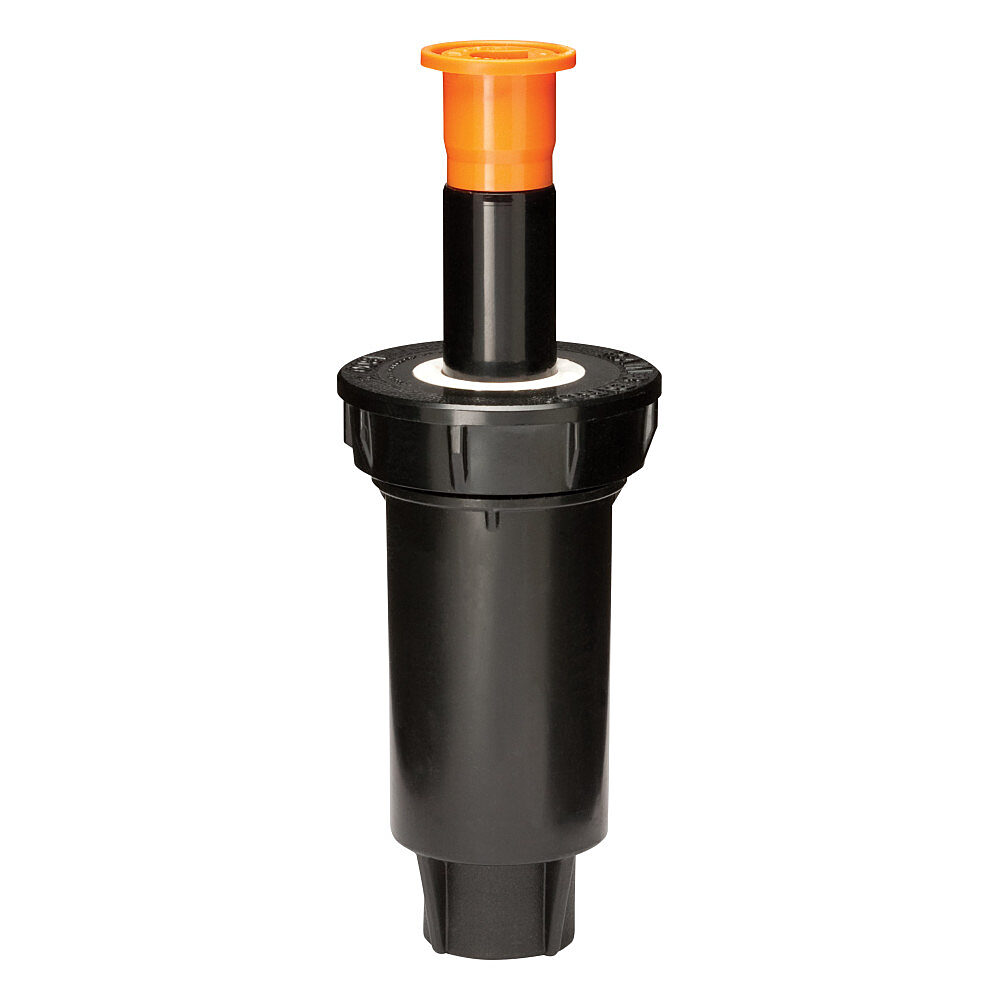

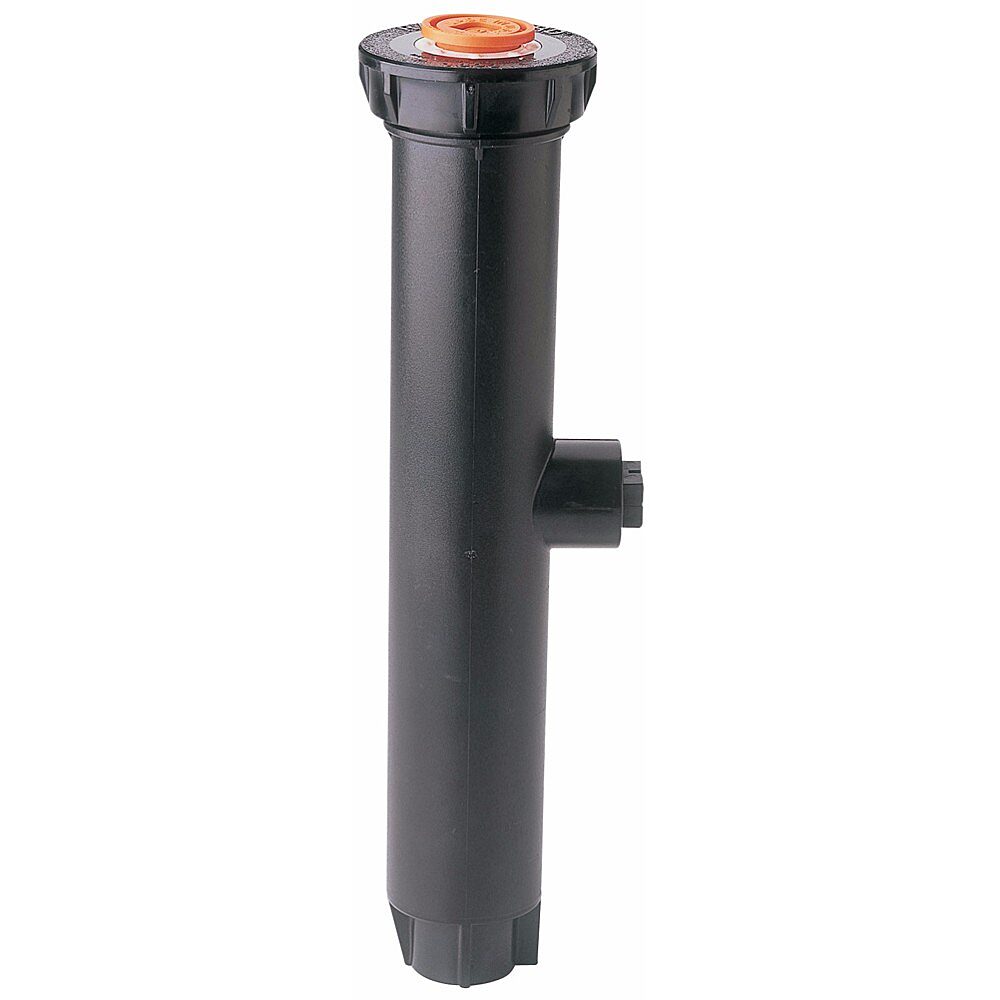

1800 Series Spray Heads
The #1 Irrigation Spray Head in the World
Installed in parks and backyards across the globe, Rain Bird’s 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.

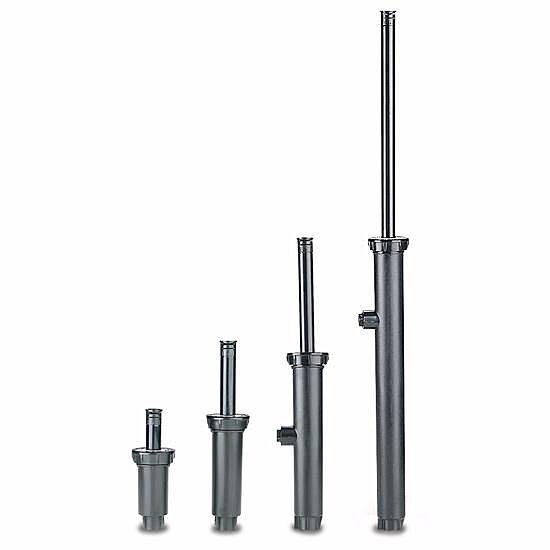

Chosen for its reliability, heavy-duty materials, and versatility, the 1800 Series offers a broad selection of pop up heights and nozzle combinations for watering shrubs, small lawns, and irregularly shaped planting areas.

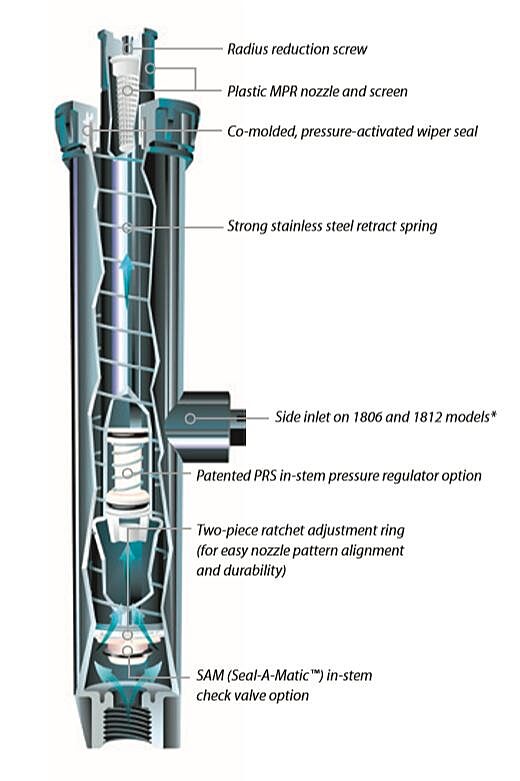

All models feature Rain Bird’s patented pop-up mechanism with heavy-duty stainless steel spring for dependable out-of-sight retraction, plus an exclusive co-molded wiper seal for unmatched resistance to grit, pressure, and extreme environments.
The Perfect Pair for Pressure Regulation
Rain Bird’s patented Pressure Regulating Stem (PRS) saves up to a gallon of water per minute.

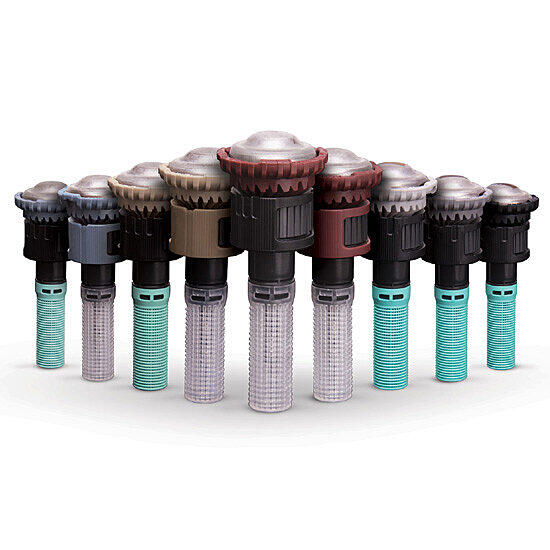

The 1800 PRS-45 Spray maintains optimal outlet pressure at 45 psi. For ultimate efficiency, pair with R-VAN Rotary Nozzles, which are engineered to work best at this pressure.
Key Features
All 1800s:
- Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
- Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
- Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
- Five-Year Trade Warranty
1800 SAM Series:
- Built-in Seal-A-Matic (SAM) check valve. Eliminates the need for under-the-head check valves
- Ideal for use in areas with changing elevations
- Traps water in lateral pipes in elevation changes of up to 14 feet (4.2 m), eliminating low head drainage at the base of slopes or hillsides
- Reduces wear on system components by minimizing water hammer during start-up
1800 PRS Series:
- All Rain Bird pressure regulating spray bodies are WaterSense certified by ICC-ES
- PATENTED PRS pressure regulator built into stem. No parts to be installed at the site. Saves time and money
- Maintains constant outlet pressure at 30psi (2.1 bar) or 45 psi (3.1 bar) at varying inlet pressures regardless of nozzles used
- 30 psi is recommended for optimal spray nozzle performance, 45 psi is recommended for optimal rotary nozzle performance
1800 SAM-PRS-30 and SAM-PRS-45 Series
- Combines Seal-A-Matic check valve and PRS-30 or PRS-45 for best performance
- Ideal for sloped applications that have fluctuating or high pressure
Specifications
Specs
FLOW-BY 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise SPACING 2.5 to 24 feet (0.8 to 7.3m)* PRESSURE 15 to 70 psi (1.0 to 4.8 bar) 1800 SAM Series
SAM capability: holds up to 14 feet (4.2 m) of head; 6 psi (0.4 bar) Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m) otherwise Installation: bottom inlet *2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles Dimensions

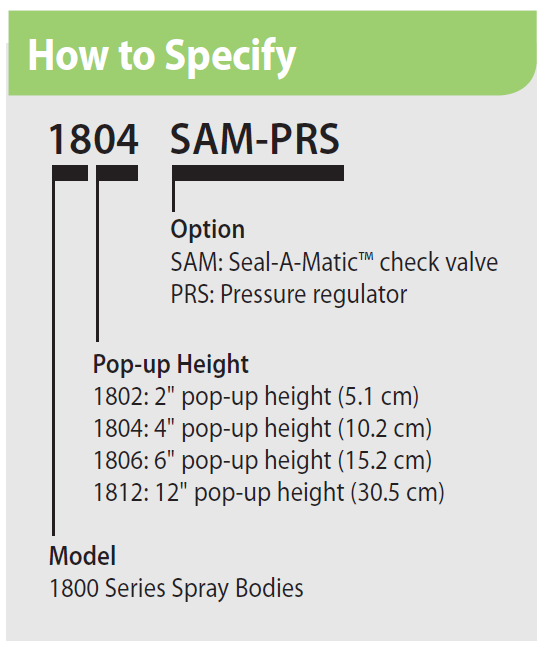

½" (15/21) NPT female threaded inlet Exposed surface diameter: 2¼ " (5.7 cm) 2" spray bodies: 4" (10.2 cm) body height; 2" pop-up height (5.1 cm) 4" spray bodies: 6" (15.2 cm) body height; 4" pop-up height (10.2 cm) 6" spray bodies: 9 3⁄8" (23.8 cm) body height; 6" pop-up height (15.2 cm) 12" spray bodies: 16" (40.6 cm) body height; 12" pop-up height (30.5 cm)
